3D场景中HUD的实现

开发游戏的老王发布时间：2019-10-23 17:22:41 ，浏览量：1

Godot Engine Alpha2

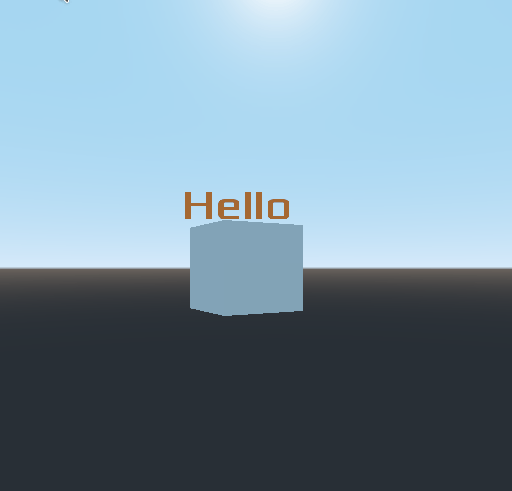

效果图

在这里插入图片描述

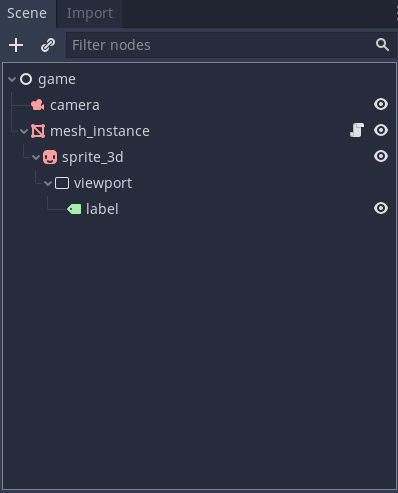

节点结构

在这里插入图片描述

mesh_instance ：用于显示角色模型
sprite_3d：是视口的渲染目标
viewport：视口
label：HUD内容

设置视口渲染目标

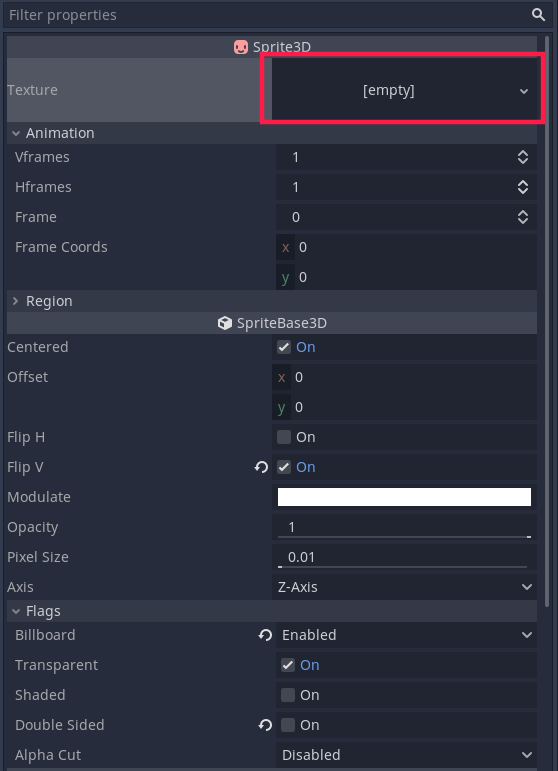

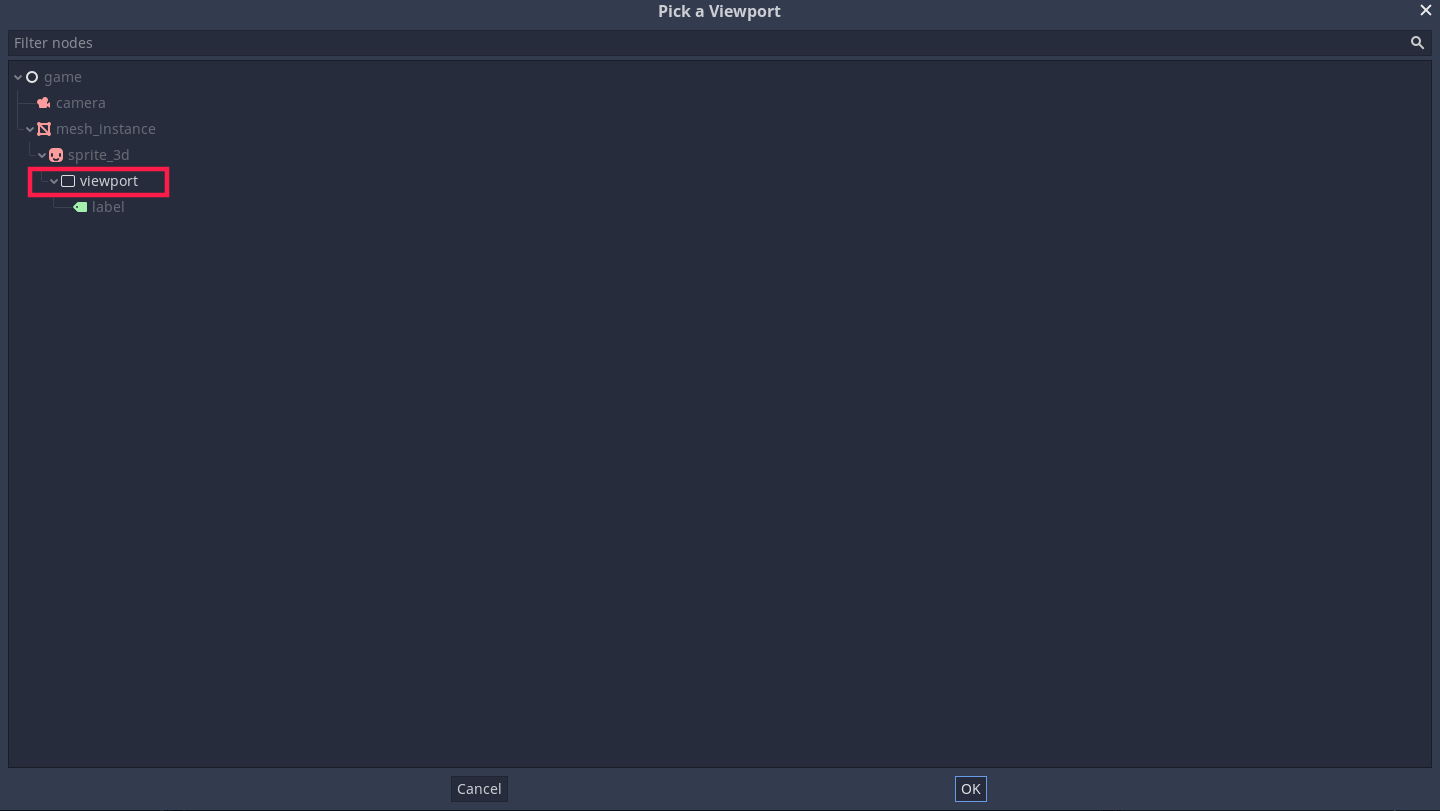

首先是sprite_3d的设置，为Texture添加一个ViewportTexture并为其选择场景中的viewport

在这里插入图片描述

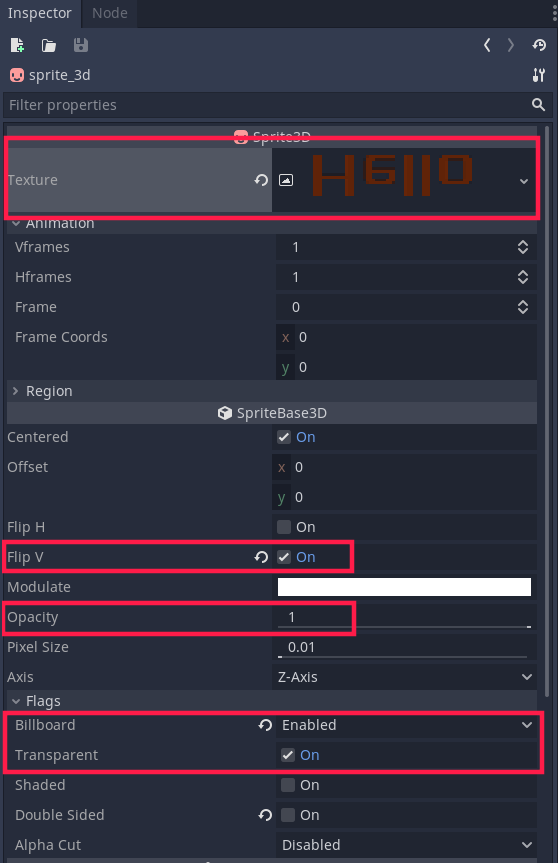

在这里插入图片描述注意SpriteBase3D的一些设置

在这里插入图片描述

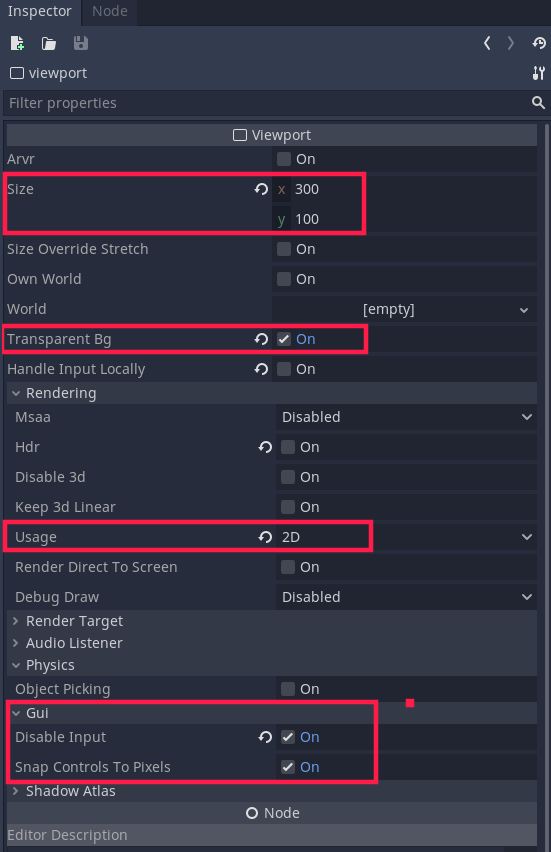

设置视口

在这里插入图片描述
