Centos7上Hadoop 3.3.1的高可用HA安装过程

1. 集群规划
2. 下载(在bigdata001操作)
3. 配置文件修改(在bigdata001操作)
- 3.1 hadoop-env.sh
- 3.2 core-site.xml
- 3.3 hdfs-site.xml
- 3.4 mapred-site.xml
- 3.5 yarn-site.xml
- 3.6 修改workers文件
4. hadoop目录分发（在bigdata001操作)
5. 初始化和启动（在bigdata001操作)
- 5.1 添加环境变量
- 5.2 HDFS
- 5.3 YARN

1. 集群规划

每台服务器相互设置ssh无密码登录，注意authorized_keys权限为600。可以用ssh-copy-id hostname将本机的id_rsa.pub内容复制到远程服务器的.ssh/authorized_key中

服务名安装服务器服务作用安装教程备注java8bigdata001/2/3zookeeperbigdata001/2/3基于Centos7分布式安装Zookeeper3.6.3NameNodebigdata001/2/3DataNodebigdata001/2/3JournalNodesbigdata001/2/3active Namenode写入edit logs到JournalNodes，standby NameNode从JournalNodes读取edit logsZKFCbigdata001/2/3NameNode和zookeeper通信的客户端ResourceManagerbigdata001/2/3不用JournalNodes，直接用zookeeper进行state-store；不用ZKFC，内置了zookeeper的客户端NodeManagerbigdata001/2/3 2. 下载(在bigdata001操作)

执行下面的命令进行下载和解压

curl -O https://ftp.nluug.nl/internet/apache/hadoop/common/hadoop-3.3.1/hadoop-3.3.1.tar.gz

tar -zxvf hadoop-3.3.1.tar.gz

进入hadoop目录

[root@bigdata001 opt]#
[root@bigdata001 opt]# cd hadoop-3.3.1
[root@bigdata001 hadoop-3.3.1]#
[root@bigdata001 hadoop-3.3.1]# pwd
/opt/hadoop-3.3.1
[root@bigdata001 hadoop-3.3.1]#

3. 配置文件修改(在bigdata001操作) 3.1 hadoop-env.sh

创建pids和logs文件

[root@bigdata001 hadoop-3.3.1]#
[root@bigdata001 hadoop-3.3.1]# mkdir pids
[root@bigdata001 hadoop-3.3.1]#
[root@bigdata001 hadoop-3.3.1]# mkdir logs
[root@bigdata001 hadoop-3.3.1]#
[root@bigdata001 hadoop-3.3.1]# ls
bin  etc  include  lib  libexec  LICENSE-binary  licenses-binary  LICENSE.txt  logs  NOTICE-binary  NOTICE.txt  pids  README.txt  sbin  share
[root@bigdata001 hadoop-3.3.1]#
[root@bigdata001 hadoop-3.3.1]# pwd
/opt/hadoop-3.3.1
[root@bigdata001 hadoop-3.3.1]#

修改etc/hadoop/hadoop-env.sh文件

修改部分：

export JAVA_HOME=/opt/jdk1.8.0_201
export HADOOP_PID_DIR=/opt/hadoop-3.3.1/pids
export HADOOP_LOG_DIR=/opt/hadoop-3.3.1/logs

export HDFS_NAMENODE_USER=root

添加部分

export HDFS_DATANODE_USER=root
export HDFS_SECONDARYNAMENODE_USER=root
export YARN_RESOURCEMANAGER_USER=root
export YARN_NODEMANAGER_USER=root
export HDFS_JOURNALNODE_USER=root
export HDFS_ZKFC_USER=root

3.2 core-site.xml

修改etc/hadoop/core-site.xml

添加部分:


        fs.defaultFS
        hdfs://nnha



        io.file.buffer.size
        131072



        ha.zookeeper.quorum
        bigdata001:2181,bigdata002:2181,bigdata003:2181



        hadoop.proxyuser.root.hosts
        *
        Hadoop的超级用户root能代理的节点



        hadoop.proxyuser.root.groups
        *
        Hadoop的超级用户root能代理的用户组

3.3 hdfs-site.xml

修改etc/hadoop/hdfs-site.xml

添加namenode和datanode文件夹

[root@bigdata001 hadoop-3.3.1]#
[root@bigdata001 hadoop-3.3.1]# mkdir namenode
[root@bigdata001 hadoop-3.3.1]#
[root@bigdata001 hadoop-3.3.1]# mkdir datanode
[root@bigdata001 hadoop-3.3.1]#
[root@bigdata001 hadoop-3.3.1]# mkdir journalnode
[root@bigdata001 hadoop-3.3.1]#
[root@bigdata001 hadoop-3.3.1]# pwd
/opt/hadoop-3.3.1
[root@bigdata001 hadoop-3.3.1]#

添加部分:


        dfs.replication
        1



        dfs.namenode.name.dir
        /opt/hadoop-3.3.1/namenode



        dfs.blocksize
        268435456



        dfs.namenode.handler.count
        100



        dfs.datanode.data.dir
        /opt/hadoop-3.3.1/datanode



        dfs.ha.automatic-failover.enabled
        true



        dfs.nameservices
        nnha



        dfs.ha.namenodes.nnha
        nn1,nn2,nn3



        dfs.namenode.rpc-address.nnha.nn1
        bigdata001:8020



        dfs.namenode.rpc-address.nnha.nn2
        bigdata002:8020



        dfs.namenode.rpc-address.nnha.nn3
        bigdata003:8020



        dfs.namenode.http-address.nnha.nn1
        bigdata001:9870



        dfs.namenode.http-address.nnha.nn2
        bigdata002:9870



        dfs.namenode.http-address.nnha.nn3
        bigdata003:9870




        dfs.namenode.shared.edits.dir
        qjournal://bigdata001:8485;bigdata002:8485;bigdata003:8485/nnha




        dfs.client.failover.proxy.provider.nnha
        org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider




        dfs.ha.fencing.methods
        sshfence



        dfs.ha.fencing.ssh.private-key-files
        /root/.ssh/id_rsa




        dfs.journalnode.edits.dir
        /opt/hadoop-3.3.1/journalnode




        dfs.ha.nn.not-become-active-in-safemode
        false

3.4 mapred-site.xml

修改etc/hadoop/mapred-site.xml

添加部分：


        mapreduce.framework.name
        yarn

3.5 yarn-site.xml

修改etc/hadoop/yarn-site.xml

[root@bigdata001 hadoop-3.3.1]#
[root@bigdata001 hadoop-3.3.1]# pwd
/opt/hadoop-3.3.1
[root@bigdata001 hadoop-3.3.1]#
[root@bigdata001 hadoop-3.3.1]# mkdir nm-local-dir
[root@bigdata001 hadoop-3.3.1]# mkdir nm-log-dir
[root@bigdata001 hadoop-3.3.1]# mkdir nm-remote-app-log-dir
[root@bigdata001 hadoop-3.3.1]#

添加部分：



        yarn.acl.enable
        false



        yarn.log-aggregation-enable
        false



        yarn.resourcemanager.address
        ${yarn.resourcemanager.hostname}:8032




        yarn.resourcemanager.scheduler.address
        ${yarn.resourcemanager.hostname}:8030



        yarn.resourcemanager.resource-tracker.address
        ${yarn.resourcemanager.hostname}:8031



        yarn.resourcemanager.admin.address
        ${yarn.resourcemanager.hostname}:8033



        yarn.resourcemanager.hostname
        bigdata001



        yarn.resourcemanager.scheduler.class
        org.apache.hadoop.yarn.server.resourcemanager.scheduler.capacity.CapacityScheduler



        yarn.scheduler.minimum-allocation-mb
        1024



        yarn.scheduler.maximum-allocation-mb
        8192



        yarn.resourcemanager.nodes.include-path




        yarn.nodemanager.resource.memory-mb
        8192



        yarn.nodemanager.vmem-pmem-ratio
        2.1



        yarn.nodemanager.local-dirs
        /opt/hadoop-3.3.1/nm-local-dir



        yarn.nodemanager.log-dirs
        /opt/hadoop-3.3.1/nm-log-dir



        yarn.nodemanager.log.retain-seconds
        10800



        yarn.nodemanager.remote-app-log-dir
        /opt/hadoop-3.3.1/nm-remote-app-log-dir



        yarn.nodemanager.remote-app-log-dir-suffix
        logs



        yarn.nodemanager.aux-services
        mapreduce_shuffle



        yarn.nodemanager.env-whitelist
        JAVA_HOME,HADOOP_COMMON_HOME,HADOOP_HDFS_HOME,HADOOP_CONF_DIR,CLASSPATH_PREPEND_DISTCACHE,HADOOP_YARN_HOME,HADOOP_HOME,PATH,LANG,TZ,HADOOP_MAPRED_HOME



        yarn.resourcemanager.ha.enabled
        true



        yarn.resourcemanager.cluster-id
        rmha



        yarn.resourcemanager.ha.rm-ids
        rm1,rm2,rm3



        yarn.resourcemanager.hostname.rm1
        bigdata001



        yarn.resourcemanager.hostname.rm2
        bigdata002



        yarn.resourcemanager.hostname.rm3
        bigdata003



        yarn.resourcemanager.webapp.address.rm1
        bigdata001:8088



        yarn.resourcemanager.webapp.address.rm2
        bigdata002:8088



        yarn.resourcemanager.webapp.address.rm3
        bigdata003:8088



        hadoop.zk.address
        bigdata001:2181,bigdata002:2181,bigdata003:2181

3.6 修改workers文件

bigdata001
bigdata002
bigdata003

4. hadoop目录分发（在bigdata001操作)

将bigdata001上配置的hadoop目录分发到其余两台服务器

[root@bigdata001 opt]# scp -r /opt/hadoop-3.3.1 root@bigdata002:/opt
[root@bigdata001 opt]# scp -r /opt/hadoop-3.3.1 root@bigdata003:/opt

5. 初始化和启动（在bigdata001操作) 5.1 添加环境变量

/etc/profile添加内容如下：

export HADOOP_HOME=/opt/hadoop-3.3.1

export PATH=$PATH:$HADOOP_HOME/bin:$HADOOP_HOME/sbin

使环境变量生效

[root@bigdata001 ~]#
[root@bigdata001 ~]# source /etc/profile
[root@bigdata001 ~]#

5.2 HDFS

注意：初始化后，只需在bigdata001上执行start-dfs.sh和stop-dfs.sh

启动journalnode（在bigdata002/3也要执行)

[root@bigdata001 opt]#
[root@bigdata001 opt]# /opt/hadoop-3.3.1/bin/hdfs --daemon start journalnode
[root@bigdata001 opt]#

hdfs初始化

[root@bigdata001 opt]#
[root@bigdata001 opt]# hdfs namenode -format
[root@bigdata001 opt]#

启动bigdata001上的NameNode

[root@bigdata001 opt]#
[root@bigdata001 opt]# hdfs --daemon start namenode
[root@bigdata001 opt]#

启动bigdata002和bigdata003上的NameNode, 并同步active NameNode的数据（只在bigdata002和bigdata003上执行)

[root@bigdata002 opt]#
[root@bigdata002 opt]# /opt/hadoop-3.3.1/bin/hdfs namenode -bootstrapStandby
[root@bigdata002 opt]#

初始化zookeeper中NameNode的数据

[root@bigdata001 opt]#
[root@bigdata001 opt]# hdfs zkfc -formatZK
[root@bigdata001 opt]#

stop hdfs相关的服务

[root@bigdata001 opt]#
[root@bigdata001 opt]# stop-dfs.sh
Stopping namenodes on [bigdata001 bigdata002 bigdata003]
上一次登录：三 8月 11 16:15:59 CST 2021pts/0 上
Stopping datanodes
上一次登录：三 8月 11 16:41:30 CST 2021pts/0 上
Stopping journal nodes [bigdata002 bigdata003 bigdata001]
上一次登录：三 8月 11 16:41:32 CST 2021pts/0 上
Stopping ZK Failover Controllers on NN hosts [bigdata001 bigdata002 bigdata003]
上一次登录：三 8月 11 16:41:34 CST 2021pts/0 上
[root@bigdata001 opt]#

启动hdfs

[root@bigdata001 opt]#
[root@bigdata001 opt]# start-dfs.sh
Starting namenodes on [bigdata001 bigdata002 bigdata003]
上一次登录：三 8月 11 16:41:37 CST 2021pts/0 上
Starting datanodes
上一次登录：三 8月 11 16:42:17 CST 2021pts/0 上
Starting journal nodes [bigdata002 bigdata003 bigdata001]
上一次登录：三 8月 11 16:42:20 CST 2021pts/0 上
Starting ZK Failover Controllers on NN hosts [bigdata001 bigdata002 bigdata003]
上一次登录：三 8月 11 16:42:24 CST 2021pts/0 上
[root@bigdata001 opt]#

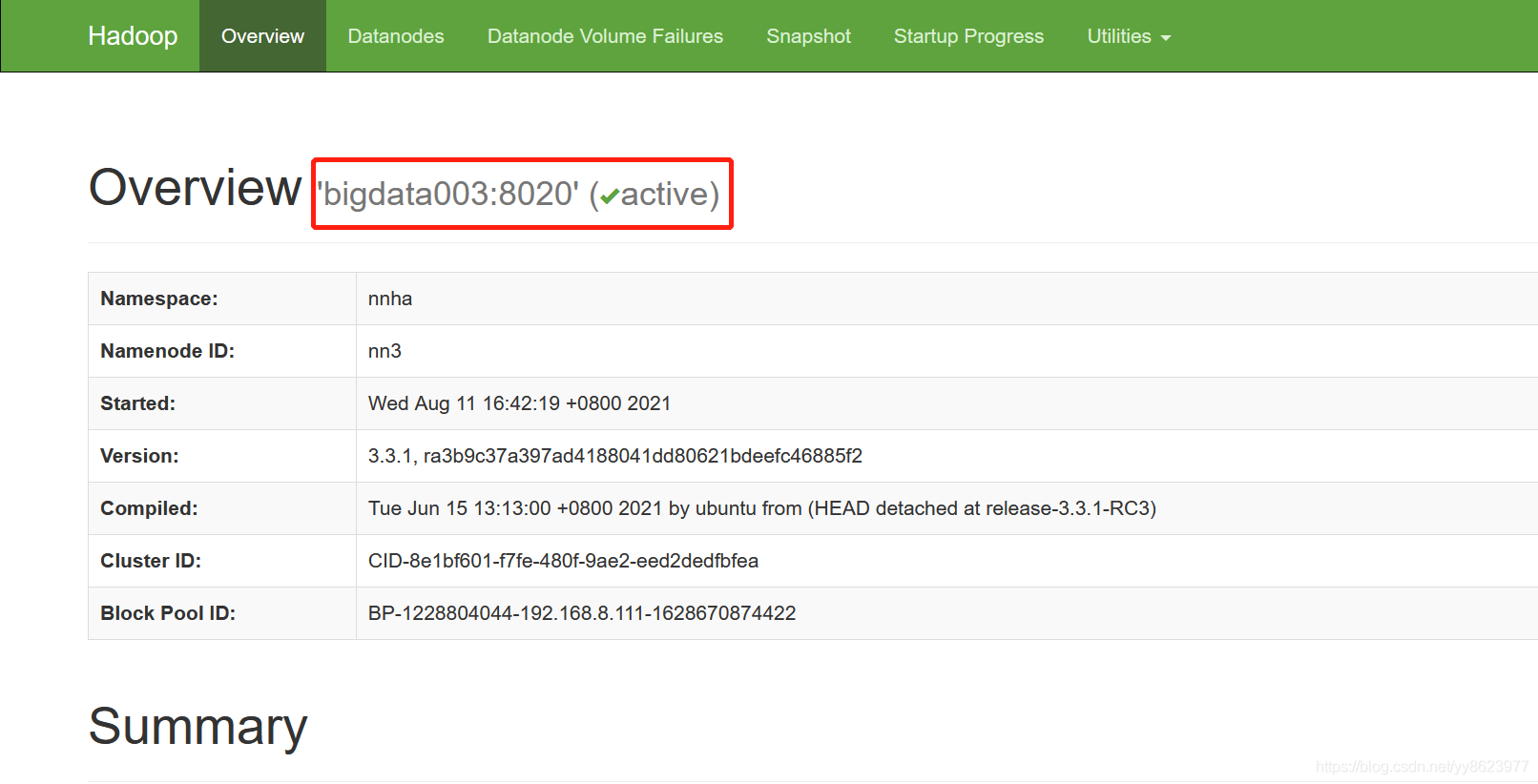

通过http://bigdata001:9870、http://bigdata002:9870、http://bigdata003:9870进行访问，只有bigdata003上的NameNode是active状态

5.3 YARN

启动yarn

[root@bigdata001 opt]#
[root@bigdata001 opt]# start-yarn.sh
Starting resourcemanagers on [ bigdata001 bigdata002 bigdata003]
上一次登录：三 8月 11 16:42:28 CST 2021pts/0 上
Starting nodemanagers
上一次登录：三 8月 11 17:11:25 CST 2021pts/0 上
[root@bigdata001 opt]#

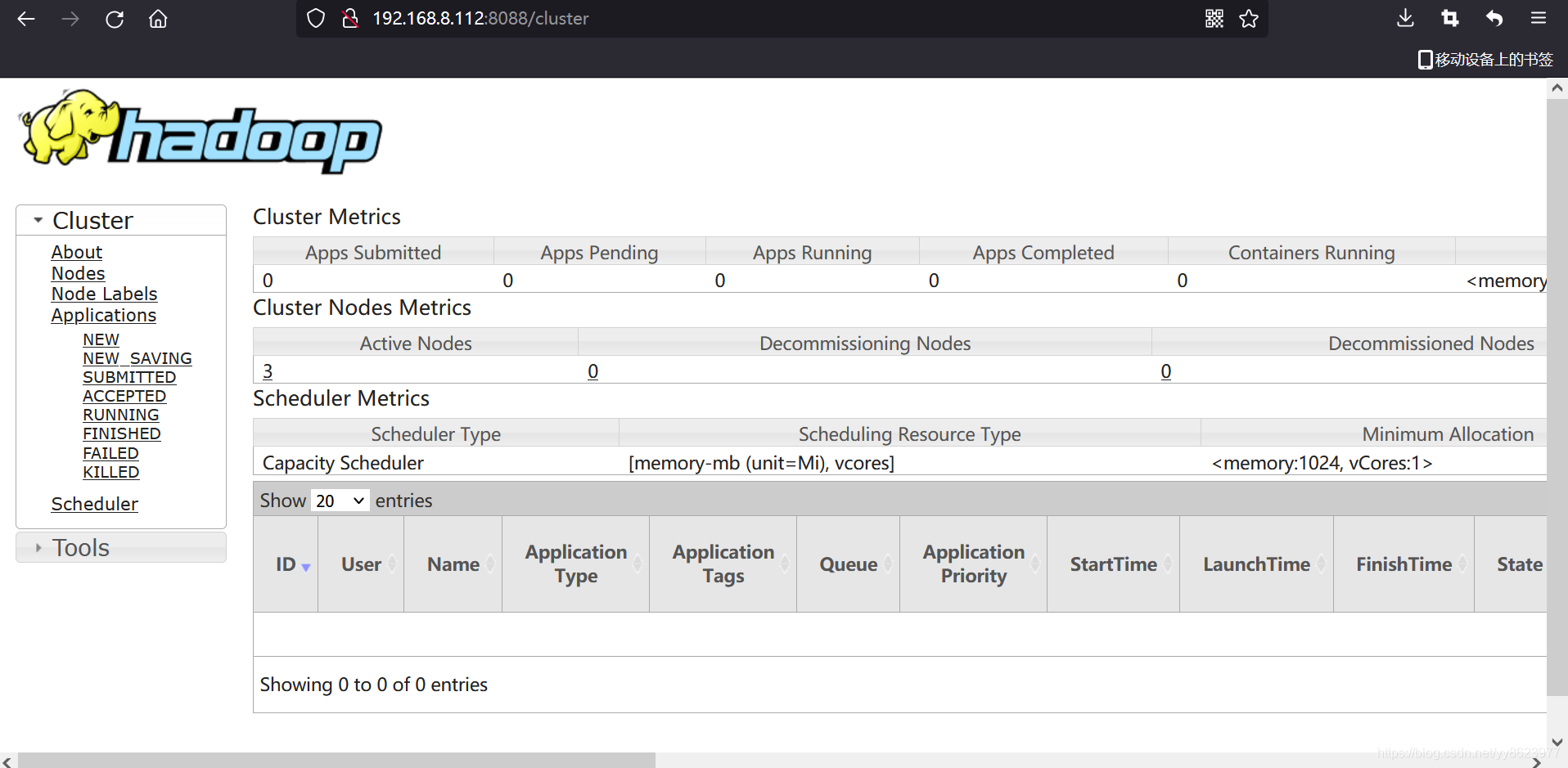

通过http://bigdata002:8088/进行访问(只能访问active节点)

yarn web页面

停止yarn

[root@bigdata001 opt]#
[root@bigdata001 opt]# stop-yarn.sh
Stopping nodemanagers
上一次登录：三 8月 11 17:21:20 CST 2021pts/0 上
Stopping resourcemanagers on [ bigdata001 bigdata002 bigdata003]
上一次登录：三 8月 11 17:25:08 CST 2021pts/0 上
[root@bigdata001 opt]#
