Spark3.1.2 Standalone高可用HA分布式部署(含pyspark）

1. 节点规划 服务hostname备注masterbigdata001、bigdata002、bigdata003slavebigdata001、bigdata002、bigdata003zookeeperbigdata001、bigdata002、bigdata003安装请参考基于Centos7分布式安装Zookeeper3.6.3python3.9.6bigdata001、bigdata002、bigdata003安装请参考centos7同时安装Python2和Python3

以下操作除非特殊说明，否则都是在bigdata001上操作

2. 下载解压

[root@bigdata001 opt]#
[root@bigdata001 opt]# wget --no-check-certificate https://dlcdn.apache.org/spark/spark-3.1.2/spark-3.1.2-bin-hadoop3.2.tgz
[root@bigdata001 opt]#
[root@bigdata001 opt]# tar -zxvf spark-3.1.2-bin-hadoop3.2.tgz
[root@bigdata001 opt]#
[root@bigdata001 opt]# cd spark-3.1.2-bin-hadoop3.2/
[root@bigdata001 spark-3.1.2-bin-hadoop3.2]#

3. 修改配置 3.1 修改conf/spark-env.sh

[root@bigdata001 conf]#
[root@bigdata001 conf]# cp spark-env.sh.template spark-env.sh
[root@bigdata001 conf]#

添加内容如下：

export JAVA_HOME=/opt/jdk1.8.0_201
SPARK_MASTER_HOST=`hostname`
SPARK_MASTER_WEBUI_PORT=8060
SPARK_LOCAL_DIRS=/opt/spark-3.1.2-bin-hadoop3.2/local
SPARK_WORKER_CORES=3
SPARK_WORKER_MEMORY=6g
SPARK_DAEMON_JAVA_OPTS="-Dspark.deploy.recoveryMode=ZOOKEEPER -Dspark.deploy.zookeeper.url=bigdata001:2181,bigdata002:2181,bigdata003:2181 -Dspark.deploy.zookeeper.dir=/spark/standalone_ha"

3.2 修改conf/workers

[root@bigdata001 conf]#
[root@bigdata001 conf]# cp workers.template workers
[root@bigdata001 conf]#

内容如下：

[root@bigdata001 conf]#
[root@bigdata001 conf]# cat workers
#
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#    http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

# A Spark Worker will be started on each of the machines listed below.

bigdata001
bigdata002
bigdata003
[root@bigdata001 conf]#

4. 配置环境变量

在/root/.bashrc添加如下内容：

export SPARK_HOME=/opt/spark-3.1.2-bin-hadoop3.2
export PATH=$PATH:$SPARK_HOME/bin:$SPARK_HOME/sbin

执行source /root/.bashrc使环境变量生效

5. 分发spark文件

[root@bigdata001 opt]#
[root@bigdata001 opt]# scp -r spark-3.1.2-bin-hadoop3.2/ root@bigdata002:/opt
[root@bigdata001 opt]#
[root@bigdata001 opt]# scp -r spark-3.1.2-bin-hadoop3.2/ root@bigdata003:/opt
[root@bigdata001 opt]#

6. 启动

1. 启动bigdata001上的master和所有的slave

[root@bigdata001 opt]#
[root@bigdata001 opt]# sh $SPARK_HOME/sbin/start-all.sh
starting org.apache.spark.deploy.master.Master, logging to /opt/spark-3.1.2-bin-hadoop3.2/logs/spark-root-org.apache.spark.deploy.master.Master-1-bigdata001.out
bigdata001: starting org.apache.spark.deploy.worker.Worker, logging to /opt/spark-3.1.2-bin-hadoop3.2/logs/spark-root-org.apache.spark.deploy.worker.Worker-1-bigdata001.out
bigdata003: starting org.apache.spark.deploy.worker.Worker, logging to /opt/spark-3.1.2-bin-hadoop3.2/logs/spark-root-org.apache.spark.deploy.worker.Worker-1-bigdata003.out
bigdata002: starting org.apache.spark.deploy.worker.Worker, logging to /opt/spark-3.1.2-bin-hadoop3.2/logs/spark-root-org.apache.spark.deploy.worker.Worker-1-bigdata002.out
[root@bigdata001 opt]#

2. 分别在bigdata002、bigdata003上启动standby master

[root@bigdata002 ~]#
[root@bigdata002 ~]# /opt/spark-3.1.2-bin-hadoop3.2/sbin/start-master.sh
starting org.apache.spark.deploy.master.Master, logging to /opt/spark-3.1.2-bin-hadoop3.2/logs/spark-root-org.apache.spark.deploy.master.Master-1-bigdata002.out
[root@bigdata002 ~]#

[root@bigdata003 ~]#
[root@bigdata003 ~]# /opt/spark-3.1.2-bin-hadoop3.2/sbin/start-master.sh
starting org.apache.spark.deploy.master.Master, logging to /opt/spark-3.1.2-bin-hadoop3.2/logs/spark-root-org.apache.spark.deploy.master.Master-1-bigdata003.out
[root@bigdata003 ~]#

7. 查看Web界面

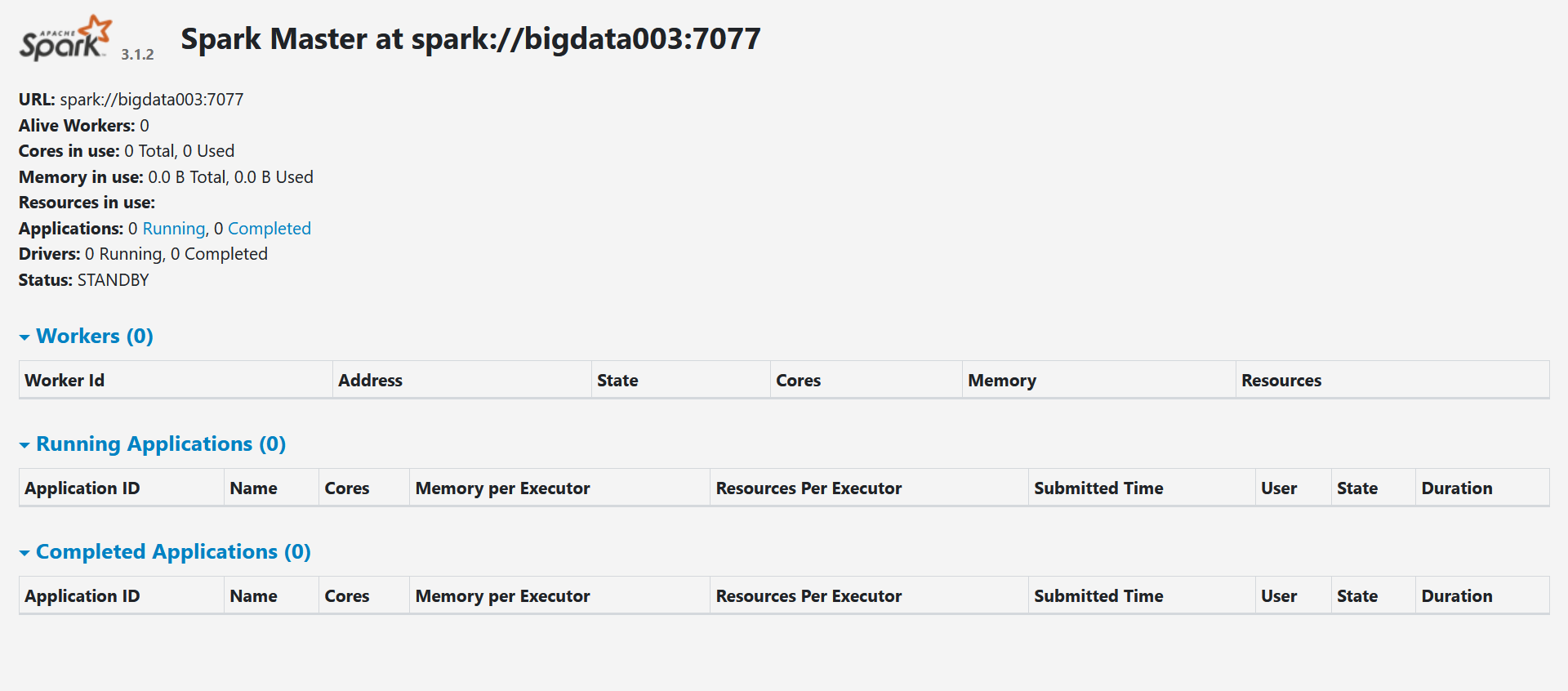

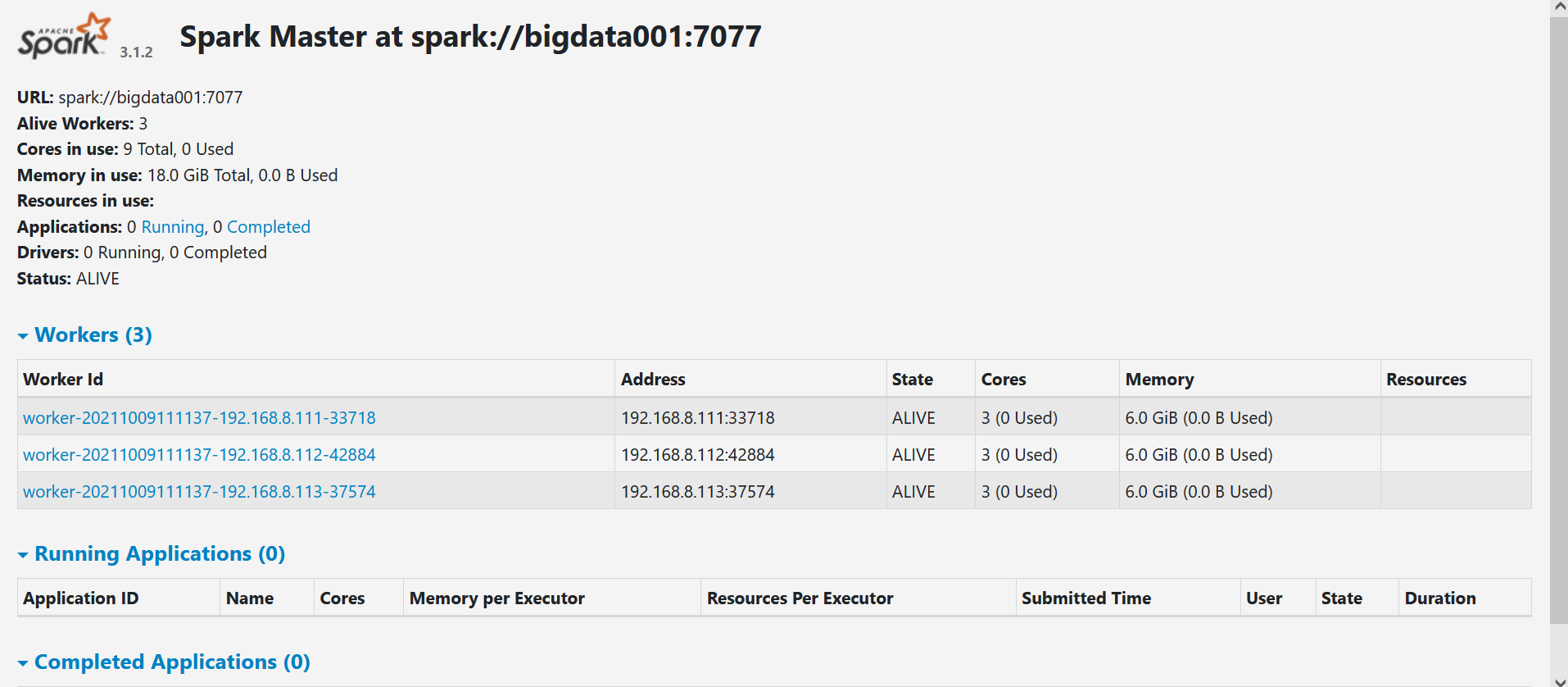

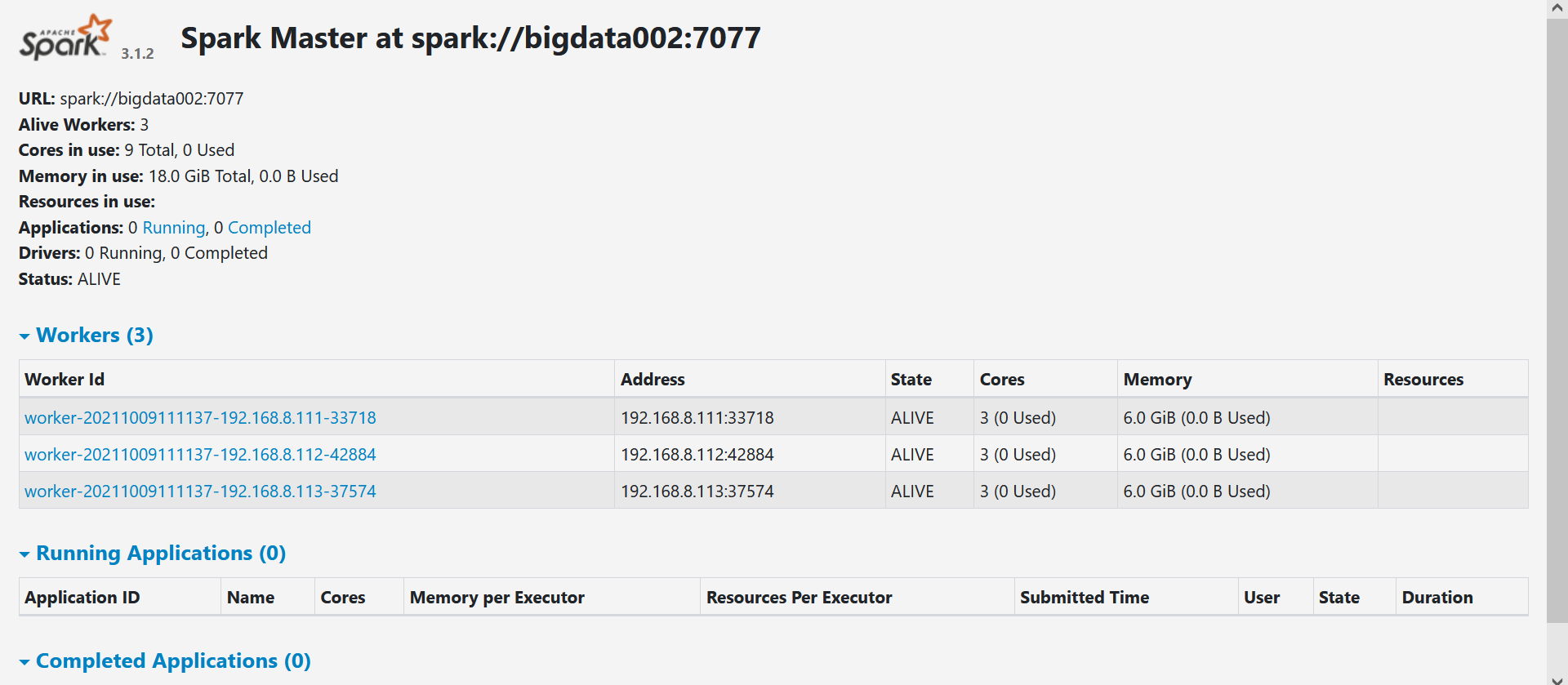

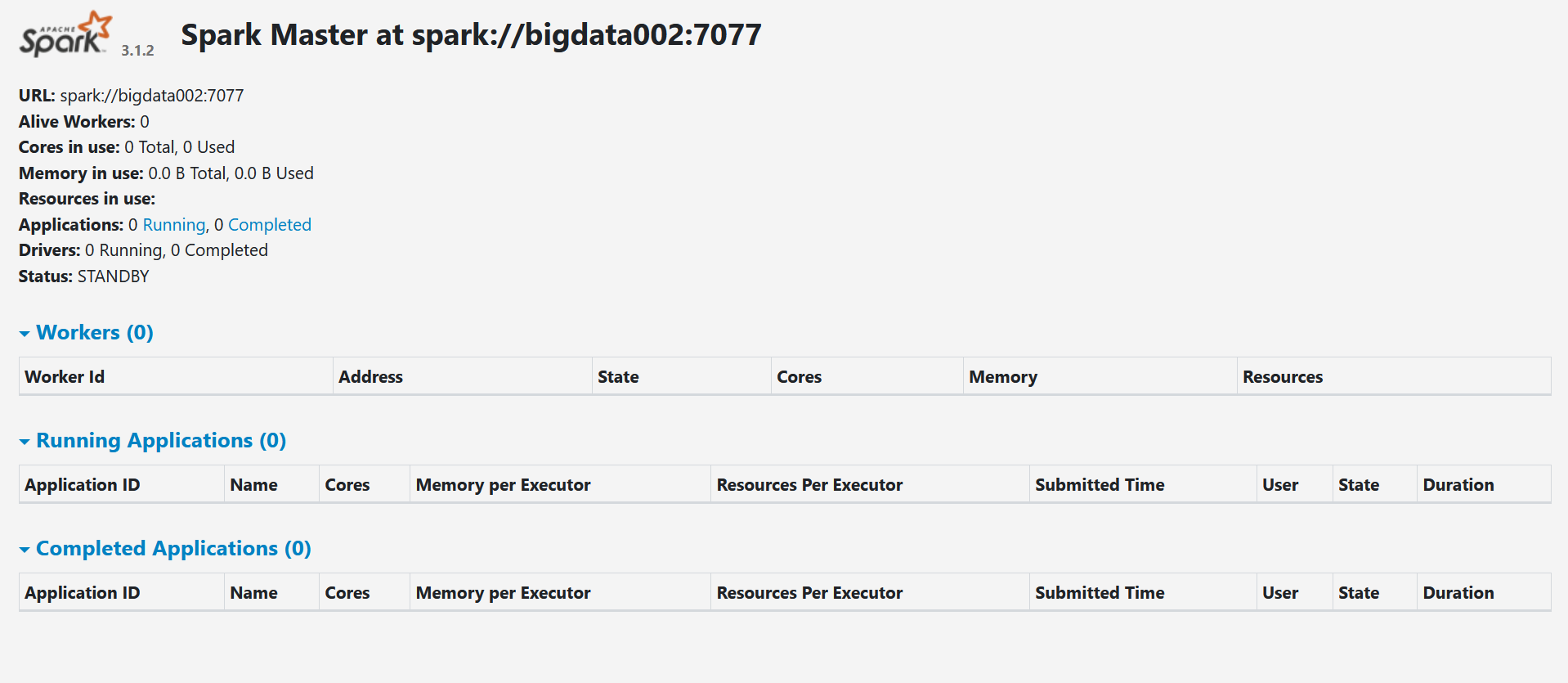

查看bigdata001:8060、bigdata002:8060、bigdata003:8060界面分别如下：

8. standby master切换

现在kill掉bigdata001上的master

[root@bigdata001 opt]#
[root@bigdata001 opt]# jps
......省略部分......
3821 Master
......省略部分......
[root@bigdata001 opt]#
[root@bigdata001 opt]# kill -9 3821
[root@bigdata001 opt]#

再次查看bigdata002:8060，结果如下：

9. spark-shell使用

[root@bigdata001 opt]#
[root@bigdata001 opt]# $SPARK_HOME/bin/spark-shell --master spark://bigdata001:7077,bigdata002:7077,bigdata003:7077
2021-10-09 11:40:35,975 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
Spark context Web UI available at http://bigdata001:4040
Spark context available as 'sc' (master = spark://bigdata001:7077,bigdata002:7077,bigdata003:7077, app id = app-20211009114042-0000).
Spark session available as 'spark'.
Welcome to
      ____              __
     / __/__  ___ _____/ /__
    _\ \/ _ \/ _ `/ __/  '_/
   /___/ .__/\_,_/_/ /_/\_\   version 3.1.2
      /_/

Using Scala version 2.12.10 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_201)
Type in expressions to have them evaluated.
Type :help for more information.

scala> sc.parallelize(Seq(1, 2, 3, 4, 5, 6)).toDF("number").show()
+------+
|number|
+------+
|     1|
|     2|
|     3|
|     4|
|     5|
|     6|
+------+


scala>

10.PySparkShell使用

[root@bigdata001 opt]#
[root@bigdata001 opt]# $SPARK_HOME/bin/pyspark --master spark://bigdata001:7077,bigdata002:7077,bigdata003:7077
Python 3.9.6 (default, Oct  9 2021, 14:08:00)
[GCC 4.8.5 20150623 (Red Hat 4.8.5-44)] on linux
Type "help", "copyright", "credits" or "license" for more information.
2021-10-09 14:46:58,145 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
Welcome to
      ____              __
     / __/__  ___ _____/ /__
    _\ \/ _ \/ _ `/ __/  '_/
   /__ / .__/\_,_/_/ /_/\_\   version 3.1.2
      /_/

Using Python version 3.9.6 (default, Oct  9 2021 14:08:00)
Spark context Web UI available at http://bigdata001:4040
Spark context available as 'sc' (master = spark://bigdata001:7077,bigdata002:7077,bigdata003:7077, app id = app-20211009144700-0002).
SparkSession available as 'spark'.
>>> sc.parallelize([(1,), (2,), (3,), (4,), (5,), (6,)]).toDF(['number']).show()
+------+
|number|
+------+
|     1|
|     2|
|     3|
|     4|
|     5|
|     6|
+------+

>>>
