【Iceberg表规范】表格式版本、系统架构、Sequence Numbers和Row-level Deletes

1. Format Versioning表格式版本
2. Overview
- 2.1 Sequence Numbers序列号
- 2.2 Row-level Deletes
3. Specification规范
- 3.1 v1和v2版本的Writer和reader兼容性要求

1. Format Versioning表格式版本

表格式有版本1和版本2，可以通过format-version参数进行指定，默认值是1

版本1: 分析型数据表

使用的是不可变的文件格式：parquet、avro、orc

版本2：行级更新和删除

当进行更新和删除，会添加不可变的delete files，来表明行被更新或删除。同时该版本对writer有更严格的要求，详情参考部分

版本1可以升级到版本2，但要注意如下：

版本1的reader读取版本2的新特性会产生错误
版本1的writer可以向版本2的表write数据
版本2的reader可以读取版本1的data和metadata，但是新特性会用默认字段值表示，部分说明了默认字段值的情况

2. Overview

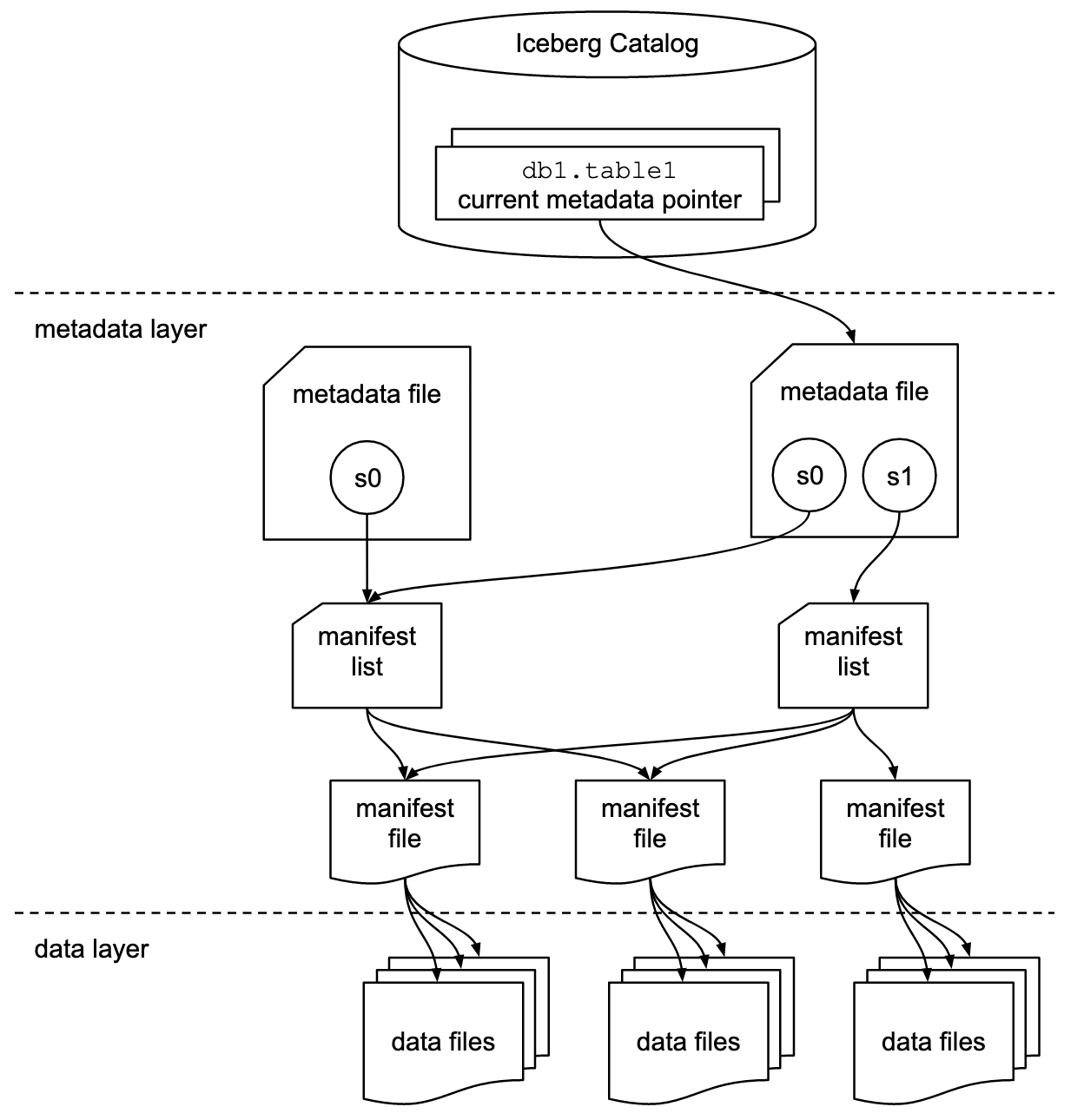

Iceberg架构

2.1 Sequence Numbers序列号

我们先看hadoop catalog的一个元数据示例，vN.metadata.json部分内容如下：

......省略部分......
"current-snapshot-id" : 4792595715782867813,
  "snapshots" : [ {
    "snapshot-id" : 3105878303282846379,
    "timestamp-ms" : 1645089884916,
    "summary" : {
      "operation" : "append",
      "flink.job-id" : "5f0ae342d300cfb6f2239425144aaa10",
      "flink.max-committed-checkpoint-id" : "9223372036854775807",
      "added-data-files" : "2",
      "added-records" : "2",
      "added-files-size" : "2487",
      "changed-partition-count" : "2",
      "total-records" : "2",
      "total-files-size" : "2487",
      "total-data-files" : "2",
      "total-delete-files" : "0",
      "total-position-deletes" : "0",
      "total-equality-deletes" : "0"
    },
    "manifest-list" : "hdfs://nnha/user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-3105878303282846379-1-4203a078-6b68-403f-967f-a24c9195c009.avro",
    "schema-id" : 0
  }, {
    "snapshot-id" : 781839495286765092,
    "parent-snapshot-id" : 3105878303282846379,
    "timestamp-ms" : 1645089898911,
    "summary" : {
      "operation" : "append",
      "flink.job-id" : "51088171a7dc3266e29826c656d9e998",
      "flink.max-committed-checkpoint-id" : "9223372036854775807",
      "added-data-files" : "2",
      "added-records" : "2",
      "added-files-size" : "2487",
      "changed-partition-count" : "2",
      "total-records" : "4",
      "total-files-size" : "4974",
      "total-data-files" : "4",
      "total-delete-files" : "0",
      "total-position-deletes" : "0",
      "total-equality-deletes" : "0"
    },
    "manifest-list" : "hdfs://nnha/user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-781839495286765092-1-6f23a7fd-e467-4153-a182-7e96cda61074.avro",
    "schema-id" : 0
  }, {
    "snapshot-id" : 242516093407225541,
    "parent-snapshot-id" : 781839495286765092,
    "timestamp-ms" : 1645089917661,
    "summary" : {
      "operation" : "overwrite",
      "replace-partitions" : "true",
      "flink.job-id" : "4b805620d9f0b7065e9f70b757ddeafc",
      "flink.max-committed-checkpoint-id" : "9223372036854775807",
      "added-data-files" : "1",
      "deleted-data-files" : "2",
      "added-records" : "1",
      "deleted-records" : "2",
      "added-files-size" : "1244",
      "removed-files-size" : "2459",
      "changed-partition-count" : "1",
      "total-records" : "3",
      "total-files-size" : "3759",
      "total-data-files" : "3",
      "total-delete-files" : "0",
      "total-position-deletes" : "0",
      "total-equality-deletes" : "0"
    },
    "manifest-list" : "hdfs://nnha/user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-242516093407225541-1-4bbf0565-406b-428a-aad7-e32993df0fef.avro",
    "schema-id" : 0
  }, {
    "snapshot-id" : 6992061996353419515,
    "parent-snapshot-id" : 242516093407225541,
    "timestamp-ms" : 1645089922843,
    "summary" : {
      "operation" : "overwrite",
      "replace-partitions" : "true",
      "flink.job-id" : "d02231da8d60b803e63006193384da23",
      "flink.max-committed-checkpoint-id" : "9223372036854775807",
      "added-data-files" : "1",
      "deleted-data-files" : "1",
      "added-records" : "1",
      "deleted-records" : "1",
      "added-files-size" : "1251",
      "removed-files-size" : "1244",
      "changed-partition-count" : "1",
      "total-records" : "3",
      "total-files-size" : "3766",
      "total-data-files" : "3",
      "total-delete-files" : "0",
      "total-position-deletes" : "0",
      "total-equality-deletes" : "0"
    },
    "manifest-list" : "hdfs://nnha/user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-6992061996353419515-1-9c8e870b-7e7b-49f0-96b4-be695105de9f.avro",
    "schema-id" : 0
  }, {
    "snapshot-id" : 4375332003125072899,
    "parent-snapshot-id" : 6992061996353419515,
    "timestamp-ms" : 1645090105742,
    "summary" : {
      "operation" : "replace",
      "added-data-files" : "1",
      "deleted-data-files" : "2",
      "added-records" : "2",
      "deleted-records" : "2",
      "added-files-size" : "1422",
      "removed-files-size" : "2515",
      "changed-partition-count" : "1",
      "total-records" : "3",
      "total-files-size" : "2673",
      "total-data-files" : "2",
      "total-delete-files" : "0",
      "total-position-deletes" : "0",
      "total-equality-deletes" : "0"
    },
    "manifest-list" : "hdfs://nnha/user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-4375332003125072899-1-7bab7463-2cd5-4bae-b59e-cd57d19da4f0.avro",
    "schema-id" : 0
  }, {
    "snapshot-id" : 4792595715782867813,
    "parent-snapshot-id" : 4375332003125072899,
    "timestamp-ms" : 1645090219342,
    "summary" : {
      "operation" : "append",
      "flink.job-id" : "42464deec75c72c5fa376544e2369f20",
      "flink.max-committed-checkpoint-id" : "9223372036854775807",
      "added-data-files" : "1",
      "added-records" : "1",
      "added-files-size" : "1258",
      "changed-partition-count" : "1",
      "total-records" : "4",
      "total-files-size" : "3931",
      "total-data-files" : "3",
      "total-delete-files" : "0",
      "total-position-deletes" : "0",
      "total-equality-deletes" : "0"
    },
    "manifest-list" : "hdfs://nnha/user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-4792595715782867813-1-d62cb29a-4a8d-4cce-a58f-151606761101.avro",
    "schema-id" : 0
  } ],
  "snapshot-log" : [ {
    "timestamp-ms" : 1645089884916,
    "snapshot-id" : 3105878303282846379
  }, {
    "timestamp-ms" : 1645089898911,
    "snapshot-id" : 781839495286765092
  }, {
    "timestamp-ms" : 1645089917661,
    "snapshot-id" : 242516093407225541
  }, {
    "timestamp-ms" : 1645089922843,
    "snapshot-id" : 6992061996353419515
  }, {
    "timestamp-ms" : 1645090105742,
    "snapshot-id" : 4375332003125072899
  }, {
    "timestamp-ms" : 1645090219342,
    "snapshot-id" : 4792595715782867813
  } ]
  ......省略部分......

metadata目录下文件信息如下：

[root@hive1 ~]# hadoop fs -ls /user/iceberg/warehouse/iceberg_db/my_user/metadata
Found 25 items
-rw-r--r--   1 root supergroup       6475 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/4203a078-6b68-403f-967f-a24c9195c009-m0.avro
-rw-r--r--   1 root supergroup       6491 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/4bbf0565-406b-428a-aad7-e32993df0fef-m0.avro
-rw-r--r--   1 root supergroup       6490 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/4bbf0565-406b-428a-aad7-e32993df0fef-m1.avro
-rw-r--r--   1 root supergroup       6422 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/4bbf0565-406b-428a-aad7-e32993df0fef-m2.avro
-rw-r--r--   1 root supergroup       6474 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/6f23a7fd-e467-4153-a182-7e96cda61074-m0.avro
-rw-r--r--   1 root supergroup       6423 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/7bab7463-2cd5-4bae-b59e-cd57d19da4f0-m0.avro
-rw-r--r--   1 root supergroup       6422 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/7bab7463-2cd5-4bae-b59e-cd57d19da4f0-m1.avro
-rw-r--r--   1 root supergroup       6432 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/7bab7463-2cd5-4bae-b59e-cd57d19da4f0-m2.avro
-rw-r--r--   1 root supergroup       6423 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/9c8e870b-7e7b-49f0-96b4-be695105de9f-m0.avro
-rw-r--r--   1 root supergroup       6423 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/9c8e870b-7e7b-49f0-96b4-be695105de9f-m1.avro
-rw-r--r--   1 root supergroup       6424 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/d62cb29a-4a8d-4cce-a58f-151606761101-m0.avro
-rw-r--r--   1 root supergroup       3836 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-242516093407225541-1-4bbf0565-406b-428a-aad7-e32993df0fef.avro
-rw-r--r--   1 root supergroup       3792 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-3105878303282846379-1-4203a078-6b68-403f-967f-a24c9195c009.avro
-rw-r--r--   1 root supergroup       3902 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-4375332003125072899-1-7bab7463-2cd5-4bae-b59e-cd57d19da4f0.avro
-rw-r--r--   1 root supergroup       3928 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-4792595715782867813-1-d62cb29a-4a8d-4cce-a58f-151606761101.avro
-rw-r--r--   1 root supergroup       3892 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-6992061996353419515-1-9c8e870b-7e7b-49f0-96b4-be695105de9f.avro
-rw-r--r--   1 root supergroup       3864 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/snap-781839495286765092-1-6f23a7fd-e467-4153-a182-7e96cda61074.avro
-rw-r--r--   1 root supergroup       2115 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/v1.metadata.json
-rw-r--r--   1 root supergroup       3141 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/v2.metadata.json
-rw-r--r--   1 root supergroup       4197 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/v3.metadata.json
-rw-r--r--   1 root supergroup       5395 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/v4.metadata.json
-rw-r--r--   1 root supergroup       6597 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/v5.metadata.json
-rw-r--r--   1 root supergroup       7634 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/v6.metadata.json
-rw-r--r--   1 root supergroup       8694 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/v7.metadata.json
-rw-r--r--   1 root supergroup          1 2022-02-17 17:34 /user/iceberg/warehouse/iceberg_db/my_user/metadata/version-hint.text
[root@hive1 ~]#

我们可以看到以下几点

snapshot-id并不是新的比旧的大，但是新的snapshot-id的timestamp-ms肯定比旧的大
manifest list的文件命名方式为：snap-{snapshot-id}-{一个数字}-{manifest list自己的序列号}.avro
manifest file的文件命名方式为：{manifest list的序列号}-mN.avro

其中avro格式的文件可以先下载到本地，然后通过java -jar avro-tools-1.11.0.jar tojson xxx.avro转换成json格式进行查看

2.2 Row-level Deletes

有两种删除方式：

位置删除：删除一行数据时，根据data file的path和该行在data file的position进行删除
等式删除：删除一行或多行数据时，根据一个或多个列的值进行删除，比如colA = some_value

delete files也是按partition进行分区存放的。因为manifest file包含每个data file对应数据的每列统计信息(如一列的值数量、空值数量、数值上界和下界) ，所以能推导出delete file覆盖哪个data file的数据

3. Specification规范 3.1 v1和v2版本的Writer和reader兼容性要求

对于writer写入metadata files，元数据的字段是否需要写入数据，遵循下表

RequirementWrite behavior空白不向该字段写入数据optional可以向该字段写入数据，也可以不向该字段写入数据required必须向该字段写入数据

对于reader，版本2的reader可以读取版本1的manifest files和manifest list，版本2的reader读取版本1的manifest files和manifest list表现如下：

v1v2版本2的reader表现空白optional可以不读取字段，或者读取字段值为NULL空白required读取字段值为NULLoptional空白不读取字段optionaloptional1: 不读取字段，2: 读取字段的值(非NULL)，3. 读取字段值为NULLoptionalrequired读取字段的值(非NULL)，或读取字段值为NULLrequired空白不读取字段requiredoptional不读取字段，或读取字段的值(非NULL)requiredrequired读取字段的值(非NULL)

对于版本2的reader，读取版本1的vN.metadata.json的要求更严格些，如果v2对该字段要求为required，而v1空白或optional但没有，则版本2读取的时候会抛异常。所以vN.metadata.json文件在版本1和版本2之间不能通用
