报错:cannot match operand(s)in the condition to the corresponding edges in the enclosing event control

刘颜儿 发布时间:2022-06-22 10:18:56 ,浏览量:5

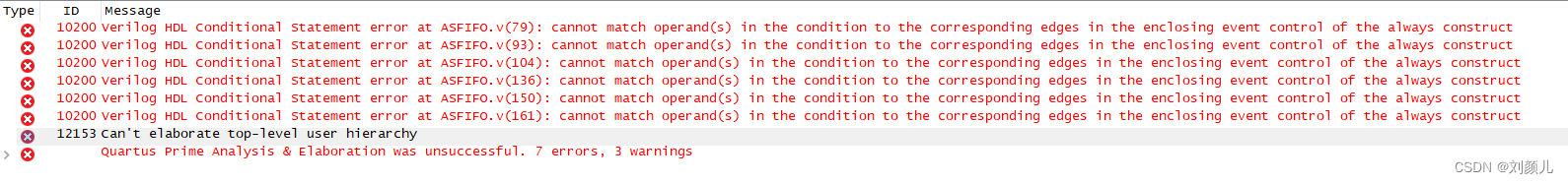

报错信息:

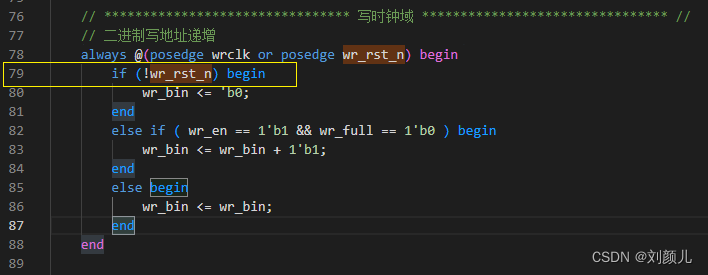

在这里插入图片描述 通过报错信息的提示,v(79)找到代码中这一行内容, 在这里插入图片描述 然后发现在always块的敏感信号列表里,出现了2个posedge,将posedge改成negedge即可

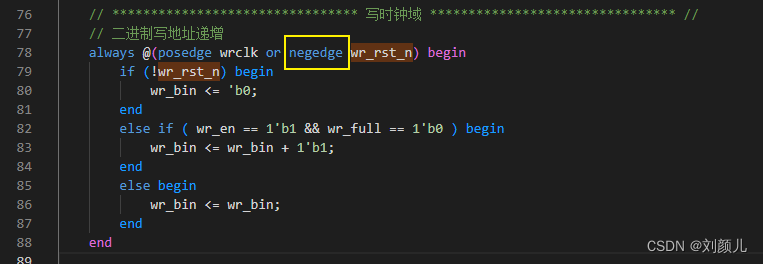

修改为:

在这里插入图片描述

补充

注意下面的使用方法

always@(posdge a or negedge b)
posedge搭配if(a)
negedge搭配if(!b)
