如何使用MATLAB绘制出好看的火山图

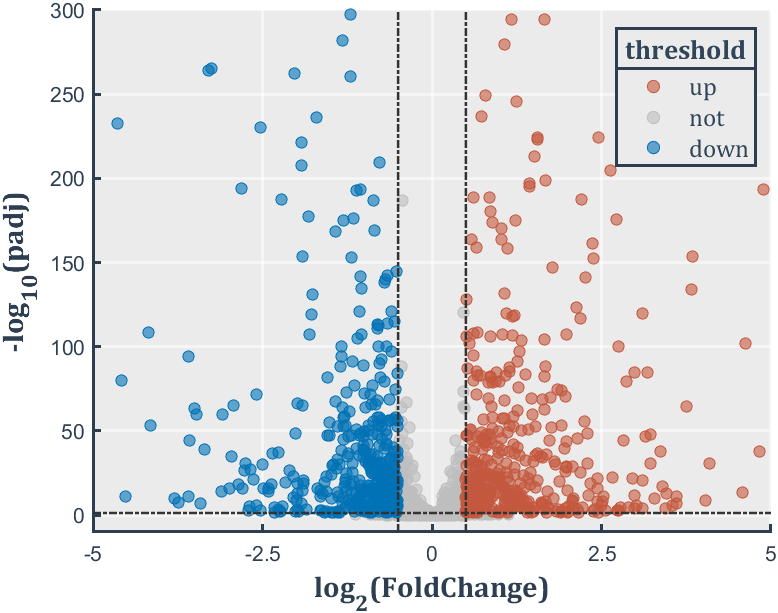

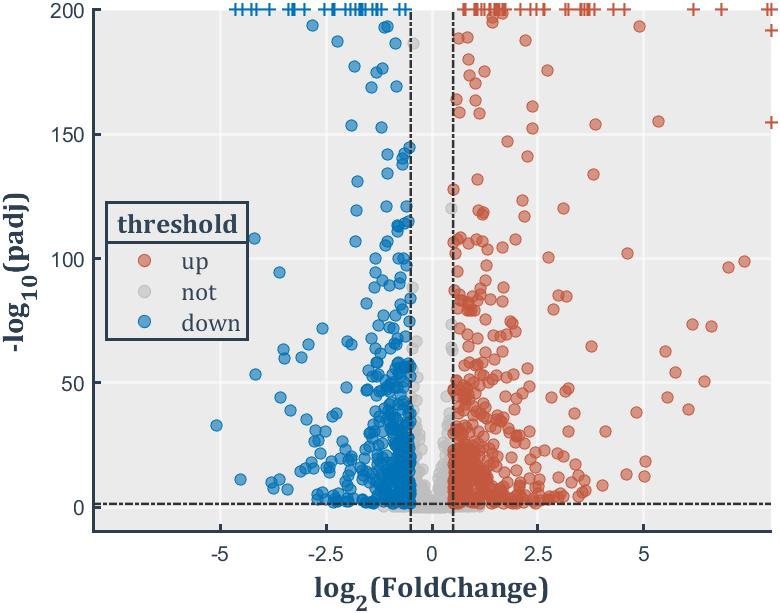

这里画了一个示例： 数据来源：http://blog.genesino.com/2017/07/volcanoPlot/ 绘制效果：

代码及说明： 使用代码时只需要改一开始导入的数据，和代码提示中X坐标区域范围和Y坐标区域范围，完整代码如下所示：

% 读取数据
data=readmatrix('volcano.txt');
logFC=data(:,2);
padj=data(:,3);

DB_not=(padj>0.5)|(logFC-0.5);
DB_up=padj=0.5;
DB_down=padjax.XLim(2),1)=ax.XLim(2);
DB_up_out_Set(DB_up_out_Set(:,2)>ax.YLim(2),2)=ax.YLim(2);

% =========================================================================
ax.XLabel.String='log_2(FoldChange)';
ax.XLabel.FontSize=14;
ax.XLabel.FontName='Cambria';
ax.XLabel.FontWeight='bold';
ax.YLabel.String='-log_{10}(padj)';
ax.YLabel.FontSize=14;
ax.YLabel.FontName='Cambria';
ax.YLabel.FontWeight='bold';

ax.Color=[235,235,235]./255;
ax.GridColor=[1 1 1];
ax.LineWidth=1.4;
ax.GridAlpha=0.5;
ax.XColor=[44,62,80]./255;
ax.YColor=[44,62,80]./255;
Hdl_not=scatter(logFC(DB_not),-log(padj(DB_not))./log(10),30,'filled',...
    'MarkerFaceColor',[190,190,190]./255,'MarkerEdgeColor',[190,190,190]./255,...
    'MarkerFaceAlpha',0.6);
Hdl_up=scatter(logFC(DB_up),-log(padj(DB_up))./log(10),30,'filled',...
    'MarkerFaceColor',[196,88,62]./255,'MarkerEdgeColor',[196,88,62]./255,...
    'MarkerFaceAlpha',0.6);
Hdl_down=scatter(logFC(DB_down),-log(padj(DB_down))./log(10),30,'filled',...
    'MarkerFaceColor',[1,114,182]./255,'MarkerEdgeColor',[1,114,182]./255,...
    'MarkerFaceAlpha',0.6);

% -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -
scatter(DB_up_out_Set(:,1),DB_up_out_Set(:,2),30,'filled','Marker','+',...
    'MarkerFaceColor',[196,88,62]./255,'MarkerEdgeColor',[196,88,62]./255,...
    'MarkerFaceAlpha',0.6,'LineWidth',1);

scatter(DB_down_out_Set(:,1),DB_down_out_Set(:,2),30,'filled','Marker','+',...
    'MarkerFaceColor',[1,114,182]./255,'MarkerEdgeColor',[1,114,182]./255,...
    'MarkerFaceAlpha',0.6,'LineWidth',1);
% -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -

plot([ax.XLim(1),ax.XLim(2)],[-log(0.05)/log(10),-log(0.05)/log(10)],...
    'LineWidth',1.2,'Color',[.2,.2,.2],'LineStyle','-.')
plot([-0.5,-0.5],[ax.YLim(1),ax.YLim(2)],...
    'LineWidth',1.2,'Color',[.2,.2,.2],'LineStyle','-.')
plot([0.5,0.5],[ax.YLim(1),ax.YLim(2)],...
    'LineWidth',1.2,'Color',[.2,.2,.2],'LineStyle','-.')

lgd=legend(ax,[Hdl_up,Hdl_not,Hdl_down],{'up','not','down'});
lgd.Title.String='threshold';
lgd.FontSize=12;
lgd.Title.FontSize=13;
lgd.EdgeColor=[44,62,80]./255;
lgd.TextColor=[44,62,80]./230;
lgd.FontName='Cambria';
lgd.Location='best';
