Swagger是一个方便我们更好编写API文档的框架,而且Swagger可以模拟http请求调用。
Swagger官网:Springfox Reference Documentation
一、pom.xml添加依赖io.springfoxspringfox-boot-starter3.0.0二、Swagger配置类
需要注意的是里面配置了api文件也就是controller包的路径,不然生成的文档扫描不到接口。
@Configuration public class SwaggerConfig { @Bean public Docket api() { return new Docket(DocumentationType.SWAGGER_2) .select() .apis(RequestHandlerSelectors.any()) .paths(PathSelectors.regex("/.*"))// 对根下所有路径进行监控 .build() .apiInfo(apiInfo()); } private ApiInfo apiInfo() { return new ApiInfoBuilder() .title("对外开放接口API 文档") .description("HTTP对外开放接口") .version("1.0.0") .termsOfServiceUrl("http://xxx.xxx.com") .license("LICENSE") .licenseUrl("http://xxx.xxx.com") .build(); } }
用@Configuration注解该类,等价于XML中配置beans;用@Bean标注方法等价于XML中配置bean。

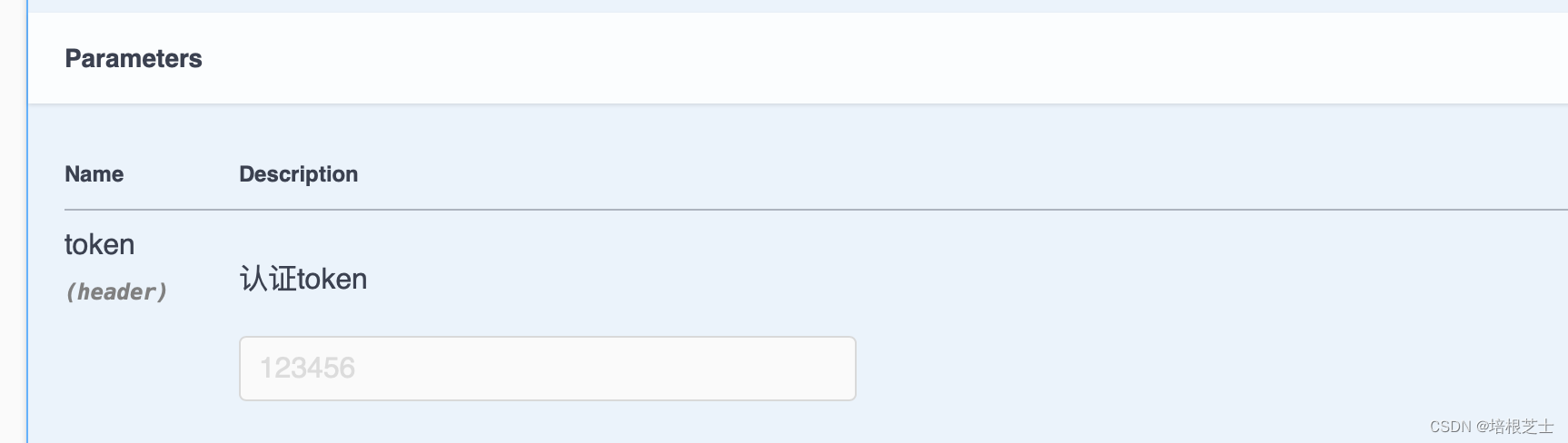

全局配置 header 请求参数设置 globalRequestParameters 参数信息开启header请求参数
@Configuration public class SwaggerConfig { @Bean public Docket api() { return new Docket(DocumentationType.SWAGGER_2) .globalRequestParameters(getGlobalOperationParameters()) .select() .apis(RequestHandlerSelectors.basePackage("com.demo.hello.interfaces.facade")) .build(); } private ListgetGlobalOperationParameters() { Listparameters = new ArrayList<>(); parameters.add(new RequestParameterBuilder() .name("token") .description("认证token") .in(ParameterType.HEADER) .required(false) .build()); return parameters; } }
Application.java 加上注解@EnableSwagger2 表示开启Swagger
@SpringBootApplication @EnableSwagger2 public class Helloworld01Application { public static void main(String[] args) { SpringApplication.run(Helloworld01Application.class, args); } }
启动SpringBoot项目,访问http://127.0.0.1:8080/swagger-ui/
对controller添加接口的swagger支持
@Api(value = "/api", tags = "测试API接口") @RestController @RequestMapping("/api") public class ScoreController { @Autowired private ScoreService service; @ApiOperation(value = "获取得分列表", notes = "详细描述") @RequestMapping(value = "/getScore", method = RequestMethod.GET) public void GetScore(@RequestParam("uid") @ApiParam(name="uid", value="用户ID") String uid){ Listscorelist = service.SelScoreList(uid); this.renderSuccess(scorelist); } }Swagger注解
swagger通过注解表明该接口会生成文档,包括接口名、请求方法、参数、返回信息的等等。
· @Api:修饰整个类,描述Controller的作用
· @ApiOperation:描述一个类的一个方法,或者说一个接口
· @ApiParam:单个参数描述
· @ApiModel:用对象来接收参数
· @ApiProperty:用对象接收参数时,描述对象的一个字段
· @ApiResponse:HTTP响应其中1个描述
· @ApiResponses:HTTP响应整体描述
· @ApiIgnore:使用该注解忽略这个API
· @ApiError :发生错误返回的信息
· @ApiImplicitParam:一个请求参数
· @ApiImplicitParams:多个请求参数
解决异常报错:(1)当Spring Boot 2.6.x以上版本 和 Swagger 3.0.0 整合的时候,可能会报错如下所示:
org.springframework.context.ApplicationContextException: Failed to start bean 'documentationPluginsBootstrapper'; nested exception is java.lang.NullPointerException
解决方案:
在application.properties中添加:
spring.mvc.pathmatch.matching-strategy=ant_path_matcher
(2)开启SpringSecurity后swagger-ui无法正常访问
解决方案:
修改WebSecurity配置
@Configuration public class WebSecurityConfig extends WebSecurityConfigurerAdapter { public static final String[] permitMethods=new String[]{ "/swagger-ui/**", "/swagger-resources/**", }; @Override protected void configure(HttpSecurity http) throws Exception { http //关闭跨站请求防护 .cors().and().csrf().disable() //允许不登陆就可以访问的方法,多个用逗号分隔 .authorizeRequests().antMatchers(permitMethods).permitAll() //其他的需要授权后访问 .anyRequest().authenticated() .and() //增加是否登陸过滤 .addFilter(new JWTAuthenticationFilter(authenticationManager())) // 前后端分离是无状态的,所以暫時不用session,將登陆信息保存在token中。 .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS); } }
