仙剑情缘 发布时间:2019-05-09 16:06:06 ,浏览量:7

  • 目的

为了能 快速使用RTT功能,故做此笔记指引如何使用RTT功能

  • 开启RTT功能步骤
step 1:

            加入相关文件到工程

step 2:

    在C/C++选项的Include Paths中加入路径

step 3:

        在main.c中加入以下头文件 #include "nrf_log.h" #include "nrf_log_ctrl.h" #include "nrf_log_default_backends.h"

step 4:

 在main.c中加入初时化函数

/**@brief Function for initializing the nrf log module.  */ static void log_init(void) {     ret_code_t err_code = NRF_LOG_INIT(NULL);     APP_ERROR_CHECK(err_code);

    NRF_LOG_DEFAULT_BACKENDS_INIT(); }

step 5:

    在main函数中调用初时化函数及NRF_LOG_INFO函数打印信息

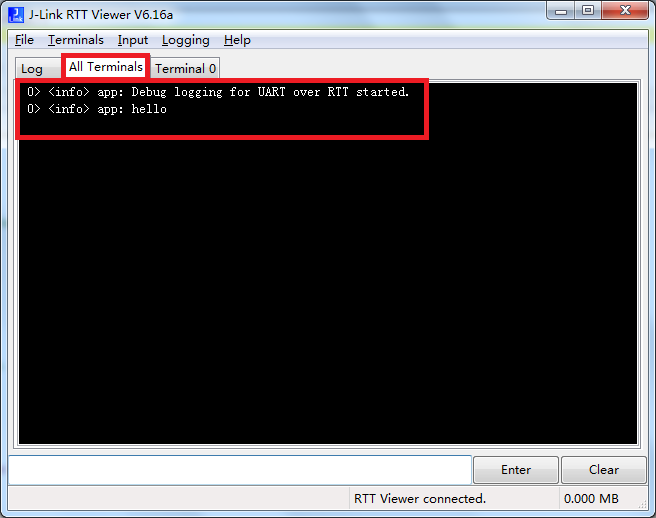

int main(void) {      log_init();      NRF_LOG_INFO("Debug logging for UART over RTT started.");      NRF_LOG_INFO("hello");     while (1)     {         __WFI();     } }

step 6:

  在sdk_config.h中加入以下宏 // nRF_Log

//========================================================== // NRF_LOG_BACKEND_RTT_ENABLED - nrf_log_backend_rtt - Log RTT backend //========================================================== #ifndef NRF_LOG_BACKEND_RTT_ENABLED#define NRF_LOG_BACKEND_RTT_ENABLED 1 #endif

#ifndef NRF_LOG_BACKEND_UART_ENABLED #define NRF_LOG_BACKEND_UART_ENABLED 0 #endif

#ifndef NRF_LOG_USES_RTT#define NRF_LOG_USES_RTT 1 #endif

// NRF_LOG_BACKEND_RTT_TEMP_BUFFER_SIZE - Size of buffer for partially processed strings.  // Size of the buffer is a trade-off between RAM usage and processing. // if buffer is smaller then strings will often be fragmented. // It is recommended to use size which will fit typical log and only the // longer one will be fragmented.

#ifndef NRF_LOG_BACKEND_RTT_TEMP_BUFFER_SIZE #define NRF_LOG_BACKEND_RTT_TEMP_BUFFER_SIZE 64 #endif

// NRF_LOG_BACKEND_RTT_TX_RETRY_DELAY_MS - Period before retrying writing to RTT  #ifndef NRF_LOG_BACKEND_RTT_TX_RETRY_DELAY_MS #define NRF_LOG_BACKEND_RTT_TX_RETRY_DELAY_MS 1 #endif

// NRF_LOG_BACKEND_RTT_TX_RETRY_CNT - Writing to RTT retries.  // If RTT fails to accept any new data after retries // module assumes that host is not active and on next // request it will perform only one write attempt. // On successful writing, module assumes that host is active // and scheme with retry is applied again.

#ifndef NRF_LOG_BACKEND_RTT_TX_RETRY_CNT #define NRF_LOG_BACKEND_RTT_TX_RETRY_CNT 3 #endif

//

// NRF_LOG_ENABLED - nrf_log - Logger //========================================================== #ifndef NRF_LOG_ENABLED#define NRF_LOG_ENABLED 1 #endif // Log message pool - Configuration of log message pool

//========================================================== // NRF_LOG_MSGPOOL_ELEMENT_SIZE - Size of a single element in the pool of memory objects.  // If a small value is set, then performance of logs processing // is degraded because data is fragmented. Bigger value impacts // RAM memory utilization. The size is set to fit a message with // a timestamp and up to 2 arguments in a single memory object.

#ifndef NRF_LOG_MSGPOOL_ELEMENT_SIZE #define NRF_LOG_MSGPOOL_ELEMENT_SIZE 20 #endif

// NRF_LOG_MSGPOOL_ELEMENT_COUNT - Number of elements in the pool of memory objects  // If a small value is set, then it may lead to a deadlock // in certain cases if backend has high latency and holds // multiple messages for long time. Bigger value impacts // RAM memory usage.

#ifndef NRF_LOG_MSGPOOL_ELEMENT_COUNT #define NRF_LOG_MSGPOOL_ELEMENT_COUNT 8 #endif

//   //==========================================================

// NRF_LOG_ALLOW_OVERFLOW  - Configures behavior when circular buffer is full.

// If set then oldest logs are overwritten. Otherwise a  // marker is injected informing about overflow.

#ifndef NRF_LOG_ALLOW_OVERFLOW #define NRF_LOG_ALLOW_OVERFLOW 1 #endif

// NRF_LOG_BUFSIZE  - Size of the buffer for storing logs (in bytes).

// Must be power of 2 and multiple of 4. // If NRF_LOG_DEFERRED = 0 then buffer size can be reduced to minimum. // 128  // 256  // 512  // 1024  // 2048  // 4096  // 8192  // 16384

#ifndef NRF_LOG_BUFSIZE #define NRF_LOG_BUFSIZE 1024 #endif

// NRF_LOG_CLI_CMDS  - Enable CLI commands for the module.

#ifndef NRF_LOG_CLI_CMDS #define NRF_LOG_CLI_CMDS 0 #endif

// NRF_LOG_DEFAULT_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_LOG_DEFAULT_LEVEL #define NRF_LOG_DEFAULT_LEVEL 3 #endif

// NRF_LOG_DEFERRED  - Enable deffered logger.

// Log data is buffered and can be processed in idle.

#ifndef NRF_LOG_DEFERRED#define NRF_LOG_DEFERRED 0 #endif

// NRF_LOG_FILTERS_ENABLED  - Enable dynamic filtering of logs.

#ifndef NRF_LOG_FILTERS_ENABLED #define NRF_LOG_FILTERS_ENABLED 0 #endif

// NRF_LOG_STR_PUSH_BUFFER_SIZE  - Size of the buffer dedicated for strings stored using @ref NRF_LOG_PUSH.   // 16  // 32  // 64  // 128  // 256  // 512  // 1024

#ifndef NRF_LOG_STR_PUSH_BUFFER_SIZE #define NRF_LOG_STR_PUSH_BUFFER_SIZE 128 #endif

// NRF_LOG_STR_PUSH_BUFFER_SIZE  - Size of the buffer dedicated for strings stored using @ref NRF_LOG_PUSH.   // 16  // 32  // 64  // 128  // 256  // 512  // 1024

#ifndef NRF_LOG_STR_PUSH_BUFFER_SIZE #define NRF_LOG_STR_PUSH_BUFFER_SIZE 128 #endif

// NRF_LOG_USES_COLORS - If enabled then ANSI escape code for colors is prefixed to every string //========================================================== #ifndef NRF_LOG_USES_COLORS #define NRF_LOG_USES_COLORS 0 #endif // NRF_LOG_COLOR_DEFAULT  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_LOG_COLOR_DEFAULT #define NRF_LOG_COLOR_DEFAULT 0 #endif

// NRF_LOG_ERROR_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_LOG_ERROR_COLOR #define NRF_LOG_ERROR_COLOR 2 #endif

// NRF_LOG_WARNING_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_LOG_WARNING_COLOR #define NRF_LOG_WARNING_COLOR 4 #endif

//

// NRF_LOG_USES_TIMESTAMP - Enable timestamping

// Function for getting the timestamp is provided by the user //========================================================== #ifndef NRF_LOG_USES_TIMESTAMP #define NRF_LOG_USES_TIMESTAMP 0 #endif // NRF_LOG_TIMESTAMP_DEFAULT_FREQUENCY - Default frequency of the timestamp (in Hz) or 0 to use app_timer frequency.  #ifndef NRF_LOG_TIMESTAMP_DEFAULT_FREQUENCY #define NRF_LOG_TIMESTAMP_DEFAULT_FREQUENCY 0 #endif

//

// nrf_log module configuration

//========================================================== // nrf_log in nRF_Core

//========================================================== // NRF_MPU_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_MPU_CONFIG_LOG_ENABLED #define NRF_MPU_CONFIG_LOG_ENABLED 0 #endif // NRF_MPU_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_MPU_CONFIG_LOG_LEVEL #define NRF_MPU_CONFIG_LOG_LEVEL 3 #endif

// NRF_MPU_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_MPU_CONFIG_INFO_COLOR #define NRF_MPU_CONFIG_INFO_COLOR 0 #endif

// NRF_MPU_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_MPU_CONFIG_DEBUG_COLOR #define NRF_MPU_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_STACK_GUARD_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_STACK_GUARD_CONFIG_LOG_ENABLED #define NRF_STACK_GUARD_CONFIG_LOG_ENABLED 0 #endif // NRF_STACK_GUARD_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_STACK_GUARD_CONFIG_LOG_LEVEL #define NRF_STACK_GUARD_CONFIG_LOG_LEVEL 3 #endif

// NRF_STACK_GUARD_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_STACK_GUARD_CONFIG_INFO_COLOR #define NRF_STACK_GUARD_CONFIG_INFO_COLOR 0 #endif

// NRF_STACK_GUARD_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_STACK_GUARD_CONFIG_DEBUG_COLOR #define NRF_STACK_GUARD_CONFIG_DEBUG_COLOR 0 #endif

//

// TASK_MANAGER_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef TASK_MANAGER_CONFIG_LOG_ENABLED #define TASK_MANAGER_CONFIG_LOG_ENABLED 0 #endif // TASK_MANAGER_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef TASK_MANAGER_CONFIG_LOG_LEVEL #define TASK_MANAGER_CONFIG_LOG_LEVEL 3 #endif

// TASK_MANAGER_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef TASK_MANAGER_CONFIG_INFO_COLOR #define TASK_MANAGER_CONFIG_INFO_COLOR 0 #endif

// TASK_MANAGER_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef TASK_MANAGER_CONFIG_DEBUG_COLOR #define TASK_MANAGER_CONFIG_DEBUG_COLOR 0 #endif

//

//   //==========================================================

// nrf_log in nRF_Drivers

//========================================================== // CLOCK_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef CLOCK_CONFIG_LOG_ENABLED #define CLOCK_CONFIG_LOG_ENABLED 0 #endif // CLOCK_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef CLOCK_CONFIG_LOG_LEVEL #define CLOCK_CONFIG_LOG_LEVEL 3 #endif

// CLOCK_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef CLOCK_CONFIG_INFO_COLOR #define CLOCK_CONFIG_INFO_COLOR 0 #endif

// CLOCK_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef CLOCK_CONFIG_DEBUG_COLOR #define CLOCK_CONFIG_DEBUG_COLOR 0 #endif

//

// COMP_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef COMP_CONFIG_LOG_ENABLED #define COMP_CONFIG_LOG_ENABLED 0 #endif // COMP_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef COMP_CONFIG_LOG_LEVEL #define COMP_CONFIG_LOG_LEVEL 3 #endif

// COMP_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef COMP_CONFIG_INFO_COLOR #define COMP_CONFIG_INFO_COLOR 0 #endif

// COMP_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef COMP_CONFIG_DEBUG_COLOR #define COMP_CONFIG_DEBUG_COLOR 0 #endif

//

// GPIOTE_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef GPIOTE_CONFIG_LOG_ENABLED #define GPIOTE_CONFIG_LOG_ENABLED 0 #endif // GPIOTE_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef GPIOTE_CONFIG_LOG_LEVEL #define GPIOTE_CONFIG_LOG_LEVEL 3 #endif

// GPIOTE_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef GPIOTE_CONFIG_INFO_COLOR #define GPIOTE_CONFIG_INFO_COLOR 0 #endif

// GPIOTE_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef GPIOTE_CONFIG_DEBUG_COLOR #define GPIOTE_CONFIG_DEBUG_COLOR 0 #endif

//

// LPCOMP_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef LPCOMP_CONFIG_LOG_ENABLED #define LPCOMP_CONFIG_LOG_ENABLED 0 #endif // LPCOMP_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef LPCOMP_CONFIG_LOG_LEVEL #define LPCOMP_CONFIG_LOG_LEVEL 3 #endif

// LPCOMP_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef LPCOMP_CONFIG_INFO_COLOR #define LPCOMP_CONFIG_INFO_COLOR 0 #endif

// LPCOMP_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef LPCOMP_CONFIG_DEBUG_COLOR #define LPCOMP_CONFIG_DEBUG_COLOR 0 #endif

//

// MAX3421E_HOST_CONFIG_LOG_ENABLED - Enable logging in the module //========================================================== #ifndef MAX3421E_HOST_CONFIG_LOG_ENABLED #define MAX3421E_HOST_CONFIG_LOG_ENABLED 0 #endif // MAX3421E_HOST_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef MAX3421E_HOST_CONFIG_LOG_LEVEL #define MAX3421E_HOST_CONFIG_LOG_LEVEL 3 #endif

// MAX3421E_HOST_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef MAX3421E_HOST_CONFIG_INFO_COLOR #define MAX3421E_HOST_CONFIG_INFO_COLOR 0 #endif

// MAX3421E_HOST_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef MAX3421E_HOST_CONFIG_DEBUG_COLOR #define MAX3421E_HOST_CONFIG_DEBUG_COLOR 0 #endif

//

// PDM_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef PDM_CONFIG_LOG_ENABLED #define PDM_CONFIG_LOG_ENABLED 0 #endif // PDM_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef PDM_CONFIG_LOG_LEVEL #define PDM_CONFIG_LOG_LEVEL 3 #endif

// PDM_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef PDM_CONFIG_INFO_COLOR #define PDM_CONFIG_INFO_COLOR 0 #endif

// PDM_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef PDM_CONFIG_DEBUG_COLOR #define PDM_CONFIG_DEBUG_COLOR 0 #endif

//

// PPI_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef PPI_CONFIG_LOG_ENABLED #define PPI_CONFIG_LOG_ENABLED 0 #endif // PPI_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef PPI_CONFIG_LOG_LEVEL #define PPI_CONFIG_LOG_LEVEL 3 #endif

// PPI_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef PPI_CONFIG_INFO_COLOR #define PPI_CONFIG_INFO_COLOR 0 #endif

// PPI_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef PPI_CONFIG_DEBUG_COLOR #define PPI_CONFIG_DEBUG_COLOR 0 #endif

//

// PWM_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef PWM_CONFIG_LOG_ENABLED #define PWM_CONFIG_LOG_ENABLED 0 #endif // PWM_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef PWM_CONFIG_LOG_LEVEL #define PWM_CONFIG_LOG_LEVEL 3 #endif

// PWM_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef PWM_CONFIG_INFO_COLOR #define PWM_CONFIG_INFO_COLOR 0 #endif

// PWM_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef PWM_CONFIG_DEBUG_COLOR #define PWM_CONFIG_DEBUG_COLOR 0 #endif

//

// QDEC_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef QDEC_CONFIG_LOG_ENABLED #define QDEC_CONFIG_LOG_ENABLED 0 #endif // QDEC_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef QDEC_CONFIG_LOG_LEVEL #define QDEC_CONFIG_LOG_LEVEL 3 #endif

// QDEC_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef QDEC_CONFIG_INFO_COLOR #define QDEC_CONFIG_INFO_COLOR 0 #endif

// QDEC_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef QDEC_CONFIG_DEBUG_COLOR #define QDEC_CONFIG_DEBUG_COLOR 0 #endif

//

// RNG_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef RNG_CONFIG_LOG_ENABLED #define RNG_CONFIG_LOG_ENABLED 0 #endif // RNG_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef RNG_CONFIG_LOG_LEVEL #define RNG_CONFIG_LOG_LEVEL 3 #endif

// RNG_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef RNG_CONFIG_INFO_COLOR #define RNG_CONFIG_INFO_COLOR 0 #endif

// RNG_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef RNG_CONFIG_DEBUG_COLOR #define RNG_CONFIG_DEBUG_COLOR 0 #endif

// RNG_CONFIG_RANDOM_NUMBER_LOG_ENABLED  - Enables logging of random numbers.

#ifndef RNG_CONFIG_RANDOM_NUMBER_LOG_ENABLED #define RNG_CONFIG_RANDOM_NUMBER_LOG_ENABLED 0 #endif

//

// RTC_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef RTC_CONFIG_LOG_ENABLED #define RTC_CONFIG_LOG_ENABLED 0 #endif // RTC_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef RTC_CONFIG_LOG_LEVEL #define RTC_CONFIG_LOG_LEVEL 3 #endif

// RTC_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef RTC_CONFIG_INFO_COLOR #define RTC_CONFIG_INFO_COLOR 0 #endif

// RTC_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef RTC_CONFIG_DEBUG_COLOR #define RTC_CONFIG_DEBUG_COLOR 0 #endif

//

// SAADC_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef SAADC_CONFIG_LOG_ENABLED #define SAADC_CONFIG_LOG_ENABLED 0 #endif // SAADC_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef SAADC_CONFIG_LOG_LEVEL #define SAADC_CONFIG_LOG_LEVEL 3 #endif

// SAADC_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef SAADC_CONFIG_INFO_COLOR #define SAADC_CONFIG_INFO_COLOR 0 #endif

// SAADC_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef SAADC_CONFIG_DEBUG_COLOR #define SAADC_CONFIG_DEBUG_COLOR 0 #endif

//

// SPIS_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef SPIS_CONFIG_LOG_ENABLED #define SPIS_CONFIG_LOG_ENABLED 0 #endif // SPIS_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef SPIS_CONFIG_LOG_LEVEL #define SPIS_CONFIG_LOG_LEVEL 3 #endif

// SPIS_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef SPIS_CONFIG_INFO_COLOR #define SPIS_CONFIG_INFO_COLOR 0 #endif

// SPIS_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef SPIS_CONFIG_DEBUG_COLOR #define SPIS_CONFIG_DEBUG_COLOR 0 #endif

//

// SPI_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef SPI_CONFIG_LOG_ENABLED #define SPI_CONFIG_LOG_ENABLED 0 #endif // SPI_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef SPI_CONFIG_LOG_LEVEL #define SPI_CONFIG_LOG_LEVEL 3 #endif

// SPI_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef SPI_CONFIG_INFO_COLOR #define SPI_CONFIG_INFO_COLOR 0 #endif

// SPI_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef SPI_CONFIG_DEBUG_COLOR #define SPI_CONFIG_DEBUG_COLOR 0 #endif

//

// TIMER_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef TIMER_CONFIG_LOG_ENABLED #define TIMER_CONFIG_LOG_ENABLED 0 #endif // TIMER_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef TIMER_CONFIG_LOG_LEVEL #define TIMER_CONFIG_LOG_LEVEL 3 #endif

// TIMER_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef TIMER_CONFIG_INFO_COLOR #define TIMER_CONFIG_INFO_COLOR 0 #endif

// TIMER_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef TIMER_CONFIG_DEBUG_COLOR #define TIMER_CONFIG_DEBUG_COLOR 0 #endif

//

// TWIS_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef TWIS_CONFIG_LOG_ENABLED #define TWIS_CONFIG_LOG_ENABLED 0 #endif // TWIS_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef TWIS_CONFIG_LOG_LEVEL #define TWIS_CONFIG_LOG_LEVEL 3 #endif

// TWIS_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef TWIS_CONFIG_INFO_COLOR #define TWIS_CONFIG_INFO_COLOR 0 #endif

// TWIS_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef TWIS_CONFIG_DEBUG_COLOR #define TWIS_CONFIG_DEBUG_COLOR 0 #endif

//

// TWI_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef TWI_CONFIG_LOG_ENABLED #define TWI_CONFIG_LOG_ENABLED 0 #endif // TWI_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef TWI_CONFIG_LOG_LEVEL #define TWI_CONFIG_LOG_LEVEL 3 #endif

// TWI_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef TWI_CONFIG_INFO_COLOR #define TWI_CONFIG_INFO_COLOR 0 #endif

// TWI_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef TWI_CONFIG_DEBUG_COLOR #define TWI_CONFIG_DEBUG_COLOR 0 #endif

//

// UART_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef UART_CONFIG_LOG_ENABLED #define UART_CONFIG_LOG_ENABLED 0 #endif // UART_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef UART_CONFIG_LOG_LEVEL #define UART_CONFIG_LOG_LEVEL 3 #endif

// UART_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef UART_CONFIG_INFO_COLOR #define UART_CONFIG_INFO_COLOR 0 #endif

// UART_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef UART_CONFIG_DEBUG_COLOR #define UART_CONFIG_DEBUG_COLOR 0 #endif

//

// USBD_CONFIG_LOG_ENABLED - Enable logging in the module //========================================================== #ifndef USBD_CONFIG_LOG_ENABLED #define USBD_CONFIG_LOG_ENABLED 0 #endif // USBD_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef USBD_CONFIG_LOG_LEVEL #define USBD_CONFIG_LOG_LEVEL 3 #endif

// USBD_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef USBD_CONFIG_INFO_COLOR #define USBD_CONFIG_INFO_COLOR 0 #endif

// USBD_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef USBD_CONFIG_DEBUG_COLOR #define USBD_CONFIG_DEBUG_COLOR 0 #endif

//

// WDT_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef WDT_CONFIG_LOG_ENABLED #define WDT_CONFIG_LOG_ENABLED 0 #endif // WDT_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef WDT_CONFIG_LOG_LEVEL #define WDT_CONFIG_LOG_LEVEL 3 #endif

// WDT_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef WDT_CONFIG_INFO_COLOR #define WDT_CONFIG_INFO_COLOR 0 #endif

// WDT_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef WDT_CONFIG_DEBUG_COLOR #define WDT_CONFIG_DEBUG_COLOR 0 #endif

//

//   //==========================================================

// nrf_log in nRF_Libraries

//========================================================== // APP_TIMER_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef APP_TIMER_CONFIG_LOG_ENABLED #define APP_TIMER_CONFIG_LOG_ENABLED 0 #endif // APP_TIMER_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef APP_TIMER_CONFIG_LOG_LEVEL #define APP_TIMER_CONFIG_LOG_LEVEL 3 #endif

// APP_TIMER_CONFIG_INITIAL_LOG_LEVEL  - Initial severity level if dynamic filtering is enabled.

// If module generates a lot of logs, initial log level can // be decreased to prevent flooding. Severity level can be // increased on instance basis. // Off  // Error  // Warning  // Info  // Debug

#ifndef APP_TIMER_CONFIG_INITIAL_LOG_LEVEL #define APP_TIMER_CONFIG_INITIAL_LOG_LEVEL 3 #endif

// APP_TIMER_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_TIMER_CONFIG_INFO_COLOR #define APP_TIMER_CONFIG_INFO_COLOR 0 #endif

// APP_TIMER_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_TIMER_CONFIG_DEBUG_COLOR #define APP_TIMER_CONFIG_DEBUG_COLOR 0 #endif

//

// APP_USBD_CDC_ACM_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef APP_USBD_CDC_ACM_CONFIG_LOG_ENABLED #define APP_USBD_CDC_ACM_CONFIG_LOG_ENABLED 0 #endif // APP_USBD_CDC_ACM_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef APP_USBD_CDC_ACM_CONFIG_LOG_LEVEL #define APP_USBD_CDC_ACM_CONFIG_LOG_LEVEL 3 #endif

// APP_USBD_CDC_ACM_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_USBD_CDC_ACM_CONFIG_INFO_COLOR #define APP_USBD_CDC_ACM_CONFIG_INFO_COLOR 0 #endif

// APP_USBD_CDC_ACM_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_USBD_CDC_ACM_CONFIG_DEBUG_COLOR #define APP_USBD_CDC_ACM_CONFIG_DEBUG_COLOR 0 #endif

//

// APP_USBD_CONFIG_LOG_ENABLED - Enable logging in the module. //========================================================== #ifndef APP_USBD_CONFIG_LOG_ENABLED #define APP_USBD_CONFIG_LOG_ENABLED 0 #endif // APP_USBD_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef APP_USBD_CONFIG_LOG_LEVEL #define APP_USBD_CONFIG_LOG_LEVEL 3 #endif

// APP_USBD_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_USBD_CONFIG_INFO_COLOR #define APP_USBD_CONFIG_INFO_COLOR 0 #endif

// APP_USBD_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_USBD_CONFIG_DEBUG_COLOR #define APP_USBD_CONFIG_DEBUG_COLOR 0 #endif

//

// APP_USBD_DUMMY_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef APP_USBD_DUMMY_CONFIG_LOG_ENABLED #define APP_USBD_DUMMY_CONFIG_LOG_ENABLED 0 #endif // APP_USBD_DUMMY_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef APP_USBD_DUMMY_CONFIG_LOG_LEVEL #define APP_USBD_DUMMY_CONFIG_LOG_LEVEL 3 #endif

// APP_USBD_DUMMY_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_USBD_DUMMY_CONFIG_INFO_COLOR #define APP_USBD_DUMMY_CONFIG_INFO_COLOR 0 #endif

// APP_USBD_DUMMY_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_USBD_DUMMY_CONFIG_DEBUG_COLOR #define APP_USBD_DUMMY_CONFIG_DEBUG_COLOR 0 #endif

//

// APP_USBD_MSC_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef APP_USBD_MSC_CONFIG_LOG_ENABLED #define APP_USBD_MSC_CONFIG_LOG_ENABLED 0 #endif // APP_USBD_MSC_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef APP_USBD_MSC_CONFIG_LOG_LEVEL #define APP_USBD_MSC_CONFIG_LOG_LEVEL 3 #endif

// APP_USBD_MSC_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_USBD_MSC_CONFIG_INFO_COLOR #define APP_USBD_MSC_CONFIG_INFO_COLOR 0 #endif

// APP_USBD_MSC_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_USBD_MSC_CONFIG_DEBUG_COLOR #define APP_USBD_MSC_CONFIG_DEBUG_COLOR 0 #endif

//

// APP_USBD_NRF_DFU_TRIGGER_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef APP_USBD_NRF_DFU_TRIGGER_CONFIG_LOG_ENABLED #define APP_USBD_NRF_DFU_TRIGGER_CONFIG_LOG_ENABLED 0 #endif // APP_USBD_NRF_DFU_TRIGGER_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef APP_USBD_NRF_DFU_TRIGGER_CONFIG_LOG_LEVEL #define APP_USBD_NRF_DFU_TRIGGER_CONFIG_LOG_LEVEL 3 #endif

// APP_USBD_NRF_DFU_TRIGGER_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_USBD_NRF_DFU_TRIGGER_CONFIG_INFO_COLOR #define APP_USBD_NRF_DFU_TRIGGER_CONFIG_INFO_COLOR 0 #endif

// APP_USBD_NRF_DFU_TRIGGER_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef APP_USBD_NRF_DFU_TRIGGER_CONFIG_DEBUG_COLOR #define APP_USBD_NRF_DFU_TRIGGER_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_ATFIFO_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_ATFIFO_CONFIG_LOG_ENABLED #define NRF_ATFIFO_CONFIG_LOG_ENABLED 0 #endif // NRF_ATFIFO_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_ATFIFO_CONFIG_LOG_LEVEL #define NRF_ATFIFO_CONFIG_LOG_LEVEL 3 #endif

// NRF_ATFIFO_CONFIG_LOG_INIT_FILTER_LEVEL  - Initial severity level if dynamic filtering is enabled   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_ATFIFO_CONFIG_LOG_INIT_FILTER_LEVEL #define NRF_ATFIFO_CONFIG_LOG_INIT_FILTER_LEVEL 3 #endif

// NRF_ATFIFO_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_ATFIFO_CONFIG_INFO_COLOR #define NRF_ATFIFO_CONFIG_INFO_COLOR 0 #endif

// NRF_ATFIFO_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_ATFIFO_CONFIG_DEBUG_COLOR #define NRF_ATFIFO_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_BALLOC_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_BALLOC_CONFIG_LOG_ENABLED #define NRF_BALLOC_CONFIG_LOG_ENABLED 0 #endif // NRF_BALLOC_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_BALLOC_CONFIG_LOG_LEVEL #define NRF_BALLOC_CONFIG_LOG_LEVEL 3 #endif

// NRF_BALLOC_CONFIG_INITIAL_LOG_LEVEL  - Initial severity level if dynamic filtering is enabled.

// If module generates a lot of logs, initial log level can // be decreased to prevent flooding. Severity level can be // increased on instance basis. // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_BALLOC_CONFIG_INITIAL_LOG_LEVEL #define NRF_BALLOC_CONFIG_INITIAL_LOG_LEVEL 3 #endif

// NRF_BALLOC_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_BALLOC_CONFIG_INFO_COLOR #define NRF_BALLOC_CONFIG_INFO_COLOR 0 #endif

// NRF_BALLOC_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_BALLOC_CONFIG_DEBUG_COLOR #define NRF_BALLOC_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_BLOCK_DEV_EMPTY_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_BLOCK_DEV_EMPTY_CONFIG_LOG_ENABLED #define NRF_BLOCK_DEV_EMPTY_CONFIG_LOG_ENABLED 0 #endif // NRF_BLOCK_DEV_EMPTY_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_BLOCK_DEV_EMPTY_CONFIG_LOG_LEVEL #define NRF_BLOCK_DEV_EMPTY_CONFIG_LOG_LEVEL 3 #endif

// NRF_BLOCK_DEV_EMPTY_CONFIG_LOG_INIT_FILTER_LEVEL  - Initial severity level if dynamic filtering is enabled   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_BLOCK_DEV_EMPTY_CONFIG_LOG_INIT_FILTER_LEVEL #define NRF_BLOCK_DEV_EMPTY_CONFIG_LOG_INIT_FILTER_LEVEL 3 #endif

// NRF_BLOCK_DEV_EMPTY_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_BLOCK_DEV_EMPTY_CONFIG_INFO_COLOR #define NRF_BLOCK_DEV_EMPTY_CONFIG_INFO_COLOR 0 #endif

// NRF_BLOCK_DEV_EMPTY_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_BLOCK_DEV_EMPTY_CONFIG_DEBUG_COLOR #define NRF_BLOCK_DEV_EMPTY_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_BLOCK_DEV_QSPI_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_BLOCK_DEV_QSPI_CONFIG_LOG_ENABLED #define NRF_BLOCK_DEV_QSPI_CONFIG_LOG_ENABLED 0 #endif // NRF_BLOCK_DEV_QSPI_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_BLOCK_DEV_QSPI_CONFIG_LOG_LEVEL #define NRF_BLOCK_DEV_QSPI_CONFIG_LOG_LEVEL 3 #endif

// NRF_BLOCK_DEV_QSPI_CONFIG_LOG_INIT_FILTER_LEVEL  - Initial severity level if dynamic filtering is enabled   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_BLOCK_DEV_QSPI_CONFIG_LOG_INIT_FILTER_LEVEL #define NRF_BLOCK_DEV_QSPI_CONFIG_LOG_INIT_FILTER_LEVEL 3 #endif

// NRF_BLOCK_DEV_QSPI_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_BLOCK_DEV_QSPI_CONFIG_INFO_COLOR #define NRF_BLOCK_DEV_QSPI_CONFIG_INFO_COLOR 0 #endif

// NRF_BLOCK_DEV_QSPI_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_BLOCK_DEV_QSPI_CONFIG_DEBUG_COLOR #define NRF_BLOCK_DEV_QSPI_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_BLOCK_DEV_RAM_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_BLOCK_DEV_RAM_CONFIG_LOG_ENABLED #define NRF_BLOCK_DEV_RAM_CONFIG_LOG_ENABLED 0 #endif // NRF_BLOCK_DEV_RAM_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_BLOCK_DEV_RAM_CONFIG_LOG_LEVEL #define NRF_BLOCK_DEV_RAM_CONFIG_LOG_LEVEL 3 #endif

// NRF_BLOCK_DEV_RAM_CONFIG_LOG_INIT_FILTER_LEVEL  - Initial severity level if dynamic filtering is enabled   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_BLOCK_DEV_RAM_CONFIG_LOG_INIT_FILTER_LEVEL #define NRF_BLOCK_DEV_RAM_CONFIG_LOG_INIT_FILTER_LEVEL 3 #endif

// NRF_BLOCK_DEV_RAM_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_BLOCK_DEV_RAM_CONFIG_INFO_COLOR #define NRF_BLOCK_DEV_RAM_CONFIG_INFO_COLOR 0 #endif

// NRF_BLOCK_DEV_RAM_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_BLOCK_DEV_RAM_CONFIG_DEBUG_COLOR #define NRF_BLOCK_DEV_RAM_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_CLI_BLE_UART_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_CLI_BLE_UART_CONFIG_LOG_ENABLED #define NRF_CLI_BLE_UART_CONFIG_LOG_ENABLED 0 #endif // NRF_CLI_BLE_UART_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_CLI_BLE_UART_CONFIG_LOG_LEVEL #define NRF_CLI_BLE_UART_CONFIG_LOG_LEVEL 3 #endif

// NRF_CLI_BLE_UART_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_CLI_BLE_UART_CONFIG_INFO_COLOR #define NRF_CLI_BLE_UART_CONFIG_INFO_COLOR 0 #endif

// NRF_CLI_BLE_UART_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_CLI_BLE_UART_CONFIG_DEBUG_COLOR #define NRF_CLI_BLE_UART_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_CLI_LIBUARTE_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_CLI_LIBUARTE_CONFIG_LOG_ENABLED #define NRF_CLI_LIBUARTE_CONFIG_LOG_ENABLED 0 #endif // NRF_CLI_LIBUARTE_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_CLI_LIBUARTE_CONFIG_LOG_LEVEL #define NRF_CLI_LIBUARTE_CONFIG_LOG_LEVEL 3 #endif

// NRF_CLI_LIBUARTE_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_CLI_LIBUARTE_CONFIG_INFO_COLOR #define NRF_CLI_LIBUARTE_CONFIG_INFO_COLOR 0 #endif

// NRF_CLI_LIBUARTE_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_CLI_LIBUARTE_CONFIG_DEBUG_COLOR #define NRF_CLI_LIBUARTE_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_CLI_UART_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_CLI_UART_CONFIG_LOG_ENABLED #define NRF_CLI_UART_CONFIG_LOG_ENABLED 0 #endif // NRF_CLI_UART_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_CLI_UART_CONFIG_LOG_LEVEL #define NRF_CLI_UART_CONFIG_LOG_LEVEL 3 #endif

// NRF_CLI_UART_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_CLI_UART_CONFIG_INFO_COLOR #define NRF_CLI_UART_CONFIG_INFO_COLOR 0 #endif

// NRF_CLI_UART_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_CLI_UART_CONFIG_DEBUG_COLOR #define NRF_CLI_UART_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_LIBUARTE_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_LIBUARTE_CONFIG_LOG_ENABLED #define NRF_LIBUARTE_CONFIG_LOG_ENABLED 0 #endif // NRF_LIBUARTE_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_LIBUARTE_CONFIG_LOG_LEVEL #define NRF_LIBUARTE_CONFIG_LOG_LEVEL 3 #endif

// NRF_LIBUARTE_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_LIBUARTE_CONFIG_INFO_COLOR #define NRF_LIBUARTE_CONFIG_INFO_COLOR 0 #endif

// NRF_LIBUARTE_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_LIBUARTE_CONFIG_DEBUG_COLOR #define NRF_LIBUARTE_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_MEMOBJ_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_MEMOBJ_CONFIG_LOG_ENABLED #define NRF_MEMOBJ_CONFIG_LOG_ENABLED 0 #endif // NRF_MEMOBJ_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_MEMOBJ_CONFIG_LOG_LEVEL #define NRF_MEMOBJ_CONFIG_LOG_LEVEL 3 #endif

// NRF_MEMOBJ_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_MEMOBJ_CONFIG_INFO_COLOR #define NRF_MEMOBJ_CONFIG_INFO_COLOR 0 #endif

// NRF_MEMOBJ_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_MEMOBJ_CONFIG_DEBUG_COLOR #define NRF_MEMOBJ_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_PWR_MGMT_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_PWR_MGMT_CONFIG_LOG_ENABLED #define NRF_PWR_MGMT_CONFIG_LOG_ENABLED 0 #endif // NRF_PWR_MGMT_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_PWR_MGMT_CONFIG_LOG_LEVEL #define NRF_PWR_MGMT_CONFIG_LOG_LEVEL 3 #endif

// NRF_PWR_MGMT_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_PWR_MGMT_CONFIG_INFO_COLOR #define NRF_PWR_MGMT_CONFIG_INFO_COLOR 0 #endif

// NRF_PWR_MGMT_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_PWR_MGMT_CONFIG_DEBUG_COLOR #define NRF_PWR_MGMT_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_QUEUE_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_QUEUE_CONFIG_LOG_ENABLED #define NRF_QUEUE_CONFIG_LOG_ENABLED 0 #endif // NRF_QUEUE_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_QUEUE_CONFIG_LOG_LEVEL #define NRF_QUEUE_CONFIG_LOG_LEVEL 3 #endif

// NRF_QUEUE_CONFIG_LOG_INIT_FILTER_LEVEL  - Initial severity level if dynamic filtering is enabled   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_QUEUE_CONFIG_LOG_INIT_FILTER_LEVEL #define NRF_QUEUE_CONFIG_LOG_INIT_FILTER_LEVEL 3 #endif

// NRF_QUEUE_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_QUEUE_CONFIG_INFO_COLOR #define NRF_QUEUE_CONFIG_INFO_COLOR 0 #endif

// NRF_QUEUE_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_QUEUE_CONFIG_DEBUG_COLOR #define NRF_QUEUE_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_SDH_ANT_LOG_ENABLED - Enable logging in SoftDevice handler (ANT) module. //========================================================== #ifndef NRF_SDH_ANT_LOG_ENABLED #define NRF_SDH_ANT_LOG_ENABLED 0 #endif // NRF_SDH_ANT_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_SDH_ANT_LOG_LEVEL #define NRF_SDH_ANT_LOG_LEVEL 3 #endif

// NRF_SDH_ANT_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_SDH_ANT_INFO_COLOR #define NRF_SDH_ANT_INFO_COLOR 0 #endif

// NRF_SDH_ANT_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_SDH_ANT_DEBUG_COLOR #define NRF_SDH_ANT_DEBUG_COLOR 0 #endif

//

// NRF_SDH_BLE_LOG_ENABLED - Enable logging in SoftDevice handler (BLE) module. //========================================================== #ifndef NRF_SDH_BLE_LOG_ENABLED #define NRF_SDH_BLE_LOG_ENABLED 1 #endif // NRF_SDH_BLE_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_SDH_BLE_LOG_LEVEL #define NRF_SDH_BLE_LOG_LEVEL 3 #endif

// NRF_SDH_BLE_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_SDH_BLE_INFO_COLOR #define NRF_SDH_BLE_INFO_COLOR 0 #endif

// NRF_SDH_BLE_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_SDH_BLE_DEBUG_COLOR #define NRF_SDH_BLE_DEBUG_COLOR 0 #endif

//

// NRF_SDH_LOG_ENABLED - Enable logging in SoftDevice handler module. //========================================================== #ifndef NRF_SDH_LOG_ENABLED #define NRF_SDH_LOG_ENABLED 1 #endif // NRF_SDH_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_SDH_LOG_LEVEL #define NRF_SDH_LOG_LEVEL 3 #endif

// NRF_SDH_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_SDH_INFO_COLOR #define NRF_SDH_INFO_COLOR 0 #endif

// NRF_SDH_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_SDH_DEBUG_COLOR #define NRF_SDH_DEBUG_COLOR 0 #endif

//

// NRF_SDH_SOC_LOG_ENABLED - Enable logging in SoftDevice handler (SoC) module. //========================================================== #ifndef NRF_SDH_SOC_LOG_ENABLED #define NRF_SDH_SOC_LOG_ENABLED 1 #endif // NRF_SDH_SOC_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_SDH_SOC_LOG_LEVEL #define NRF_SDH_SOC_LOG_LEVEL 3 #endif

// NRF_SDH_SOC_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_SDH_SOC_INFO_COLOR #define NRF_SDH_SOC_INFO_COLOR 0 #endif

// NRF_SDH_SOC_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_SDH_SOC_DEBUG_COLOR #define NRF_SDH_SOC_DEBUG_COLOR 0 #endif

//

// NRF_SORTLIST_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_SORTLIST_CONFIG_LOG_ENABLED #define NRF_SORTLIST_CONFIG_LOG_ENABLED 0 #endif // NRF_SORTLIST_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_SORTLIST_CONFIG_LOG_LEVEL #define NRF_SORTLIST_CONFIG_LOG_LEVEL 3 #endif

// NRF_SORTLIST_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_SORTLIST_CONFIG_INFO_COLOR #define NRF_SORTLIST_CONFIG_INFO_COLOR 0 #endif

// NRF_SORTLIST_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_SORTLIST_CONFIG_DEBUG_COLOR #define NRF_SORTLIST_CONFIG_DEBUG_COLOR 0 #endif

//

// NRF_TWI_SENSOR_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef NRF_TWI_SENSOR_CONFIG_LOG_ENABLED #define NRF_TWI_SENSOR_CONFIG_LOG_ENABLED 0 #endif // NRF_TWI_SENSOR_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef NRF_TWI_SENSOR_CONFIG_LOG_LEVEL #define NRF_TWI_SENSOR_CONFIG_LOG_LEVEL 3 #endif

// NRF_TWI_SENSOR_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_TWI_SENSOR_CONFIG_INFO_COLOR #define NRF_TWI_SENSOR_CONFIG_INFO_COLOR 0 #endif

// NRF_TWI_SENSOR_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef NRF_TWI_SENSOR_CONFIG_DEBUG_COLOR #define NRF_TWI_SENSOR_CONFIG_DEBUG_COLOR 0 #endif

//

// PM_LOG_ENABLED - Enable logging in Peer Manager and its submodules. //========================================================== #ifndef PM_LOG_ENABLED #define PM_LOG_ENABLED 1 #endif // PM_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef PM_LOG_LEVEL #define PM_LOG_LEVEL 3 #endif

// PM_LOG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef PM_LOG_INFO_COLOR #define PM_LOG_INFO_COLOR 0 #endif

// PM_LOG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef PM_LOG_DEBUG_COLOR #define PM_LOG_DEBUG_COLOR 0 #endif

//

//   //==========================================================

// nrf_log in nRF_Serialization

//========================================================== // SER_HAL_TRANSPORT_CONFIG_LOG_ENABLED - Enables logging in the module. //========================================================== #ifndef SER_HAL_TRANSPORT_CONFIG_LOG_ENABLED #define SER_HAL_TRANSPORT_CONFIG_LOG_ENABLED 0 #endif // SER_HAL_TRANSPORT_CONFIG_LOG_LEVEL  - Default Severity level   // Off  // Error  // Warning  // Info  // Debug

#ifndef SER_HAL_TRANSPORT_CONFIG_LOG_LEVEL #define SER_HAL_TRANSPORT_CONFIG_LOG_LEVEL 3 #endif

// SER_HAL_TRANSPORT_CONFIG_INFO_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef SER_HAL_TRANSPORT_CONFIG_INFO_COLOR #define SER_HAL_TRANSPORT_CONFIG_INFO_COLOR 0 #endif

// SER_HAL_TRANSPORT_CONFIG_DEBUG_COLOR  - ANSI escape code prefix.   // Default  // Black  // Red  // Green  // Yellow  // Blue  // Magenta  // Cyan  // White

#ifndef SER_HAL_TRANSPORT_CONFIG_DEBUG_COLOR #define SER_HAL_TRANSPORT_CONFIG_DEBUG_COLOR 0 #endif

//

//   //==========================================================

//   //==========================================================

//

// NRF_LOG_STR_FORMATTER_TIMESTAMP_FORMAT_ENABLED  - nrf_log_str_formatter - Log string formatter

#ifndef NRF_LOG_STR_FORMATTER_TIMESTAMP_FORMAT_ENABLED #define NRF_LOG_STR_FORMATTER_TIMESTAMP_FORMAT_ENABLED 1 #endif

//   //==========================================================

//==========================================================

// nRF_Segger_RTT

//========================================================== // segger_rtt - SEGGER RTT

//========================================================== // SEGGER_RTT_CONFIG_BUFFER_SIZE_UP - Size of upstream buffer.  // Note that either @ref NRF_LOG_BACKEND_RTT_OUTPUT_BUFFER_SIZE // or this value is actually used. It depends on which one is bigger.

#ifndef SEGGER_RTT_CONFIG_BUFFER_SIZE_UP #define SEGGER_RTT_CONFIG_BUFFER_SIZE_UP 512 #endif

// SEGGER_RTT_CONFIG_MAX_NUM_UP_BUFFERS - Size of upstream buffer.  #ifndef SEGGER_RTT_CONFIG_MAX_NUM_UP_BUFFERS #define SEGGER_RTT_CONFIG_MAX_NUM_UP_BUFFERS 2 #endif

// SEGGER_RTT_CONFIG_BUFFER_SIZE_DOWN - Size of upstream buffer.  #ifndef SEGGER_RTT_CONFIG_BUFFER_SIZE_DOWN #define SEGGER_RTT_CONFIG_BUFFER_SIZE_DOWN 16 #endif

// SEGGER_RTT_CONFIG_MAX_NUM_DOWN_BUFFERS - Size of upstream buffer.  #ifndef SEGGER_RTT_CONFIG_MAX_NUM_DOWN_BUFFERS #define SEGGER_RTT_CONFIG_MAX_NUM_DOWN_BUFFERS 2 #endif

// SEGGER_RTT_CONFIG_DEFAULT_MODE  - RTT behavior if the buffer is full.

// The following modes are supported: // - SKIP  - Do not block, output nothing. // - TRIM  - Do not block, output as much as fits. // - BLOCK - Wait until there is space in the buffer. // SKIP  // TRIM  // BLOCK_IF_FIFO_FULL

#ifndef SEGGER_RTT_CONFIG_DEFAULT_MODE #define SEGGER_RTT_CONFIG_DEFAULT_MODE 0 #endif

//   //==========================================================

//   //==========================================================

step 7:

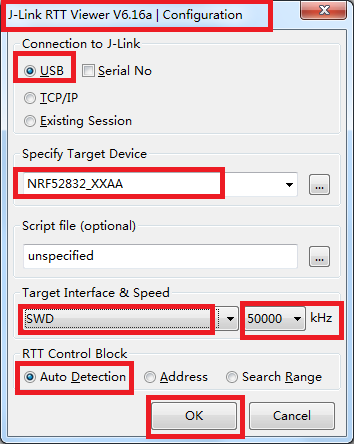

    打开J-Link RTT Viewer,配置好后打OK键确认

step 8:

          调试运行代码,J-Link RTT Viewer会打印输出相关信息

Demo代码下载地址:https://download.csdn.net/download/mygod2008ok/11168860

关注
打赏
1658017818
查看更多评论
立即登录/注册

微信扫码登录

0.0568s
