- 新建一个窗口应用程序，选择GUIDE

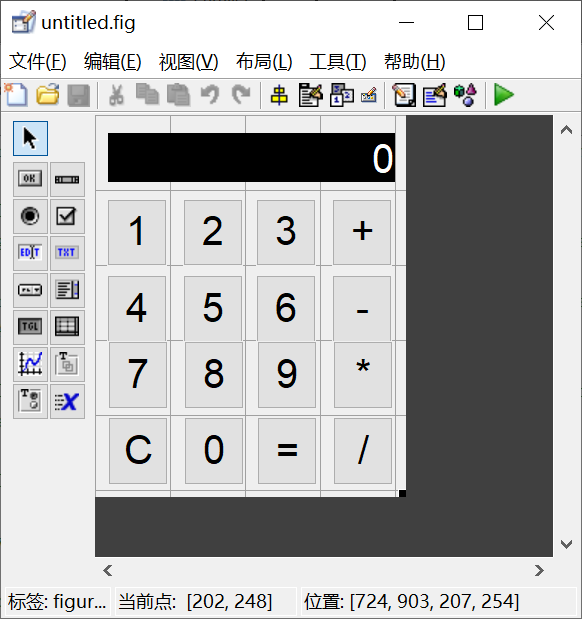

- 编辑界面

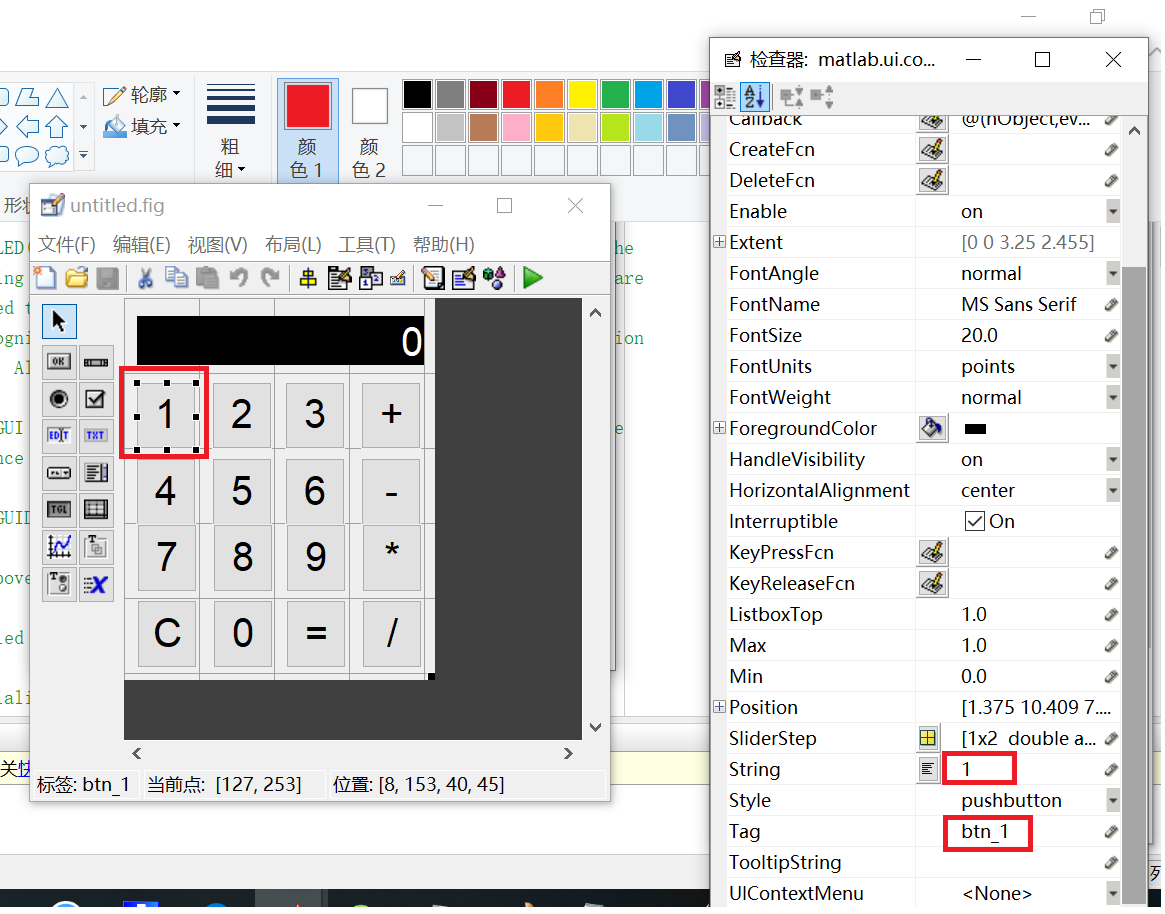

- 把按键原先的callback函数全部删除，然后重新编辑tag生成新的callback函数
temp = get(handles.textResult,'String');
temp = strcat(temp,'1');
set(handles.textResult,'String',temp); temp = get(handles.textResult,'String');
temp = strcat(temp,'+');
set(handles.textResult,'String',temp); temp = get(handles.textResult,'String');
temp = strcat(temp,'-');
set(handles.textResult,'String',temp); temp = get(handles.textResult,'String');
temp = strcat(temp,'*');
set(handles.textResult,'String',temp); temp = get(handles.textResult,'String');
temp = strcat(temp,'/');
set(handles.textResult,'String',temp);set(handles.textResult,'String','0'); temp = get(handles.textResult,'String');
result = eval(temp);
set(handles.textResult,'String',result);function varargout = untitled(varargin)
% UNTITLED MATLAB code for untitled.fig
% UNTITLED, by itself, creates a new UNTITLED or raises the existing
% singleton*.
%
% H = UNTITLED returns the handle to a new UNTITLED or the handle to
% the existing singleton*.
%
% UNTITLED('CALLBACK',hObject,eventData,handles,...) calls the local
% function named CALLBACK in UNTITLED.M with the given input arguments.
%
% UNTITLED('Property','Value',...) creates a new UNTITLED or raises the
% existing singleton*. Starting from the left, property value pairs are
% applied to the GUI before untitled_OpeningFcn gets called. An
% unrecognized property name or invalid value makes property application
% stop. All inputs are passed to untitled_OpeningFcn via varargin.
%
% *See GUI Options on GUIDE's Tools menu. Choose "GUI allows only one
% instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES
% Edit the above text to modify the response to help untitled
% Last Modified by GUIDE v2.5 16-Sep-2019 07:48:28
% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name', mfilename, ...
'gui_Singleton', gui_Singleton, ...
'gui_OpeningFcn', @untitled_OpeningFcn, ...
'gui_OutputFcn', @untitled_OutputFcn, ...
'gui_LayoutFcn', [] , ...
'gui_Callback', []);
if nargin && ischar(varargin{1})
gui_State.gui_Callback = str2func(varargin{1});
end
if nargout
[varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT
% --- Executes just before untitled is made visible.
function untitled_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% varargin command line arguments to untitled (see VARARGIN)
% Choose default command line output for untitled
handles.output = hObject;
% Update handles structure
guidata(hObject, handles);
% UIWAIT makes untitled wait for user response (see UIRESUME)
% uiwait(handles.figure1);
% --- Outputs from this function are returned to the command line.
function varargout = untitled_OutputFcn(hObject, eventdata, handles)
% varargout cell array for returning output args (see VARARGOUT);
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Get default command line output from handles structure
varargout{1} = handles.output;
% --- Executes on button press in btn_1.
function btn_1_Callback(hObject, eventdata, handles)
% hObject handle to btn_1 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'1');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_2.
function btn_2_Callback(hObject, eventdata, handles)
% hObject handle to btn_2 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'2');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_3.
function btn_3_Callback(hObject, eventdata, handles)
% hObject handle to btn_3 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'3');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_add.
function btn_add_Callback(hObject, eventdata, handles)
% hObject handle to btn_add (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'+');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_4.
function btn_4_Callback(hObject, eventdata, handles)
% hObject handle to btn_4 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'4');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_5.
function btn_5_Callback(hObject, eventdata, handles)
% hObject handle to btn_5 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'5');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_6.
function btn_6_Callback(hObject, eventdata, handles)
% hObject handle to btn_6 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'6');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_minus.
function btn_minus_Callback(hObject, eventdata, handles)
% hObject handle to btn_minus (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'-');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_7.
function btn_7_Callback(hObject, eventdata, handles)
% hObject handle to btn_7 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'7');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_8.
function btn_8_Callback(hObject, eventdata, handles)
% hObject handle to btn_8 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'8');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_9.
function btn_9_Callback(hObject, eventdata, handles)
% hObject handle to btn_9 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'9');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_mul.
function btn_mul_Callback(hObject, eventdata, handles)
% hObject handle to btn_mul (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'*');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_clear.
function btn_clear_Callback(hObject, eventdata, handles)
% hObject handle to btn_clear (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
set(handles.textResult,'String','0');
% --- Executes on button press in btn_0.
function btn_0_Callback(hObject, eventdata, handles)
% hObject handle to btn_0 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'0');
set(handles.textResult,'String',temp);
% --- Executes on button press in btn_equal.
function btn_equal_Callback(hObject, eventdata, handles)
% hObject handle to btn_equal (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
result = eval(temp);
set(handles.textResult,'String',result);
% --- Executes on button press in btn_div.
function btn_div_Callback(hObject, eventdata, handles)
% hObject handle to btn_div (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
temp = get(handles.textResult,'String');
temp = strcat(temp,'/');
set(handles.textResult,'String',temp);
