STM32F103C6 USART1串口功能

基于STM32F103C6工程实现串口USART1功能，USART1串口TX为PA9,RX为PA10,配置一个USART1串口分为以下几步：

1. 初时化IO配置
2. 初时化USART NVIC配置
3. 初时化USART参数
4. 实现中断函数USART1_IRQHandler
5. 实现串口发送函数USART1_Send_Data
6. 主函数调用相关配置函数

Step 1: 初时化IO配置,初时化USART NVIC配置,初时化USART参数封装成一个函数           Usart1_Init

#include "stm32f10x_usart.h"
#include "stm32f10x.h"
#include

uint8_t rxBuf[40];
uint8_t rxLen;

/**
  * @brief  USART1串口初时化
  *
  *
  * @param  uint32_t baudrate[in]:设置波特率
  * @retval None
  */
void Usart1_Init(uint32_t baudrate)
{
	GPIO_InitTypeDef GPIO_InitStructure;
	USART_InitTypeDef USART_InitStructure;
	NVIC_InitTypeDef NVIC_InitStructure;

	/* 初时化串口前，先将相应的时钟打开 */
	RCC_APB2PeriphClockCmd(RCC_APB2Periph_USART1 | RCC_APB2Periph_GPIOA,ENABLE);

	/* 初时化USART1 TX PA9引脚设为复用推挽输出 */
	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_9;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
	GPIO_Init(GPIOA,&GPIO_InitStructure);

	/* 初时化USART1 RX PA10引脚为浮空输入 */
	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_10;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
	GPIO_Init(GPIOA,&GPIO_InitStructure);


	/* USART1 NVIC初时化 */
	NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2); /*!< 设置NVIC中断分组2:2位抢占优先级，2位响应优先级   0-3; */
	NVIC_InitStructure.NVIC_IRQChannel = USART1_IRQn; /*!< USART1中断通道USART1_IRQn  */
	NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 3; /*!< 抢占优先级3 */
	NVIC_InitStructure.NVIC_IRQChannelSubPriority = 3;    /*!< 子优先级3 */
	NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;  /*!<  IRQ使能通道 */
	NVIC_Init(&NVIC_InitStructure);   /*!< 初时化NVIC寄存器  */

	/* USART初时化设置 */
	USART_InitStructure.USART_BaudRate = baudrate;   /*!<  设置波特率 */
	USART_InitStructure.USART_HardwareFlowControl = USART_HardwareFlowControl_None;
	USART_InitStructure.USART_WordLength = USART_WordLength_8b; /*!< 8位数据*/
	USART_InitStructure.USART_StopBits = USART_StopBits_1;   /*!< 1位停止位 */
	USART_InitStructure.USART_Parity = USART_Parity_No;   /*!< 无校验位 */
	USART_InitStructure.USART_Mode = USART_Mode_Rx | USART_Mode_Tx;  /*!< 收发模式*/
	USART_Init(USART1,&USART_InitStructure);  /*!< 初时化串口1 */

	/* 开启串口1接收中断 */
	USART_ITConfig(USART1,USART_IT_RXNE,ENABLE);
	/* 使能串口1 */
	USART_Cmd(USART1,ENABLE);

}

Step 2: 实现中断函数USART1_IRQHandler

/**
  * @brief  USART1串口中断函数
  *
  *
  * @param  None
  * @retval None
  */
void USART1_IRQHandler(void)
{
	/* 暂存接收结果 */
	uint8_t result;
  /* @note
  *   - PE (Parity error), FE (Framing error), NE (Noise error), ORE (OverRun
  *     error) and IDLE (Idle line detected) pending bits are cleared by
  *     software sequence: a read operation to USART_SR register
  *     (USART_GetITStatus()) followed by a read operation to USART_DR register
  *     (USART_ReceiveData()).
  *   - RXNE pending bit can be also cleared by a read to the USART_DR register
  *     (USART_ReceiveData()).
  */
	/* 检查是否为USART1接收中断 */
	if(USART_GetITStatus(USART1,USART_IT_RXNE) != RESET)
	{
		 result = USART_ReceiveData(USART1);
                 if(rxLen < 20)
		 {
			 rxBuf[rxLen] = result;
			 rxLen++;
		 }
	}
	/* 溢出发生时，先读SR,再读DR，解决中断不进入问题*/
	else if(USART_GetFlagStatus(USART1,USART_IT_ORE) == SET)
	{
		 USART_ClearFlag(USART1,USART_IT_ORE);
	         USART_ReceiveData(USART1);
	}





}

Step 3:实现串口发送函数USART1_Send_Data

/**
* @brief  USART1串口发送函数
  *
  *
	* @param   uint8_t *buf[in]:待发送的数据buffer
* @param   uint16_t len:发送的数据长度
  * @retval None
  */
void USART1_Send_Data(uint8_t *buf,uint16_t len)
{
	for(uint16_t i = 0; iSR&0X40)==0);
	USART1->DR = (u8) ch;

	return ch;
}

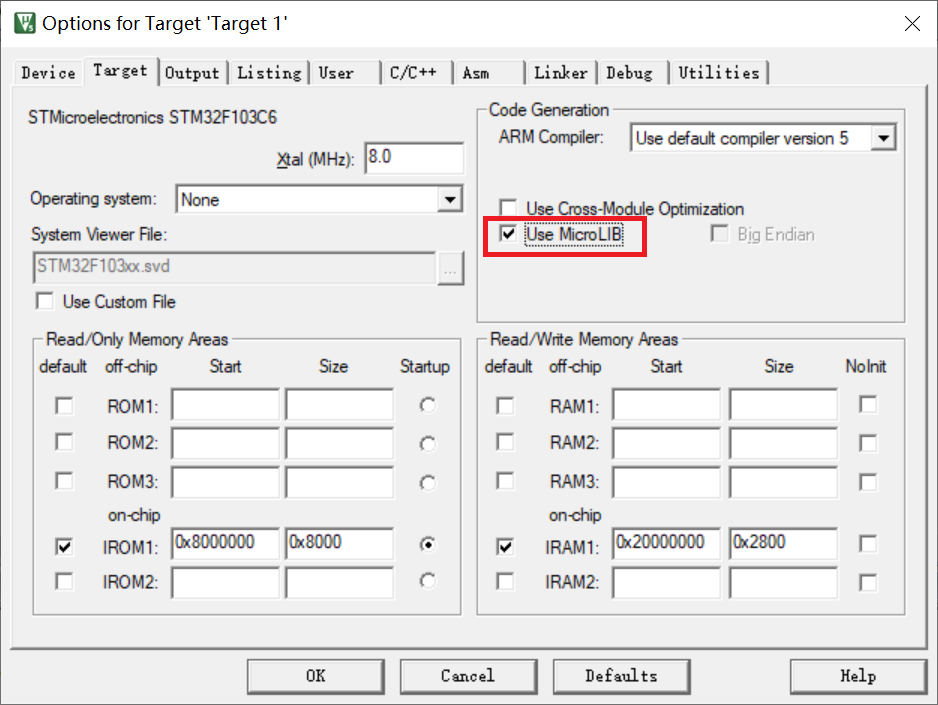

此时还需要勾选Use MicroLib选项

另一种方法不需要勾选Use MicroLib选项，如下：

/* 加入以下代码,支持printf函数,而不需要选择use MicroLIB */
#ifdef DEBUG
#pragma import(__use_no_semihosting)
//标准库需要的支持函数
struct __FILE
{
	int handle;

};

FILE __stdout;
//定义_sys_exit()以避免使用半主机模式
void _sys_exit(int x)
{
	x = x;
}
//重定义fputc函数
int fputc(int ch, FILE *f)
{
	while((USART1->SR&0X40)==0);
	USART1->DR = (u8) ch;

	return ch;
}
#endif

断言功能实现，首先得定义宏USE_FULL_ASSERT打开断言功能，然后实现函 数assert_failed

#if USE_FULL_ASSERT
void assert_failed(uint8_t* file, uint32_t line)
{
	printf("\r\nfile path is %s,error line is %d\r\n",file,line);
	while(1);
}
#endif
