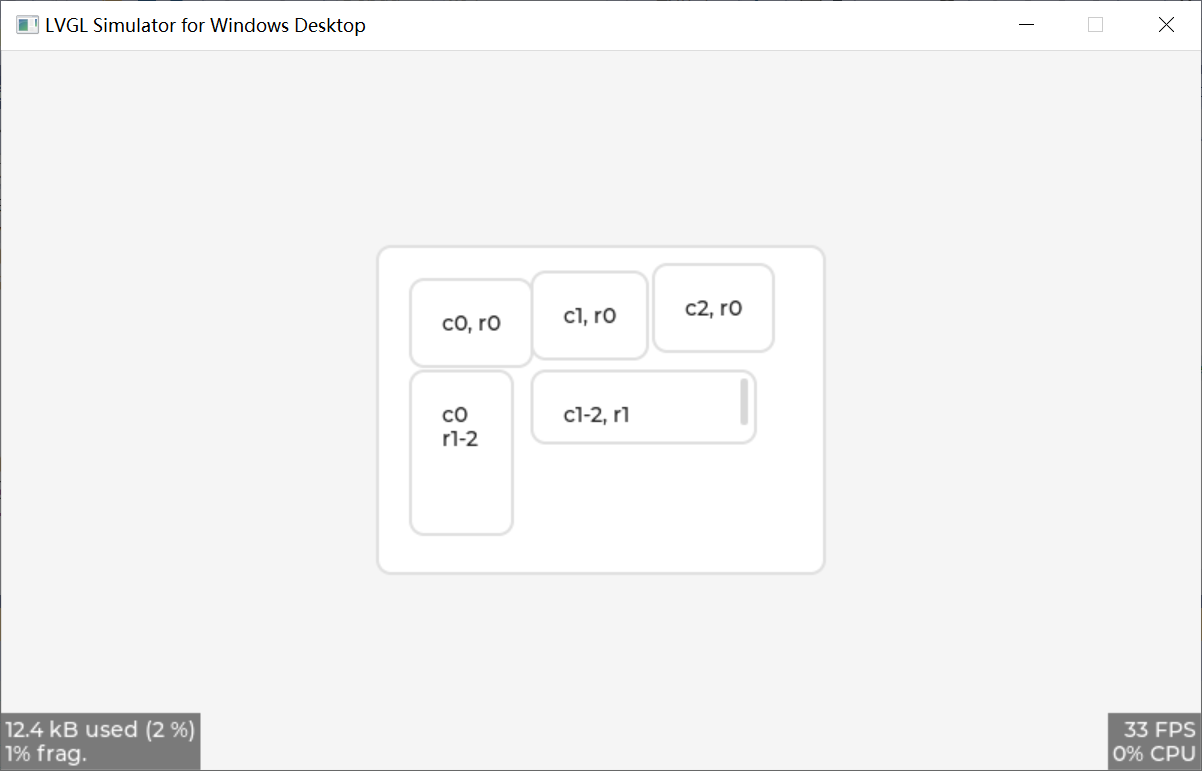

Demonstrate cell placement and span
static void lv_example_grid_2(void)
{
static lv_coord_t col_dsc[] = { 70, 70, 70, LV_GRID_TEMPLATE_LAST };
static lv_coord_t row_dsc[] = { 50, 50, 50, LV_GRID_TEMPLATE_LAST };
/*Create a container with grid*/
lv_obj_t* cont = lv_obj_create(lv_scr_act());
lv_obj_set_grid_dsc_array(cont, col_dsc, row_dsc);
lv_obj_set_size(cont, 300, 220);
lv_obj_center(cont);
lv_obj_t* label;
lv_obj_t* obj;
/*Cell to 0;0 and align to to the start (left/top) horizontally and vertically too*/
obj = lv_obj_create(cont);
lv_obj_set_size(obj, LV_SIZE_CONTENT, LV_SIZE_CONTENT);
lv_obj_set_grid_cell(obj, LV_GRID_ALIGN_START, 0, 1,
LV_GRID_ALIGN_START, 0, 1);
label = lv_label_create(obj);
lv_label_set_text(label, "c0, r0");
/*Cell to 1;0 and align to to the start (left) horizontally and center vertically too*/
obj = lv_obj_create(cont);
lv_obj_set_size(obj, LV_SIZE_CONTENT, LV_SIZE_CONTENT);
lv_obj_set_grid_cell(obj, LV_GRID_ALIGN_START, 1, 1,
LV_GRID_ALIGN_CENTER, 0, 1);
label = lv_label_create(obj);
lv_label_set_text(label, "c1, r0");
/*Cell to 2;0 and align to to the start (left) horizontally and end (bottom) vertically too*/
obj = lv_obj_create(cont);
lv_obj_set_size(obj, LV_SIZE_CONTENT, LV_SIZE_CONTENT);
lv_obj_set_grid_cell(obj, LV_GRID_ALIGN_START, 2, 1,
LV_GRID_ALIGN_END, 0, 1);
label = lv_label_create(obj);
lv_label_set_text(label, "c2, r0");
obj = lv_obj_create(cont);
lv_obj_set_size(obj, LV_SIZE_CONTENT, LV_SIZE_CONTENT);
lv_obj_set_grid_cell(obj, LV_GRID_ALIGN_STRETCH, 1, 2,
LV_GRID_ALIGN_STRETCH, 1, 1);
label = lv_label_create(obj);
lv_label_set_text(label, "c1-2, r1");
/*Cell to 0;1 but 2 rows tall (span = 2).Set width and height to stretched.*/
obj = lv_obj_create(cont);
lv_obj_set_size(obj, LV_SIZE_CONTENT, LV_SIZE_CONTENT);
lv_obj_set_grid_cell(obj, LV_GRID_ALIGN_STRETCH, 0, 1,
LV_GRID_ALIGN_STRETCH, 1, 2);// 列方向span设为2,行设为1，此Cell列是行的2倍大
label = lv_label_create(obj);
lv_label_set_text(label, "c0\nr1-2");
}
