HCIA/HCIP使用eNSP模拟VLAN综合实验2

skawngury 发布时间：2021-11-28 14:56:37 ，浏览量：5

使用eNSP模拟VLAN综合实验

VLAN综合2

实验配套拓扑：VLAN Comprehensive Experiment.topo

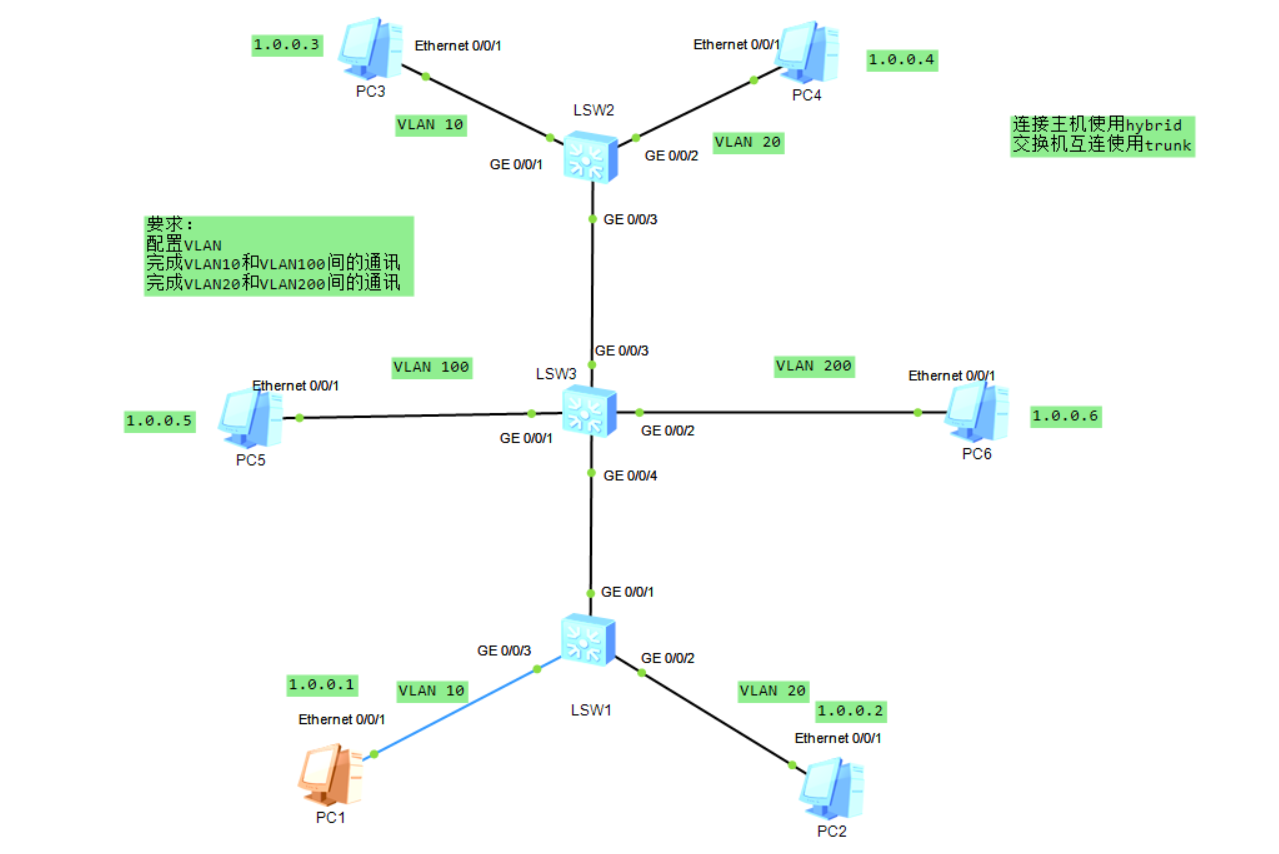

拓扑预览

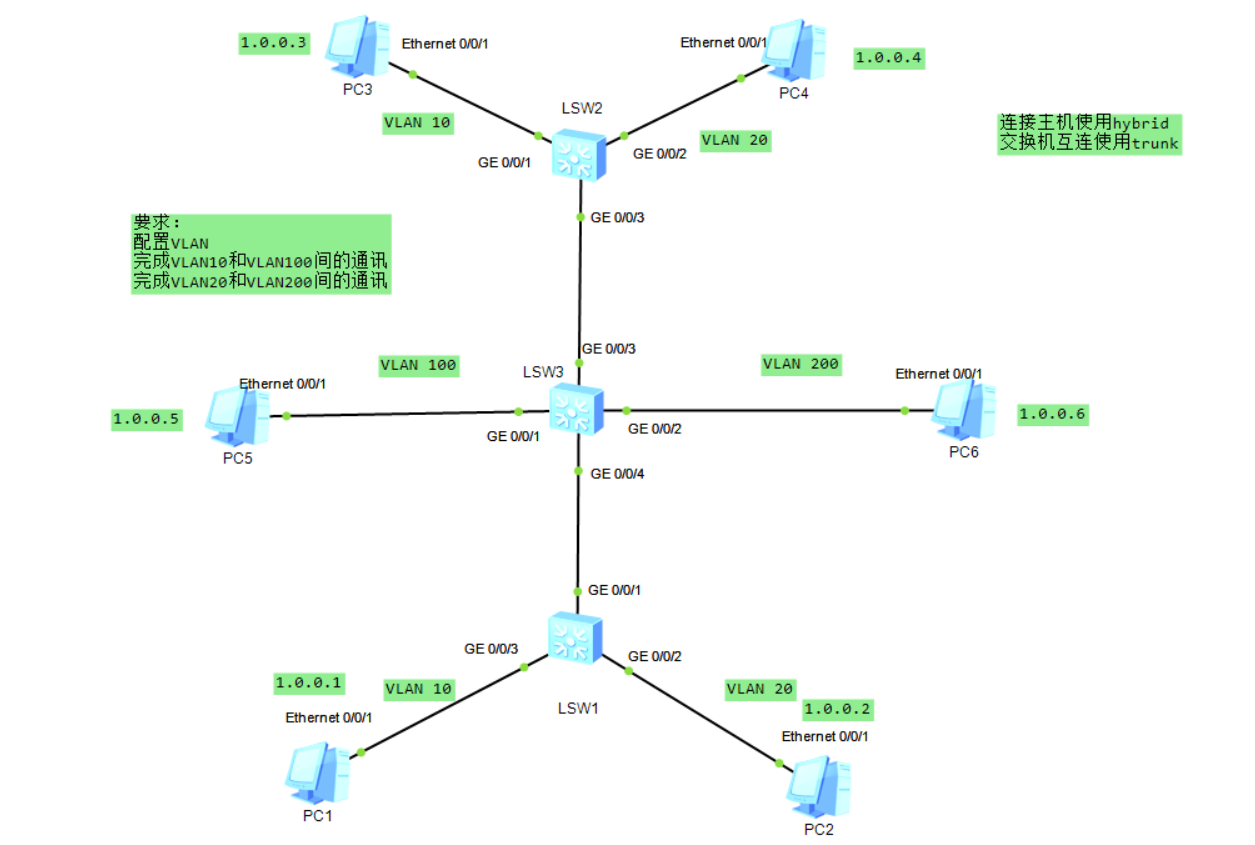

拓扑配置如图所示在这里插入图片描述要求：配置VLAN 完成VLAN10和VLAN100间的通讯完成VLAN20和VLAN200间的通讯

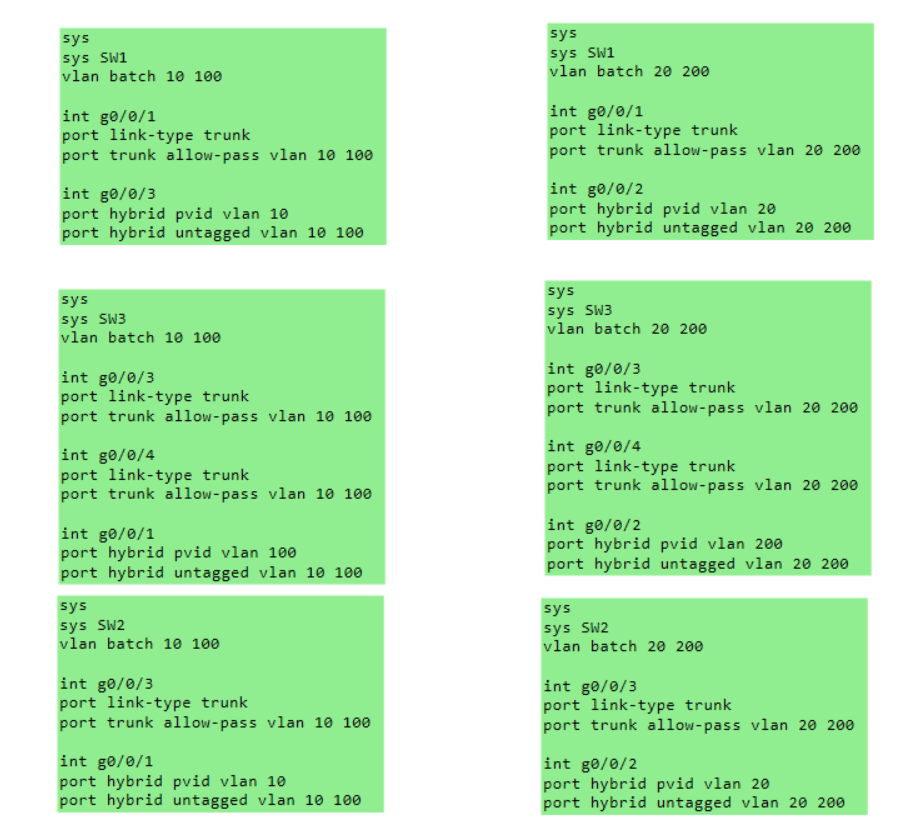

配置完成

在这里插入图片描述
