HCIA/HCIP使用eNSP模拟HCIA综合实验（Telnet Trunk VLAN DHCP STP OSPF PPP 缺省路由 NAT ACL 与路由器交换机服务器的综合配置）

skawngury 发布时间：2021-12-03 14:39:02 ，浏览量：6

使用eNSP模拟HCIA综合实验

Telnet Trunk VLAN DHCP STP OSPF PPP 缺省路由 NAT ACL 与路由器交换机服务器的综合配置

实验配套拓扑：HCIA Comprehensive Experiment.topo

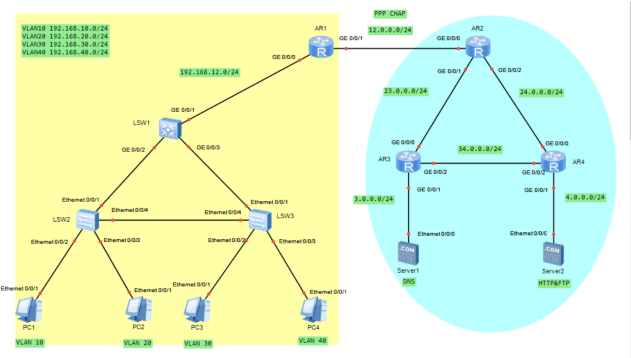

拓扑预览

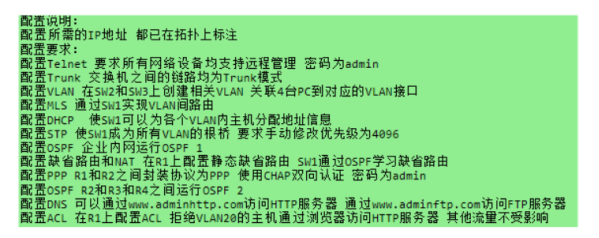

在这里插入图片描述实验要求：内网区域（黄色）外网区域（蓝色）

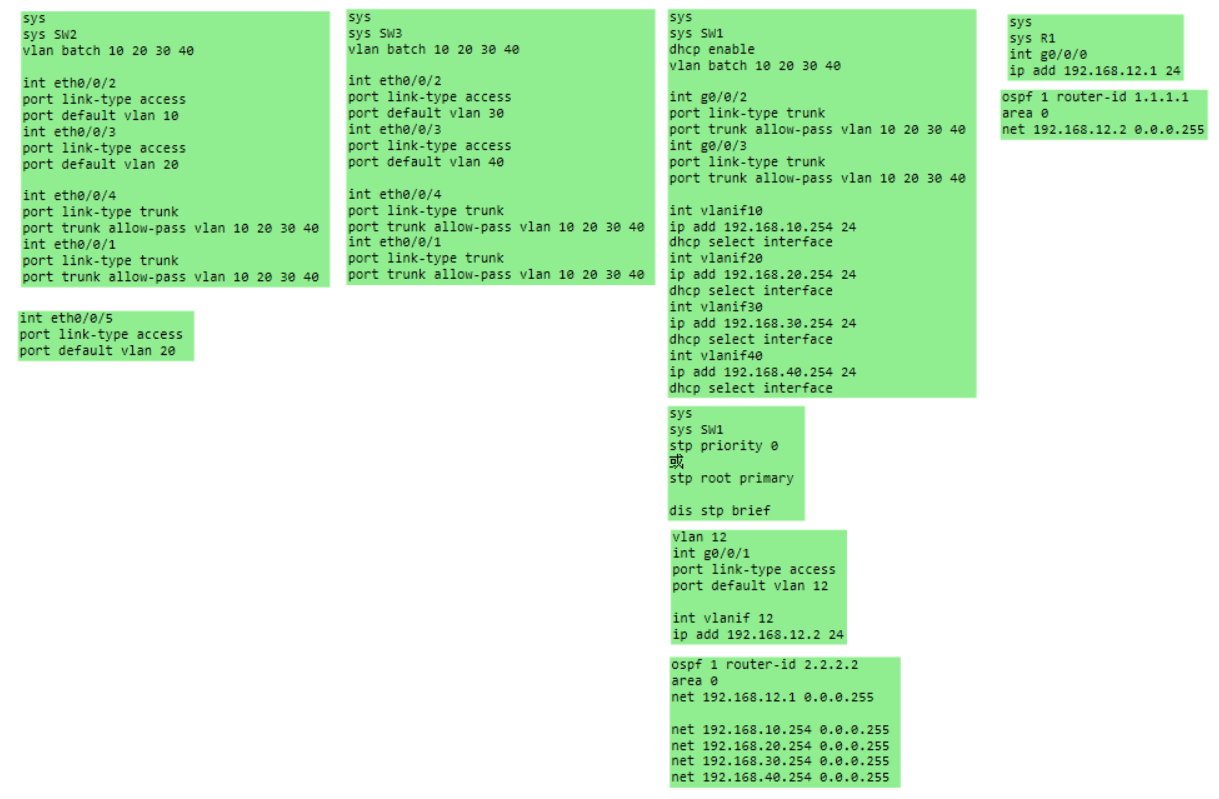

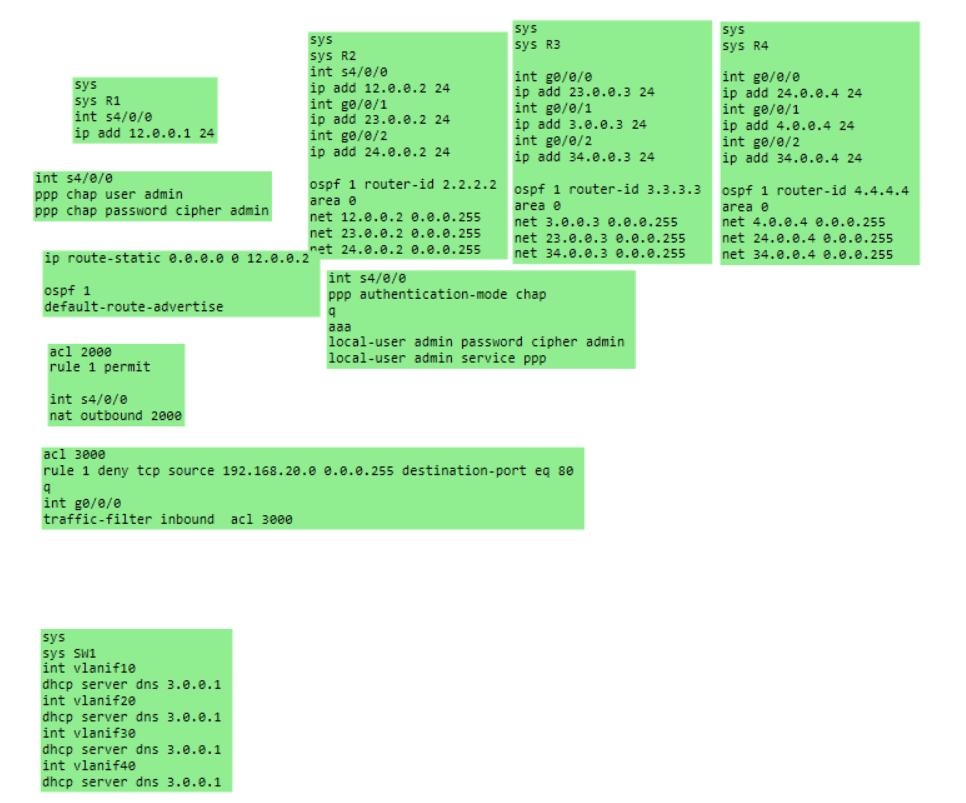

配置完成复盘拓扑

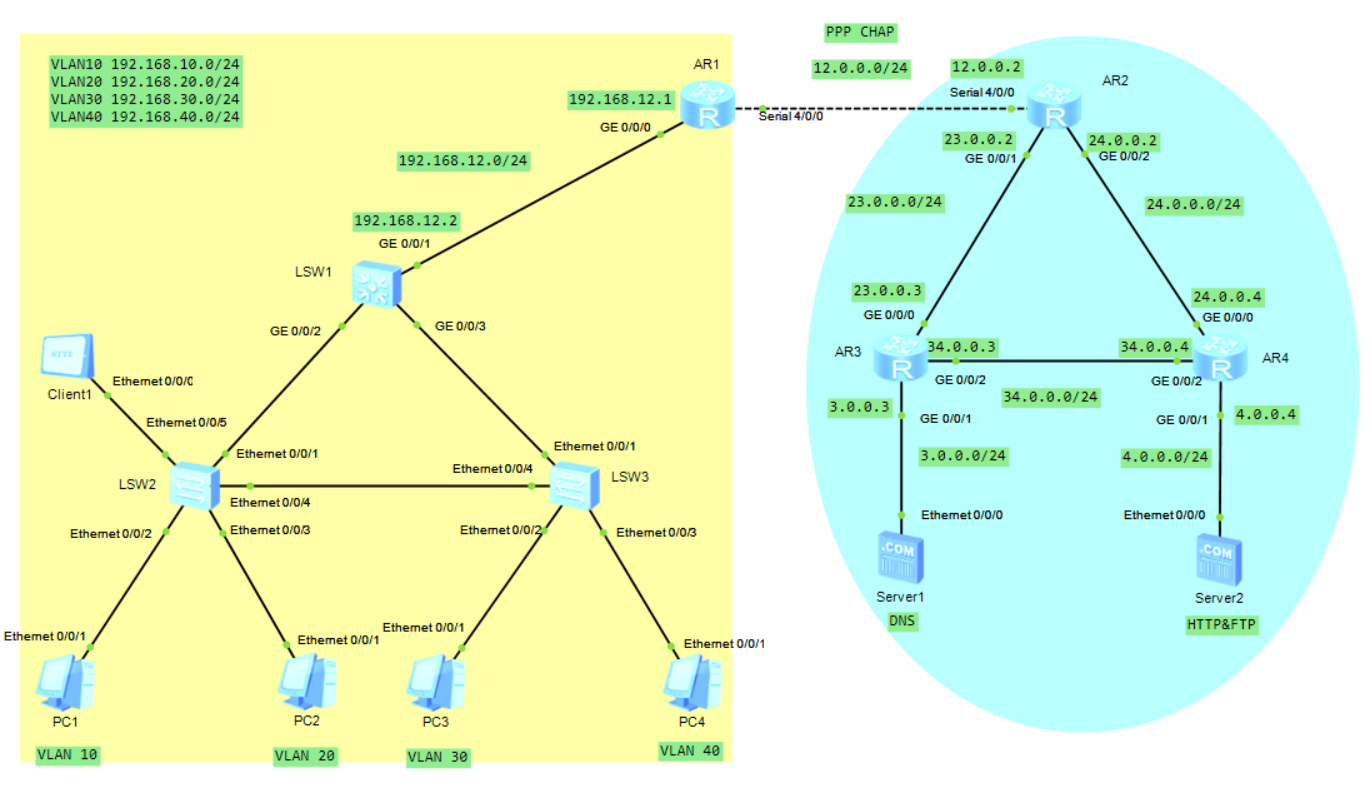

初始拓扑在这里插入图片描述最终拓扑
