思科EI CCIE交换网络中GLBP网关负载均衡协议实验详解-ielab

ie-lab网络实验室ccie认证之家 发布时间:2020-03-21 19:34:50 ,浏览量:6

       GLBP 则不仅具有网络冗余功能,还可以提供负载平衡的功能。通过本实验,我们可以掌握如下技能:

       (1) 理解 GLBP 的工作原理

       (2) 掌握 GLBP 的配置

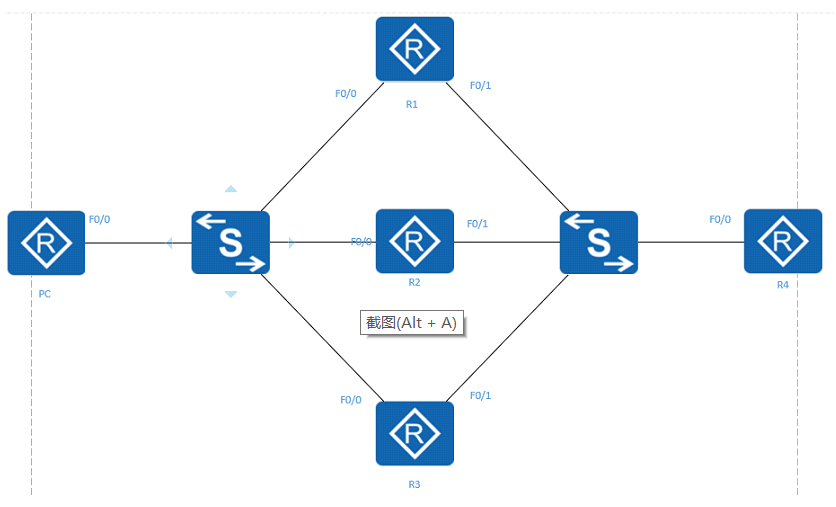

⦁    实验基础配置 使用路由器模拟PC Router(config)#hostname PC PC(config)#interface F0/0 PC(config)#ip address 192.168.1.100 255.255.255.0 PC(config)#no ip routing

R1(config)#interface F0/0  R1(config-if)#ip address 192.168.1.1 255.255.255.0  R1(config)#interface F0/1  R1(config-if)#ip address 192.168.2.1 255.255.255.0 R1(config)#router rip  R1(config-router)#network 192.168.1.0  R1(config-router)#network 192.168.2.0

R2(config)#interface F0/0  R2(config-if)#ip address 192.168.1.2 255.255.255.0  R2(config)#interface F0/1  R2(config-if)#ip address 192.168.2.2 255.255.255.0  R2(config)#router rip  R2(config-router)#network 192.168.1.0  R2(config-router)#network 192.168.2.0

R3(config)#interface F0/0  R3(config-if)#ip address 192.168.1.3 255.255.255.0  R3(config)#interface F0/1  R3(config-if)#ip address 192.168.2.3 255.255.255.0  R3(config)#router rip  R3(config-router)#network 192.168.1.0  R3(config-router)#network 192.168.2.0

R4(config)#interface Loopback0  R4(config-if)#ip address 4.4.4.4 255.0.0.0  R4(config)#interface F0/0 R4(config-if)#ip address 192.168.2.4 255.255.255.0  R4(config)#router rip  R4(config-router)#network 4.0.0.0  R4(config-router)#network 192.168.2.0  ⦁    配置 GLBP

R1(config)#interface F0/0  R1(config-if)#glbp 1 ip 192.168.1.254  //创建 GLBP 组,虚拟网关的 IP 为 192.168.1.254  R1(config-if)#glbp 1 priority 200  //配置优先级,优先级高的路由器成为 AVG,默认为 100  R1(config-if)#glbp 1 preempt  //配置 AVG 抢占,否则即使优先级再高,也不会成为 AVG  R1(config-if)#glbp 1 authentication md5 key-string cisco //以上是配置认证,防止非法设备接入    R2(config)#interface F0/0  R2(config-if)#glbp 1 ip 192.168.1.254  R2(config-if)#glbp 1 priority 180  R2(config-if)#glbp 1 preempt  R2(config-if)#glbp 1 authentication md5 key-string cisco

R3(config)#interface F0/0  R3(config-if)#glbp 1 ip 192.168.1.254  R3(config-if)#glbp 1 priority 160  R3(config-if)#glbp 1 preempt  R3(config-if)#glbp 1 authentication md5 key-string cisco

⦁    查看GLBP配置信息 R1#show glbp  FastEthernet0/0 - Group 1   State is Active     1 state change, last state change 00:36:43   Virtual IP address is 192.168.1.254   //虚拟网关地址   Hello time 3 sec, hold time 10 sec     Next hello sent in 2.432 secs   Redirect time 600 sec, forwarder timeout 14400 sec   Authentication MD5, key-string   Preemption enabled, min delay 0 sec   Active is local   //说明R1是活动AVG   Standby is 192.168.1.2, priority 180 (expires in 7.872 sec) //说明R2是备份AVG   Priority 200 (configured)   Weighting 100 (default 100), thresholds: lower 1, upper 100   Load balancing: round-robin   Group members:     ca02.7dc2.0008 (192.168.1.1) local     ca03.7dd1.0008 (192.168.1.2) authenticated ca04.7de0.0008 (192.168.1.3) authenticated //以上显示GLBP组成员   There are 3 forwarders (1 active)   Forwarder 1     State is Listen       2 state changes, last state change 00:36:03 MAC address is 0007.b400.0101 (learnt) //虚拟网关的MAC地址     Owner ID is ca03.7dd1.0008     Redirection enabled, 597.888 sec remaining (maximum 600 sec)     Time to live: 14397.888 sec (maximum 14400 sec)     Preemption enabled, min delay 30 sec     Active is 192.168.1.2 (primary), weighting 100 (expires in 8.832 sec)     Client selection count: 1   Forwarder 2     State is Listen       2 state changes, last state change 00:36:00     MAC address is 0007.b400.0102 (learnt)     Owner ID is ca04.7de0.0008     Redirection enabled, 598.144 sec remaining (maximum 600 sec)     Time to live: 14398.144 sec (maximum 14400 sec)     Preemption enabled, min delay 30 sec     Active is 192.168.1.3 (primary), weighting 100 (expires in 8.928 sec)   Forwarder 3     State is Active       1 state change, last state change 00:36:33     MAC address is 0007.b400.0103 (default)     Owner ID is ca02.7dc2.0008     Redirection enabled     Preemption enabled, min delay 30 sec     Active is local, weighting 100

⦁    检查GLBP的负载平衡

       在PC上ping 4.4.4.4,然后查看ARP PC#show ip arp  Protocol  Address          Age (min)  Hardware Addr   Type   Interface Internet  4.4.4.4                 0   0007.b400.0101  ARPA   FastEthernet0/0 Internet  192.168.1.100           -   ca01.7db3.0000  ARPA   FastEthernet0/0

清除ARP信息之后,重新ping,并查看ARP PC#show ip arp  Protocol  Address          Age (min)  Hardware Addr   Type   Interface Internet  4.4.4.4                 0   0007.b400.0103  ARPA   FastEthernet0/0 Internet  192.168.1.100           -   ca01.7db3.0000  ARPA   FastEthernet0

       由此说明GLBP响应ARP请求时,每次使用不同的MAC地址,从而实现负载平衡。
