十、Unity编辑器开发之Button

Button按钮的绘制需要用到GUILayout.Button或者EditorGUILayout.Button方法。

一、类型

按钮的绘制有很多种：

1.String类型Button：

using UnityEngine;
using UnityEditor;

[CustomEditor(typeof(Test))]
public class TestEditor : Editor
{
    public override void OnInspectorGUI()
    {
        GUILayout.Button("按钮");
    }
}

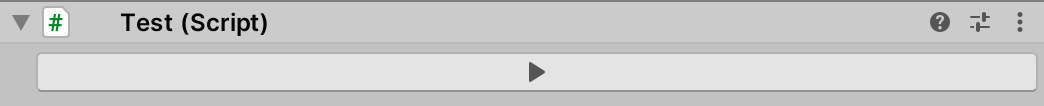

2.Icon图标类型Button：

using UnityEngine;
using UnityEditor;

[CustomEditor(typeof(Test))]
public class TestEditor : Editor
{
    public override void OnInspectorGUI()
    {
        //用到的是Unity内置的播放样式的图标
        GUILayout.Button(EditorGUIUtility.IconContent("PlayButton"));
    }
}

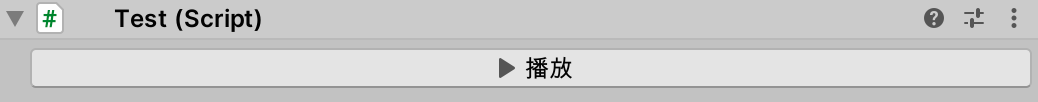

3.String + Icon类型图标：

using UnityEngine;
using UnityEditor;

[CustomEditor(typeof(Test))]
public class TestEditor : Editor
{
    public override void OnInspectorGUI()
    {
        //用到的是Unity内置的播放样式的图标
        GUILayout.Button(EditorGUIUtility.TrTextContent("播放", string.Empty, "PlayButton"));
    }
}

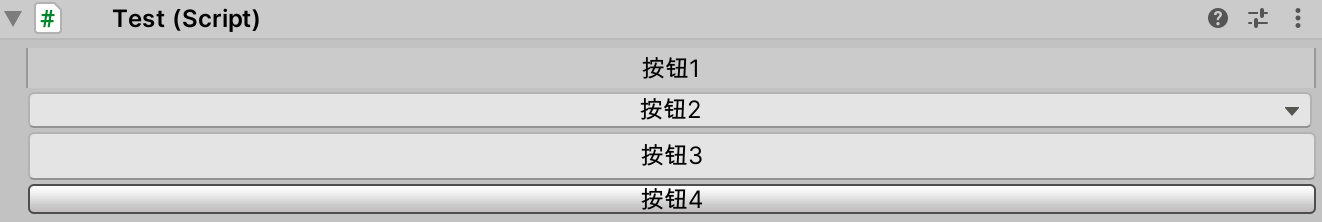

二、样式

Button的样式可以多种多样，下面列举几种样式：

using UnityEngine;
using UnityEditor;

[CustomEditor(typeof(Test))]
public class TestEditor : Editor
{
    public override void OnInspectorGUI()
    {
        GUILayout.Button("按钮1", "ToolbarButton");
        GUILayout.Button("按钮2", "DropDownButton");
        GUILayout.Button("按钮3", "LargeButton");
        GUILayout.Button("按钮4", "IN EditColliderButton");
    }
}

更多样式的预览方法可以查看前面的文章-编辑器开发之GUIStyle

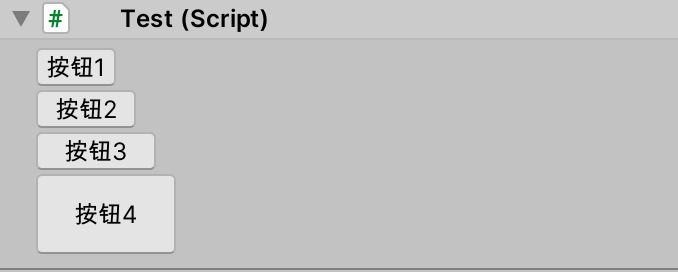

三、大小

可以通过GUILayout.Width及GUILayout.Height来控制大小：

using UnityEngine;
using UnityEditor;

[CustomEditor(typeof(Test))]
public class TestEditor : Editor
{
    public override void OnInspectorGUI()
    {
        GUILayout.Button("按钮1", GUILayout.Width(40));
        GUILayout.Button("按钮2", GUILayout.Width(50));
        GUILayout.Button("按钮3", GUILayout.Width(60));
        GUILayout.Button("按钮4", GUILayout.Width(70), GUILayout.Height(40));
    }
}

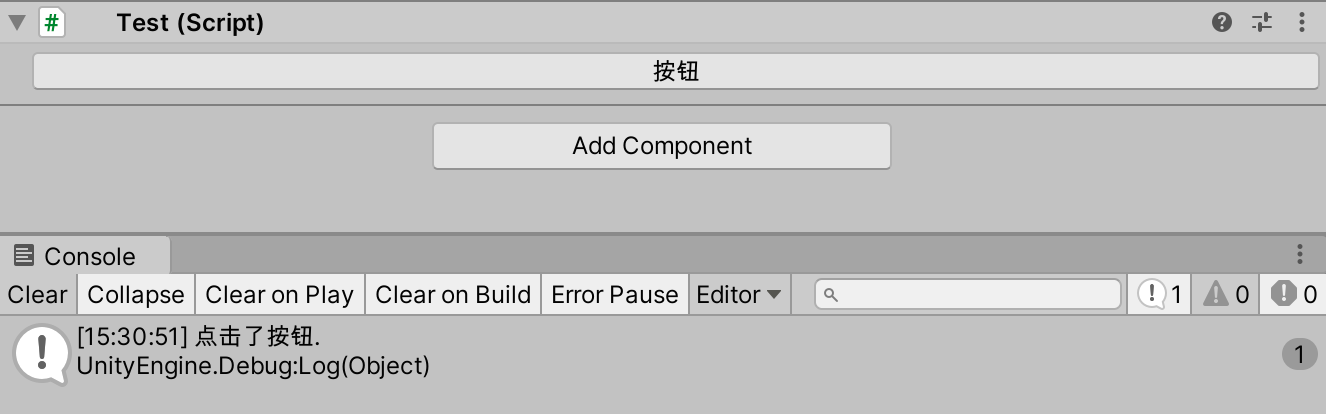

四、交互

GUILayout.Button()方法的返回值表示该按钮是否被点击，所以只需要if判断：

using UnityEngine;
using UnityEditor;

[CustomEditor(typeof(Test))]
public class TestEditor : Editor
{
    public override void OnInspectorGUI()
    {
        if (GUILayout.Button("按钮"))
        {
            Debug.Log("点击了按钮.");
        }
    }
}

点击按钮即可执行if代码块中的逻辑。
