这是一个Logparsing框架，旨在简化Apache HTTPD和NGINX访问日志文件的解析。
基本思想是，您应该能够拥有一个解析器，可以通过简单地告诉该行写入了哪些配置选项来构造该解析器。这些配置选项是访问日志行的架构。
github地址：https://github.com/nielsbasjes/logparser
idea安装插件Lombok能以简单的注解形式来简化java代码，提高开发人员的开发效率。例如开发中经常需要写的javabean，都需要花时间去添加相应的getter/setter，也许还要去写构造器、equals等方法，而且需要维护，当属性多时会出现大量的getter/setter方法，这些显得很冗长也没有太多技术含量，一旦修改属性，就容易出现忘记修改对应方法的失误。
Lombok能通过注解的方式，在编译时自动为属性生成构造器、getter/setter、equals、hashcode、toString方法。出现的神奇就是在源码中没有getter和setter方法，但是在编译生成的字节码文件中有getter和setter方法。这样就省去了手动重建这些代码的麻烦，使代码看起来更简洁些。
安装步骤：

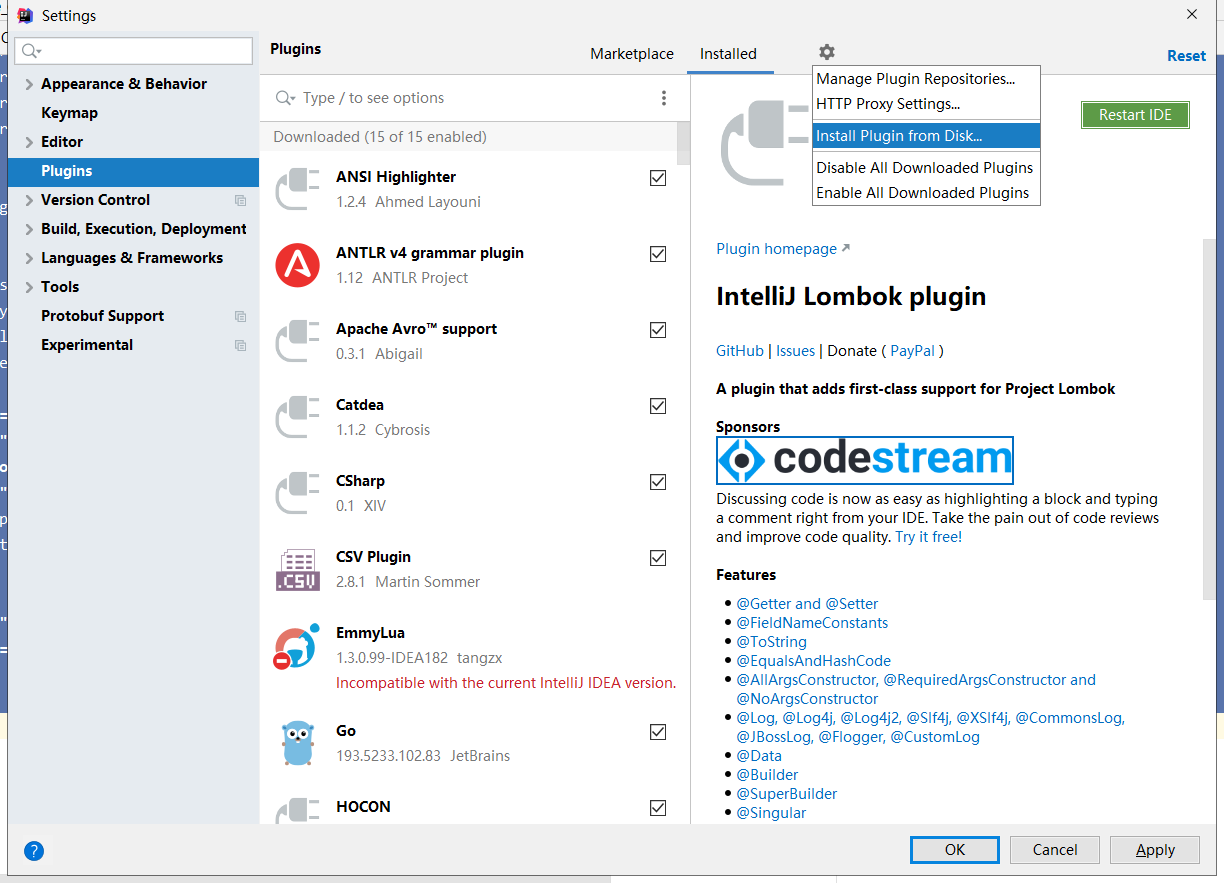

- 打开idea，进入插件安装窗口
- 选择从磁盘安装
- 选择插件所在路径
- 重启idea即可生效
nl.basjes.parse.httpdlog
httpdlog-parser
5.2
在nginx的conf目录下的nginx.conf文件中可以配置日志打印的格式，如下：
#log_format main '$remote_addr - $remote_user [$time_local] [$msec]
[$request_time] [$http_host] "$request" '
'$status $body_bytes_sent "$request_body" "$http_referer" '
'"$http_user_agent" $http_x_forwarded_for'
$remote_addr 对应客户端的地址
$remote_user 是请求客户端请求认证的用户名，如果没有开启认证模块的话是值为空。
$time_local 表示nginx服务器时间
$msec 访问时间与时区字符串形式
$request_time 请求开始到返回时间
$http_host 请求域名
$request 请求的url与http协议
$status 请求状态,如成功200
$body_bytes_sent 表示从服务端返回给客户端的body数据大小
$request_body 访问url时参数
$http_referer 记录从那个页面链接访问过来的
$http_user_agent 记录客户浏览器的相关信息
$http_x_forwarded_for 请求转发f过来的地址
$upstream_response_time:从 Nginx 建立连接 到 接收完数据并关闭连接
范例:
125.88.xxx.xx - - [02/Nov/2018:14:28:49 +0800] [1541140129.431] [0.095] [ma.xx.game.com] “POST /?log3/gameReport HTTP/1.1” 200 358 “type=1&id=NaN” “http://ma.xx.game.com/?log3/gameReport2” “Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/70.0.3538.77 Safari/537.36” -
点击日流日志样本2001-980:91c0:1:8d31:a232:25e5:85d 222.68.172.190 - [05/Sep/2010:11:27:50 +0200] \"GET /images/my.jpg HTTP/1.1\" 404 23617 \"http://www.angularjs.cn/A00n\" \"Mozilla/5.0 (Macintosh; U; Intel Mac OS X 10_6_4; nl-nl) AppleWebKit/533.17.8 (KHTML, like Gecko) Version/5.0.1 Safari/533.17.8\" \"jquery-ui-theme=Eggplant; BuI=SomeThing; Apache=127.0.0.1.1351111543699529\" \"beijingshi\"
参考：https://httpd.apache.org/docs/current/mod/mod_log_config.html
%u %h %l %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\" \"%{Cookie}i\" \"%{Addr}i\"
打印日志格式字符串的所有参数
public class Test {
public static void main(String[] args) throws MissingDissectorsException, NoSuchMethodException, DissectionFailure, InvalidDissectorException {
new Test().run();
}
String logformat = "%u %h %l %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\" \"%{Cookie}i\" \"%{Addr}i\"";
String logline = "2001-980:91c0:1:8d31:a232:25e5:85d 222.68.172.190 - [05/Sep/2010:11:27:50 +0200] \"GET /images/my.jpg HTTP/1.1\" 404 23617 \"http://www.angularjs.cn/A00n\" \"Mozilla/5.0 (Macintosh; U; Intel Mac OS X 10_6_4; nl-nl) AppleWebKit/533.17.8 (KHTML, like Gecko) Version/5.0.1 Safari/533.17.8\" \"jquery-ui-theme=Eggplant; BuI=SomeThing; Apache=127.0.0.1.1351111543699529\" \"beijingshi\"";
private void run() throws InvalidDissectorException, MissingDissectorsException, NoSuchMethodException, DissectionFailure {
//打印日志格式的参数列表
printAllPossibles(logformat);
}
private static final Logger LOG = LoggerFactory.getLogger(Test.class);
//打印所有参数
private void printAllPossibles(String logformat) throws NoSuchMethodException, MissingDissectorsException, InvalidDissectorException {
Parser dummyParser = new HttpdLoglineParser(Object.class, logformat);
List possiblePaths = dummyParser.getPossiblePaths();
dummyParser.addParseTarget(String.class.getMethod("indexOf", String.class), possiblePaths);
LOG.info("==================================");
System.out.println("==================================");
LOG.info("Possible output:");
System.out.println("Possible output:");
for (String path : possiblePaths) {
System.out.println(path + " " + dummyParser.getCasts(path));
LOG.info("{} {}", path, dummyParser.getCasts(path));
}
System.out.println("==================================");
LOG.info("==================================");
}
}
定义实体对象
public class MyRecord {
@Getter @Setter private String connectionClientUser = null;
@Getter @Setter private String connectionClientHost = null;
@Getter @Setter private String requestReceiveTime = null;
@Getter @Setter private String method = null;
@Getter @Setter private String referrer = null;
@Getter @Setter private String screenResolution = null;
@Getter @Setter private String requestStatus = null;
@Getter @Setter private String responseBodyBytes = null;
@Getter @Setter private Long screenWidth = null;
@Getter @Setter private Long screenHeight = null;
@Getter @Setter private String googleQuery = null;
@Getter @Setter private String bui = null;
@Getter @Setter private String useragent = null;
@Getter @Setter private String asnNumber = null;
@Getter @Setter private String asnOrganization = null;
@Getter @Setter private String ispName = null;
@Getter @Setter private String ispOrganization = null;
@Getter @Setter private String continentName = null;
@Getter @Setter private String continentCode = null;
@Getter @Setter private String countryName = null;
@Getter @Setter private String countryIso = null;
@Getter @Setter private String subdivisionName = null;
@Getter @Setter private String subdivisionIso = null;
@Getter @Setter private String cityName = null;
@Getter @Setter private String postalCode = null;
@Getter @Setter private Double locationLatitude = null;
@Getter @Setter private Double locationLongitude = null;
private final Map results = new HashMap(32);
@Field("STRING:request.firstline.uri.query.*")
public void setQueryDeepMany(final String name, final String value) {
results.put(name, value);
}
@Field("STRING:request.firstline.uri.query.img")
public void setQueryImg(final String name, final String value) {
results.put(name, value);
}
@Field("IP:connection.client.host")
public void setIP(final String value) {
results.put("IP:connection.client.host", value);
}
public String getUser() {
return results.get("IP:connection.client.host");
}
@Field({
"STRING:connection.client.user",
"HTTP.HEADER:request.header.addr",
"IP:connection.client.host.last",
"TIME.STAMP:request.receive.time.last",
"TIME.DAY:request.receive.time.last.day",
"TIME.MONTHNAME:request.receive.time.last.monthname",
"TIME.MONTH:request.receive.time.last.month",
"TIME.WEEK:request.receive.time.last.weekofweekyear",
"TIME.YEAR:request.receive.time.last.weekyear",
"TIME.YEAR:request.receive.time.last.year",
"TIME.HOUR:request.receive.time.last.hour",
"TIME.MINUTE:request.receive.time.last.minute",
"TIME.SECOND:request.receive.time.last.second",
"TIME.MILLISECOND:request.receive.time.last.millisecond",
"TIME.MICROSECOND:request.receive.time.last.microsecond",
"TIME.NANOSECOND:request.receive.time.last.nanosecond",
"TIME.DATE:request.receive.time.last.date",
"TIME.TIME:request.receive.time.last.time",
"TIME.ZONE:request.receive.time.last.timezone",
"TIME.EPOCH:request.receive.time.last.epoch",
"TIME.DAY:request.receive.time.last.day_utc",
"TIME.MONTHNAME:request.receive.time.last.monthname_utc",
"TIME.MONTH:request.receive.time.last.month_utc",
"TIME.WEEK:request.receive.time.last.weekofweekyear_utc",
"TIME.YEAR:request.receive.time.last.weekyear_utc",
"TIME.YEAR:request.receive.time.last.year_utc",
"TIME.HOUR:request.receive.time.last.hour_utc",
"TIME.MINUTE:request.receive.time.last.minute_utc",
"TIME.SECOND:request.receive.time.last.second_utc",
"TIME.MILLISECOND:request.receive.time.last.millisecond_utc",
"TIME.MICROSECOND:request.receive.time.last.microsecond_utc",
"TIME.NANOSECOND:request.receive.time.last.nanosecond_utc",
"TIME.DATE:request.receive.time.last.date_utc",
"TIME.TIME:request.receive.time.last.time_utc",
"HTTP.URI:request.referer",
"HTTP.PROTOCOL:request.referer.protocol",
"HTTP.USERINFO:request.referer.userinfo",
"HTTP.HOST:request.referer.host",
"HTTP.PORT:request.referer.port",
"HTTP.PATH:request.referer.path",
"HTTP.QUERYSTRING:request.referer.query",
"STRING:request.referer.query.*",
"HTTP.REF:request.referer.ref",
"TIME.STAMP:request.receive.time",
"TIME.DAY:request.receive.time.day",
"TIME.MONTHNAME:request.receive.time.monthname",
"TIME.MONTH:request.receive.time.month",
"TIME.WEEK:request.receive.time.weekofweekyear",
"TIME.YEAR:request.receive.time.weekyear",
"TIME.YEAR:request.receive.time.year",
"TIME.HOUR:request.receive.time.hour",
"TIME.MINUTE:request.receive.time.minute",
"TIME.SECOND:request.receive.time.second",
"TIME.MILLISECOND:request.receive.time.millisecond",
"TIME.MICROSECOND:request.receive.time.microsecond",
"TIME.NANOSECOND:request.receive.time.nanosecond",
"TIME.DATE:request.receive.time.date",
"TIME.TIME:request.receive.time.time",
"TIME.ZONE:request.receive.time.timezone",
"TIME.EPOCH:request.receive.time.epoch",
"TIME.DAY:request.receive.time.day_utc",
"TIME.MONTHNAME:request.receive.time.monthname_utc",
"TIME.MONTH:request.receive.time.month_utc",
"TIME.WEEK:request.receive.time.weekofweekyear_utc",
"TIME.YEAR:request.receive.time.weekyear_utc",
"TIME.YEAR:request.receive.time.year_utc",
"TIME.HOUR:request.receive.time.hour_utc",
"TIME.MINUTE:request.receive.time.minute_utc",
"TIME.SECOND:request.receive.time.second_utc",
"TIME.MILLISECOND:request.receive.time.millisecond_utc",
"TIME.MICROSECOND:request.receive.time.microsecond_utc",
"TIME.NANOSECOND:request.receive.time.nanosecond_utc",
"TIME.DATE:request.receive.time.date_utc",
"TIME.TIME:request.receive.time.time_utc",
"HTTP.URI:request.referer.last",
"HTTP.PROTOCOL:request.referer.last.protocol",
"HTTP.USERINFO:request.referer.last.userinfo",
"HTTP.HOST:request.referer.last.host",
"HTTP.PORT:request.referer.last.port",
"HTTP.PATH:request.referer.last.path",
"HTTP.QUERYSTRING:request.referer.last.query",
"STRING:request.referer.last.query.*",
"HTTP.REF:request.referer.last.ref",
"NUMBER:connection.client.logname",
"BYTESCLF:response.body.bytes",
"BYTES:response.body.bytes",
"HTTP.USERAGENT:request.user-agent.last",
"HTTP.COOKIES:request.cookies.last",
"HTTP.COOKIE:request.cookies.last.*",
"STRING:request.status.last",
"HTTP.USERAGENT:request.user-agent",
"STRING:connection.client.user.last",
"HTTP.FIRSTLINE:request.firstline.original",
"HTTP.METHOD:request.firstline.original.method",
"HTTP.URI:request.firstline.original.uri",
"HTTP.PROTOCOL:request.firstline.original.uri.protocol",
"HTTP.USERINFO:request.firstline.original.uri.userinfo",
"HTTP.HOST:request.firstline.original.uri.host",
"HTTP.PORT:request.firstline.original.uri.port",
"HTTP.PATH:request.firstline.original.uri.path",
"HTTP.QUERYSTRING:request.firstline.original.uri.query",
"STRING:request.firstline.original.uri.query.*",
"HTTP.REF:request.firstline.original.uri.ref",
"HTTP.PROTOCOL_VERSION:request.firstline.original.protocol",
"HTTP.PROTOCOL:request.firstline.original.protocol",
"HTTP.PROTOCOL.VERSION:request.firstline.original.protocol.version",
"BYTESCLF:response.body.bytes.last",
"BYTES:response.body.bytes.last",
"NUMBER:connection.client.logname.last",
"HTTP.FIRSTLINE:request.firstline",
"HTTP.METHOD:request.firstline.method",
"HTTP.URI:request.firstline.uri",
"HTTP.PROTOCOL:request.firstline.uri.protocol",
"HTTP.USERINFO:request.firstline.uri.userinfo",
"HTTP.HOST:request.firstline.uri.host",
"HTTP.PORT:request.firstline.uri.port",
"HTTP.PATH:request.firstline.uri.path",
"HTTP.QUERYSTRING:request.firstline.uri.query",
"STRING:request.firstline.uri.query.*",
"HTTP.REF:request.firstline.uri.ref",
"HTTP.PROTOCOL_VERSION:request.firstline.protocol",
"HTTP.PROTOCOL:request.firstline.protocol",
"HTTP.PROTOCOL.VERSION:request.firstline.protocol.version",
"HTTP.COOKIES:request.cookies",
"HTTP.COOKIE:request.cookies.*",
"BYTES:response.body.bytesclf",
"BYTESCLF:response.body.bytesclf",
"IP:connection.client.host",
})
public void setValue(final String name, final String value) {
results.put(name, value);
}
public String toString() {
StringBuilder sb = new StringBuilder();
TreeSet keys = new TreeSet(results.keySet());
for (String key : keys) {
sb.append(key).append(" = ").append(results.get(key)).append('\n');
}
return sb.toString();
}
public void clear() {
results.clear();
}
}
核心代码实现：
public class Test {
public static void main(String[] args) throws MissingDissectorsException, NoSuchMethodException, DissectionFailure, InvalidDissectorException {
new Test().run();
}
String logformat = "%u %h %l %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\" \"%{Cookie}i\" \"%{Addr}i\"";
String logline = "2001-980:91c0:1:8d31:a232:25e5:85d 222.68.172.190 - [05/Sep/2010:11:27:50 +0200] \"GET /images/my.jpg HTTP/1.1\" 404 23617 \"http://www.angularjs.cn/A00n\" \"Mozilla/5.0 (Macintosh; U; Intel Mac OS X 10_6_4; nl-nl) AppleWebKit/533.17.8 (KHTML, like Gecko) Version/5.0.1 Safari/533.17.8\" \"jquery-ui-theme=Eggplant; BuI=SomeThing; Apache=127.0.0.1.1351111543699529\" \"beijingshi\"";
private void run() throws InvalidDissectorException, MissingDissectorsException, NoSuchMethodException, DissectionFailure {
//打印日志格式的参数列表
printAllPossibles(logformat);
//将日志参数映射成对象
Parser parser = new HttpdLoglineParser(MyRecord.class, logformat);
parser.addParseTarget("setConnectionClientUser", "STRING:connection.client.user");
parser.addParseTarget("setConnectionClientHost", "IP:connection.client.host");
parser.addParseTarget("setRequestReceiveTime", "TIME.STAMP:request.receive.time");
parser.addParseTarget("setMethod", "HTTP.METHOD:request.firstline.method");
parser.addParseTarget("setRequestStatus", "STRING:request.status.last");
parser.addParseTarget("setScreenResolution", "HTTP.URI:request.firstline.uri");
parser.addParseTarget("setResponseBodyBytes", "BYTES:response.body.bytes");
parser.addParseTarget("setReferrer", "HTTP.URI:request.referer");
parser.addParseTarget("setUseragent", "HTTP.USERAGENT:request.user-agent");
MyRecord record = new MyRecord();
System.out.println("==============================================");
parser.parse(record, logline);
LOG.info(record.toString());
System.out.println(record.toString());
System.out.println("==============================================");
System.out.println(record.getConnectionClientUser());
System.out.println(record.getConnectionClientHost());
System.out.println(record.getRequestReceiveTime());
System.out.println(record.getMethod());
System.out.println(record.getScreenResolution());
System.out.println(record.getRequestStatus());
System.out.println(record.getResponseBodyBytes());
System.out.println(record.getReferrer());
System.out.println(record.getUseragent());
}
//打印所有参数
private void printAllPossibles(String logformat) throws NoSuchMethodException, MissingDissectorsException, InvalidDissectorException {
Parser dummyParser = new HttpdLoglineParser(Object.class, logformat);
List possiblePaths = dummyParser.getPossiblePaths();
dummyParser.addParseTarget(String.class.getMethod("indexOf", String.class), possiblePaths);
System.out.println("==================================");
System.out.println("Possible output:");
for (String path : possiblePaths) {
System.out.println(path + " " + dummyParser.getCasts(path));
}
System.out.println("==================================");
}
}
