ECharts4柱状图自定义(样式设置和数据dataset设置)

龚建波 发布时间:2019-07-26 23:32:15 ,浏览量:4

0.前言

ECharts 是一款由百度前端技术部开发的,基于 Javascript 的数据可视化图表库。由于功能强大,文档和示例也做得很好,适合快速构建图表原型以应用于产品。

1.下载Echarts.js

百度搜索echarts进官网,点击菜单栏的下载,然后根据需要进行下载。

下载页: https://www.echartsjs.com/download.html

我一般选在线定制,然后勾选自己需要的组件来生成js文件就行了。

2.柱状图自定义

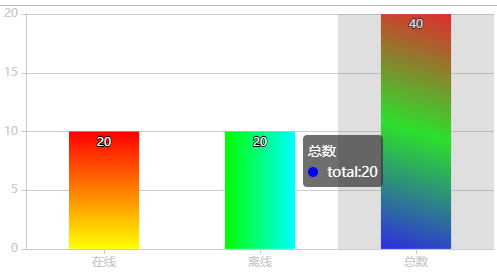

先上效果参考图:

(代码基于Echarts4,用到了dataset,旧版本的话参考下就行了,并且我没用到里面的图例图题等东西。另外,参考里那个博客写的挺详细的)

本文代码链接:https://github.com/gongjianbo/LearnECharts/tree/master/echarts_bar





    ECharts Bar

        html,
        body,
        #echarts {
            margin: 0px;
            padding: 0px;
            height: 100%;
            width: 100%;
        }

        /*隐藏滚动条*/
        html {
            overflow-x: hidden;
            overflow-y: hidden;
        }






var worldMapContainer = document.getElementById('echarts'); //窗体自适应 var resizeWorldMapContainer = function () { worldMapContainer.style.width = window.innerWidth + 'px'; worldMapContainer.style.height = window.innerHeight + 'px'; }; resizeWorldMapContainer(); window.onresize = function () { resizeWorldMapContainer(); myChart.resize(); }; //这里创建一个ECharts实例,返回 echartsInstance,不能在单个容器上初始化多个 ECharts 实例。 //通过init设置图表实例的配置项以及数据,万能接口,所有参数和数据的修改都可以通过 setOption 完成, //ECharts 会合并新的参数和数据,然后刷新图表。 //如果开启动画的话,ECharts 找到两组数据之间的差异然后通过合适的动画去表现数据的变化。 var myChart = echarts.init(worldMapContainer); //这里用一个列表来放渐变色 var colorList = [ //四个值分别代表右下左上,有数值是起点,一般写1方便计算 //offset取值[0,1],径向路径起点到终点的位置 //从上到下 new echarts.graphic.LinearGradient(0, 0, 0, 1, [{ offset: 0, color: "#FF0000" }, { offset: 1, color: "#FFFF00" } ]), //从左到右 new echarts.graphic.LinearGradient(0, 0, 1, 0, [{ offset: 0, color: "#00FF00" }, { offset: 1, color: "#00FFFF" } ]), //右上到左下 new echarts.graphic.LinearGradient(1, 0, 0, 1, [{ offset: 0, color: "#FF0000" }, { offset: 0.5, color: "#00FF00" }, { offset: 1, color: "#0000FF" } ]) ]; //小圆点颜色列表 var pointColorList = ['red', 'green', 'blue']; // 初始化设置 myChart.setOption({ //提示框 tooltip: { //触发方式可以是坐标轴'axis',数据项'item' trigger: 'axis', // 坐标轴指示器 axisPointer: { // 默认为直线'line',可选为阴影'shadow' type: 'shadow' }, //提示内容的回调函数 formatter: function (params) { //嵌入html的方式自定义小圆点 var dot = ''; return params[0].data.type + " " + dot + " total:" + params[0].data.total } }, //网格 grid: { //grid外的占比 left: '1%', right: '1%', top: '3%', bottom: '3%', //grid 区域是否包含坐标轴的刻度标签 containLabel: true }, xAxis: { type: 'category', //可以指定参数的顺序,但是不会改变params[0].dataIndex顺序 //data: ['总数', '在线', '离线'], //刻度label axisLabel: { textStyle: { color: '#c9c9ca' } }, //刻度线 axisLine: { lineStyle: { color: '#c9c9ca', width: 1 } }, //坐标刻度相关 axisTick: { //刻度线和标签对齐 alignWithLabel: true } //设置字体倾斜 /*axisLabel: { interval: 0, rotate: 45, margin: 2, textStyle: { color: '#c9c9ca', fontSize: '9', fontFamily: 'PingFang-Sc-Heavy', } }*/ }, yAxis: { //坐标轴在 grid 区域中的分隔线 splitLine: { show: true }, type: 'value', axisLabel: { textStyle: { color: '#c9c9ca' } }, axisLine: { lineStyle: { color: '#c9c9ca', width: 1 } } }, //数据展示 series: [{ //柱状图 type: 'bar', //柱子宽度在item宽度的占比 barWidth: "45%", itemStyle: { normal: { //柱子颜色 color: function (params) { return colorList[params.dataIndex]; } } }, //柱子上的label label: { normal: { show: true, position: 'insideTop', formatter: function (params) { return params.data.size } } }, //重新映射x轴和y轴的数据 encode: { x: ['type'], y: ['total'] } }], //ECharts 4 开始支持了 dataset 组件用于单独的数据集声明, //从而数据可以单独管理,被多个组件复用,并且可以基于数据指定数据到视觉的映射。 dataset: { //临时用的数据 source: [{ "type": "在线", "total": 10, "size": 20 }, { "type": "离线", "total": 10, "size": 20 }, { "type": "总数", "total": 20, "size": 40 }] } }); //将json数组作为参数进行动态设置 function setChartData(jsonarray) { //alert(jsonarray) myChart.setOption({ //加载数据图表 dataset: [{ source: jsonarray }] }); };
3.参考

官方示例:https://www.echartsjs.com/examples/

官方文档:https://www.echartsjs.com/api.html#echarts

博客参数说明:Echarts数据可视化grid直角坐标系(xAxis、yAxis),开发全解+完美注释_全栈工程师开发手册(原创)(腾讯内推)-CSDN博客_echarts直角坐标系

博客dataset:Echarts 定制化封装之dataset - wlc534的个人空间 - OSCHINA - 中文开源技术交流社区
