《QDebug 2022年4月》

龚建波 发布时间:2022-04-30 01:11:45 ,浏览量:4

一、Qt Widgets 问题交流 二、Qt Quick 问题交流 1.Dialog 或 Popup 弹框位置默认可以设置到 Window 可视范围外

(测试版本,Qt5.12和Qt5.15)

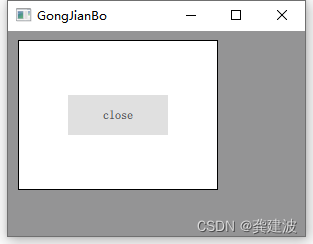

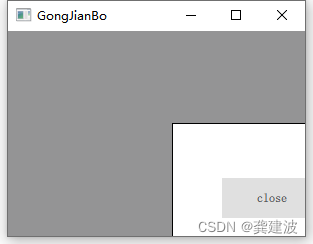

Dialog 或者 Popup 的位置默认是可以设置到 Window 可视范围之外的,这就导致弹框显示不完整。如图:



但是给弹框设置 margin 大于等于 0 之后就会被限定在 Window 范围内,这样我们在自定义弹框拖动的时候就不用判断是否超出边界了。

代码如下:

import QtQuick 2.12
import QtQml 2.12
import QtQuick.Controls 2.12
import QtQuick.Window 2.12

Window {
    width: 640
    height: 480
    visible: true
    title: qsTr("GongJianBo")

    MyDialog {
        id: dialog
    }

    MouseArea {
        anchors.fill: parent
        onClicked: dialog.open()
    }
}
import QtQuick 2.12
import QtQuick.Controls 2.12

Popup {
    id: control

    width: 500
    height: 350
    padding: 0
    margins: 0
    modal: true
    closePolicy: Popup.CloseOnEscape

    //背景
    Rectangle {
        id: bg_area
        anchors.fill: parent
        border.color: "black"

        //用于拖拽对话框
        MouseArea {
            id: bg_mouse
            anchors.fill: parent
            property point clickPos: Qt.point(0,0)
            property bool dragMoving: false
            onPressed: {
                dragMoving = true;
                clickPos = Qt.point(mouseX,mouseY);
            }
            onReleased: {
                dragMoving = false;
            }
            onPositionChanged: {
                if(!dragMoving){
                    return;
                }
                control.x += mouseX-clickPos.x;
                control.y += mouseY-clickPos.y;
            }
        }

        Button {
            anchors.centerIn: parent
            text: "close"
            onClicked: control.close()
        }
    }
}
三、其他 1.环境变量设置 QML2_IMPORT_PATH 后,与之不同版本的 QML 程序启动失败

如环境变量设置 Qt5.15:

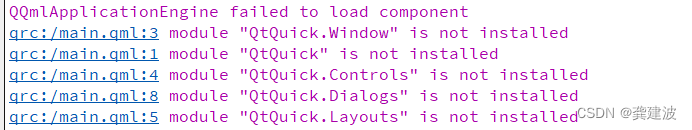

但是打包的程序是 Qt5.12 等其他版本,会导致 QML 组件不能正常加载:

即使设置了 qt.conf 文件的导入路径,还是不能正常加载。

可以在代码中设置 QML2_IMPORT_PATH 环境变量:

qputenv("QML2_IMPORT_PATH","");
QApplication app(argc, argv);

或者设置 QQmlEngine 的 setImportPathList:

    QQmlApplicationEngine engine;
    QStringList qml_path;
    //Qt6 location接口改名为了path
    qml_path.push_front(QLibraryInfo::location(QLibraryInfo::Qml2ImportsPath););
    engine.setImportPathList(qml_path);

这样就能覆盖掉环境变量中不同版本的 QML 组件路径。

2.Qt Remote Object source 端多线程 emit 信号,client 只能触发第一次

示例工程:https://github.com/gongjianbo/MyTestCode/tree/master/Qt/QtRemoteObjects

将 source 服务端每次都 new 一个新的线程来处理任务,结束之后在该线程中 emit 信号,但 client 客户端关联该信号却只能触发第一次。

    //信号测试
    connect(ui->btnSignal,&QPushButton::clicked,[this]{
        std::thread th([this](){
            emit source.dataChanged("server dataChanged");
        });
        th.detach();
    });

可将信号触发放到一个固定的线程中:

    //信号测试
    connect(ui->btnSignal,&QPushButton::clicked,[this]{
        std::thread th([this](){
            QMetaObject::invokeMethod(&source,[=]{
                emit source.dataChanged("server dataChanged");
            },Qt::QueuedConnection);
        });
        th.detach();
    });
