基于FPGA的TPU脉动阵列

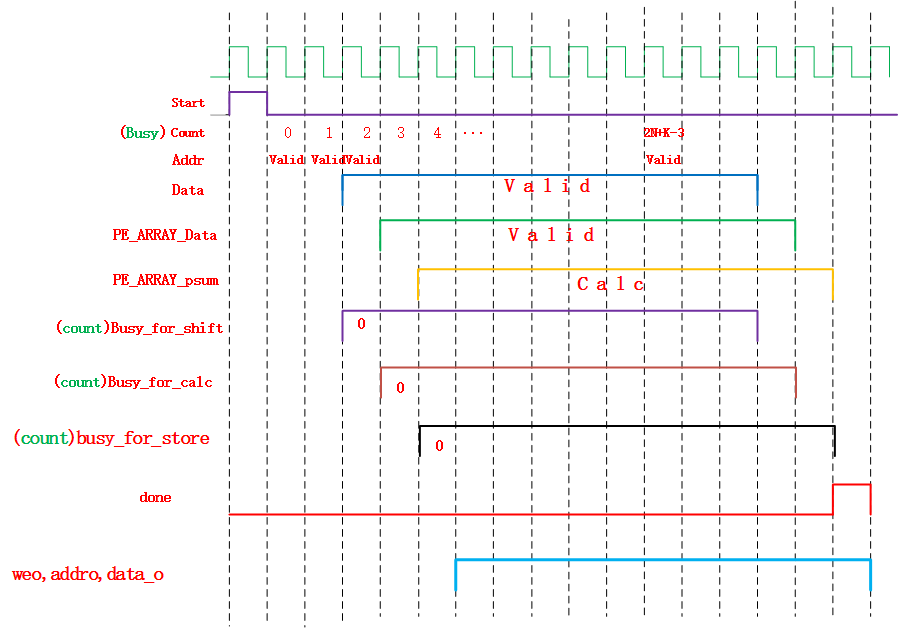

部分信号的时序图：

模块代码：

`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2021/02/05 19:33:34
// Design Name:
// Module Name: systolic
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//


module systolic(       //计算A*B,其中A为nxn,B为nxk，A存储在pe_array中固定
input logic clk,
input logic rst,

input logic [15:0]k,
input logic start_compute,
input logic start_load,
output logic compute_done,
output logic load_done,

input logic [15:0] data_a [0:N-1],            //A,存在weight中
input logic [15:0] data_b [0:N-1],            //输入数据
output logic [15:0] addra [0:N-1],
output logic [15:0] addrb [0:N-1],

output logic [15:0] addro [0:N-1],
output logic [31:0] data_o [0:N-1],
output logic weo [0:N-1]
);

parameter N = 4;

logic busy;
logic busy_ff1;
logic busy_for_shift;
logic busy_for_calc;
logic busy_for_store;

logic [9:0] count;                  //for compute
logic [9:0] count_ff1;
logic [9:0] count_for_shift;
logic [9:0] count_for_calc;
logic [9:0] count_for_store;

logic [9:0] count_for_load;
logic [9:0] count_for_load_ff1;
logic [9:0] count_for_load_ff2;
logic busy_for_load;
logic busy_for_load_ff1;
logic busy_for_load_ff2;

logic [15:0] data [0:N-1][0:N-1];
logic [15:0] weight [0:N-1][0:N-1];
logic [31:0] psum [0:N-1][0:N-1];

//load task
//busy_for_load
always_ff@(posedge clk,posedge rst)
if(rst)
    busy_for_load
