pytorch实现GoogleNet

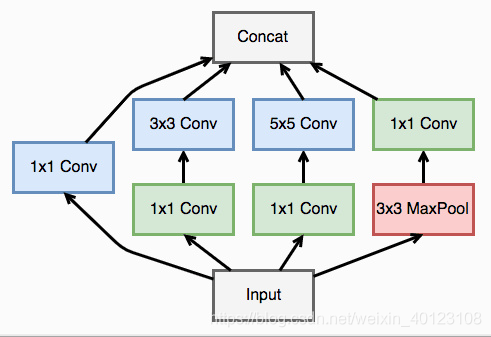

GoogleNet的inception模块如图所示： 代码：

import torch
import torch.nn as nn
from torch.nn import functional as F


def conv_relu(in_channel, out_channel, kernel, stride=1, padding=0):
    layer = nn.Sequential(
        nn.Conv2d(in_channel, out_channel, kernel, stride, padding),
        nn.BatchNorm2d(out_channel, eps=1e-3),
        nn.ReLU(True)
    )
    return layer


class inception(nn.Module):
    def __init__(self, in_channel, out1_1, out2_1, out2_3, out3_1, out3_5, out4_1):
        super(inception, self).__init__()
        # 第一条线路
        self.branch1x1 = conv_relu(in_channel, out1_1, 1)

        # 第二条线路
        self.branch3x3 = nn.Sequential(
            conv_relu(in_channel, out2_1, 1),
            conv_relu(out2_1, out2_3, 3, padding=1)
        )

        # 第三条线路
        self.branch5x5 = nn.Sequential(
            conv_relu(in_channel, out3_1, 1),
            conv_relu(out3_1, out3_5, 5, padding=2)
        )

        # 第四条线路
        self.branch_pool = nn.Sequential(
            nn.MaxPool2d(3, stride=1, padding=1),
            conv_relu(in_channel, out4_1, 1)
        )

    def forward(self, x):
        f1 = self.branch1x1(x)
        f2 = self.branch3x3(x)
        f3 = self.branch5x5(x)
        f4 = self.branch_pool(x)
        output = torch.cat((f1, f2, f3, f4), dim=1)
        return output


class Googlenet(nn.Module):
    def __init__(self, in_channel, num_classes, verbose=False):
        super(Googlenet, self).__init__()
        self.verbose = verbose

        self.block1 = nn.Sequential(
            conv_relu(in_channel, out_channel=64, kernel=7, stride=2, padding=3),
            nn.MaxPool2d(kernel_size=3, stride=1, padding=1)
        )

        self.block2 = nn.Sequential(
            conv_relu(64, 64, kernel=1),
            conv_relu(64, 192, kernel=3, padding=1),
            nn.MaxPool2d(kernel_size=3, stride=1,padding=1)
        )

        self.block3 = nn.Sequential(
            inception(192, 64, 96, 128, 16, 32, 32),
            inception(256, 128, 128, 192, 32, 96, 64),
            nn.MaxPool2d(kernel_size=3, stride=1,padding=1)
        )

        self.block4 = nn.Sequential(
            inception(480, 192, 96, 208, 16, 48, 64),
            inception(512, 160, 112, 224, 24, 64, 64),
            inception(512, 128, 128, 256, 24, 64, 64),
            inception(512, 112, 144, 288, 32, 64, 64),
            inception(528, 256, 160, 320, 32, 128, 128),
            nn.MaxPool2d(3, 2)
        )

        self.block5 = nn.Sequential(
            inception(832, 256, 160, 320, 32, 128, 128),
            inception(832, 384, 182, 384, 48, 128, 128),
            nn.AvgPool2d(2)
        )

        self.classifier = nn.Linear(9216, num_classes)

    def forward(self, x):
        x = self.block1(x)
        if self.verbose:
            print('block 1 output: {}'.format(x.shape))
        x = self.block2(x)
        if self.verbose:
            print('block 2 output: {}'.format(x.shape))
        x = self.block3(x)
        if self.verbose:
            print('block 3 output: {}'.format(x.shape))
        x = self.block4(x)
        if self.verbose:
            print('block 4 output: {}'.format(x.shape))
        x = self.block5(x)
        if self.verbose:
            print('block 5 output: {}'.format(x.shape))
        x = x.view(x.shape[0], -1)
        x = self.classifier(x)
        return x

这里block1,block2,block3的最大池化均修改为kernel_size=1，stride=1,padding=1。

import torch
from torch import nn, optim
import torchvision.transforms as transforms
from torchvision import datasets
from torch.utils.data import DataLoader
from googlenet import Googlenet
import cv2

#  用CIFAR-10 数据集进行实验

def main():
    batchsz = 64
    cifar_train = datasets.CIFAR10('cifar', True, transform=transforms.Compose([
        transforms.Resize((32, 32)),
        transforms.ToTensor(),
        transforms.Normalize(mean=[0.485, 0.456, 0.406],
                             std=[0.229, 0.224, 0.225])
    ]), download=True)
    cifar_train = DataLoader(cifar_train, batch_size=batchsz, shuffle=True)
    cifar_test = datasets.CIFAR10('cifar', False, transform=transforms.Compose([
        transforms.Resize((32, 32)),
        transforms.ToTensor(),
        transforms.Normalize(mean=[0.485, 0.456, 0.406],
                             std=[0.229, 0.224, 0.225])
    ]), download=True)
    cifar_test = DataLoader(cifar_test, batch_size=batchsz, shuffle=True)
    device = torch.device('cuda')
    model = Googlenet(3,10).to(device)
    criteon = nn.CrossEntropyLoss().to(device)
    optimizer = optim.Adam(model.parameters(), lr=1e-3)

    for epoch in range(1000):
        model.train()
        for batchidx, (x, label) in enumerate(cifar_train):
            x, label = x.to(device), label.to(device)
            logits = model(x)
            loss = criteon(logits, label)
            optimizer.zero_grad()
            loss.backward()
            optimizer.step()
            print(epoch, 'loss:', loss.item())

        model.eval()
        with torch.no_grad():
            total_correct = 0
            total_num = 0
            for x, label in cifar_test:
                x, label = x.to(device), label.to(device)
                logits = model(x)
                pred = logits.argmax(dim=1)
                correct = torch.eq(pred, label).float().sum().item()
                total_correct += correct
                total_num += x.size(0)
            acc = total_correct / total_num
            print(epoch, 'test acc:', acc)

if __name__ == '__main__':
    main()

下面是训练了几轮的结果：
