AXI FULL协议学习与仿真

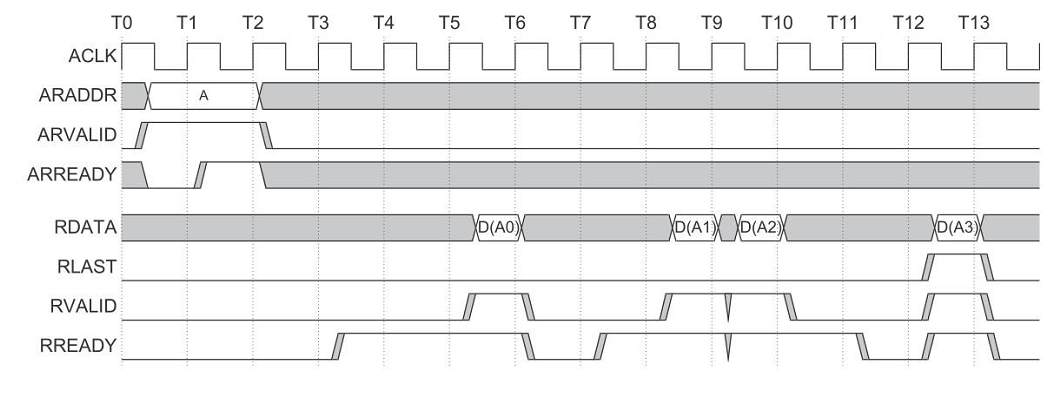

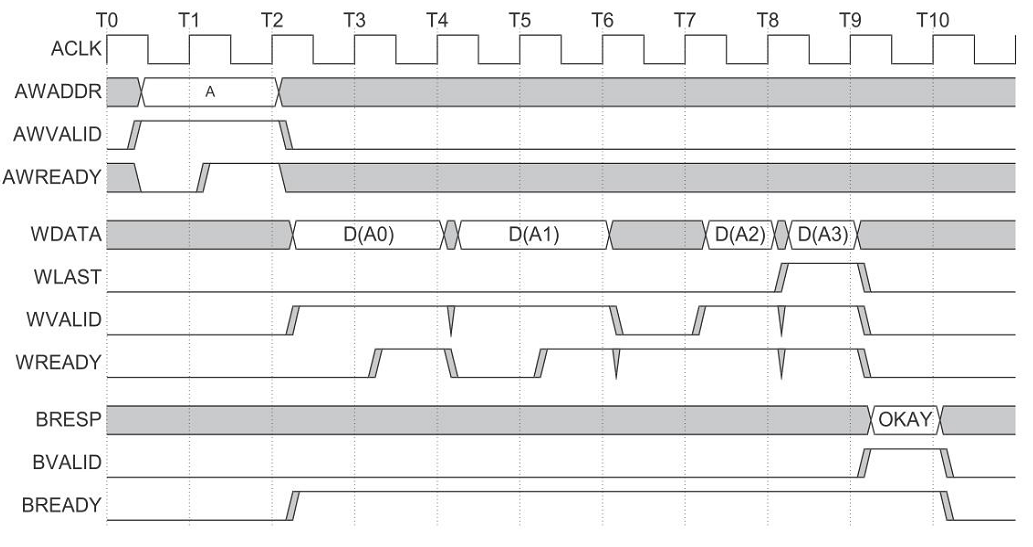

AXI FULL采用READY，VALID 握手通信机制，可支持最大256长度的突发传输，详细内容可参考博客 下面是AXI突发传输读和写的时序图。 读时序： 写时序：

在AXI协议中，数据传输发生在VALID和 READY信号同时为高的时候，如下图所示： 根据这三张图，我们就能编写代码进行测试。 verilog代码（主机）

`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2021/03/08 15:26:05
// Design Name:
// Module Name: PL_DDR_Test
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//

/*
本程序功能为:从start_addr地址开始处连续读取32个数据至buffer，然后分别将其加1，写回原地址处
*/

module PL_DDR_Test(
//全局信号
input logic ACLK,
input logic ARESETn,
//写地址通道信号
output logic AWVALID,
output logic [31:0]AWADDR,
output logic [7:0]AWLEN,
output logic AWID,              //dont care
output logic [2:0]AWSIZE,       //dont care
output logic [1:0]AWBURST,      //dont care
output logic AWLOCK,            //dont care
output logic [3:0]AWCACHE,      //dont care
output logic [2:0]AWPROT,       //dont care
output logic [3:0]AWQOS,        //dont care
output logic AWUSER,            //dont care
input logic AWREADY,
//写数据通道信号
output logic [63:0]WDATA,
output logic [7:0]WSTRB,
output logic WLAST,
output logic WUSER,             //dont care
output logic WVALID,
input logic WREADY,
//写应答通道信号
output logic BREADY,
input logic BID,                //dont care
input logic [1:0]BRESP,
input logic BUSER,              //dont care
input logic BVALID,
//读地址通道信号
output logic ARID,              //dont care
output logic [31:0]ARADDR,
output logic [7:0]ARLEN,
output logic [2:0]ARSIZE,       //dont care
output logic [1:0]ARBURST,      //dont care
output logic [1:0]ARLOCK,       //dont care
output logic [3:0]ARCACHE,      //dont care
output logic [2:0]ARPROT,       //dont care
output logic [3:0]ARQOS,        //dont care
output logic ARUSER,            //done care
output logic ARVALID,
input logic ARREADY,
//读数据通道
output logic RREADY,
input logic RID,                //dont care
input logic [63:0]RDATA,
input logic [1:0]RRESP,         //dont care
input logic RLAST,
input logic RUSER,              //dont care
input logic RVALID
    );

assign AWID = 1'b0;
assign AWSIZE  = 3'b011;
assign AWBURST = 2'b01;
assign AWLOCK  = 1'b0;
assign AWCACHE = 4'b0011;
assign AWPROT = 3'b000;
assign AWQOS = 4'b0000;
assign AWUSER = 1'b1;
assign WUSER = 1'b1;

assign ARID = 1'b0;
assign ARSIZE = 3'b011;
assign ARBURST = 2'b01;
assign ARLOCK = 1'b0;
assign ARCACHE = 4'b0011;
assign ARPROT = 3'b000;
assign ARQOS = 4'b0000;
assign ARUSER = 1'b1;

logic [9:0]wr_cnt;
logic [9:0]rd_cnt;
logic rd_done;
logic wr_done;
logic read_start;
logic write_start;
logic test_start;
logic test_done;
//
logic [31:0]start_addr;
logic [9:0] test_len;            //=31,即突发传输长度32
logic [63:0] data_buffer [0:31];

enum {IDLE,READ,WRITE,DONE} State,NextState;
//*************************************************************************//
//test_len
always_ff@(posedge ACLK,negedge ARESETn)
if(!ARESETn)
    test_len
