卷积神经网络FFT变换后数据的方差分布情况探究

import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torchvision import datasets, transforms

BATCH_SIZE=512 # 批次大小
EPOCHS=10 # 总共训练批次
DEVICE = torch.device("cuda" if torch.cuda.is_available() else "cpu") # 让torch判断是否使用GPU，建议使用GPU环境，因为会快很多

train_loader = torch.utils.data.DataLoader(
        datasets.MNIST('data', train=True, download=True,
                       transform=transforms.Compose([
                           transforms.ToTensor(),
                           transforms.Normalize((0.1307,), (0.3081,))
                       ])),
        batch_size=BATCH_SIZE, shuffle=True)

test_loader = torch.utils.data.DataLoader(
        datasets.MNIST('data', train=False, transform=transforms.Compose([
                           transforms.ToTensor(),
                           transforms.Normalize((0.1307,), (0.3081,))
                       ])),
        batch_size=BATCH_SIZE, shuffle=True)

class ConvNet(nn.Module):
    def __init__(self):
        super().__init__()
        # 1,28x28
        self.conv1=nn.Conv2d(1,16,5) # 24x24
        self.pool = nn.MaxPool2d(2,2) # 12x12
        self.conv2=nn.Conv2d(16,32,3) # 10x10
        self.fc = nn.Linear(32*5*5,10)
    def forward(self,x):
        in_size = x.size(0)
        out = self.conv1(x) #24
        out = F.relu(out)
        out = self.pool(out)  #12
        out = self.conv2(out) #10
        out = F.relu(out)
        out = self.pool(out)
        out = out.view(in_size,-1)
        out = self.fc(out)
        out = F.log_softmax(out,dim=1)
        return out


model = ConvNet().to(DEVICE)
optimizer = optim.Adam(model.parameters())

def train(model, device, train_loader, optimizer, epoch):
    model.train()
    for batch_idx, (data, target) in enumerate(train_loader):
        data, target = data.to(device), target.to(device)
        optimizer.zero_grad()
        output = model(data)
        loss = F.nll_loss(output, target)
        loss.backward()
        optimizer.step()
        if (batch_idx + 1) % 30 == 0:
            print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
                epoch, batch_idx * len(data), len(train_loader.dataset),
                       100. * batch_idx / len(train_loader), loss.item()))


def test(model, device, test_loader):
    model.eval()
    test_loss = 0
    correct = 0
    with torch.no_grad():
        for data, target in test_loader:
            data, target = data.to(device), target.to(device)
            output = model(data)
            test_loss += F.nll_loss(output, target, reduction='sum').item()  # 将一批的损失相加
            pred = output.max(1, keepdim=True)[1]  # 找到概率最大的下标
            correct += pred.eq(target.view_as(pred)).sum().item()

    test_loss /= len(test_loader.dataset)
    print('\nTest set: Average loss: {:.4f}, Accuracy: {}/{} ({:.0f}%)\n'.format(
        test_loss, correct, len(test_loader.dataset),
        100. * correct / len(test_loader.dataset)))


for epoch in range(1, EPOCHS + 1):
    train(model, DEVICE, train_loader, optimizer, epoch)
    test(model, DEVICE, test_loader)


import numpy as np
import matplotlib.pyplot as plt

def plot_fft2d(input):
    m,n,h,w=input.shape
    x=np.arange(0,h,1)
    y=np.arange(0,w,1)
    X,Y=np.meshgrid(x,y)
    output=np.fft.fft2(input,axes=(-2,-1))
    print(output.shape)
    var=np.var(output, axis=(0, 1), keepdims=False)
    print(var.shape)
    ax = plt.axes(projection='3d')
    ax.scatter3D(X, Y, var, cmap='Blues')  # 绘制散点图
    ax.plot_surface(X, Y, var, cmap='rainbow')
    plt.show()

param=model.state_dict()
W1=param['conv1.weight']        #(1,28,28) * (16,1,5,5) ---> (16,24,24)
W2=param['conv2.weight']        #（16,12,12） * （32,16,3,3) ---》 （32,10,10）
W1_pad=np.pad(W1.cpu().numpy(),((0,0),(0,0),(0,23),(0,23)))
W2_pad=np.pad(W2.cpu().numpy(),((0,0),(0,0),(0,9),(0,9)))
print(W1_pad.shape)
print(W2_pad.shape)
plot_fft2d(W1_pad)
plot_fft2d(W2_pad)

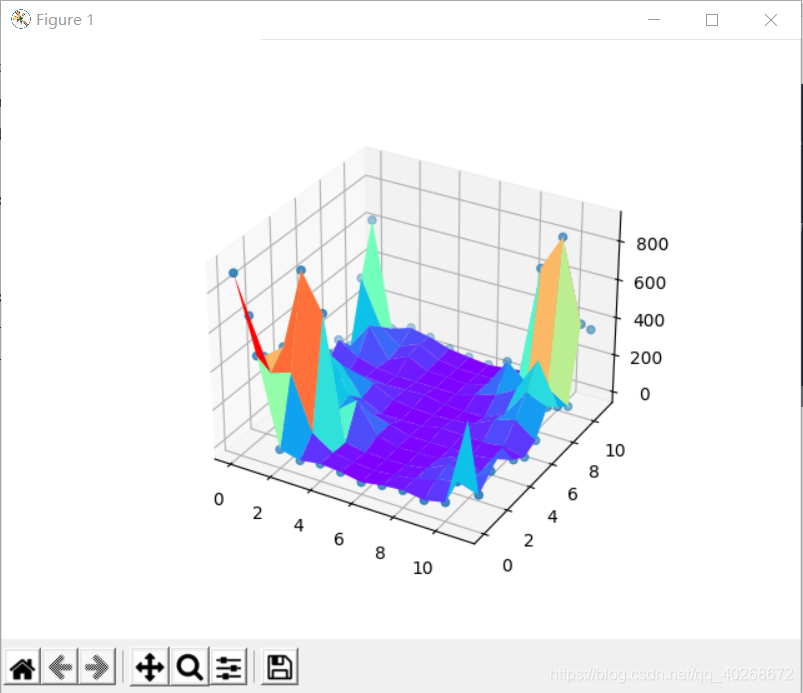

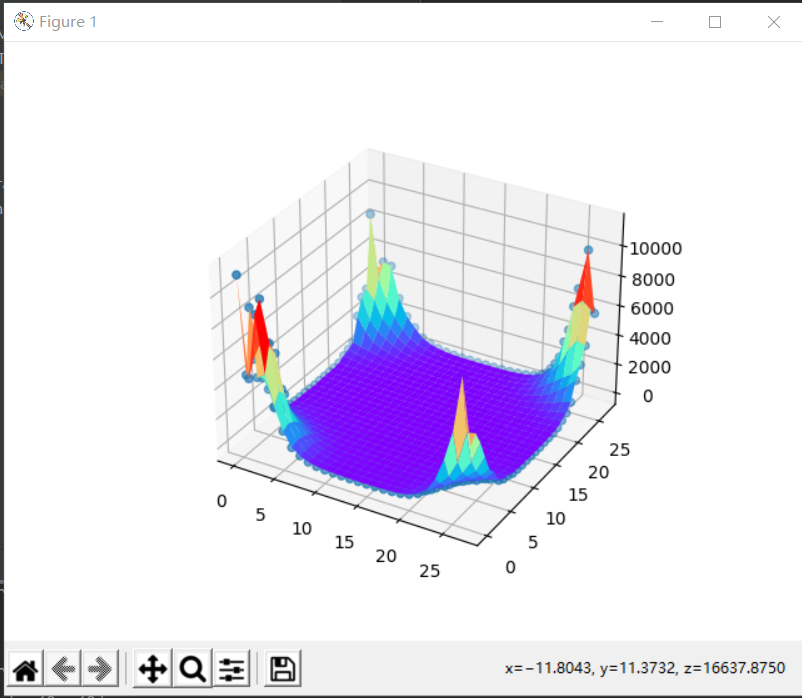

数据分布的方差如图所示

续

之前，只统计了权重经过FFT之后的分布情况，而没有统计激活经过FFT变换之后的分布，因此这里作一个补充。 代码:

import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torchvision import datasets, transforms

BATCH_SIZE=512 # 批次大小
EPOCHS=10 # 总共训练批次
DEVICE = torch.device("cuda" if torch.cuda.is_available() else "cpu") # 让torch判断是否使用GPU，建议使用GPU环境，因为会快很多

train_loader = torch.utils.data.DataLoader(
        datasets.MNIST('data', train=True, download=True,
                       transform=transforms.Compose([
                           transforms.ToTensor(),
                           transforms.Normalize((0.1307,), (0.3081,))
                       ])),
        batch_size=BATCH_SIZE, shuffle=True)

test_loader = torch.utils.data.DataLoader(
        datasets.MNIST('data', train=False, transform=transforms.Compose([
                           transforms.ToTensor(),
                           transforms.Normalize((0.1307,), (0.3081,))
                       ])),
        batch_size=BATCH_SIZE, shuffle=True)

class ConvNet(nn.Module):
    def __init__(self):
        super().__init__()
        # 1,28x28
        self.conv1=nn.Conv2d(1,16,5) # 24x24
        self.pool = nn.MaxPool2d(2,2) # 12x12
        self.conv2=nn.Conv2d(16,32,3) # 10x10
        self.fc = nn.Linear(32*5*5,10)
    def forward(self,x):
        in_size = x.size(0)
        out = self.conv1(x) #24
        out = F.relu(out)
        out = self.pool(out)  #12
        out = self.conv2(out) #10
        out = F.relu(out)
        out = self.pool(out)
        out = out.view(in_size,-1)
        out = self.fc(out)
        out = F.log_softmax(out,dim=1)
        return out


model = ConvNet().to(DEVICE)
optimizer = optim.Adam(model.parameters())

def train(model, device, train_loader, optimizer, epoch):
    model.train()
    for batch_idx, (data, target) in enumerate(train_loader):
        data, target = data.to(device), target.to(device)
        optimizer.zero_grad()
        output = model(data)
        loss = F.nll_loss(output, target)
        loss.backward()
        optimizer.step()
        if (batch_idx + 1) % 30 == 0:
            print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
                epoch, batch_idx * len(data), len(train_loader.dataset),
                       100. * batch_idx / len(train_loader), loss.item()))


def test(model, device, test_loader):
    model.eval()
    test_loss = 0
    correct = 0
    with torch.no_grad():
        for data, target in test_loader:
            data, target = data.to(device), target.to(device)
            output = model(data)
            test_loss += F.nll_loss(output, target, reduction='sum').item()  # 将一批的损失相加
            pred = output.max(1, keepdim=True)[1]  # 找到概率最大的下标
            correct += pred.eq(target.view_as(pred)).sum().item()

    test_loss /= len(test_loader.dataset)
    print('\nTest set: Average loss: {:.4f}, Accuracy: {}/{} ({:.0f}%)\n'.format(
        test_loss, correct, len(test_loader.dataset),
        100. * correct / len(test_loader.dataset)))


for epoch in range(1, EPOCHS + 1):
    train(model, DEVICE, train_loader, optimizer, epoch)
    test(model, DEVICE, test_loader)


import numpy as np
import matplotlib.pyplot as plt

def plot_fft2d(input):
    m,n,h,w=input.shape
    x=np.arange(0,h,1)
    y=np.arange(0,w,1)
    X,Y=np.meshgrid(x,y)
    output=np.fft.fft2(input,axes=(-2,-1))
    var=np.var(output, axis=(0, 1), keepdims=False)
    ax = plt.axes(projection='3d')
    ax.scatter3D(X, Y, var, cmap='Blues')  # 绘制散点图
    ax.plot_surface(X, Y, var, cmap='rainbow')
    plt.show()


for data, target in test_loader:
    data,target=data[0].resize(1,1,28,28).to(DEVICE),target[0].to(DEVICE)
    #
    #查看方差分布情况
    z=data.cpu().numpy()
    print(z.shape)
    plot_fft2d(z)
    #
    x=F.conv2d(data,weight=model.state_dict()['conv1.weight'],bias=model.state_dict()['conv1.bias'],stride=1,padding=0)
    x=F.relu(x)
    x=F.max_pool2d(x,kernel_size=2,stride=2)

    #
    # 查看方差分布情况
    z = x.cpu().numpy()
    print(z.shape)
    plot_fft2d(z)
    #
    x=F.conv2d(x,weight=model.state_dict()['conv2.weight'],bias=model.state_dict()['conv2.bias'],stride=1,padding=0)
    x = F.relu(x)
    x=F.max_pool2d(x,kernel_size=2,stride=2)

    x=x.view(1,-1)
    out = F.linear(x, weight=model.state_dict()['fc.weight'],bias=model.state_dict()['fc.bias'])
    print(torch.argmax(out,dim=1,keepdim=False).item(),target.item())

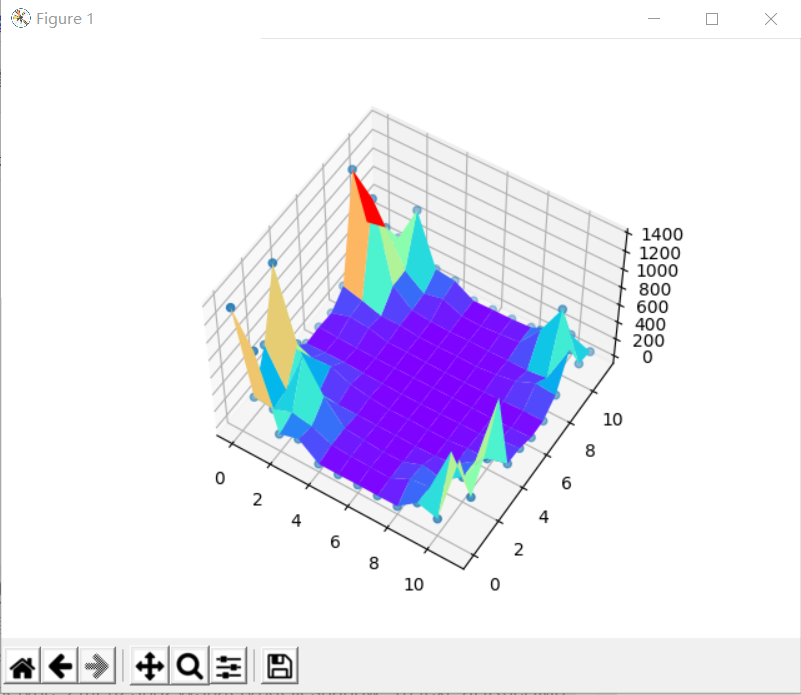

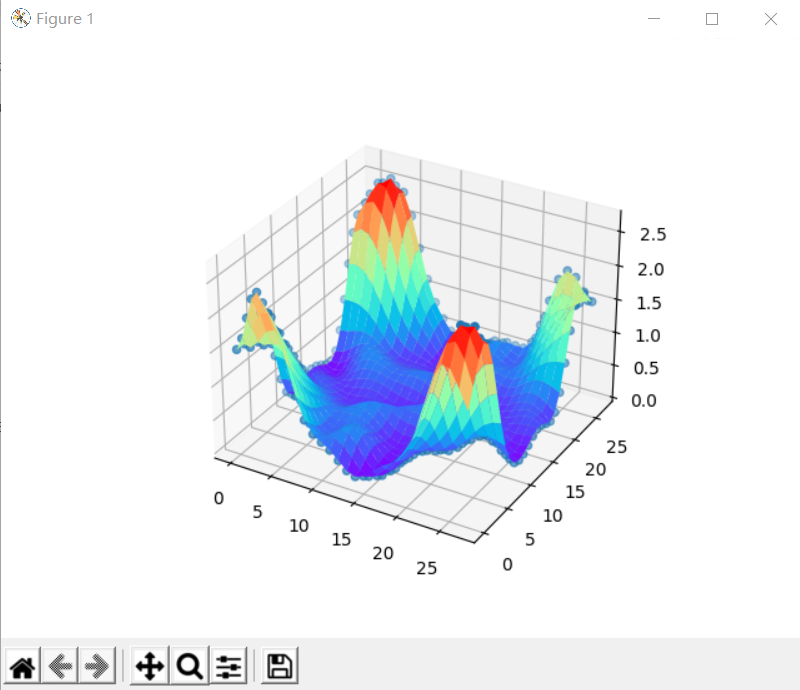

结果如下:

结论

综合权重和激活经过FFT变换之后各频率点的方差来看，四个角附近，数据的方差比较大，而中心的方差比较小，因此，有以下设想: 给方差大的频率点较多的比特位宽，给方差较小的频率点较少的比特位宽，以此达到模型压缩的目的。

改进

之前统计激活值fft变换之后的方差情况，我们每次只统计一幅特征图，因此方差分布的特点没有权重清晰，现在做如下改进: 每次统计512(即batch_size=512)幅特征图FFT变换之后方差的分布特点，代码如下:

import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torchvision import datasets, transforms

BATCH_SIZE=512 # 批次大小
EPOCHS=10 # 总共训练批次
DEVICE = torch.device("cuda" if torch.cuda.is_available() else "cpu") # 让torch判断是否使用GPU，建议使用GPU环境，因为会快很多

train_loader = torch.utils.data.DataLoader(
        datasets.MNIST('data', train=True, download=True,
                       transform=transforms.Compose([
                           transforms.ToTensor(),
                           transforms.Normalize((0.1307,), (0.3081,))
                       ])),
        batch_size=BATCH_SIZE, shuffle=True)

test_loader = torch.utils.data.DataLoader(
        datasets.MNIST('data', train=False, transform=transforms.Compose([
                           transforms.ToTensor(),
                           transforms.Normalize((0.1307,), (0.3081,))
                       ])),
        batch_size=BATCH_SIZE, shuffle=True)

class ConvNet(nn.Module):
    def __init__(self):
        super().__init__()
        # 1,28x28
        self.conv1=nn.Conv2d(1,16,5) # 24x24
        self.pool = nn.MaxPool2d(2,2) # 12x12
        self.conv2=nn.Conv2d(16,32,3) # 10x10
        self.fc = nn.Linear(32*5*5,10)
    def forward(self,x):
        in_size = x.size(0)
        out = self.conv1(x) #24
        out = F.relu(out)
        out = self.pool(out)  #12
        out = self.conv2(out) #10
        out = F.relu(out)
        out = self.pool(out)
        out = out.view(in_size,-1)
        out = self.fc(out)
        out = F.log_softmax(out,dim=1)
        return out


model = ConvNet().to(DEVICE)
optimizer = optim.Adam(model.parameters())

def train(model, device, train_loader, optimizer, epoch):
    model.train()
    for batch_idx, (data, target) in enumerate(train_loader):
        data, target = data.to(device), target.to(device)
        optimizer.zero_grad()
        output = model(data)
        loss = F.nll_loss(output, target)
        loss.backward()
        optimizer.step()
        if (batch_idx + 1) % 30 == 0:
            print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
                epoch, batch_idx * len(data), len(train_loader.dataset),
                       100. * batch_idx / len(train_loader), loss.item()))


def test(model, device, test_loader):
    model.eval()
    test_loss = 0
    correct = 0
    with torch.no_grad():
        for data, target in test_loader:
            data, target = data.to(device), target.to(device)
            output = model(data)
            test_loss += F.nll_loss(output, target, reduction='sum').item()  # 将一批的损失相加
            pred = output.max(1, keepdim=True)[1]  # 找到概率最大的下标
            correct += pred.eq(target.view_as(pred)).sum().item()

    test_loss /= len(test_loader.dataset)
    print('\nTest set: Average loss: {:.4f}, Accuracy: {}/{} ({:.0f}%)\n'.format(
        test_loss, correct, len(test_loader.dataset),
        100. * correct / len(test_loader.dataset)))


for epoch in range(1, EPOCHS + 1):
    train(model, DEVICE, train_loader, optimizer, epoch)
    test(model, DEVICE, test_loader)


import numpy as np
import matplotlib.pyplot as plt

def plot_fft2d(input):
    m,n,h,w=input.shape
    x=np.arange(0,h,1)
    y=np.arange(0,w,1)
    X,Y=np.meshgrid(x,y)
    output=np.fft.fft2(input,axes=(-2,-1))
    var=np.var(output, axis=(0, 1), keepdims=False)
    ax = plt.axes(projection='3d')
    ax.scatter3D(X, Y, var, cmap='Blues')  # 绘制散点图
    ax.plot_surface(X, Y, var, cmap='rainbow')
    plt.show()


for data, target in test_loader:
    data,target=data.to(DEVICE),target.to(DEVICE)
    #
    #查看方差分布情况
    z=data.cpu().numpy()
    print(z.shape)
    plot_fft2d(z)
    #
    x=F.conv2d(data,weight=model.state_dict()['conv1.weight'],bias=model.state_dict()['conv1.bias'],stride=1,padding=0)
    x=F.relu(x)
    x=F.max_pool2d(x,kernel_size=2,stride=2)

    #
    # 查看方差分布情况
    z = x.cpu().numpy()
    print(z.shape)
    plot_fft2d(z)
    #
    x=F.conv2d(x,weight=model.state_dict()['conv2.weight'],bias=model.state_dict()['conv2.bias'],stride=1,padding=0)
    x = F.relu(x)
    x=F.max_pool2d(x,kernel_size=2,stride=2)

    x=x.view(512,-1)
    out = F.linear(x, weight=model.state_dict()['fc.weight'],bias=model.state_dict()['fc.bias'])
    print(torch.sum(torch.argmax(out,dim=1,keepdim=False).eq(target)))

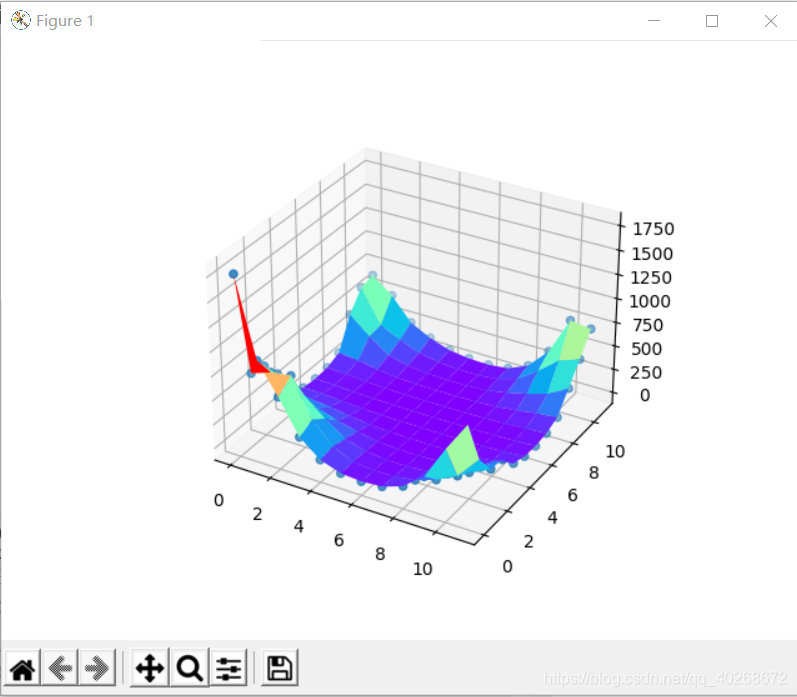

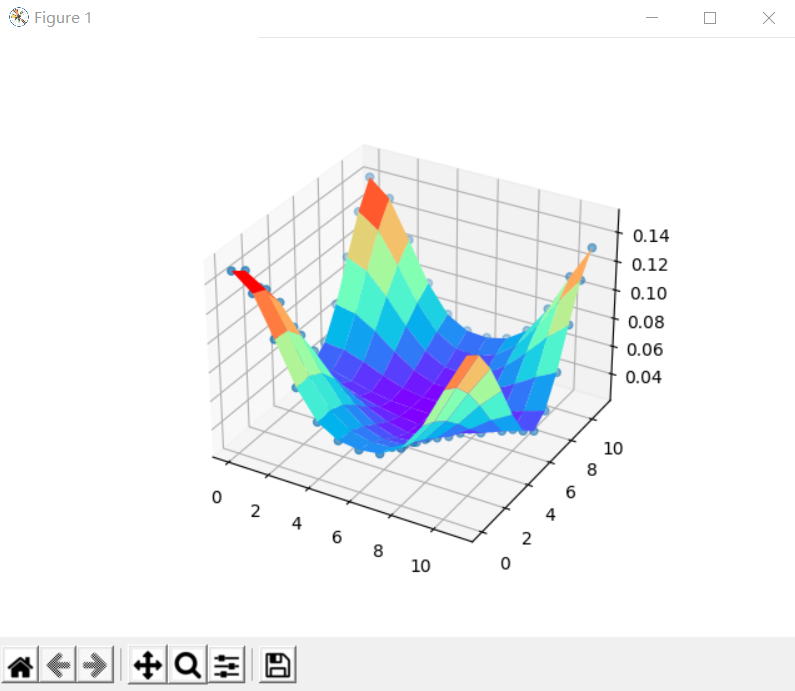

实验结果: 可以看到，方差四个角大，中间小的特点比之前明显了。
