JDK源码——LongAdder原子类原理

庄小焱 发布时间:2021-03-31 19:43:02 ,浏览量:3

摘要

高并发场景下可以选择 AtomicLong原子类进行计数等操作,除了 AtomicLong,在 jdk1.8 中还提供了 LongAdderAtomicLong 在 jdk1.5 版本提供)AtomicLong 底层使用 Unsafe 的 CAS 实现,当操作失败时,会以自旋的方式重试,直至操作成功。因此在高并发场景下,可能会有很多线程处于重试状态,徒增 CPU 的压力,造成不必要的开销。LongAdder 提供了一个 base 值,当竞争小的情况下 CAS 更新该值,如果 CAS 操作失败,会初始化一个 cells 数组,每个线程都会通过取模的方式定位 cells 数组中的一个元素,这样就将操作单个 AtomicLong value 的压力分散到数组中的多个元素上。通过将压力分散,LongAdder 可以提供比 AtomicLong 更好的性能。获取元素 value 值时,只要将 basecells 数组中的元素累加即可。经过测试了 volatile 在多写情况下是非线程安全的,而在低竞争的并发环境下 AtomicInteger 的性能是要比 LongAdder 的性能好,而高竞争环境下 LongAdder 的性能比 AtomicInteger 好,因此我们在使用时要结合自身的业务情况来选择相应的类型。

一、LongAdder源码实现
    public void increment() {
        add(1L);
    }

    public void add(long x) {
        Cell[] as;
        long b, v;
        // m = as.length -1,取模用,定位数组槽
        int m;
        Cell a;
        // 低竞争条件下,cells 为 null,此时调用 casBase(底层为 CAS 操作,类似 AtomicLong) 方法更新 base
        // PS:cells 数组为懒加载,只有在 CAS 竞争失败的情况下才会初始化
        if ((as = cells) != null || !casBase(b = base, b + x)) {
            boolean uncontended = true;
            // as 数组为 null,或者数组 size = 0,或者计算槽后在数组中不能定位,或者 cell 对象 CAS 操作失败
            if (as == null || (m = as.length - 1) < 0 || (a = as[getProbe() & m]) == null || !(uncontended = a.cas(v = a.value, v + x)))
                longAccumulate(x, null, uncontended);
        }
    }

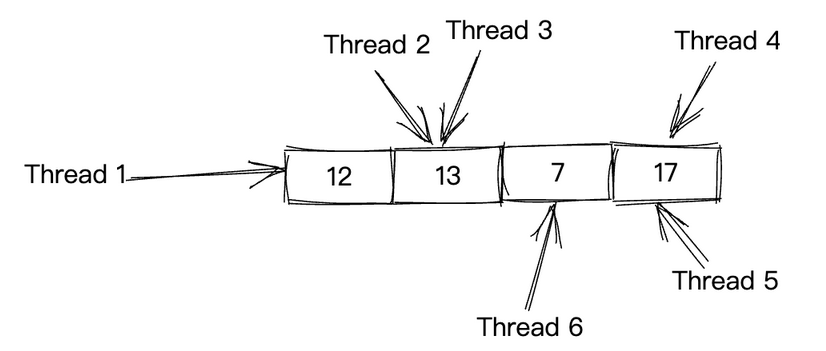

LongAdder 继承自 Striped64,底层调用 Striped64.longAccumulate 方法实现。当第一次调用 add 方法时,并不会初始化 cells 数组,而是通过 CAS 去操作 base 值,操作成功后就直接返回了。如果 CAS 操作失败,这时会调用 longAccumulate 方法,该方法会初始化 Cell 类型的数组,后面大部分线程都会直接操作这个数组,但是仍然有部分线程会更新 base 值。

Cell 元素定义如下:

    @sun.misc.Contended static final class Cell {
        volatile long value;
        Cell(long x) { value = x; }
        final boolean cas(long cmp, long val) {
            return UNSAFE.compareAndSwapLong(this, valueOffset, cmp, val);
        }

        // Unsafe mechanics
        private static final sun.misc.Unsafe UNSAFE;
        private static final long valueOffset;
        static {
            try {
                UNSAFE = sun.misc.Unsafe.getUnsafe();
                Class ak = Cell.class;
                valueOffset = UNSAFE.objectFieldOffset
                    (ak.getDeclaredField("value"));
            } catch (Exception e) {
                throw new Error(e);
            }
        }
    }

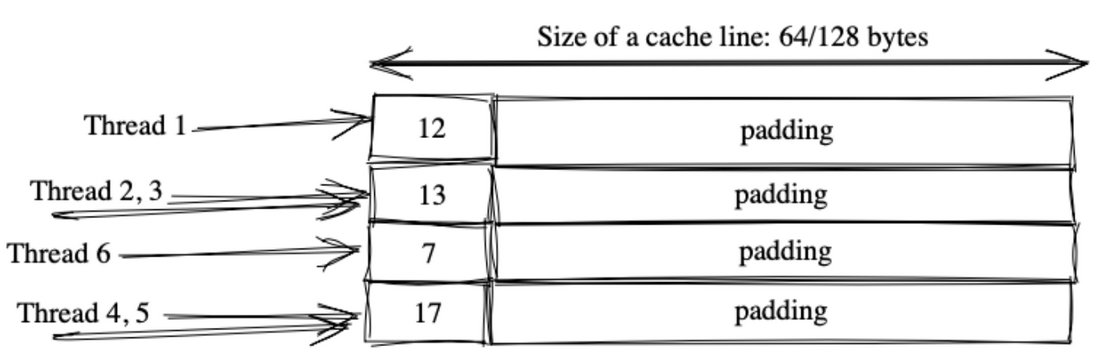

多个线程操作 cells 数组原理如下:

CPU 有多级缓存,这些缓存的最小单位是缓存行(Cache Line),通常情况下一个缓存行的大小是 64 字节(并不绝对,或者是 64 的倍数)。假设现在要操作一个 long 类型的数组,long 在 Java 中占 64 bit,8 个字节,当操作数组中的一个元素时,会从主存中将该元素的附近的其他元素一起加载进缓存行,即使其他元素你不想操作。假设两个用 volatile 修饰的元素被加载进同一个缓存行,线程 A 更新变量 A 后会将更新后的值刷新回主存,此时缓存行失效,线程 B 再去操作 B 变量只能重新从主存中读取(Cache Miss)。这就造成了伪共享(False sharing)问题。Cell 本身没什么好讲的,仔细看一下,这个类被 @sun.misc.Contended 注解修饰,这个注解一般在写业务时用不到,但是它可以解决上面的伪共享问题。@sun.misc.Contended 注解在 jdk1.8 中提供,保证缓存行每次缓存一个变量,剩余的空间用字节来填充。

    final void longAccumulate(long x, LongBinaryOperator fn,
                              boolean wasUncontended) {
        // 线程 threadLocalRandomProbe 属性值
        int h;
        if ((h = getProbe()) == 0) {
            // 初始化 Thread 的 threadLocalRandomProbe 属性值
            ThreadLocalRandom.current(); // force initialization
            h = getProbe();
            wasUncontended = true;
        }
        boolean collide = false;                // True if last slot nonempty
        for (;;) {
            Cell[] as;
            Cell a;
            // cells 数组大小
            int n;
            long v;
            // cells 数组已经初始化
            if ((as = cells) != null && (n = as.length) > 0) {
                // 当前线程对应数组槽的 Cell 对象为空
                if ((a = as[(n - 1) & h]) == null) {
                    if (cellsBusy == 0) {       // Try to attach new Cell
                        // 初始化 Cell,这里存在竞争,可能多个线程都创建了 Cell 对象
                        Cell r = new Cell(x);   // Optimistically create
                        // casCellsBusy() 更新 cellsBusy 为 1,通过 CAS 操作保证只有一个线程操作成功,cellsBusy() 方法相当于一个 spin lock
                        if (cellsBusy == 0 && casCellsBusy()) {
                            boolean created = false;
                            try {               // Recheck under lock
                                Cell[] rs; int m, j;
                                if ((rs = cells) != null && (m = rs.length) > 0 && rs[j = (m - 1) & h] == null) {
                                    // rs[j] 对象赋值
                                    rs[j] = r;
                                    created = true;
                                }
                            } finally {
                                cellsBusy = 0;
                            }
                            // Cell 在数组中赋值成功,跳出循环
                            if (created)
                                break;
                            continue;           // Slot is now non-empty
                        }
                    }
                    collide = false;
                }
                else if (!wasUncontended)       // CAS already known to fail
                    wasUncontended = true;      // Continue after rehash
                // CAS 操作成功,跳出循环
                else if (a.cas(v = a.value, ((fn == null) ? v + x : fn.applyAsLong(v, x))))
                    break;
                // 数组范围不能大于 JVM 可用核心数,cells != as 表示数组可能扩容
                else if (n >= NCPU || cells != as)
                    collide = false;            // At max size or stale
                // 多个线程出现碰撞,更新 collide = true,出现碰撞后并没有直接扩容 cells 数组,而是重新 rehash,rehash CAS 失败后才会扩容
                else if (!collide)
                       collide = true;
                // 走到这里说明出现了数组碰撞,且自旋 rehash CAS 失败,这时需要对数组扩容
                else if (cellsBusy == 0 && casCellsBusy()) {
                    try {
                        // 数组扩容,重置 cells 数组
                        if (cells == as) {      // Expand table unless stale
                            Cell[] rs = new Cell[n = NCPU || cells != as) 判断,这个 NCPU 表示 JVM 可用核心数,NCPU = Runtime.getRuntime().availableProcessors(); 。注意这个 JVM 可用核心数并不一定等于 CPU 核心数,比如我的电脑是 6 核,JVM 可用核心数是 12。else if (n >= NCPU || cells != as) 意味着数组的容量不能大于 JVM 的可用核心数,假设一个服务器 JVM 可用核心数为 6,由于数组每次扩容 2 倍,第一次初始化时为 2,那最大容量应该为 4。其实不是这样的,因为这个判断是在扩容前进行的,假设此时数组容量为 4,由于可用核心数为 6,条件判断通过,且存在碰撞情况,那么还是会扩容 cells 的容量为 8。因此我认为 cells 数组的最大容量为第一个大于 JVM 可用核心数的 2 的幂。

参考博文

性能远超AtomicLong,LongAdder原理完全解读_点滴记录-CSDN博客_atomiclong
