摘要
本博文主要是介绍Athena系统中数据的设计。包括了数据库的表，数据库的高可用，数据库的优化设计等。

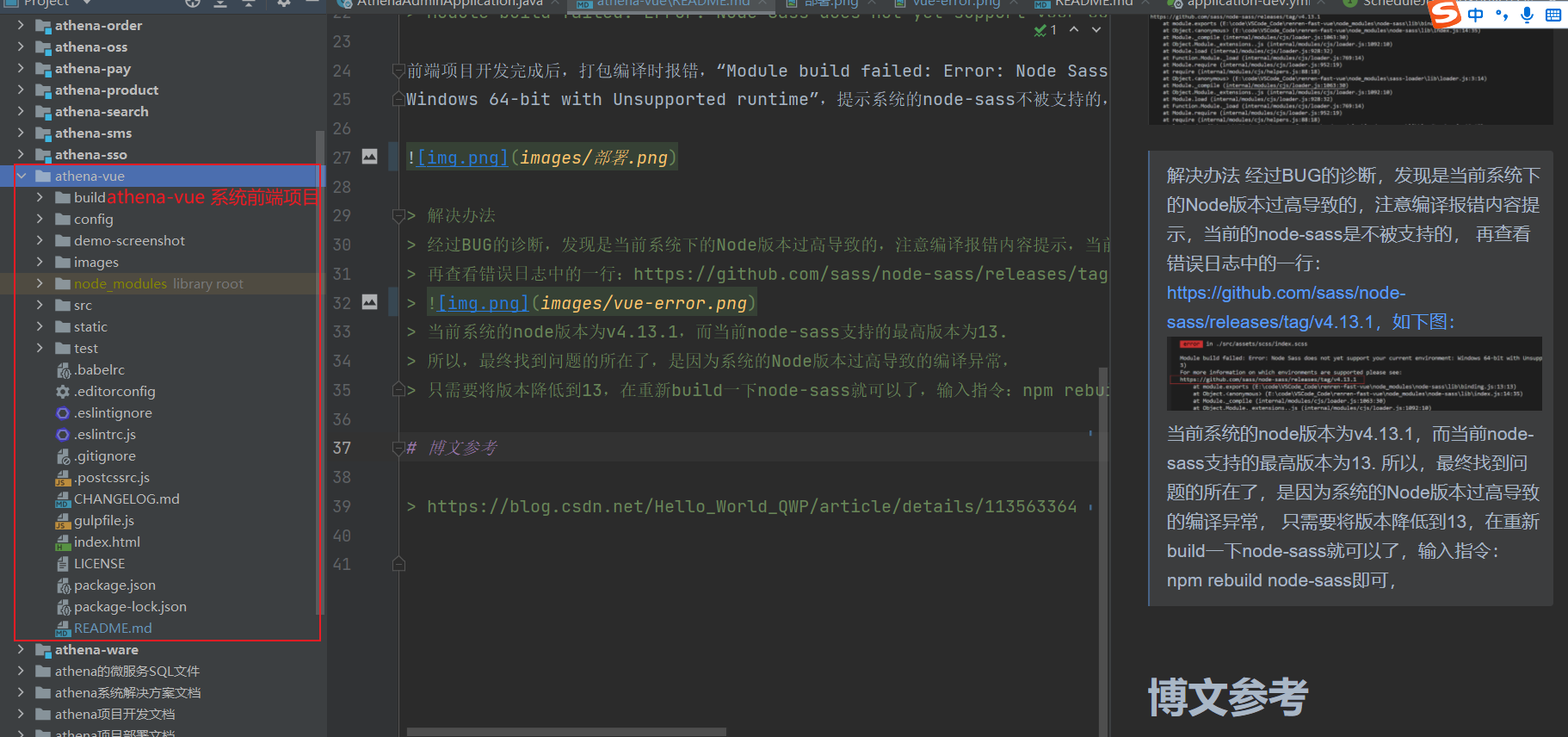

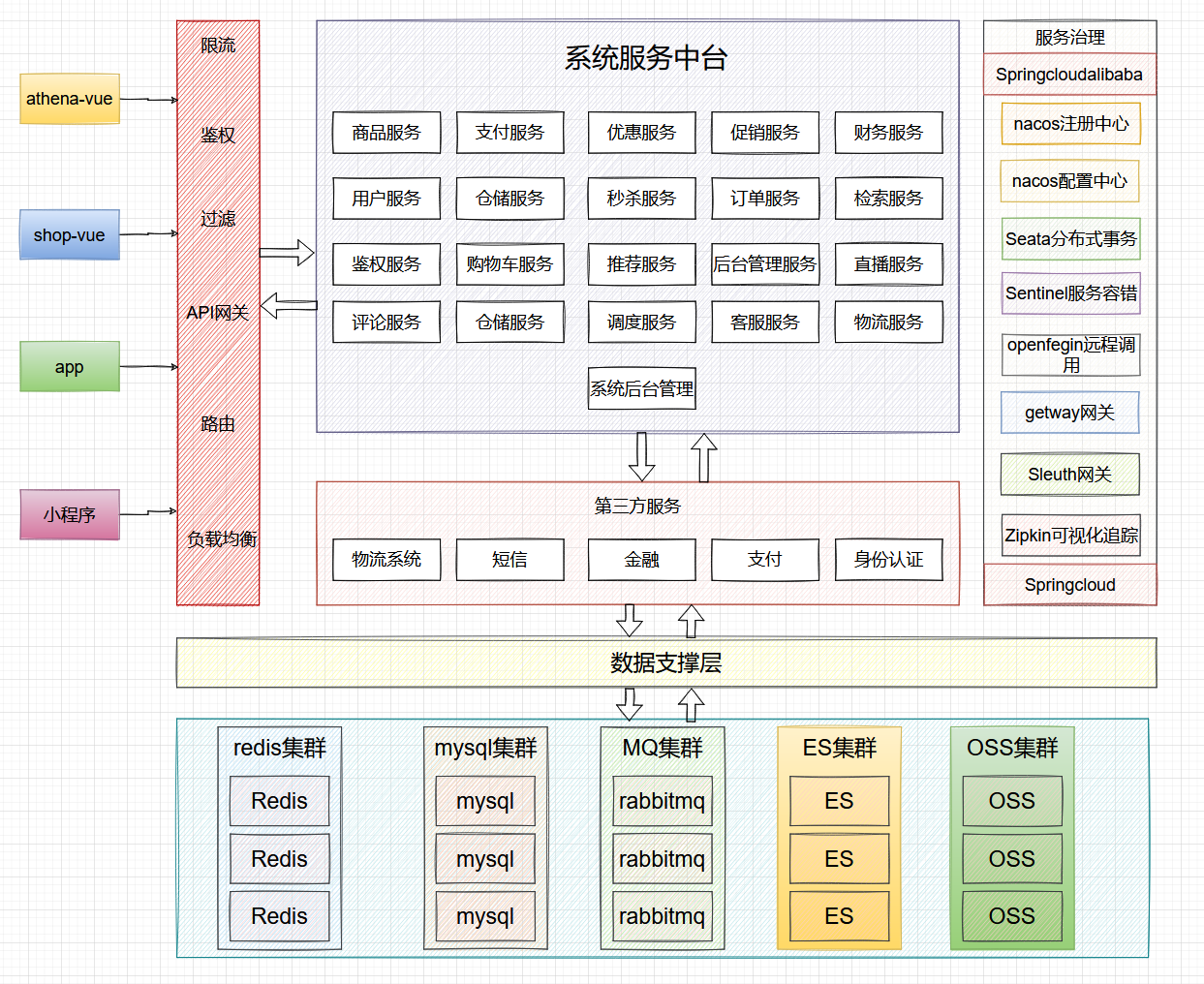

一、Athena系统的数据库的表设计 1.1 前端服务：前后分离开发，前端采用的是基于vue 的后台管理系统。
1.3 支付服务： 1.4 优惠服务： 1.5 促销服务： 1.6 财务服务： 1.7 用户服务： 1.8 仓储服务： 1.9 秒杀服务： 1.10 订单服务： 1.10.1 订单服务数据库

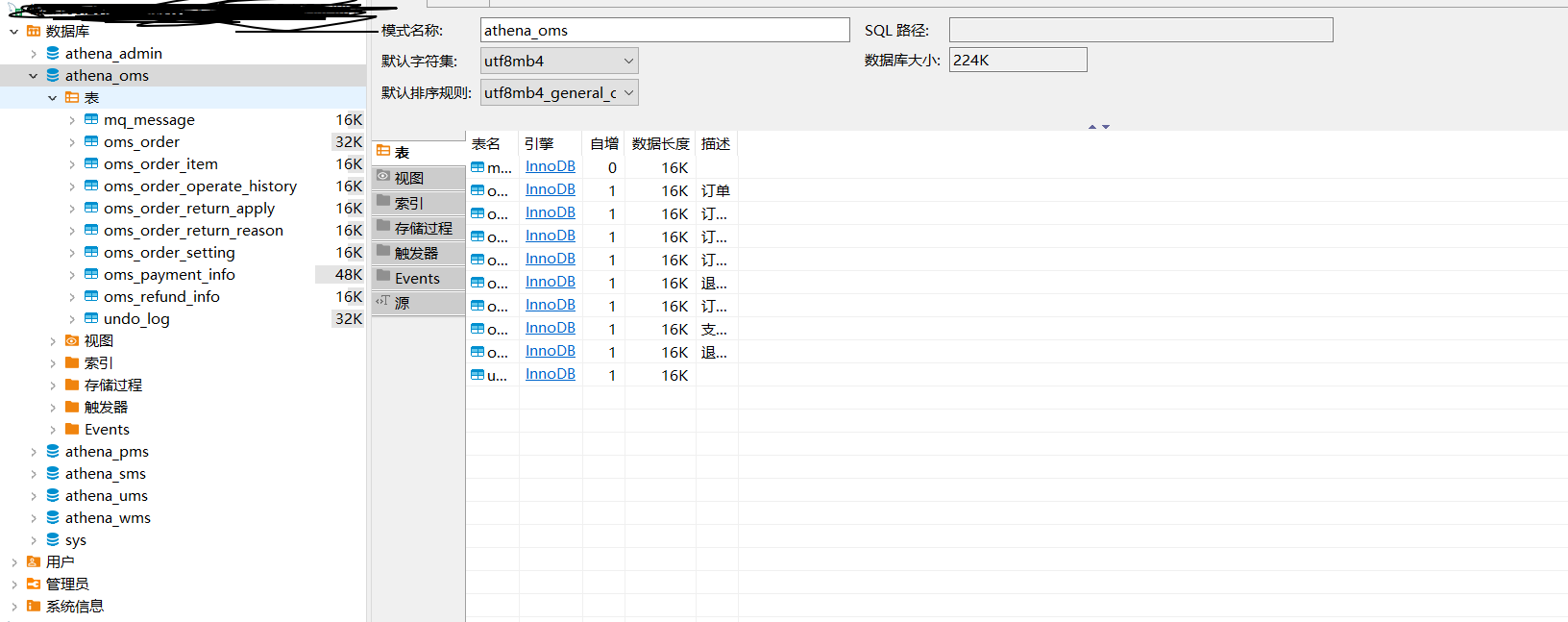

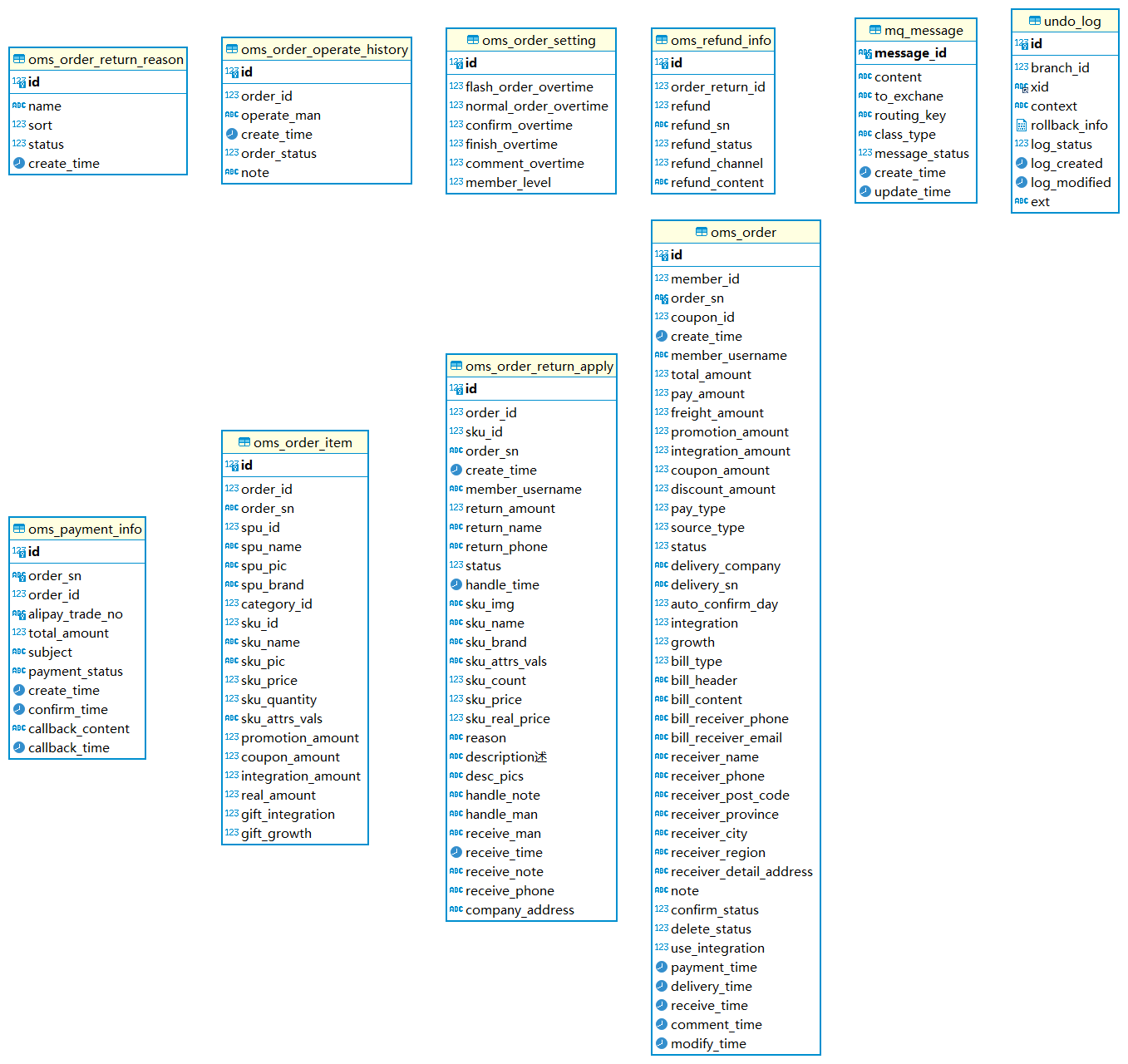

- mq_message
- oms_order
- oms_order_item
- oms_order_operate_history
- oms_order_return_apply
- oms_order_return_reason
- oms_order_setting
- oms_payment_info
- oms_refund_info
- undo_log
drop table if exists oms_order;
drop table if exists oms_order_item;
drop table if exists oms_order_operate_history;
drop table if exists oms_order_return_apply;
drop table if exists oms_order_return_reason;
drop table if exists oms_order_setting;
drop table if exists oms_payment_info;
drop table if exists oms_refund_info;
/*==============================================================*/
/* Table: athena 订单系统 */
/*==============================================================*/
create table oms_order
(
id bigint not null auto_increment comment 'id',
member_id bigint comment 'member_id',
order_sn char(32) comment '订单号',
coupon_id bigint comment '使用的优惠券',
create_time datetime comment 'create_time',
member_username varchar(200) comment '用户名',
total_amount decimal(18,4) comment '订单总额',
pay_amount decimal(18,4) comment '应付总额',
freight_amount decimal(18,4) comment '运费金额',
promotion_amount decimal(18,4) comment '促销优化金额（促销价、满减、阶梯价）',
integration_amount decimal(18,4) comment '积分抵扣金额',
coupon_amount decimal(18,4) comment '优惠券抵扣金额',
discount_amount decimal(18,4) comment '后台调整订单使用的折扣金额',
pay_type tinyint comment '支付方式【1->支付宝；2->微信；3->银联； 4->货到付款；】',
source_type tinyint comment '订单来源[0->PC订单；1->app订单]',
status tinyint comment '订单状态【0->待付款；1->待发货；2->已发货；3->已完成；4->已关闭；5->无效订单】',
delivery_company varchar(64) comment '物流公司(配送方式)',
delivery_sn varchar(64) comment '物流单号',
auto_confirm_day int comment '自动确认时间（天）',
integration int comment '可以获得的积分',
growth int comment '可以获得的成长值',
bill_type tinyint comment '发票类型[0->不开发票；1->电子发票；2->纸质发票]',
bill_header varchar(255) comment '发票抬头',
bill_content varchar(255) comment '发票内容',
bill_receiver_phone varchar(32) comment '收票人电话',
bill_receiver_email varchar(64) comment '收票人邮箱',
receiver_name varchar(100) comment '收货人姓名',
receiver_phone varchar(32) comment '收货人电话',
receiver_post_code varchar(32) comment '收货人邮编',
receiver_province varchar(32) comment '省份/直辖市',
receiver_city varchar(32) comment '城市',
receiver_region varchar(32) comment '区',
receiver_detail_address varchar(200) comment '详细地址',
note varchar(500) comment '订单备注',
confirm_status tinyint comment '确认收货状态[0->未确认；1->已确认]',
delete_status tinyint comment '删除状态【0->未删除；1->已删除】',
use_integration int comment '下单时使用的积分',
payment_time datetime comment '支付时间',
delivery_time datetime comment '发货时间',
receive_time datetime comment '确认收货时间',
comment_time datetime comment '评价时间',
modify_time datetime comment '修改时间',
primary key (id)
);
alter table oms_order comment '订单';
/*==============================================================*/
/* Table: oms_order_item */
/*==============================================================*/
create table oms_order_item
(
id bigint not null auto_increment comment 'id',
order_id bigint comment 'order_id',
order_sn char(32) comment 'order_sn',
spu_id bigint comment 'spu_id',
spu_name varchar(255) comment 'spu_name',
spu_pic varchar(500) comment 'spu_pic',
spu_brand varchar(200) comment '品牌',
category_id bigint comment '商品分类id',
sku_id bigint comment '商品sku编号',
sku_name varchar(255) comment '商品sku名字',
sku_pic varchar(500) comment '商品sku图片',
sku_price decimal(18,4) comment '商品sku价格',
sku_quantity int comment '商品购买的数量',
sku_attrs_vals varchar(500) comment '商品销售属性组合（JSON）',
promotion_amount decimal(18,4) comment '商品促销分解金额',
coupon_amount decimal(18,4) comment '优惠券优惠分解金额',
integration_amount decimal(18,4) comment '积分优惠分解金额',
real_amount decimal(18,4) comment '该商品经过优惠后的分解金额',
gift_integration int comment '赠送积分',
gift_growth int comment '赠送成长值',
primary key (id)
);
alter table oms_order_item comment '订单项信息';
/*==============================================================*/
/* Table: oms_order_operate_history */
/*==============================================================*/
create table oms_order_operate_history
(
id bigint not null auto_increment comment 'id',
order_id bigint comment '订单id',
operate_man varchar(100) comment '操作人[用户；系统；后台管理员]',
create_time datetime comment '操作时间',
order_status tinyint comment '订单状态【0->待付款；1->待发货；2->已发货；3->已完成；4->已关闭；5->无效订单】',
note varchar(500) comment '备注',
primary key (id)
);
alter table oms_order_operate_history comment '订单操作历史记录';
/*==============================================================*/
/* Table: oms_order_return_apply */
/*==============================================================*/
create table oms_order_return_apply
(
id bigint not null auto_increment comment 'id',
order_id bigint comment 'order_id',
sku_id bigint comment '退货商品id',
order_sn char(32) comment '订单编号',
create_time datetime comment '申请时间',
member_username varchar(64) comment '会员用户名',
return_amount decimal(18,4) comment '退款金额',
return_name varchar(100) comment '退货人姓名',
return_phone varchar(20) comment '退货人电话',
status tinyint(1) comment '申请状态[0->待处理；1->退货中；2->已完成；3->已拒绝]',
handle_time datetime comment '处理时间',
sku_img varchar(500) comment '商品图片',
sku_name varchar(200) comment '商品名称',
sku_brand varchar(200) comment '商品品牌',
sku_attrs_vals varchar(500) comment '商品销售属性(JSON)',
sku_count int comment '退货数量',
sku_price decimal(18,4) comment '商品单价',
sku_real_price decimal(18,4) comment '商品实际支付单价',
reason varchar(200) comment '原因',
description述 varchar(500) comment '描述',
desc_pics varchar(2000) comment '凭证图片，以逗号隔开',
handle_note varchar(500) comment '处理备注',
handle_man varchar(200) comment '处理人员',
receive_man varchar(100) comment '收货人',
receive_time datetime comment '收货时间',
receive_note varchar(500) comment '收货备注',
receive_phone varchar(20) comment '收货电话',
company_address varchar(500) comment '公司收货地址',
primary key (id)
);
alter table oms_order_return_apply comment '订单退货申请';
/*==============================================================*/
/* Table: oms_order_return_reason */
/*==============================================================*/
create table oms_order_return_reason
(
id bigint not null auto_increment comment 'id',
name varchar(200) comment '退货原因名',
sort int comment '排序',
status tinyint(1) comment '启用状态',
create_time datetime comment 'create_time',
primary key (id)
);
alter table oms_order_return_reason comment '退货原因';
/*==============================================================*/
/* Table: oms_order_setting */
/*==============================================================*/
create table oms_order_setting
(
id bigint not null auto_increment comment 'id',
flash_order_overtime int comment '秒杀订单超时关闭时间(分)',
normal_order_overtime int comment '正常订单超时时间(分)',
confirm_overtime int comment '发货后自动确认收货时间（天）',
finish_overtime int comment '自动完成交易时间，不能申请退货（天）',
comment_overtime int comment '订单完成后自动好评时间（天）',
member_level tinyint(2) comment '会员等级【0-不限会员等级，全部通用；其他-对应的其他会员等级】',
primary key (id)
);
alter table oms_order_setting comment '订单配置信息';
/*==============================================================*/
/* Table: oms_payment_info */
/*==============================================================*/
create table oms_payment_info
(
id bigint not null auto_increment comment 'id',
order_sn char(32) comment '订单号（对外业务号）',
order_id bigint comment '订单id',
alipay_trade_no varchar(50) comment '支付宝交易流水号',
total_amount decimal(18,4) comment '支付总金额',
subject varchar(200) comment '交易内容',
payment_status varchar(20) comment '支付状态',
create_time datetime comment '创建时间',
confirm_time datetime comment '确认时间',
callback_content varchar(4000) comment '回调内容',
callback_time datetime comment '回调时间',
primary key (id)
);
alter table oms_payment_info comment '支付信息表';
/*==============================================================*/
/* Table: oms_refund_info */
/*==============================================================*/
create table oms_refund_info
(
id bigint not null auto_increment comment 'id',
order_return_id bigint comment '退款的订单',
refund decimal(18,4) comment '退款金额',
refund_sn varchar(64) comment '退款交易流水号',
refund_status tinyint(1) comment '退款状态',
refund_channel tinyint comment '退款渠道[1-支付宝，2-微信，3-银联，4-汇款]',
refund_content varchar(5000),
primary key (id)
);
alter table oms_refund_info comment '退款信息';

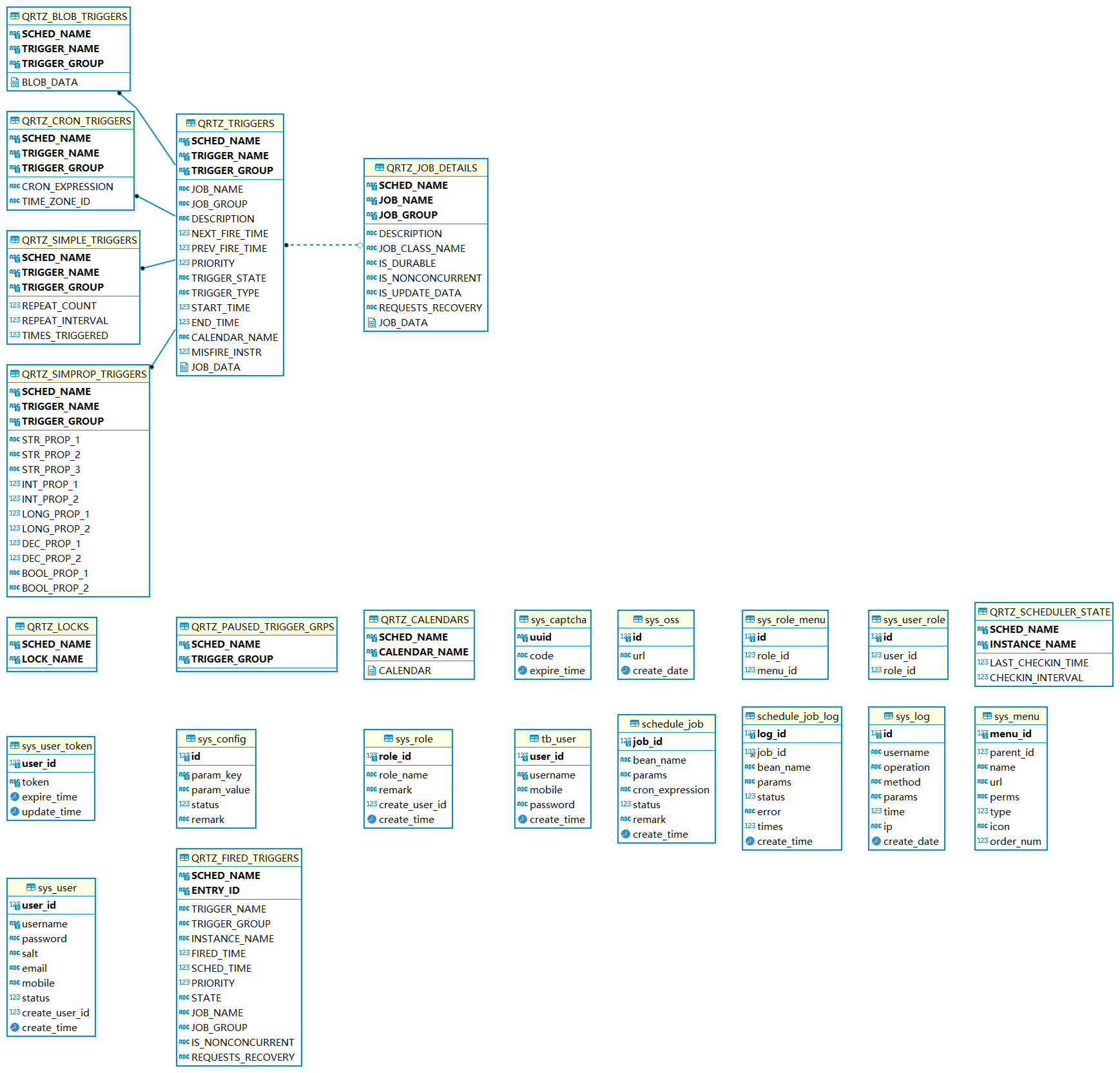

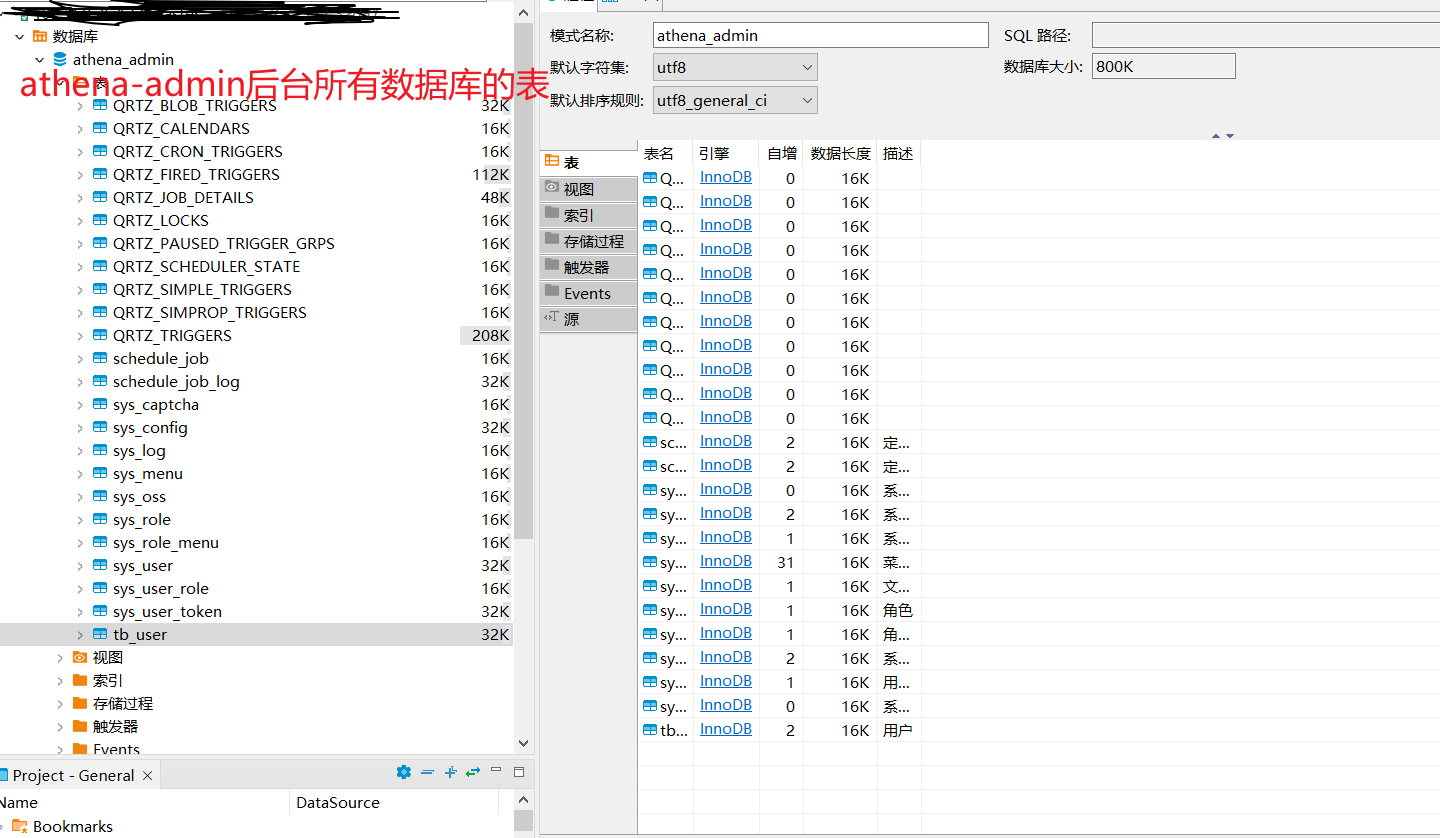

- QRTZ_BLOB_TRIGGERS
- QRTZ_CALENDARS
- QRTZ_CRON_TRIGGERS
- QRTZ_FIRED_TRIGGERS
- QRTZ_JOB_DETAILS
- QRTZ_LOCKS
- QRTZ_PAUSED_TRIGGER_GRPS
- QRTZ_SCHEDULER_STATE
- QRTZ_SIMPLE_TRIGGERS
- QRTZ_SIMPROP_TRIGGERS
- QRTZ_TRIGGERS
- schedule_job
- schedule_job_log
- sys_captcha
- sys_config
- sys_log
- sys_menu
- sys_oss
- sys_role
- sys_role_menu
- sys_user
- sys_user_role
- sys_user_token
- tb_user
-- 菜单
CREATE TABLE `sys_menu` (
`menu_id` bigint NOT NULL AUTO_INCREMENT,
`parent_id` bigint COMMENT '父菜单ID，一级菜单为0',
`name` varchar(50) COMMENT '菜单名称',
`url` varchar(200) COMMENT '菜单URL',
`perms` varchar(500) COMMENT '授权(多个用逗号分隔，如：user:list,user:create)',
`type` int COMMENT '类型 0：目录 1：菜单 2：按钮',
`icon` varchar(50) COMMENT '菜单图标',
`order_num` int COMMENT '排序',
PRIMARY KEY (`menu_id`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='菜单管理';
-- 系统用户
CREATE TABLE `sys_user` (
`user_id` bigint NOT NULL AUTO_INCREMENT,
`username` varchar(50) NOT NULL COMMENT '用户名',
`password` varchar(100) COMMENT '密码',
`salt` varchar(20) COMMENT '盐',
`email` varchar(100) COMMENT '邮箱',
`mobile` varchar(100) COMMENT '手机号',
`status` tinyint COMMENT '状态 0：禁用 1：正常',
`create_user_id` bigint(20) COMMENT '创建者ID',
`create_time` datetime COMMENT '创建时间',
PRIMARY KEY (`user_id`),
UNIQUE INDEX (`username`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='系统用户';
-- 系统用户Token
CREATE TABLE `sys_user_token` (
`user_id` bigint(20) NOT NULL,
`token` varchar(100) NOT NULL COMMENT 'token',
`expire_time` datetime DEFAULT NULL COMMENT '过期时间',
`update_time` datetime DEFAULT NULL COMMENT '更新时间',
PRIMARY KEY (`user_id`),
UNIQUE KEY `token` (`token`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='系统用户Token';
-- 系统验证码
CREATE TABLE `sys_captcha` (
`uuid` char(36) NOT NULL COMMENT 'uuid',
`code` varchar(6) NOT NULL COMMENT '验证码',
`expire_time` datetime DEFAULT NULL COMMENT '过期时间',
PRIMARY KEY (`uuid`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='系统验证码';
-- 角色
CREATE TABLE `sys_role` (
`role_id` bigint NOT NULL AUTO_INCREMENT,
`role_name` varchar(100) COMMENT '角色名称',
`remark` varchar(100) COMMENT '备注',
`create_user_id` bigint(20) COMMENT '创建者ID',
`create_time` datetime COMMENT '创建时间',
PRIMARY KEY (`role_id`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='角色';
-- 用户与角色对应关系
CREATE TABLE `sys_user_role` (
`id` bigint NOT NULL AUTO_INCREMENT,
`user_id` bigint COMMENT '用户ID',
`role_id` bigint COMMENT '角色ID',
PRIMARY KEY (`id`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='用户与角色对应关系';
-- 角色与菜单对应关系
CREATE TABLE `sys_role_menu` (
`id` bigint NOT NULL AUTO_INCREMENT,
`role_id` bigint COMMENT '角色ID',
`menu_id` bigint COMMENT '菜单ID',
PRIMARY KEY (`id`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='角色与菜单对应关系';
-- 系统配置信息
CREATE TABLE `sys_config` (
`id` bigint NOT NULL AUTO_INCREMENT,
`param_key` varchar(50) COMMENT 'key',
`param_value` varchar(2000) COMMENT 'value',
`status` tinyint DEFAULT 1 COMMENT '状态 0：隐藏 1：显示',
`remark` varchar(500) COMMENT '备注',
PRIMARY KEY (`id`),
UNIQUE INDEX (`param_key`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='系统配置信息表';
-- 系统日志
CREATE TABLE `sys_log` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`username` varchar(50) COMMENT '用户名',
`operation` varchar(50) COMMENT '用户操作',
`method` varchar(200) COMMENT '请求方法',
`params` varchar(5000) COMMENT '请求参数',
`time` bigint NOT NULL COMMENT '执行时长(毫秒)',
`ip` varchar(64) COMMENT 'IP地址',
`create_date` datetime COMMENT '创建时间',
PRIMARY KEY (`id`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='系统日志';
-- 文件上传
CREATE TABLE `sys_oss` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`url` varchar(200) COMMENT 'URL地址',
`create_date` datetime COMMENT '创建时间',
PRIMARY KEY (`id`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='文件上传';
-- 定时任务
CREATE TABLE `schedule_job` (
`job_id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '任务id',
`bean_name` varchar(200) DEFAULT NULL COMMENT 'spring bean名称',
`params` varchar(2000) DEFAULT NULL COMMENT '参数',
`cron_expression` varchar(100) DEFAULT NULL COMMENT 'cron表达式',
`status` tinyint(4) DEFAULT NULL COMMENT '任务状态 0：正常 1：暂停',
`remark` varchar(255) DEFAULT NULL COMMENT '备注',
`create_time` datetime DEFAULT NULL COMMENT '创建时间',
PRIMARY KEY (`job_id`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='定时任务';
-- 定时任务日志
CREATE TABLE `schedule_job_log` (
`log_id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '任务日志id',
`job_id` bigint(20) NOT NULL COMMENT '任务id',
`bean_name` varchar(200) DEFAULT NULL COMMENT 'spring bean名称',
`params` varchar(2000) DEFAULT NULL COMMENT '参数',
`status` tinyint(4) NOT NULL COMMENT '任务状态 0：成功 1：失败',
`error` varchar(2000) DEFAULT NULL COMMENT '失败信息',
`times` int(11) NOT NULL COMMENT '耗时(单位：毫秒)',
`create_time` datetime DEFAULT NULL COMMENT '创建时间',
PRIMARY KEY (`log_id`),
KEY `job_id` (`job_id`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='定时任务日志';
-- 用户表
CREATE TABLE `tb_user` (
`user_id` bigint NOT NULL AUTO_INCREMENT,
`username` varchar(50) NOT NULL COMMENT '用户名',
`mobile` varchar(20) NOT NULL COMMENT '手机号',
`password` varchar(64) COMMENT '密码',
`create_time` datetime COMMENT '创建时间',
PRIMARY KEY (`user_id`),
UNIQUE INDEX (`username`)
) ENGINE=`InnoDB` DEFAULT CHARACTER SET utf8mb4 COMMENT='用户';
-- 初始数据
INSERT INTO `sys_user` (`user_id`, `username`, `password`, `salt`, `email`, `mobile`, `status`, `create_user_id`, `create_time`) VALUES ('1', 'admin', '9ec9750e709431dad22365cabc5c625482e574c74adaebba7dd02f1129e4ce1d', 'YzcmCZNvbXocrsz9dm8e', 'root@renren.io', '13612345678', '1', '1', '2016-11-11 11:11:11');
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (1, 0, '系统管理', NULL, NULL, 0, 'system', 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (2, 1, '管理员列表', 'sys/user', NULL, 1, 'admin', 1);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (3, 1, '角色管理', 'sys/role', NULL, 1, 'role', 2);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (4, 1, '菜单管理', 'sys/menu', NULL, 1, 'menu', 3);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (5, 1, 'SQL监控', 'http://localhost:8080/renren-fast/druid/sql.html', NULL, 1, 'sql', 4);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (6, 1, '定时任务', 'job/schedule', NULL, 1, 'job', 5);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (7, 6, '查看', NULL, 'sys:schedule:list,sys:schedule:info', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (8, 6, '新增', NULL, 'sys:schedule:save', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (9, 6, '修改', NULL, 'sys:schedule:update', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (10, 6, '删除', NULL, 'sys:schedule:delete', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (11, 6, '暂停', NULL, 'sys:schedule:pause', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (12, 6, '恢复', NULL, 'sys:schedule:resume', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (13, 6, '立即执行', NULL, 'sys:schedule:run', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (14, 6, '日志列表', NULL, 'sys:schedule:log', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (15, 2, '查看', NULL, 'sys:user:list,sys:user:info', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (16, 2, '新增', NULL, 'sys:user:save,sys:role:select', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (17, 2, '修改', NULL, 'sys:user:update,sys:role:select', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (18, 2, '删除', NULL, 'sys:user:delete', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (19, 3, '查看', NULL, 'sys:role:list,sys:role:info', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (20, 3, '新增', NULL, 'sys:role:save,sys:menu:list', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (21, 3, '修改', NULL, 'sys:role:update,sys:menu:list', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (22, 3, '删除', NULL, 'sys:role:delete', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (23, 4, '查看', NULL, 'sys:menu:list,sys:menu:info', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (24, 4, '新增', NULL, 'sys:menu:save,sys:menu:select', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (25, 4, '修改', NULL, 'sys:menu:update,sys:menu:select', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (26, 4, '删除', NULL, 'sys:menu:delete', 2, NULL, 0);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (27, 1, '参数管理', 'sys/config', 'sys:config:list,sys:config:info,sys:config:save,sys:config:update,sys:config:delete', 1, 'config', 6);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (29, 1, '系统日志', 'sys/log', 'sys:log:list', 1, 'log', 7);
INSERT INTO `sys_menu`(`menu_id`, `parent_id`, `name`, `url`, `perms`, `type`, `icon`, `order_num`) VALUES (30, 1, '文件上传', 'oss/oss', 'sys:oss:all', 1, 'oss', 6);
INSERT INTO `sys_config` (`param_key`, `param_value`, `status`, `remark`) VALUES ('CLOUD_STORAGE_CONFIG_KEY', '{\"aliyunAccessKeyId\":\"\",\"aliyunAccessKeySecret\":\"\",\"aliyunBucketName\":\"\",\"aliyunDomain\":\"\",\"aliyunEndPoint\":\"\",\"aliyunPrefix\":\"\",\"qcloudBucketName\":\"\",\"qcloudDomain\":\"\",\"qcloudPrefix\":\"\",\"qcloudSecretId\":\"\",\"qcloudSecretKey\":\"\",\"qiniuAccessKey\":\"NrgMfABZxWLo5B-YYSjoE8-AZ1EISdi1Z3ubLOeZ\",\"qiniuBucketName\":\"ios-app\",\"qiniuDomain\":\"http://7xqbwh.dl1.z0.glb.clouddn.com\",\"qiniuPrefix\":\"upload\",\"qiniuSecretKey\":\"uIwJHevMRWU0VLxFvgy0tAcOdGqasdtVlJkdy6vV\",\"type\":1}', '0', '云存储配置信息');
INSERT INTO `schedule_job` (`bean_name`, `params`, `cron_expression`, `status`, `remark`, `create_time`) VALUES ('testTask', 'renren', '0 0/30 * * * ?', '0', '参数测试', now());
-- 账号：13612345678 密码：admin
INSERT INTO `tb_user` (`username`, `mobile`, `password`, `create_time`) VALUES ('mark', '13612345678', '8c6976e5b5410415bde908bd4dee15dfb167a9c873fc4bb8a81f6f2ab448a918', '2017-03-23 22:37:41');
-- quartz自带表结构
CREATE TABLE QRTZ_JOB_DETAILS(
SCHED_NAME VARCHAR(120) NOT NULL,
JOB_NAME VARCHAR(200) NOT NULL,
JOB_GROUP VARCHAR(200) NOT NULL,
DESCRIPTION VARCHAR(250) NULL,
JOB_CLASS_NAME VARCHAR(250) NOT NULL,
IS_DURABLE VARCHAR(1) NOT NULL,
IS_NONCONCURRENT VARCHAR(1) NOT NULL,
IS_UPDATE_DATA VARCHAR(1) NOT NULL,
REQUESTS_RECOVERY VARCHAR(1) NOT NULL,
JOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,JOB_NAME,JOB_GROUP))
ENGINE=InnoDB DEFAULT CHARSET=utf8;
CREATE TABLE QRTZ_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
JOB_NAME VARCHAR(200) NOT NULL,
JOB_GROUP VARCHAR(200) NOT NULL,
DESCRIPTION VARCHAR(250) NULL,
NEXT_FIRE_TIME BIGINT(13) NULL,
PREV_FIRE_TIME BIGINT(13) NULL,
PRIORITY INTEGER NULL,
TRIGGER_STATE VARCHAR(16) NOT NULL,
TRIGGER_TYPE VARCHAR(8) NOT NULL,
START_TIME BIGINT(13) NOT NULL,
END_TIME BIGINT(13) NULL,
CALENDAR_NAME VARCHAR(200) NULL,
MISFIRE_INSTR SMALLINT(2) NULL,
JOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
REFERENCES QRTZ_JOB_DETAILS(SCHED_NAME,JOB_NAME,JOB_GROUP))
ENGINE=InnoDB DEFAULT CHARSET=utf8;
CREATE TABLE QRTZ_SIMPLE_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
REPEAT_COUNT BIGINT(7) NOT NULL,
REPEAT_INTERVAL BIGINT(12) NOT NULL,
TIMES_TRIGGERED BIGINT(10) NOT NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB DEFAULT CHARSET=utf8;
CREATE TABLE QRTZ_CRON_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
CRON_EXPRESSION VARCHAR(120) NOT NULL,
TIME_ZONE_ID VARCHAR(80),
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB DEFAULT CHARSET=utf8;
CREATE TABLE QRTZ_SIMPROP_TRIGGERS
(
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
STR_PROP_1 VARCHAR(512) NULL,
STR_PROP_2 VARCHAR(512) NULL,
STR_PROP_3 VARCHAR(512) NULL,
INT_PROP_1 INT NULL,
INT_PROP_2 INT NULL,
LONG_PROP_1 BIGINT NULL,
LONG_PROP_2 BIGINT NULL,
DEC_PROP_1 NUMERIC(13,4) NULL,
DEC_PROP_2 NUMERIC(13,4) NULL,
BOOL_PROP_1 VARCHAR(1) NULL,
BOOL_PROP_2 VARCHAR(1) NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB DEFAULT CHARSET=utf8;
CREATE TABLE QRTZ_BLOB_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
BLOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
INDEX (SCHED_NAME,TRIGGER_NAME, TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB DEFAULT CHARSET=utf8;
CREATE TABLE QRTZ_CALENDARS (
SCHED_NAME VARCHAR(120) NOT NULL,
CALENDAR_NAME VARCHAR(200) NOT NULL,
CALENDAR BLOB NOT NULL,
PRIMARY KEY (SCHED_NAME,CALENDAR_NAME))
ENGINE=InnoDB DEFAULT CHARSET=utf8;
CREATE TABLE QRTZ_PAUSED_TRIGGER_GRPS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_GROUP))
ENGINE=InnoDB DEFAULT CHARSET=utf8;
CREATE TABLE QRTZ_FIRED_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
ENTRY_ID VARCHAR(95) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
INSTANCE_NAME VARCHAR(200) NOT NULL,
FIRED_TIME BIGINT(13) NOT NULL,
SCHED_TIME BIGINT(13) NOT NULL,
PRIORITY INTEGER NOT NULL,
STATE VARCHAR(16) NOT NULL,
JOB_NAME VARCHAR(200) NULL,
JOB_GROUP VARCHAR(200) NULL,
IS_NONCONCURRENT VARCHAR(1) NULL,
REQUESTS_RECOVERY VARCHAR(1) NULL,
PRIMARY KEY (SCHED_NAME,ENTRY_ID))
ENGINE=InnoDB DEFAULT CHARSET=utf8;
CREATE TABLE QRTZ_SCHEDULER_STATE (
SCHED_NAME VARCHAR(120) NOT NULL,
INSTANCE_NAME VARCHAR(200) NOT NULL,
LAST_CHECKIN_TIME BIGINT(13) NOT NULL,
CHECKIN_INTERVAL BIGINT(13) NOT NULL,
PRIMARY KEY (SCHED_NAME,INSTANCE_NAME))
ENGINE=InnoDB DEFAULT CHARSET=utf8;
CREATE TABLE QRTZ_LOCKS (
SCHED_NAME VARCHAR(120) NOT NULL,
LOCK_NAME VARCHAR(40) NOT NULL,
PRIMARY KEY (SCHED_NAME,LOCK_NAME))
ENGINE=InnoDB DEFAULT CHARSET=utf8;
CREATE INDEX IDX_QRTZ_J_REQ_RECOVERY ON QRTZ_JOB_DETAILS(SCHED_NAME,REQUESTS_RECOVERY);
CREATE INDEX IDX_QRTZ_J_GRP ON QRTZ_JOB_DETAILS(SCHED_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_T_J ON QRTZ_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_T_JG ON QRTZ_TRIGGERS(SCHED_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_T_C ON QRTZ_TRIGGERS(SCHED_NAME,CALENDAR_NAME);
CREATE INDEX IDX_QRTZ_T_G ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);
CREATE INDEX IDX_QRTZ_T_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_N_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_N_G_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_NEXT_FIRE_TIME ON QRTZ_TRIGGERS(SCHED_NAME,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_ST ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE_GRP ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_GROUP,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_FT_TRIG_INST_NAME ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME);
CREATE INDEX IDX_QRTZ_FT_INST_JOB_REQ_RCVRY ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME,REQUESTS_RECOVERY);
CREATE INDEX IDX_QRTZ_FT_J_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_FT_JG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_FT_T_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP);
CREATE INDEX IDX_QRTZ_FT_TG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);
