TiDB之TiFlash介绍和使用

1. TiFlash介绍
2. TiFlash的使用
- 2.1 按表构建TiFlash副本
- 2.2 查看表同步进度
- 2.3 使用TiDB读取TiFlash
- - 2.3.1 智能选择
  - 2.3.2 储存Engine隔离
  - 2.3.3 手工提示
- 2.4 broadcast join
- 2.5 TiFlash不支持的功能和与TiDB不兼容的情况

1. TiFlash介绍

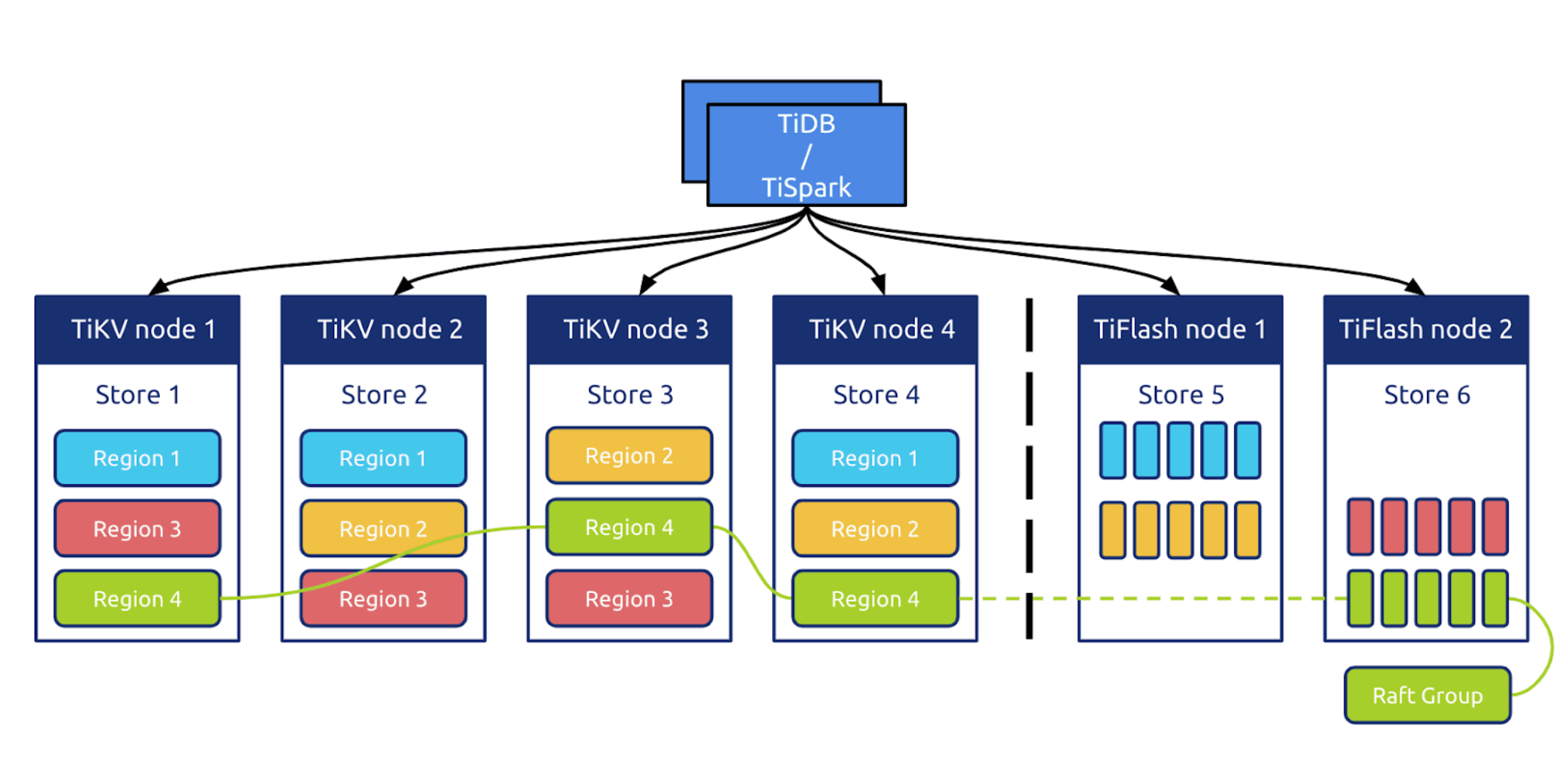

同步的架构图如下： TiFlash同步

TiFlash主要包含存储引擎组件、tiflash proxy组件、pd buddy组件，其中tiflash proxy主要处理Multi-Raft协议通信的相关工作，pd buddy负责与PD协同工作，将TiKV数据按表同步到TiFlash
TiFlash默认不同步数据，且同步粒度为表粒度
以region为单位进行数据复制和分列，跟随TiKV中的Leader副本同时进行分裂与合并，只要TiKV中数据不丢失，就可以随时恢复TiFlash的副本
一致性保证：TiFlash每次收到读取请求，TiFlash中的Region副本会向TiKV的Leader副本发起数据校对，保证读取请求时间戳之前的所有数据都被同步到TiFlash，才返回数据
在一个select查询中，可能同时使用TiKV和TiFlash，TiDB默认会根据select查询进行判断

2. TiFlash的使用 2.1 按表构建TiFlash副本

默认不会同步数据到TiFlash，开启同步命令如下，副本数为0表示删除TiFlash副本

mysql>
mysql> use test_db;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed
mysql>
mysql> alter table test_tb set tiflash replica 2;
Query OK, 0 rows affected (0.55 sec)

mysql>

对于已经开启TiFlash同步的表test_tb，通过create table test_tb2 like test_tb;创建的表test_tb2，test_tb2也会开启TiFlash同步
不支持给系统表开启TiFlash同步

2.2 查看表同步进度

mysql>
mysql> select * from information_schema.tiflash_replica where table_schema = 'test_db' and table_name = 'test_tb2';
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| TABLE_SCHEMA | TABLE_NAME | TABLE_ID | REPLICA_COUNT | LOCATION_LABELS | AVAILABLE | PROGRESS |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| test_db      | test_tb2   |       59 |             2 |                 |         1 |        1 |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
1 row in set (0.00 sec)

mysql>

AVAILABLE表示该表的TiFlash副本是否可用。TiFlash副本状态为可用之后就不再改变，如果通过DDL命令修改TiFlash副本数则会重新计算AVAILABLE状态
PROGRESS同步进度，在0.0~1.0之间，1代表至少1个副本已经完成同步

2.3 使用TiDB读取TiFlash

非只读SQL(如insert into … select …)只能从TiKV中读取数据

2.3.1 智能选择

TiDB会自动根据select语句，判断是读取TiKV还是TiFlash，如果一个select语句有多个子查询，可能会同时读取TiKV和TiFlash

可以通过desc和explain analyze命令查看读取的TiKV还是TiFlash

mysql>
mysql> desc select count(*) from test_tb;
+----------------------------+---------+-------------------+---------------+---------------------------------+
| id                         | estRows | task              | access object | operator info                   |
+----------------------------+---------+-------------------+---------------+---------------------------------+
| StreamAgg_25               | 1.00    | root              |               | funcs:count(Column#7)->Column#4 |
| └─TableReader_26           | 1.00    | root              |               | data:StreamAgg_9                |
|   └─StreamAgg_9            | 1.00    | batchCop[tiflash] |               | funcs:count(1)->Column#7        |
|     └─TableFullScan_24     | 2.00    | batchCop[tiflash] | table:test_tb | keep order:false, stats:pseudo  |
+----------------------------+---------+-------------------+---------------+---------------------------------+
4 rows in set (0.01 sec)

mysql>
mysql> explain analyze select count(*) from test_tb;
+----------------------------+---------+---------+-------------------+---------------+---------------------------------------------------------------------------------------------+---------------------------------+-----------+------+
| id                         | estRows | actRows | task              | access object | execution info                                                                              | operator info                   | memory    | disk |
+----------------------------+---------+---------+-------------------+---------------+---------------------------------------------------------------------------------------------+---------------------------------+-----------+------+
| StreamAgg_25               | 1.00    | 1       | root              |               | time:81.7ms, loops:2                                                                        | funcs:count(Column#7)->Column#4 | 380 Bytes | N/A  |
| └─TableReader_26           | 1.00    | 1       | root              |               | time:81.7ms, loops:2, cop_task: {num: 1, max: 0s, proc_keys: 0, copr_cache_hit_ratio: 0.00} | data:StreamAgg_9                | 79 Bytes  | N/A  |
|   └─StreamAgg_9            | 1.00    | 1       | batchCop[tiflash] |               | tiflash_task:{time:45.4ms, loops:1, threads:1}                                              | funcs:count(1)->Column#7        | N/A       | N/A  |
|     └─TableFullScan_24     | 2.00    | 2       | batchCop[tiflash] | table:test_tb | tiflash_task:{time:43.4ms, loops:1, threads:1}                                              | keep order:false, stats:pseudo  | N/A       | N/A  |
+----------------------------+---------+---------+-------------------+---------------+---------------------------------------------------------------------------------------------+---------------------------------+-----------+------+
4 rows in set (0.10 sec)

mysql>

cop[tiflash]表示该任务会发送至TiFlash进行处理

2.3.2 储存Engine隔离

方式一：修改配置文件方式，永久有效

添加以下内容到tidb_servers的各个节点(默认的配置如下)：

config:
  isolation-read.engines:
  - tikv
  - tidb
  - tiflash

tidb储存引擎为TiDB系统内部使用的内存表，必须指定，普通用户不能使用

修改步骤如下，需要重启服务，但不影响客户端的使用：

[root@tidb1 ~]#
[root@tidb1 ~]# tiup cluster edit-config tidb-cluster
Starting component `cluster`: /root/.tiup/components/cluster/v1.6.1/tiup-cluster edit-config tidb-cluster

......省略部分......
tidb_servers:
- host: tidb1
  ssh_port: 22
  port: 4000
  status_port: 10080
  deploy_dir: /opt/tidb-v5.2.2-install/tidb-deploy/tidb-4000
  log_dir: /opt/tidb-v5.2.2-install/tidb-deploy/tidb-4000/log
  config:
    isolation-read.engines:
    - tikv
    - tidb
  arch: amd64
  os: linux
- host: tidb2
  ssh_port: 22
  port: 4000
  status_port: 10080
  deploy_dir: /opt/tidb-v5.2.2-install/tidb-deploy/tidb-4000
  log_dir: /opt/tidb-v5.2.2-install/tidb-deploy/tidb-4000/log
  config:
    isolation-read.engines:
    - tikv
    - tidb
  arch: amd64
  os: linux
- host: tidb3
  ssh_port: 22
  port: 4000
  status_port: 10080
  deploy_dir: /opt/tidb-v5.2.2-install/tidb-deploy/tidb-4000
  log_dir: /opt/tidb-v5.2.2-install/tidb-deploy/tidb-4000/log
  config:
    isolation-read.engines:
    - tikv
    - tidb
  arch: amd64
  os: linux
- host: tidb4
  ssh_port: 22
  port: 4000
  status_port: 10080
  deploy_dir: /opt/tidb-v5.2.2-install/tidb-deploy/tidb-4000
  log_dir: /opt/tidb-v5.2.2-install/tidb-deploy/tidb-4000/log
  config:
    isolation-read.engines:
    - tikv
    - tidb
  arch: amd64
  os: linux
......省略部分......
Please check change highlight above, do you want to apply the change? [y/N]:(default=N) y
Applying changes...
Applied successfully, please use `tiup cluster reload tidb-cluster [-N ] [-R ]` to reload config.
[root@tidb1 ~]#
[root@tidb1 ~]# tiup cluster reload tidb-cluster;
Starting component `cluster`: /root/.tiup/components/cluster/v1.6.1/tiup-cluster reload tidb-cluster
Will reload the cluster tidb-cluster with restart policy is true, nodes: , roles: .
Do you want to continue? [y/N]:(default=N) y
+ [ Serial ] - SSHKeySet: privateKey=/root/.tiup/storage/cluster/clusters/tidb-cluster/ssh/id_rsa, publicKey=/root/.tiup/storage/cluster/clusters/tidb-cluster/ssh/id_rsa.pub
......省略部分......
Reloaded cluster `tidb-cluster` successfully
[root@tidb1 ~]#

进行查询验证：

mysql>
mysql> desc select count(*) from test_tb;
ERROR 2013 (HY000): Lost connection to MySQL server during query
No connection. Trying to reconnect...
Connection id:    3
Current database: test_db

+----------------------------+---------+-----------+---------------+---------------------------------+
| id                         | estRows | task      | access object | operator info                   |
+----------------------------+---------+-----------+---------------+---------------------------------+
| StreamAgg_16               | 1.00    | root      |               | funcs:count(Column#6)->Column#4 |
| └─TableReader_17           | 1.00    | root      |               | data:StreamAgg_8                |
|   └─StreamAgg_8            | 1.00    | cop[tikv] |               | funcs:count(1)->Column#6        |
|     └─TableFullScan_15     | 2.00    | cop[tikv] | table:test_tb | keep order:false                |
+----------------------------+---------+-----------+---------------+---------------------------------+
4 rows in set (0.00 sec)

mysql>

方式二：会话级别，只对当前会话有效

mysql>
mysql> set SESSION tidb_isolation_read_engines = "tidb,tikv,tiflash";
Query OK, 0 rows affected (0.00 sec)

mysql>

2.3.3 手工提示

强制某些表使用指定的储存引擎

mysql>
mysql> desc select /*+ read_from_storage(tikv[b,c],tiflash[d]) */ count(*) from test_tb a join test_tb b on a.id = b.id join test_tb c on b.id = c.id join test_tb d on c.idd = d.id;
+------------------------------------+---------+--------------+---------------+----------------------------------------------------------------+
| id                                 | estRows | task         | access object | operator info                                                  |
+------------------------------------+---------+--------------+---------------+----------------------------------------------------------------+
| StreamAgg_20                       | 1.00    | root         |               | funcs:count(1)->Column#13                                      |
| └─HashJoin_53                      | 2.00    | root         |               | inner join, equal:[eq(test_db.test_tb.id, test_db.test_tb.id)] |
|   ├─TableReader_50(Build)          | 2.00    | root         |               | data:Selection_49                                              |
|   │ └─Selection_49                 | 2.00    | cop[tiflash] |               | not(isnull(test_db.test_tb.id))                                |
|   │   └─TableFullScan_48           | 2.00    | cop[tiflash] | table:d       | keep order:false                                               |
|   └─HashJoin_31(Probe)             | 2.00    | root         |               | inner join, equal:[eq(test_db.test_tb.id, test_db.test_tb.id)] |
|     ├─TableReader_47(Build)        | 2.00    | root         |               | data:Selection_46                                              |
|     │ └─Selection_46               | 2.00    | cop[tikv]    |               | not(isnull(test_db.test_tb.id))                                |
|     │   └─TableFullScan_45         | 2.00    | cop[tikv]    | table:c       | keep order:false                                               |
|     └─HashJoin_34(Probe)           | 2.00    | root         |               | inner join, equal:[eq(test_db.test_tb.id, test_db.test_tb.id)] |
|       ├─TableReader_44(Build)      | 2.00    | root         |               | data:Selection_43                                              |
|       │ └─Selection_43             | 2.00    | cop[tikv]    |               | not(isnull(test_db.test_tb.id))                                |
|       │   └─TableFullScan_42       | 2.00    | cop[tikv]    | table:b       | keep order:false                                               |
|       └─TableReader_41(Probe)      | 2.00    | root         |               | data:Selection_40                                              |
|         └─Selection_40             | 2.00    | cop[tiflash] |               | not(isnull(test_db.test_tb.id))                                |
|           └─TableFullScan_39       | 2.00    | cop[tiflash] | table:a       | keep order:false                                               |
+------------------------------------+---------+--------------+---------------+----------------------------------------------------------------+
16 rows in set (0.00 sec)

mysql>

如果Hint指定的表在指定的引擎上不存在副本，则Hint会被忽略，并产生warning
如果Hint中指定的引擎不在engine隔离列表中，Hint同样会被忽略，并产生warning

2.4 broadcast join

目前支持的物理算法有：broadcast hash join、shuffled hash join、shuffled hash aggregation、union all、topN、limit

tidb根据查询来判断，是否可以进行broadcast join。如果满足条件，则将一个小表的数据broadcast到其它服务器，减少大表的数据shuffle

TiFlash提供了两个global/session变量决定是否选择broadcast hash join，分别为：

tidb_broadcast_join_threshold_size，单位为bytes。如果表大小(字节数)小于该值，则选择Broadcast Hash Join算法。否则选择Shuffled Hash Join算法
tidb_broadcast_join_threshold_count，单位为行数。如果join的对象为子查询，优化器无法估计子查询结果集大小，则通过结果集行数判断。如果子查询的行数估计值小于该变量，则选择Broadcast Hash Join算法。否则选择Shuffled Hash Join算法

查看变量的值如下：

mysql>
mysql> show global variables like '%tidb_broadcast_join_threshold_size%';
+------------------------------------+-----------+
| Variable_name                      | Value     |
+------------------------------------+-----------+
| tidb_broadcast_join_threshold_size | 104857600 |
+------------------------------------+-----------+
1 row in set (0.02 sec)

mysql>
mysql> show global variables like '%tidb_broadcast_join_threshold_count%';
+-------------------------------------+-------+
| Variable_name                       | Value |
+-------------------------------------+-------+
| tidb_broadcast_join_threshold_count | 10240 |
+-------------------------------------+-------+
1 row in set (0.02 sec)

mysql>

也可以通过explain来进行验证，如果结果中出现ExchangeSender和ExchangeReceiver算子，表明发生了broadcast hash join，如官网的例子所示：

mysql>
mysql> explain select count(*) from customer c join nation n on c.c_nationkey=n.n_nationkey;
+------------------------------------------+------------+-------------------+---------------+----------------------------------------------------------------------------+
| id                                       | estRows    | task              | access object | operator info                                                              |
+------------------------------------------+------------+-------------------+---------------+----------------------------------------------------------------------------+
| HashAgg_23                               | 1.00       | root              |               | funcs:count(Column#16)->Column#15                                          |
| └─TableReader_25                         | 1.00       | root              |               | data:ExchangeSender_24                                                     |
|   └─ExchangeSender_24                    | 1.00       | batchCop[tiflash] |               | ExchangeType: PassThrough                                                  |
|     └─HashAgg_12                         | 1.00       | batchCop[tiflash] |               | funcs:count(1)->Column#16                                                  |
|       └─HashJoin_17                      | 3000000.00 | batchCop[tiflash] |               | inner join, equal:[eq(tpch.nation.n_nationkey, tpch.customer.c_nationkey)] |
|         ├─ExchangeReceiver_21(Build)     | 25.00      | batchCop[tiflash] |               |                                                                            |
|         │ └─ExchangeSender_20            | 25.00      | batchCop[tiflash] |               | ExchangeType: Broadcast                                                    |
|         │   └─TableFullScan_18           | 25.00      | batchCop[tiflash] | table:n       | keep order:false                                                           |
|         └─TableFullScan_22(Probe)        | 3000000.00 | batchCop[tiflash] | table:c       | keep order:false                                                           |
+------------------------------------------+------------+-------------------+---------------+----------------------------------------------------------------------------+
9 rows in set (0.00 sec)

mysql>

2.5 TiFlash不支持的功能和与TiDB不兼容的情况

在TiFlash储存层的数值计算，不支持数据值溢出检查，如9223372036854775807 + 9223372036854775807会得到结果：-2
当进行Decimal类型数据相除，TiFlash按照编译时推断出来的数据类型进行计算，而TiDB采用精度高于编译时推断出来的数据类型进行计算。会导致在TiDB + TiKV上的执行结果会和TiDB + TiFlash上的执行结果不一样，示例如下：

mysql>
mysql> create table t (a decimal(3,0), b decimal(10, 0));
Query OK, 0 rows affected (0.07 sec)

mysql>
mysql> insert into t values (43, 1044774912);
Query OK, 1 row affected (0.03 sec)

mysql>
mysql> alter table t set tiflash replica 1;
Query OK, 0 rows affected (0.07 sec)

mysql>
mysql> set session tidb_isolation_read_engines='tikv';
Query OK, 0 rows affected (0.00 sec)

mysql>
mysql> select a/b, a/b + 0.0000000000001 from t where a/b;
+--------+-----------------------+
| a/b    | a/b + 0.0000000000001 |
+--------+-----------------------+
| 0.0000 |       0.0000000410001 |
+--------+-----------------------+
1 row in set (0.00 sec)

mysql>
mysql> set session tidb_isolation_read_engines='tiflash';
Query OK, 0 rows affected (0.00 sec)

mysql>
mysql> select a/b, a/b + 0.0000000000001 from t where a/b;
Empty set (0.01 sec)

mysql>

a/b在编译期推导出来的数据类型为Decimal(7,4)，a/b返回的结果应该为 0.0000。在TiDB + TiFlash中原表中的数据被where a/b过滤掉了。但在TiDB + TiKV中，a/b运行期的精度比Decimal(7,4)高，所以原表中的数据没有被where a/b过滤掉
