Cortex-M开发板密码登陆界面

MangataTS 发布时间：2021-12-19 00:08:37 ，浏览量：4

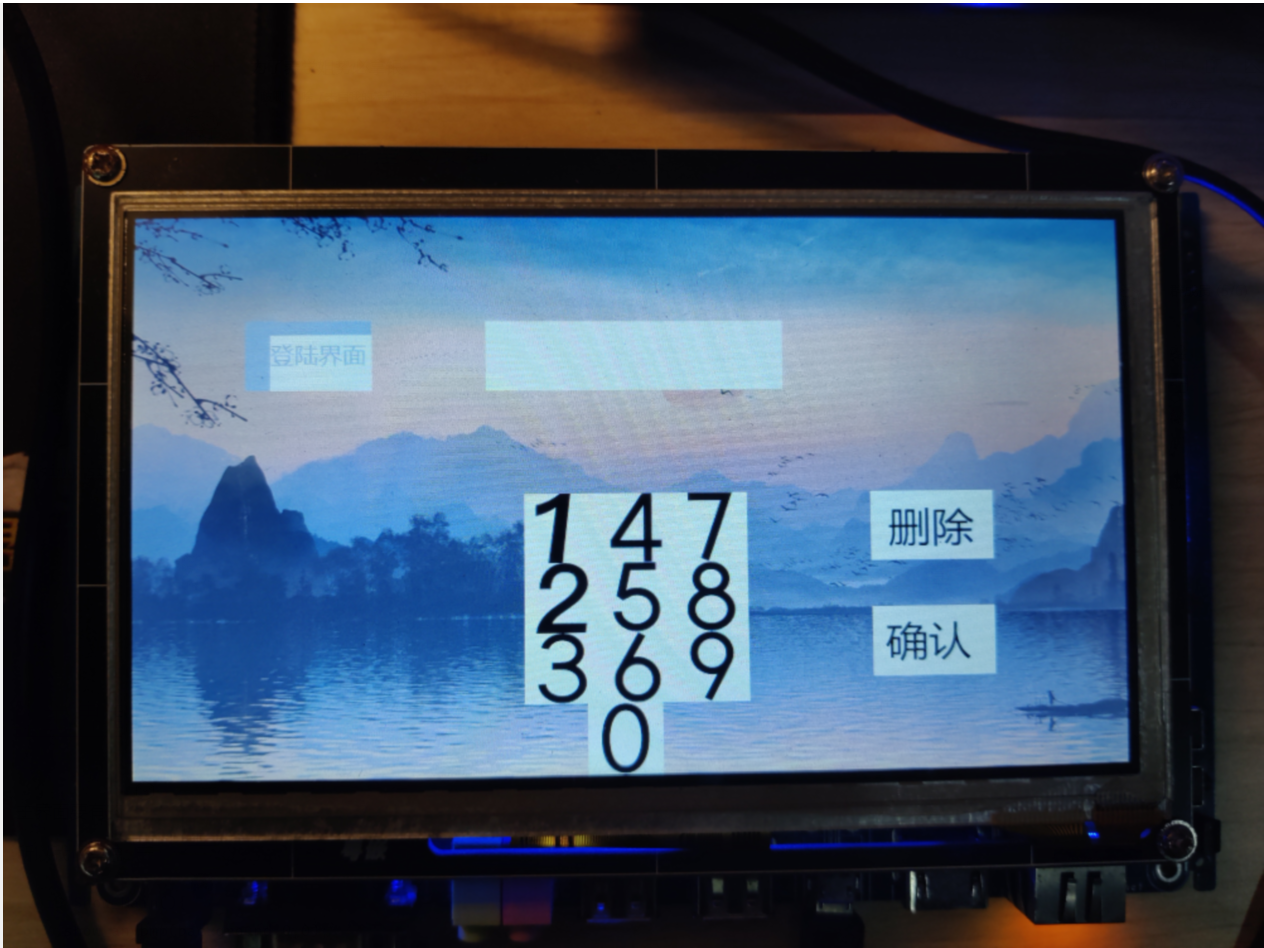

效果图登陆主界面

在这里插入图片描述

输入密码

在这里插入图片描述

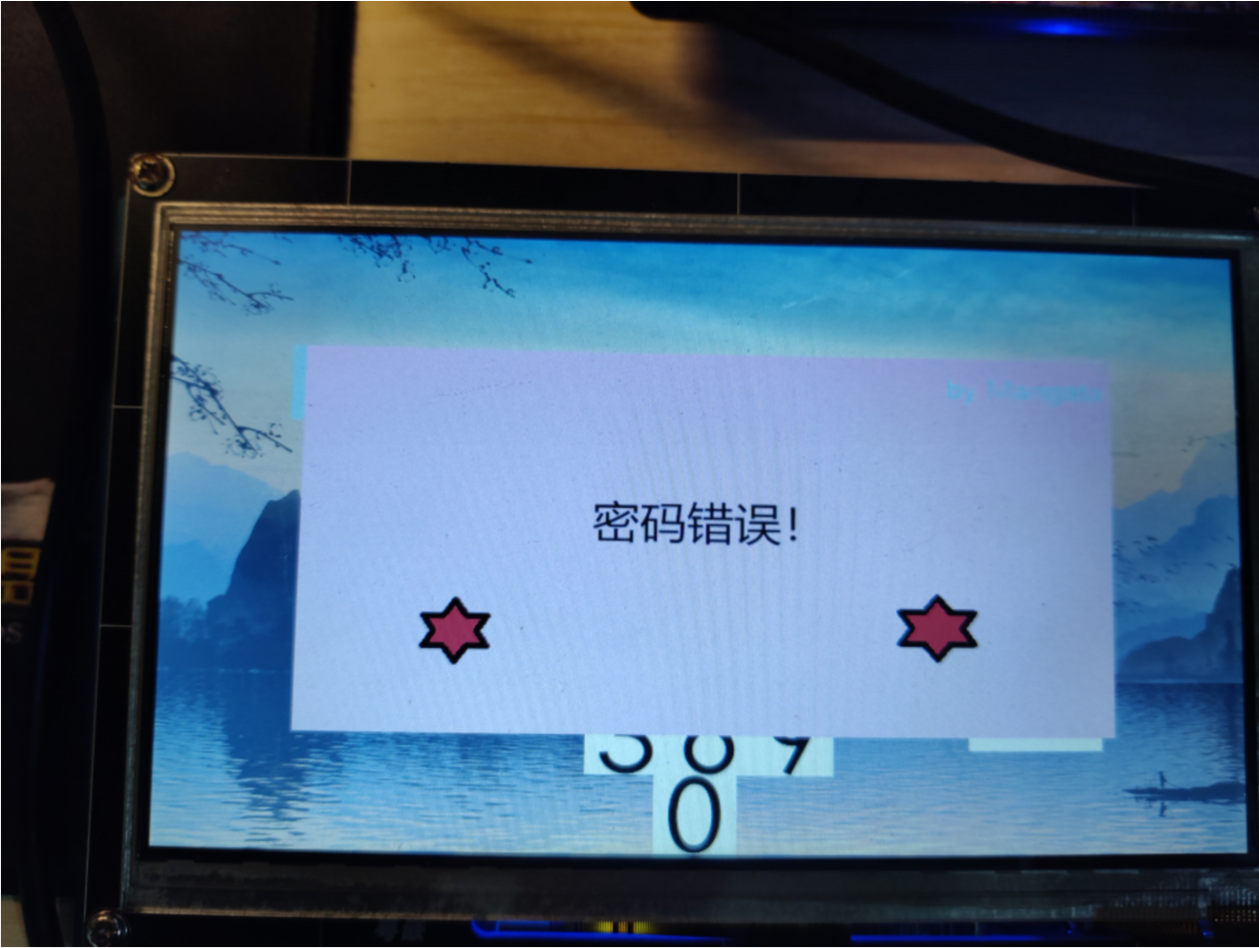

密码错误

在这里插入图片描述

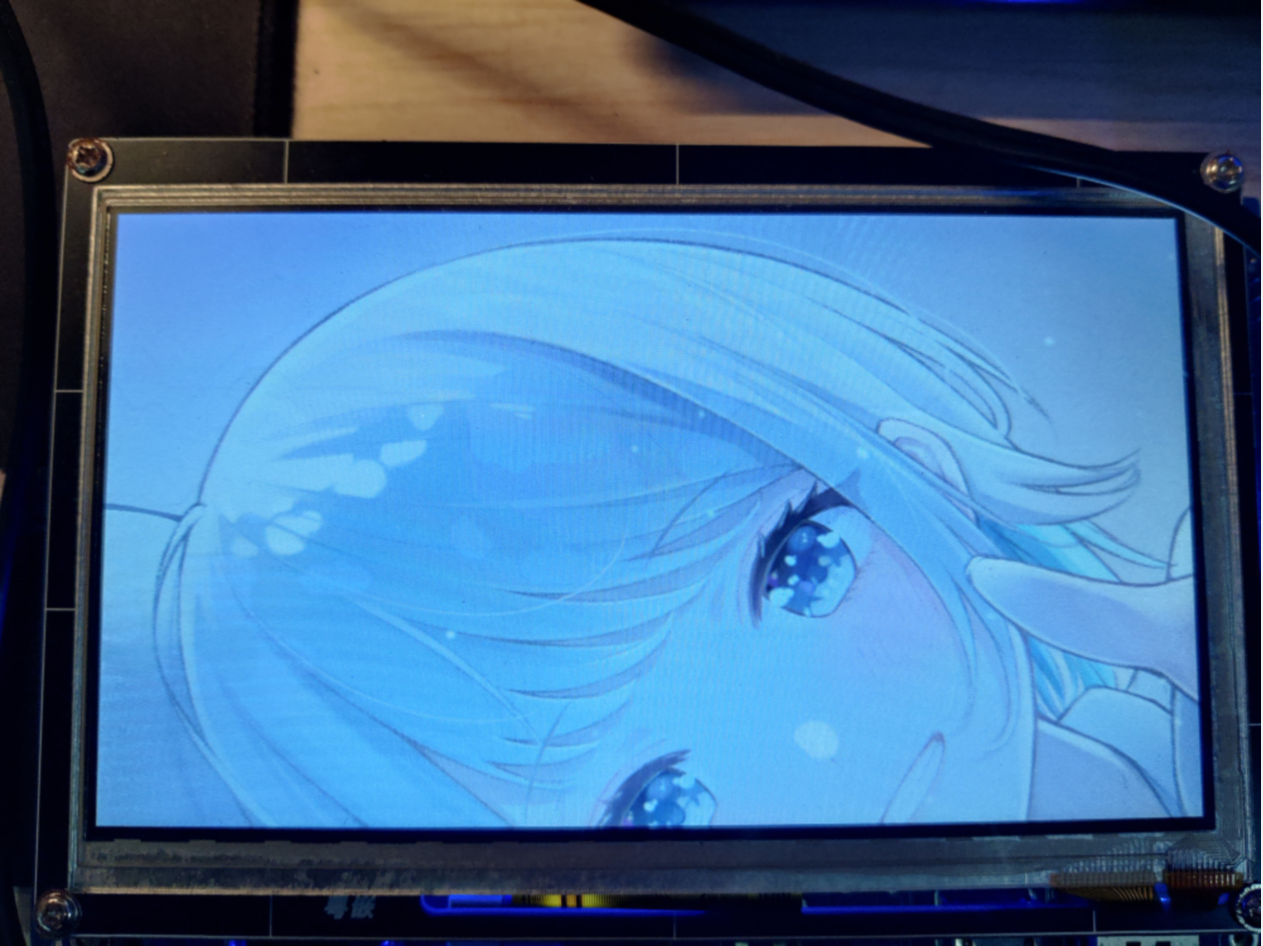

密码正确（我这里省事登陆成功直接放的一张图）

在这里插入图片描述

思路主界面

主界面要有的元素有：输入框、数字键盘（字母键盘）、logo（可有可无）、删除键、登陆键

所以我们单独写一个专门显示登陆界面的函数，每次都加载主界面的这些元素：

void Show_Main(){
    show_anybmp(background,0,0);//背景
    show_anybmp(Login_Logo,90,90);//logo
    //显示数字键盘1-9
    for(int x = 310,i = 1;i
