利用Github Actions自动将Markdown文件转为Latex文档并生成PDF(制作一个支持自动编译的代码模板库)

发布时间：2022-09-24 16:15:36 ，浏览量：19

首先放上成品的仓库地址：Gtihub-ACM_Template_Library，欢迎Star哦~

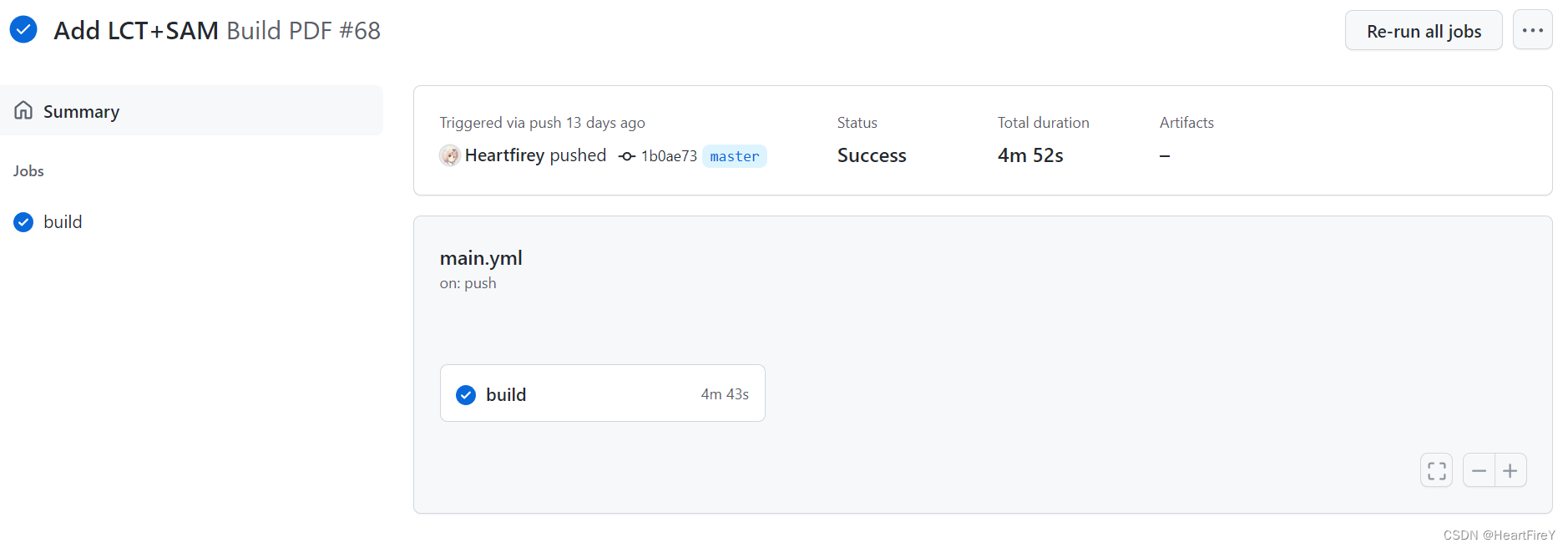

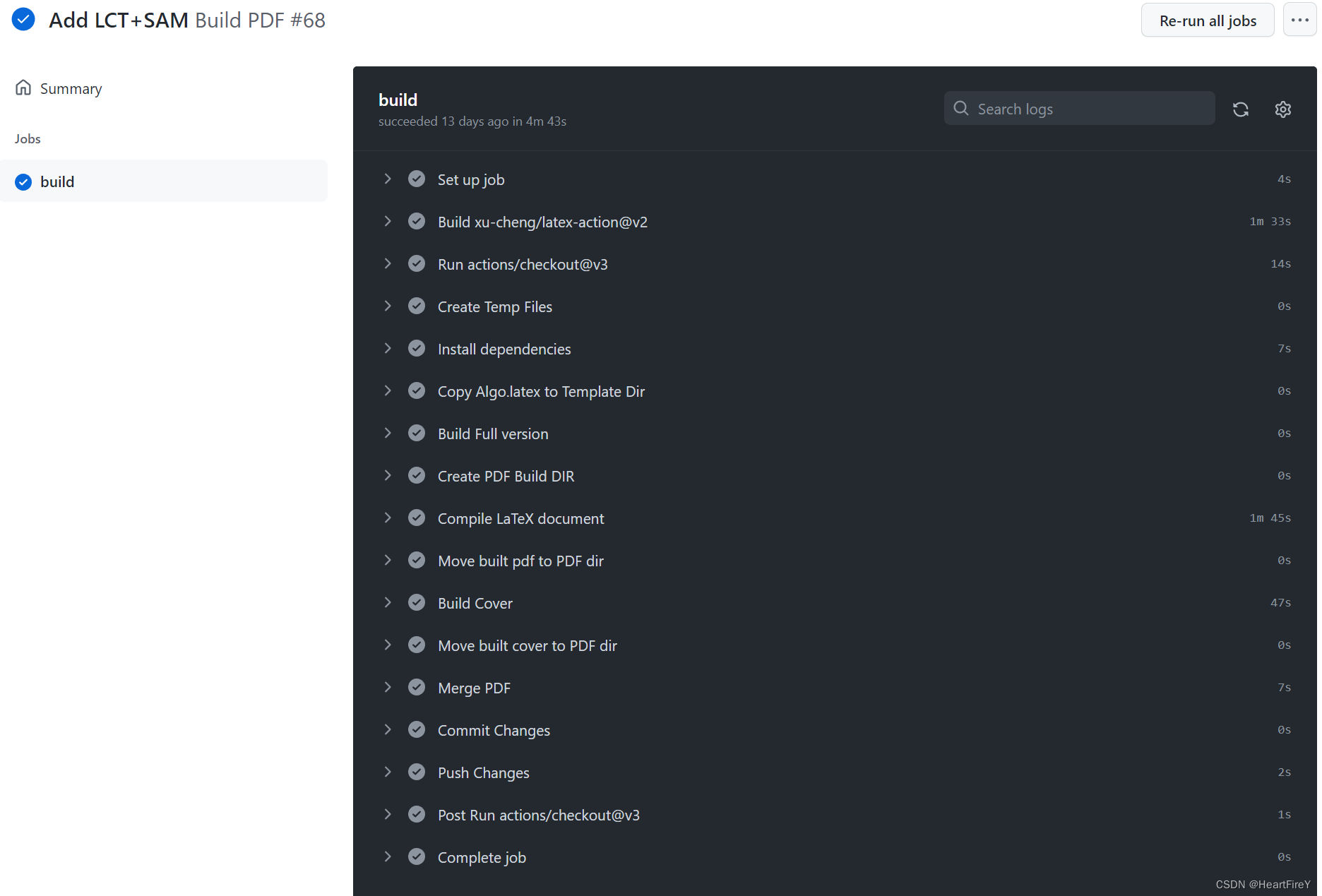

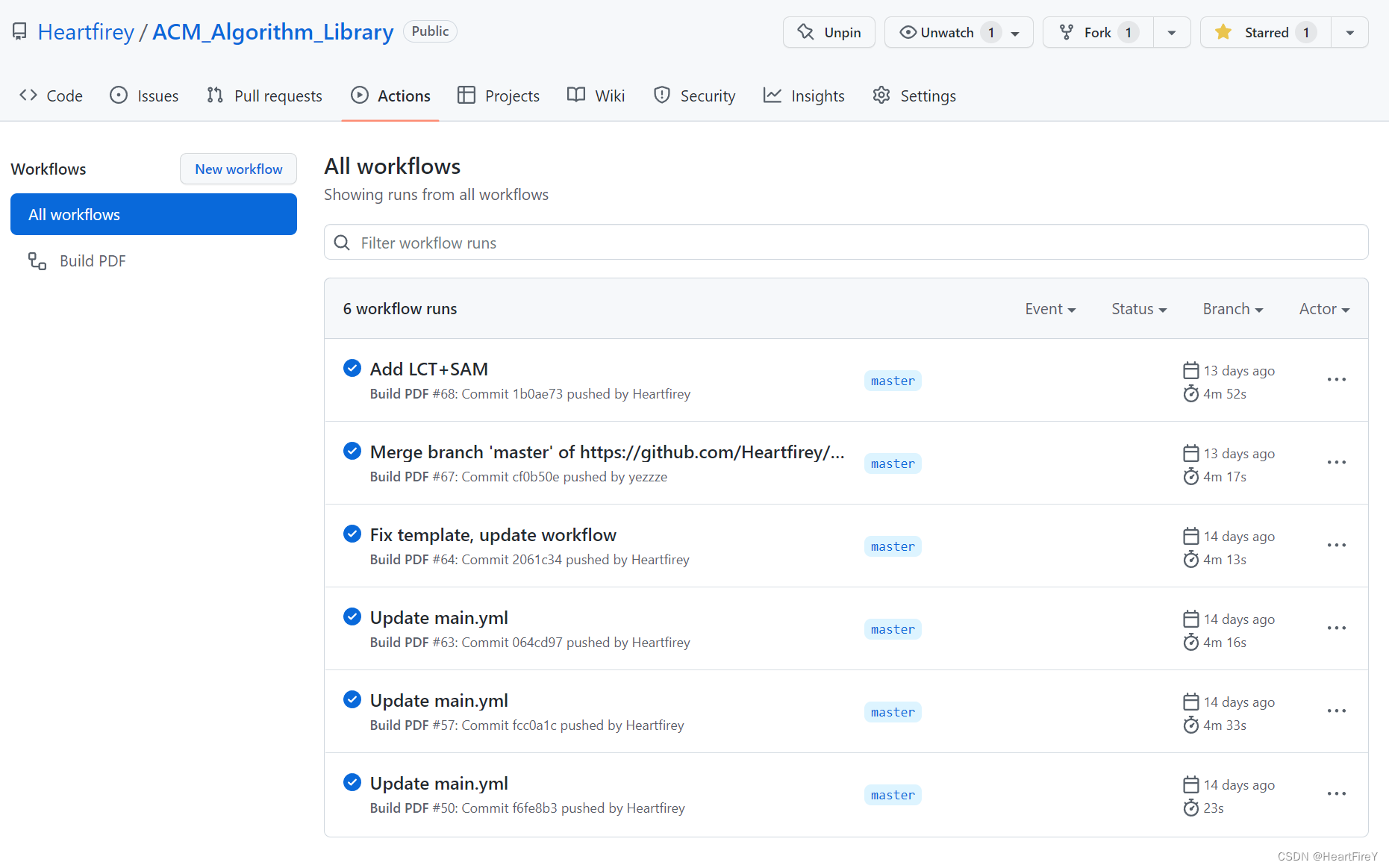

效果展示：每次提交后自动执行生成 在这里插入图片描述 在这里插入图片描述

1.创建Github Actions

首先创建一个Github Actions的YML文件(可以通过Github模板生成)，然后可以看到以下内容：

# This is a basic workflow to help you get started with Actions name: Build PDF # Controls when the workflow will run on: # Triggers the workflow on push or pull request events but only for the "master" branch push: branches: [ "master" ] tags: - 'v*' pull_request: branches: [ "master" ] # Allows you to run this workflow manually from the Actions tab workflow_dispatch: # A workflow run is made up of one or more jobs that can run sequentially or in parallel jobs: # This workflow contains a single job called "build" build: # The type of runner that the job will run on runs-on: ubuntu-latest # Steps represent a sequence of tasks that will be executed as part of the job steps: # Checks-out your repository under $GITHUB_WORKSPACE, so your job can access it - uses: actions/checkout@v3

其中"name"是整个脚本的名称，"on"是触发条件，"runs-on"是运行系统环境…

具体更多的原理可以参考别的大佬的博客，这里不再赘述。假设读者已经掌握了Github Actions的基本操作。

2.编写Makrdown转Latex的流程 (1).创建临时文件(避免污染工作区)
# Runs a single command using the runners shell - name: Create Temp Files run: | echo JXNU Asscoiation of Computer Science
          pwd
          mkdir $HOME/build/
          mkdir $HOME/build/1/
          mkdir $HOME/build/2/
          mkdir $HOME/build/3/
          mkdir $HOME/build/4/
          mkdir $HOME/build/5/
          cp 1-数学.md $HOME/build/1/
          cp 2-数据结构.md $HOME/build/2/
          cp 3-字符串.md $HOME/build/3/
          cp 4-计算几何.md $HOME/build/4/
          cp 5-图论.md $HOME/build/5/
          mkdir -p $HOME/build/1/pandoc/
          mkdir -p $HOME/build/2/pandoc/
          mkdir -p $HOME/build/3/pandoc/
          mkdir -p $HOME/build/4/pandoc/
          mkdir -p $HOME/build/5/pandoc/
          cp ./pandoc/gen.sh -p $HOME/build/1/pandoc/
          cp ./pandoc/gen.sh -p $HOME/build/2/pandoc/
          cp ./pandoc/gen.sh -p $HOME/build/3/pandoc/
          cp ./pandoc/gen.sh -p $HOME/build/4/pandoc/
          cp ./pandoc/gen.sh -p $HOME/build/5/pandoc/
          cp ./pandoc/minted.py -p $HOME/build/1/pandoc/
          cp ./pandoc/minted.py -p $HOME/build/2/pandoc/
          cp ./pandoc/minted.py -p $HOME/build/3/pandoc/
          cp ./pandoc/minted.py -p $HOME/build/4/pandoc/
          cp ./pandoc/minted.py -p $HOME/build/5/pandoc/
(2).Pandoc 安装

我们将主要使用Pandoc进行Markdown转Latex的操作，因此需要安装Pandoc及一些附加的Python包：

- name: Install dependencies run: | wget https://github.com/jgm/pandoc/releases/download/2.10.1/pandoc-2.10.1-1-amd64.deb
          sudo dpkg -i pandoc-2.10.1-1-amd64.deb
          pandoc --version
          pip install pandocfilters
(3).编译生成Tex文档

首先将需要使用的模板拷贝到Pandoc的Template目录，然后调用Pandoc生成Tex文档。

- name: Copy Algo.latex to Template Dir run: | mkdir -p /home/runner/.pandoc/date/templates/
          mkdir -p /home/runner/.pandoc/templates/
          cp ./pandoc/algo.latex /home/runner/.pandoc/date/templates/
          cp ./pandoc/algo.latex /home/runner/.pandoc/templates/ - name: Build Full version run: | mkdir -p $HOME/work/ACM_Algorithm_Library/ACM_Algorithm_Library/TexDocument/
          cd $HOME/build/1/
          mkdir complie
          pandoc --template algo --filter ./pandoc/minted.py --pdf-engine=xelatex --no-highlight --pdf-engine-opt="-shell-escape" -o template.tex --from markdown -V mainfont="Source Han Serif CN" -V monofont="Source Code Pro" -V sansfont="Source Han Sans CN" -V CJKmainfont="Source Han Serif CN" -V secnumdepth=2 -V --number-sections --toc -V include-before="\renewcommand\labelitemi{$\bullet$}" -V header-includes="\usepackage{minted}" -V geometry="margin=2cm" *-*.md
          pwd
          cd $HOME/build/2/
          mkdir complie
          pandoc --template algo --filter ./pandoc/minted.py --pdf-engine=xelatex --no-highlight --pdf-engine-opt="-shell-escape" -o template.tex --from markdown -V mainfont="Source Han Serif CN" -V monofont="Source Code Pro" -V sansfont="Source Han Sans CN" -V CJKmainfont="Source Han Serif CN" -V secnumdepth=2 -V --number-sections --toc -V include-before="\renewcommand\labelitemi{$\bullet$}" -V header-includes="\usepackage{minted}" -V geometry="margin=2cm" *-*.md
          pwd
          cd $HOME/build/3/
          mkdir complie
          pandoc --template algo --filter ./pandoc/minted.py --pdf-engine=xelatex --no-highlight --pdf-engine-opt="-shell-escape" -o template.tex --from markdown -V mainfont="Source Han Serif CN" -V monofont="Source Code Pro" -V sansfont="Source Han Sans CN" -V CJKmainfont="Source Han Serif CN" -V secnumdepth=2 -V --number-sections --toc -V include-before="\renewcommand\labelitemi{$\bullet$}" -V header-includes="\usepackage{minted}" -V geometry="margin=2cm" *-*.md
          pwd
          cd $HOME/build/4/
          mkdir complie
          pandoc --template algo --filter ./pandoc/minted.py --pdf-engine=xelatex --no-highlight --pdf-engine-opt="-shell-escape" -o template.tex --from markdown -V mainfont="Source Han Serif CN" -V monofont="Source Code Pro" -V sansfont="Source Han Sans CN" -V CJKmainfont="Source Han Serif CN" -V secnumdepth=2 -V --number-sections --toc -V include-before="\renewcommand\labelitemi{$\bullet$}" -V header-includes="\usepackage{minted}" -V geometry="margin=2cm" *-*.md
          pwd
          cd $HOME/build/5/
          mkdir complie
          pandoc --template algo --filter ./pandoc/minted.py --pdf-engine=xelatex --no-highlight --pdf-engine-opt="-shell-escape" -o template.tex --from markdown -V mainfont="Source Han Serif CN" -V monofont="Source Code Pro" -V sansfont="Source Han Sans CN" -V CJKmainfont="Source Han Serif CN" -V secnumdepth=2 -V --number-sections --toc -V include-before="\renewcommand\labelitemi{$\bullet$}" -V header-includes="\usepackage{minted}" -V geometry="margin=2cm" *-*.md
          pwd
          cp $HOME/build/1/template.tex $HOME/work/ACM_Algorithm_Library/ACM_Algorithm_Library/TexDocument/part1.tex
          cp $HOME/build/2/template.tex $HOME/work/ACM_Algorithm_Library/ACM_Algorithm_Library/TexDocument/part2.tex
          cp $HOME/build/3/template.tex $HOME/work/ACM_Algorithm_Library/ACM_Algorithm_Library/TexDocument/part3.tex
          cp $HOME/build/4/template.tex $HOME/work/ACM_Algorithm_Library/ACM_Algorithm_Library/TexDocument/part4.tex
          cp $HOME/build/5/template.tex $HOME/work/ACM_Algorithm_Library/ACM_Algorithm_Library/TexDocument/part5.tex
          cd $HOME/
          ls
3.编译生成PDF

编译生成PDF需要Latex的支持，这里利用latex-action的支持实现：

特别注意，由于使用了一些自己的字体，所以需要指定extra_fonts参数。

- name: Create PDF Build DIR run: mkdir -p $HOME/work/ACM_Algorithm_Library/ACM_Algorithm_Library/PDFDocument/ - name: Compile LaTeX document uses: xu-cheng/latex-action@v2 with: root_file: | ./TexDocument/part1.tex
            ./TexDocument/part2.tex
            ./TexDocument/part3.tex
            ./TexDocument/part4.tex
            ./TexDocument/part5.tex latexmk_use_xelatex: true latexmk_shell_escape: true extra_fonts: ./pandoc/font/*.otf - name: Move built pdf to PDF dir run: | rm ./PDFDocument/*
          mv part1.pdf ./PDFDocument/part1.pdf
          mv part2.pdf ./PDFDocument/part2.pdf
          mv part3.pdf ./PDFDocument/part3.pdf
          mv part4.pdf ./PDFDocument/part4.pdf
          mv part5.pdf ./PDFDocument/part5.pdf
          cp ./TexDocument/Cover/ICPC.png ./ - name: Build Cover uses: xu-cheng/latex-action@v2 with: root_file: | ./TexDocument/Cover/cover1.tex
            ./TexDocument/Cover/cover2.tex
            ./TexDocument/Cover/cover3.tex
            ./TexDocument/Cover/cover4.tex
            ./TexDocument/Cover/cover5.tex latexmk_use_xelatex: true latexmk_shell_escape: true extra_fonts: ./pandoc/font/*.otf - name: Move built cover to PDF dir run: | mv cover1.pdf ./PDFDocument/
          mv cover2.pdf ./PDFDocument/
          mv cover3.pdf ./PDFDocument/
          mv cover4.pdf ./PDFDocument/
          mv cover5.pdf ./PDFDocument/
4.合并PDF与封面

这个操作基于poppler-utils实现，因此也需要先安装后使用。

- name: Merge PDF run: | sudo apt-get install poppler-utils
          cd ./PDFDocument/
          sudo pdfunite cover1.pdf part1.pdf part1-Math.pdf
          sudo pdfunite cover2.pdf part2.pdf part2-DataStructure.pdf
          sudo pdfunite cover3.pdf part3.pdf part3-String.pdf
          sudo pdfunite cover4.pdf part4.pdf part4-Geometry.pdf
          sudo pdfunite cover5.pdf part5.pdf part5-GraphTheory.pdf
          rm cover1.pdf part1.pdf
          rm cover2.pdf part2.pdf
          rm cover3.pdf part3.pdf
          rm cover4.pdf part4.pdf
          rm cover5.pdf part5.pdf
          cd $HOME
5.提交生成的PDF到仓库
- name: Commit Changes run: | git config --global user.email "***"
          git config --global user.name "***"
          git add $HOME/work/ACM_Algorithm_Library/ACM_Algorithm_Library/TexDocument/*.tex
          git add $HOME/work/ACM_Algorithm_Library/ACM_Algorithm_Library/PDFDocument/*.pdf
          git commit -m "Generated Automatically by Workflow." -a
          git config --global --add safe.directory '*' - name: Push Changes uses: ad-m/github-push-action@master with: branch: master force: false github_token: ${{ secrets.GITHUB_TOKEN }}
