1. 术语
- lamport：1 lamport = 1 0 − 9 10^{-9} 10−9 SOL
- shred：A fraction of a block; the smallest unit sent between validators。为block的一部分，validators之间传输的最小单元。
- ledger entry：账本上的entry要么为tick要么为transactions entry。其中tick用于：estimates wallclock duration；而transactions entry 是指：A set of transactions that may be executed in parallel。
- slot：The period of time for which each leader ingests transactions and produces a block.【A leader produces at most one block per slot. 即每个slot最多只有一个区块。Solana中，设置1个slot对应64个ticks。】 Collectively, slots create a logical clock. Slots are ordered sequentially and non-overlapping, comprising roughly equal real-world time as per PoH. ··· /// Slot is a unit of time given to a leader for encoding, /// is some some number of Ticks long. pub type Slot = u64; ···
- skipped slot：A past slot that did not produce a block, because the leader was offline or the fork containing the slot was abandoned for a better alternative by cluster consensus. A skipped slot will not appear as an ancestor for blocks at subsequent slots, nor increment the block height, nor expire the oldest recent_blockhash. Whether a slot has been skipped can only be determined when it becomes older than the latest rooted (thus not-skipped) slot.
- transaction：One or more instructions signed by the client using one or more keypairs and executed atomically with only two possible outcomes: success or failure. Solana的交易中会封装recent_hash，可通过
getRecentBlockhashrpc 接口获得：
$ curl https://api.testnet.solana.com -X POST -H "Content-Type: application/json" -d '
{"jsonrpc":"2.0","id":1, "method":"getRecentBlockhash"}
'
{"jsonrpc":"2.0","result":{"context":{"slot":91170278},"value":{"blockhash":"78WXFoVnDdBcqFVQp3peAKzma3igxBXhpat1CGpRUPX4","feeCalculator":{"lamportsPerSignature":5000}}},"id":1}
- transaction id：The first signature in a transaction, which can be used to uniquely identify the transaction across the complete ledger.
- transaction confirmations：The number of confirmed blocks since the transaction was accepted onto the ledger. A transaction is finalized when its block becomes a root.
- transactions entry：A set of transactions that may be executed in parallel.
- epoch：目前Solana一个epoch对应43.2万个slot。【若一个slot对应400ms，则一个epoch对应48小时。】
- blockhash：A preimage resistant hash of the ledger at a given block height. Taken from the last entry id in the slot。Slot中的最后一个entry id作为block hash。即：【粒度为：一个slot内若没有交易，则对应为64个tick；若有交易，一个slot对应有多个entry，每个entry对应多笔交易，每个entry会切分为多个shreds便于传输，会对每个shred进行签名
sign_shred()。】
let new_extra_entry = Entry::new(&prev_entry_hash, 1, vec![extra_tx]);
// 实际即为 `hashv(prev_entry_hash, hash_transactions(transactions))`
/// Tell the bank which Entry IDs exist on the ledger. This function
/// assumes subsequent calls correspond to later entries, and will boot
/// the oldest ones once its internal cache is full. Once boot, the
/// bank will reject transactions using that `hash`.
pub fn register_tick(&self, hash: &Hash) {
assert!(
!self.freeze_started(),
"register_tick() working on a bank that is already frozen or is undergoing freezing!"
);
inc_new_counter_debug!("bank-register_tick-registered", 1);
let mut w_blockhash_queue = self.blockhash_queue.write().unwrap();
if self.is_block_boundary(self.tick_height.load(Relaxed) + 1) {
w_blockhash_queue.register_hash(hash, &self.fee_calculator);
self.update_recent_blockhashes_locked(&w_blockhash_queue);
}
// ReplayStage will start computing the accounts delta hash when it
// detects the tick height has reached the boundary, so the system
// needs to guarantee all account updates for the slot have been
// committed before this tick height is incremented (like the blockhash
// sysvar above)
self.tick_height.fetch_add(1, Relaxed);
}
pub fn is_complete(&self) -> bool {
self.tick_height() == self.max_tick_height()
}
pub fn is_block_boundary(&self, tick_height: u64) -> bool {
tick_height % self.ticks_per_slot == 0
}

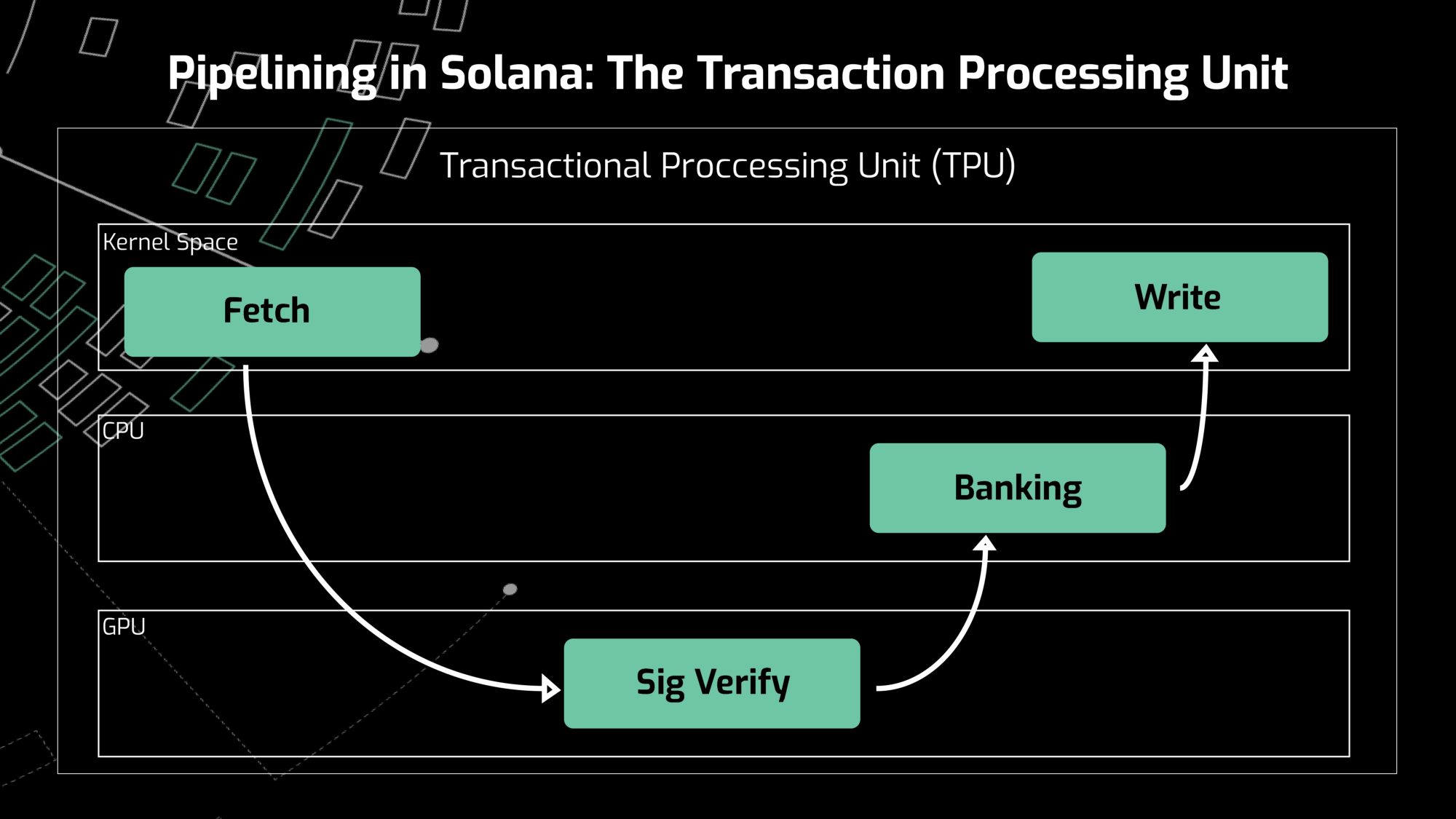

Validator节点可同时运行2个pipelined processes，TPU对应为leader mode，TVU对应为validator mode。在TPU和TVU这2种情况下，硬件的pipeline顺序是一样的：the network input -> the GPU cards -> the CPU cores -> writes to disk -> the network output。但是，TPU主要用来创建ledger entries，而TVU用于validate ledger entries。 根据validator/src/main.rs 和 core/src/validator.rs：启动Validator时，会同时配置TPU和TVU资源。
-
Fetch stage：将( Result { // check against the total package cost if self.block_cost + cost > self.block_cost_limit { return Err(CostModelError::WouldExceedBlockMaxLimit); } // check if the transaction itself is more costly than the account_cost_limit if *cost > self.account_cost_limit { return Err(CostModelError::WouldExceedAccountMaxLimit); } // check each account against account_cost_limit, for account_key in keys.iter() { match self.cost_by_writable_accounts.get(account_key) { Some(chained_cost) => { if chained_cost + cost > self.account_cost_limit { return Err(CostModelError::WouldExceedAccountMaxLimit); } else { continue; } } None => continue, } } Ok(()) } // Guestimated from mainnet-beta data, sigver averages 1us, average read 7us and average write 25us const SIGVER_COST: u64 = 1; const NON_SIGNED_READONLY_ACCOUNT_ACCESS_COST: u64 = 7; const NON_SIGNED_WRITABLE_ACCOUNT_ACCESS_COST: u64 = 25; const SIGNED_READONLY_ACCOUNT_ACCESS_COST: u64 = SIGVER_COST + NON_SIGNED_READONLY_ACCOUNT_ACCESS_COST; const SIGNED_WRITABLE_ACCOUNT_ACCESS_COST: u64 = SIGVER_COST + NON_SIGNED_WRITABLE_ACCOUNT_ACCESS_COST;
pub struct SlotVoteTracker { // Maps pubkeys that have voted for this slot // to whether or not we've seen the vote on gossip. // True if seen on gossip, false if only seen in replay. voted: HashMap, optimistic_votes_tracker: HashMap, voted_slot_updates: Option, gossip_only_stake: u64, }.------------. | Upstream | | Validators | `----+-------` | | .-----------------------------------. | Validator | | | v | | .-----------. .------------. | .--------. | | Fetch | | Repair | | | Client +---->| Stage | | Stage | | `--------` | `---+-------` `----+-------` | | | | | | v v | | .-----------. .------------. | | | TPU || Blockstore | | | | | | | | | `-----------` `----+-------` | | | | | v | | .------------. | | | Multicast | | | | Stage | | | `----+-------` | | | | `-----------------------------------` | v .------------. | Downstream | | Validators | `------------` .------------. | PoH | | Service | `-------+----` ^ | | | .-----------------------------------. | TPU | | | | | v | .-------. | .-----------. .---+--------. | .------------. | Fetch +---->| SigVerify +--->| Banking || Blockstore | | Stage | | | Stage | | Stage | | | | `-------` | `-----------` `-----+------` | `------------` | | | | | | `-----------------------------------` | v .------------. | Banktree | | | `------------`对应的TPU：
3. TVUSelf { fetch_stage, sigverify_stage, banking_stage, cluster_info_vote_listener, broadcast_stage, }为Validator作为validator 角色运行的Transaction Verification Unit（TVU），用于validate ledger entries。
+------------+ | Gossip | | Service | +-------------+ | | |Child | +------------+ +-+-----+----+ |Validators | |Neighborhood| | ^ | | |Validators | | | +-------+-----+ | | | | ^ +---------+--+ Peer| |Votes | ^ List| | +-----------------+ | | | shreds(forward=true)| | | | +-----------------------------------------------------------------------------------------+ | | | | | | | TVU | | +--------+ | | | | | v | | +------------+ | +-------+ +------------+ +-+--+---+---+ +---+--------------+ +---------+ | | | Repair | | | | | | Retransmit | | Replay | | Storage | | | Upstream +------------->+ +->+ Shred +--->+ Stage +----->+ Stage +----->+ Stage | | | Validators | TVU | | Shred | | Verify | | | | +--------------+ | | | | | +------------->+ Fetch | | Leader Sig | +------+-----+ | | PoH Verify | | +---------+ | | | | | Stage | | Stage | ^ | | TX Sig Verify| | | | +------------->+ | | | | | | | | | | | TVU | | | +--+---------+ | | +-+------------+ | | +------------+ Forwards| +-------+ ^ | | | | | | | | +------------------+ | | | | | | | | | | | | | | | | +-----------------------------------------------------------------------------------------+ | | | | |Validator v | |Stakes +---+-----+ | +------------+ | +----------------------------------+ Bank | Leader | | Schedule +---------+批量验签过程中做了判断，若有GPU则走GPU验签，否则走CPU验签：
4. 交易处理pub fn verify_shreds_gpu( batches: &[Packets], slot_leaders: &HashMap, recycler_cache: &RecyclerCache, ) -> Vec { let api = perf_libs::api(); if api.is_none() { return verify_shreds_cpu(batches, slot_leaders); } let api = api.unwrap(); let mut elems = Vec::new(); let mut rvs = Vec::new(); let count = batch_size(batches); let (pubkeys, pubkey_offsets, mut num_packets) = slot_key_data_for_gpu(0, batches, slot_leaders, recycler_cache); //HACK: Pubkeys vector is passed along as a `Packets` buffer to the GPU //TODO: GPU needs a more opaque interface, which can handle variable sized structures for data let pubkeys_len = num_packets * size_of::(); trace!("num_packets: {}", num_packets); trace!("pubkeys_len: {}", pubkeys_len); let (signature_offsets, msg_start_offsets, msg_sizes, v_sig_lens) = shred_gpu_offsets(pubkeys_len, batches, recycler_cache); let mut out = recycler_cache.buffer().allocate("out_buffer"); out.set_pinnable(); elems.push(perf_libs::Elems { #[allow(clippy::cast_ptr_alignment)] elems: pubkeys.as_ptr() as *const solana_sdk::packet::Packet, num: num_packets as u32, }); for p in batches { elems.push(perf_libs::Elems { elems: p.packets.as_ptr(), num: p.packets.len() as u32, }); let mut v = Vec::new(); v.resize(p.packets.len(), 0); rvs.push(v); num_packets += p.packets.len(); } out.resize(signature_offsets.len(), 0); trace!("Starting verify num packets: {}", num_packets); trace!("elem len: {}", elems.len() as u32); trace!("packet sizeof: {}", size_of::() as u32); const USE_NON_DEFAULT_STREAM: u8 = 1; unsafe { let res = (api.ed25519_verify_many)( elems.as_ptr(), elems.len() as u32, size_of::() as u32, num_packets as u32, signature_offsets.len() as u32, msg_sizes.as_ptr(), pubkey_offsets.as_ptr(), signature_offsets.as_ptr(), msg_start_offsets.as_ptr(), out.as_mut_ptr(), USE_NON_DEFAULT_STREAM, ); if res != 0 { trace!("RETURN!!!: {}", res); } } trace!("done verify"); trace!("out buf {:?}", out); sigverify::copy_return_values(&v_sig_lens, &out, &mut rvs); inc_new_counter_debug!("ed25519_shred_verify_gpu", count); rvs }交易由一系列签名和消息组成：
4.1 锁定交易相关账号/// An atomic transaction #[frozen_abi(digest = "AAeVxvWiiotwxDLxKLxsfgkA6ndW74nVbaAEb6cwJYqR")] #[derive(Debug, PartialEq, Default, Eq, Clone, Serialize, Deserialize, AbiExample)] pub struct Transaction { /// A set of digital signatures of `account_keys`, `program_ids`, `recent_blockhash`, and `instructions`, signed by the first /// signatures.len() keys of account_keys /// NOTE: Serialization-related changes must be paired with the direct read at sigverify. #[serde(with = "short_vec")] pub signatures: Vec, /// The message to sign. pub message: Message, }借助MutexGuard，锁定交易相关账号，防止多线程同时对同一账号状态进行修改：
4.2 标记交易有效性// Once accounts are locked, other threads cannot encode transactions that will modify the // same account state let batch = bank.prepare_sanitized_batch(txs); /// This function will prevent multiple threads from modifying the same account state at the /// same time #[must_use] #[allow(clippy::needless_collect)] pub fn lock_accounts(&self, txs: impl Iterator) -> Vec { let keys: Vec = txs .map(|tx| tx.message().get_account_keys_by_lock_type()) .collect(); let mut account_locks = &mut self.account_locks.lock().unwrap(); keys.into_iter() .map(|(writable_keys, readonly_keys)| { self.lock_account(&mut account_locks, writable_keys, readonly_keys) }) .collect() } /// Once accounts are unlocked, new transactions that modify that state can enter the pipeline #[allow(clippy::needless_collect)] pub fn unlock_accounts( &self, txs: impl Iterator, results: &[Result], ) pub fn prepare_sanitized_batch( &'a self, sanitized_txs: &'b [SanitizedTransaction], ) -> TransactionBatch { let lock_results = self .rc .accounts .lock_accounts(sanitized_txs.as_transactions_iter()); TransactionBatch::new(lock_results, self, Cow::Borrowed(sanitized_txs)) }vec![1u8, 0u8, 1u8]可有效标记交易的有效性，具体体现在discard字段，无效的交易标记为1。pub fn convert_from_old_verified(mut with_vers: Vec) -> Vec { with_vers.iter_mut().for_each(|(b, v)| { b.packets .iter_mut() .zip(v) .for_each(|(p, f)| p.meta.discard = *f == 0) }); with_vers.into_iter().map(|(b, _)| b).collect() } fn test_banking_stage_entries_only() { ........ // fund another account so we can send 2 good transactions in a single batch. let keypair = Keypair::new(); let fund_tx = system_transaction::transfer(&mint_keypair, &keypair.pubkey(), 2, start_hash); bank.process_transaction(&fund_tx).unwrap(); // good tx let to = solana_sdk::pubkey::new_rand(); let tx = system_transaction::transfer(&mint_keypair, &to, 1, start_hash); // good tx, but no verify let to2 = solana_sdk::pubkey::new_rand(); let tx_no_ver = system_transaction::transfer(&keypair, &to2, 2, start_hash); // bad tx, AccountNotFound let keypair = Keypair::new(); let to3 = solana_sdk::pubkey::new_rand(); let tx_anf = system_transaction::transfer(&keypair, &to3, 1, start_hash); // send 'em over let packets = to_packets_chunked(&[tx_no_ver, tx_anf, tx], 3); // glad they all fit assert_eq!(packets.len(), 1); let packets = packets .into_iter() .map(|packets| (packets, vec![1u8, 0u8, 1u8])) .collect(); ........ assert_eq!(bank.get_balance(&to), 1); assert_eq!(bank.get_balance(&to2), 2); drop(entry_receiver); } Blockstore::destroy(&ledger_path).unwrap(); }sdk/src/transaction.rs中定义了交易错误类型有：pub enum TransactionError { /// An account is already being processed in another transaction in a way /// that does not support parallelism #[error("Account in use")] AccountInUse, /// A `Pubkey` appears twice in the transaction's `account_keys`. Instructions can reference /// `Pubkey`s more than once but the message must contain a list with no duplicate keys #[error("Account loaded twice")] AccountLoadedTwice, /// Attempt to debit an account but found no record of a prior credit. #[error("Attempt to debit an account but found no record of a prior credit.")] AccountNotFound, /// Attempt to load a program that does not exist #[error("Attempt to load a program that does not exist")] ProgramAccountNotFound, /// The from `Pubkey` does not have sufficient balance to pay the fee to schedule the transaction #[error("Insufficient funds for fee")] InsufficientFundsForFee, /// This account may not be used to pay transaction fees #[error("This account may not be used to pay transaction fees")] InvalidAccountForFee, /// The bank has seen this transaction before. This can occur under normal operation /// when a UDP packet is duplicated, as a user error from a client not updating /// its `recent_blockhash`, or as a double-spend attack. #[error("This transaction has already been processed")] AlreadyProcessed, /// The bank has not seen the given `recent_blockhash` or the transaction is too old and /// the `recent_blockhash` has been discarded. #[error("Blockhash not found")] BlockhashNotFound, /// An error occurred while processing an instruction. The first element of the tuple /// indicates the instruction index in which the error occurred. #[error("Error processing Instruction {0}: {1}")] InstructionError(u8, InstructionError), /// Loader call chain is too deep #[error("Loader call chain is too deep")] CallChainTooDeep, /// Transaction requires a fee but has no signature present #[error("Transaction requires a fee but has no signature present")] MissingSignatureForFee, /// Transaction contains an invalid account reference #[error("Transaction contains an invalid account reference")] InvalidAccountIndex, /// Transaction did not pass signature verification #[error("Transaction did not pass signature verification")] SignatureFailure, /// This program may not be used for executing instructions #[error("This program may not be used for executing instructions")] InvalidProgramForExecution, /// Transaction failed to sanitize accounts offsets correctly /// implies that account locks are not taken for this TX, and should /// not be unlocked. #[error("Transaction failed to sanitize accounts offsets correctly")] SanitizeFailure, #[error("Transactions are currently disabled due to cluster maintenance")] ClusterMaintenance, /// Transaction processing left an account with an outstanding borrowed reference #[error("Transaction processing left an account with an outstanding borrowed reference")] AccountBorrowOutstanding, }sdk/src/banking.rs中load_and_execute_transactions()函数会对净化交易进一步处理，在banking_stage中会调用该函数。transactions_from_packets()中借助verify_precompiles()对交易进行净化，排除AccountNotFound和InvalidAccountIndex的错误交易。process_loop()-> 【process_buffered_packets()->consume_buffered_packets()和process_packets()->process_packets_transactions()】 ->process_transactions()->process_and_record_transactions()->process_and_record_transactions_locked()->load_and_execute_transactions()/// This function will prevent multiple threads from modifying the same account state at the /// same time #[must_use] #[allow(clippy::needless_collect)] pub fn lock_accounts(&self, txs: impl Iterator) -> Vec { let keys: Vec = txs .map(|tx| tx.message().get_account_keys_by_lock_type()) .collect(); let mut account_locks = &mut self.account_locks.lock().unwrap(); keys.into_iter() .map(|(writable_keys, readonly_keys)| { self.lock_account(&mut account_locks, writable_keys, readonly_keys) }) .collect() } pub fn prepare_sanitized_batch( &'a self, sanitized_txs: &'b [SanitizedTransaction], ) -> TransactionBatch { let lock_results = self .rc .accounts .lock_accounts(sanitized_txs.as_transactions_iter()); TransactionBatch::new(lock_results, self, Cow::Borrowed(sanitized_txs)) }
5. PoHpub fn load_and_execute_transactions( &self, batch: &TransactionBatch, max_age: usize, enable_cpi_recording: bool, enable_log_recording: bool, timings: &mut ExecuteTimings, ) -> ( Vec, Vec, Vec, Vec, Vec, u64, u64, ) { let sanitized_txs = batch.sanitized_transactions(); debug!("processing transactions: {}", sanitized_txs.len()); inc_new_counter_info!("bank-process_transactions", sanitized_txs.len()); let mut error_counters = ErrorCounters::default(); let retryable_txs: Vec = batch .lock_results() .iter() .enumerate() .filter_map(|(index, res)| match res { Err(TransactionError::AccountInUse) => { error_counters.account_in_use += 1; Some(index) } Err(_) => None, Ok(_) => None, }) .collect(); let mut check_time = Measure::start("check_transactions"); let check_results = self.check_transactions( sanitized_txs, batch.lock_results(), max_age, &mut error_counters, ); check_time.stop(); let mut load_time = Measure::start("accounts_load"); let mut loaded_txs = self.rc.accounts.load_accounts( &self.ancestors, sanitized_txs.as_transactions_iter(), check_results, &self.blockhash_queue.read().unwrap(), &mut error_counters, &self.rent_collector, &self.feature_set, ); load_time.stop(); let mut execution_time = Measure::start("execution_time"); let mut signature_count: u64 = 0; let mut inner_instructions: Vec = Vec::with_capacity(sanitized_txs.len()); let mut transaction_log_messages: Vec = Vec::with_capacity(sanitized_txs.len()); let executed: Vec = loaded_txs .iter_mut() .zip(sanitized_txs.as_transactions_iter()) .map(|(accs, tx)| match accs { (Err(e), _nonce_rollback) => { transaction_log_messages.push(None); inner_instructions.push(None); (Err(e.clone()), None) } (Ok(loaded_transaction), nonce_rollback) => { let feature_set = self.feature_set.clone(); signature_count += u64::from(tx.message().header.num_required_signatures); let mut compute_budget = self.compute_budget.unwrap_or_else(ComputeBudget::new); let mut process_result = if feature_set.is_active(&tx_wide_compute_cap::id()) { compute_budget.process_transaction(tx) } else { Ok(()) }; if process_result.is_ok() { let executors = self.get_executors(&tx.message, &loaded_transaction.loaders); let (account_refcells, loader_refcells) = Self::accounts_to_refcells( &mut loaded_transaction.accounts, &mut loaded_transaction.loaders, ); let instruction_recorders = if enable_cpi_recording { let ix_count = tx.message.instructions.len(); let mut recorders = Vec::with_capacity(ix_count); recorders.resize_with(ix_count, InstructionRecorder::default); Some(recorders) } else { None }; let log_collector = if enable_log_recording { Some(Rc::new(LogCollector::default())) } else { None }; let compute_meter = Rc::new(RefCell::new(TransactionComputeMeter::new( compute_budget.max_units, ))); process_result = self.message_processor.process_message( tx.message(), &loader_refcells, &account_refcells, &self.rent_collector, log_collector.clone(), executors.clone(), instruction_recorders.as_deref(), feature_set, compute_budget, compute_meter, &mut timings.details, self.rc.accounts.clone(), &self.ancestors, ); transaction_log_messages.push(Self::collect_log_messages(log_collector)); inner_instructions.push(Self::compile_recorded_instructions( instruction_recorders, &tx.message, )); if let Err(e) = Self::refcells_to_accounts( &mut loaded_transaction.accounts, &mut loaded_transaction.loaders, account_refcells, loader_refcells, ) { warn!("Account lifetime mismanagement"); process_result = Err(e); } if process_result.is_ok() { self.update_executors(executors); } } else { transaction_log_messages.push(None); inner_instructions.push(None); } let nonce_rollback = if let Err(TransactionError::InstructionError(_, _)) = &process_result { error_counters.instruction_error += 1; nonce_rollback.clone() } else if process_result.is_err() { None } else { nonce_rollback.clone() }; (process_result, nonce_rollback) } }) .collect(); execution_time.stop(); debug!( "check: {}us load: {}us execute: {}us txs_len={}", check_time.as_us(), load_time.as_us(), execution_time.as_us(), sanitized_txs.len(), ); timings.check_us = timings.check_us.saturating_add(check_time.as_us()); timings.load_us = timings.load_us.saturating_add(load_time.as_us()); timings.execute_us = timings.execute_us.saturating_add(execution_time.as_us()); let mut tx_count: u64 = 0; let err_count = &mut error_counters.total; let transaction_log_collector_config = self.transaction_log_collector_config.read().unwrap(); for (i, ((r, _nonce_rollback), tx)) in executed.iter().zip(sanitized_txs).enumerate() { if let Some(debug_keys) = &self.transaction_debug_keys { for key in &tx.message.account_keys { if debug_keys.contains(key) { info!("slot: {} result: {:?} tx: {:?}", self.slot, r, tx); break; } } } if Self::can_commit(r) // Skip log collection for unprocessed transactions && transaction_log_collector_config.filter != TransactionLogCollectorFilter::None { let mut transaction_log_collector = self.transaction_log_collector.write().unwrap(); let transaction_log_index = transaction_log_collector.logs.len(); let mut mentioned_address = false; if !transaction_log_collector_config .mentioned_addresses .is_empty() { for key in &tx.message.account_keys { if transaction_log_collector_config .mentioned_addresses .contains(key) { transaction_log_collector .mentioned_address_map .entry(*key) .or_default() .push(transaction_log_index); mentioned_address = true; } } } let is_vote = is_simple_vote_transaction(tx); let store = match transaction_log_collector_config.filter { TransactionLogCollectorFilter::All => !is_vote || mentioned_address, TransactionLogCollectorFilter::AllWithVotes => true, TransactionLogCollectorFilter::None => false, TransactionLogCollectorFilter::OnlyMentionedAddresses => mentioned_address, }; if store { if let Some(log_messages) = transaction_log_messages.get(i).cloned().flatten() { transaction_log_collector.logs.push(TransactionLogInfo { signature: tx.signatures[0], result: r.clone(), is_vote, log_messages, }); } } } if r.is_ok() { tx_count += 1; } else { if *err_count == 0 { debug!("tx error: {:?} {:?}", r, tx); } *err_count += 1; } } if *err_count > 0 { debug!( "{} errors of {} txs", *err_count, *err_count as u64 + tx_count ); } Self::update_error_counters(&error_counters); ( loaded_txs, executed, inner_instructions, transaction_log_messages, retryable_txs, tx_count, signature_count, ) }其中一种PoH为：
pub struct TransactionRecorder { // shared by all users of PohRecorder pub record_sender: CrossbeamSender, pub is_exited: Arc, } // 有： poh: &TransactionRecorder,以及另一种PoH为：
6. concurrent databasepoh: &Arc, pub struct PohRecorder { pub poh: Arc, tick_height: u64, clear_bank_signal: Option, start_slot: Slot, // parent slot start_tick_height: u64, // first tick_height this recorder will observe tick_cache: Vec, // cache of entry and its tick_height working_bank: Option, sender: Sender, leader_first_tick_height: Option, leader_last_tick_height: u64, // zero if none grace_ticks: u64, id: Pubkey, blockstore: Arc, leader_schedule_cache: Arc, poh_config: Arc, ticks_per_slot: u64, target_ns_per_tick: u64, record_lock_contention_us: u64, flush_cache_no_tick_us: u64, flush_cache_tick_us: u64, prepare_send_us: u64, send_us: u64, tick_lock_contention_us: u64, tick_overhead_us: u64, total_sleep_us: u64, record_us: u64, ticks_from_record: u64, last_metric: Instant, record_sender: CrossbeamSender, pub is_exited: Arc, } pub struct Poh { pub hash: Hash, num_hashes: u64, hashes_per_tick: u64, remaining_hashes: u64, ticks_per_slot: u64, tick_number: u64, slot_start_time: Instant, }Cloudbreak：Horizontally-Scaled Accounts Database 对应实现在：
runtime/src/accounts_db.rs：
7. 投票//! Persistent accounts are stored in below path location: //! //data/ //! //! The persistent store would allow for this mode of operation: //! - Concurrent single thread append with many concurrent readers. //! //! The underlying memory is memory mapped to a file. The accounts would be //! stored across multiple files and the mappings of file and offset of a //! particular account would be stored in a shared index. This will allow for //! concurrent commits without blocking reads, which will sequentially write //! to memory, ssd or disk, and should be as fast as the hardware allow for. //! The only required in memory data structure with a write lock is the index, //! which should be fast to update. //! //! AppendVec's only store accounts for single slots. To bootstrap the //! index from a persistent store of AppendVec's, the entries include //! a "write_version". A single global atomic `AccountsDb::write_version` //! tracks the number of commits to the entire data store. So the latest //! commit for each slot entry would be indexed.Solana中的 Native合约 中有：
Vote Program# Create and manage accounts that track validator voting state and rewards. Program id: Vote111111111111111111111111111111111111111 Instructions: VoteInstructionVote Account Management 中描述了Vote账号的相关管理规则。
Secure Vote Signing 中指出： Validator会从当前leader中接收到entries，并提交votes来确认那些entries是valid的。提交vote的过程中存在相关安全风险，因为伪造的投票违背了共识，将会slash掉该Validator的stake。
