微软团队Patrick Longa 2022年论文 《Efficient Algorithms for Large Prime Characteristic Fields and Their Application to Bilinear Pairings and Supersingular Isogeny-Based Protocols》，在该论文中提出了一种通用 interleaved modular multiplication算法，可用于基于large prime field的sum of product计算。该算法重新制定了目前广泛使用的lazy reduction技术，重点规避了the need for storage and computation of “double-precision” operations。此外，它可以很容易地适应现有的计算modular multiplication的不同方法，从而产生效率更高、内存更友好的算法。在该论文中，对computation of multiplication over an extension field F q k \mathbb{F}_{q^k} Fqk进行了性能比对：

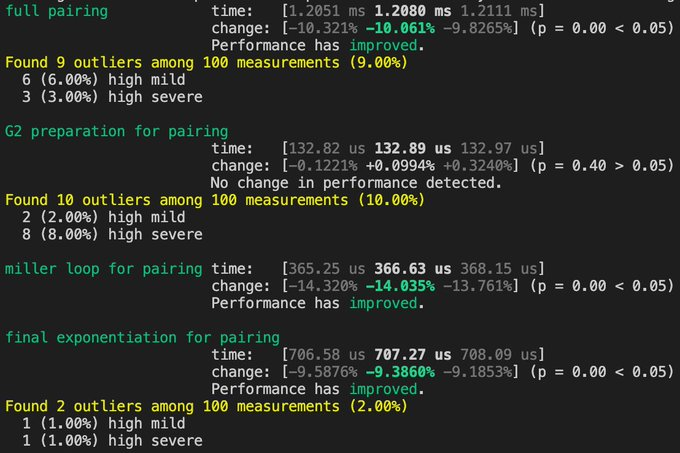

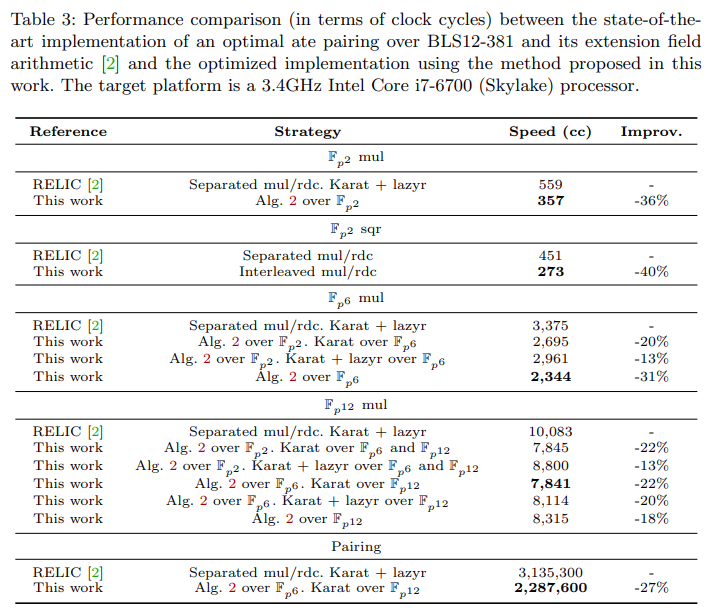

- 1）对于bilinear pairings：在x64 Intel处理器上，基于流行的BLS12-2381曲线的optimal ate pairing计算，速度提升了1.37x。

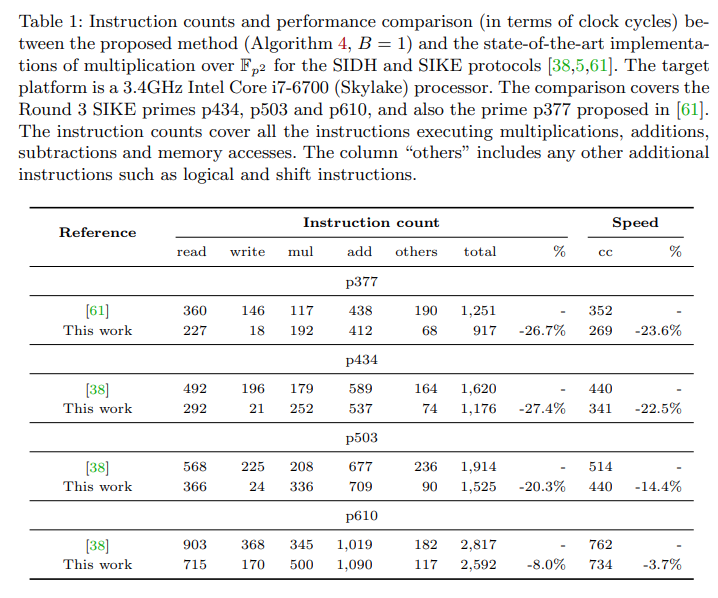

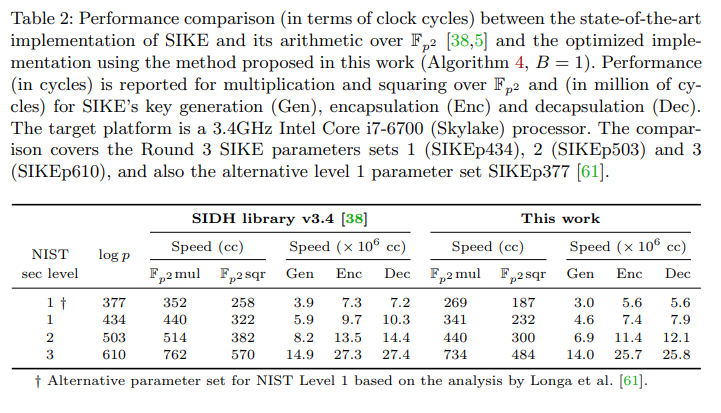

- 2）对于supersingular isogeny-based protocols：在x64 Intel处理器上，基于SIKE protocol的计算，速度提升了1.30x。
相关代码实现见：
- https://github.com/microsoft/PQCrypto-SIDH（C语言）
- https://github.com/zkcrypto/bls12_381/tree/efficient-extension-field-arithmetic（Rust语言）【针对multiplication over
F
p
\mathbb{F}_{p}
Fp、
F
p
2
\mathbb{F}_{p^2}
Fp2、
F
p
6
\mathbb{F}_{p^6}
Fp6】
( a 0 , a 1 , ⋯ , a t − 1 ) , ( b 0 , b 1 , ⋯ , b t − 2 ) (a_0,a_1,\cdots, a_{t-1}),(b_0,b_1,\cdots, b_{t-2}) (a0,a1,⋯,at−1),(b0,b1,⋯,bt−2)这2个集合内所有元素均属于特定域 F p \mathbb{F}_p Fp of large prime characteristic p p p，所谓sum of products是指类似如下的计算： c = ∑ i = 0 t − 1 ± a i ⋅ b i m o d p c=\sum_{i=0}^{t-1}\pm a_i\cdot b_i\mod p c=∑i=0t−1±ai⋅bimodp
该操作是很多密码学计算的核心，最有名的可能就是multiplication over extension fields with large prime characteristic。
同时，若
a
,
b
∈
F
q
k
a,b\in \mathbb{F}_{q^k}
a,b∈Fqk，需计算
a
⋅
b
m
o
d
f
a\cdot b \mod f
a⋅bmodf，其中
f
=
x
k
−
w
f=x^k-w
f=xk−w，其中
w
w
w为a primitive element in
F
p
∗
\mathbb{F}^*_p
Fp∗且
k
∣
(
p
−
1
)
k|(p-1)
k∣(p−1)。则相应的多项式乘积为：

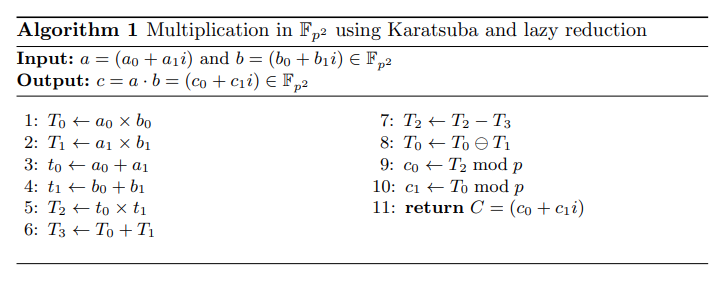

一种广泛的优化实践是使用“accumulation and reduction”策略来优化计算每个
c
j
c_j
cj，该策略也称为lazy reduction——可将modular reduction的数量建委1次（或k次，对于整个多项式乘积来说）。在很多使用场景中，假设
w
w
w具有small coefficients，使得乘积相对便宜。 但是，lazy reduction的主要缺陷在于，需要额外的存储并计算double precision的中间结果。
https://github.com/zkcrypto/bls12_381/tree/efficient-extension-field-arithmetic中针对BL12_381的multiplication over
F
p
\mathbb{F}_p
Fp为：
/// Returns `c = a.zip(b).fold(0, |acc, (a_i, b_i)| acc + a_i * b_i)`.
///

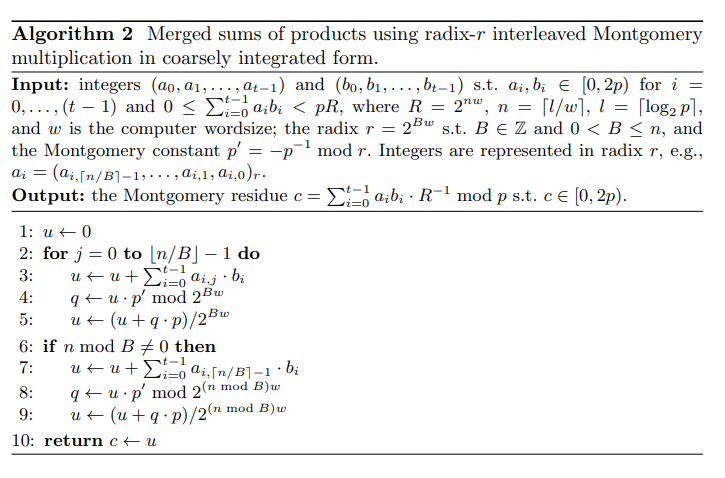

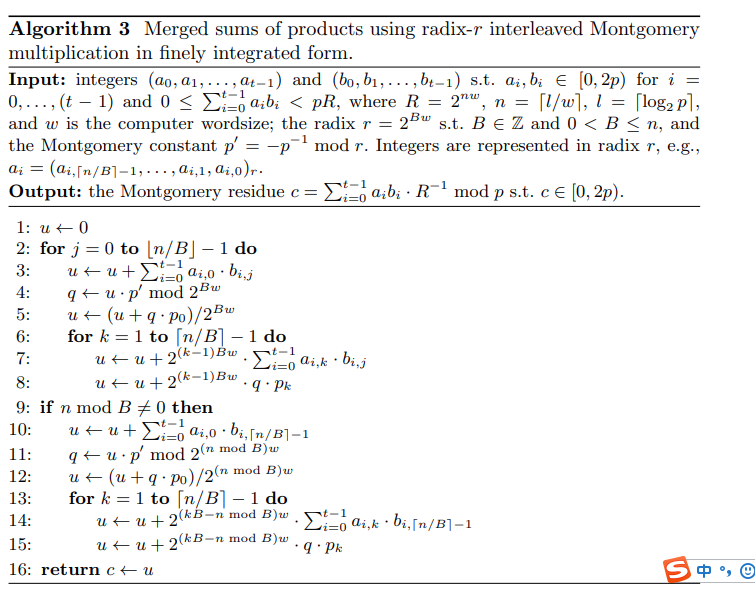

/// Implements Algorithm 2 from Patrick Longa's
/// [ePrint 2022-367](https://eprint.iacr.org/2022/367) §3.
#[inline]
pub(crate) fn sum_of_products(a: [Fp; T], b: [Fp; T]) -> Fp {
// For a single `a x b` multiplication, operand scanning (schoolbook) takes each
// limb of `a` in turn, and multiplies it by all of the limbs of `b` to compute
// the result as a double-width intermediate representation, which is then fully
// reduced at the end. Here however we have pairs of multiplications (a_i, b_i),
// the results of which are summed.
//
// The intuition for this algorithm is two-fold:
// - We can interleave the operand scanning for each pair, by processing the jth
// limb of each `a_i` together. As these have the same offset within the overall
// operand scanning flow, their results can be summed directly.
// - We can interleave the multiplication and reduction steps, resulting in a
// single bitshift by the limb size after each iteration. This means we only
// need to store a single extra limb overall, instead of keeping around all the
// intermediate results and eventually having twice as many limbs.
// Algorithm 2, line 2
let (u0, u1, u2, u3, u4, u5) =
(0..6).fold((0, 0, 0, 0, 0, 0), |(u0, u1, u2, u3, u4, u5), j| {
// Algorithm 2, line 3
// For each pair in the overall sum of products:
let (t0, t1, t2, t3, t4, t5, t6) = (0..T).fold(
(u0, u1, u2, u3, u4, u5, 0),
|(t0, t1, t2, t3, t4, t5, t6), i| {
// Compute digit_j x row and accumulate into `u`.
let (t0, carry) = mac(t0, a[i].0[j], b[i].0[0], 0);
let (t1, carry) = mac(t1, a[i].0[j], b[i].0[1], carry);
let (t2, carry) = mac(t2, a[i].0[j], b[i].0[2], carry);
let (t3, carry) = mac(t3, a[i].0[j], b[i].0[3], carry);
let (t4, carry) = mac(t4, a[i].0[j], b[i].0[4], carry);
let (t5, carry) = mac(t5, a[i].0[j], b[i].0[5], carry);
let (t6, _) = adc(t6, 0, carry);
(t0, t1, t2, t3, t4, t5, t6)
},
);
// Algorithm 2, lines 4-5
// This is a single step of the usual Montgomery reduction process.
let k = t0.wrapping_mul(INV);
let (_, carry) = mac(t0, k, MODULUS[0], 0);
let (r1, carry) = mac(t1, k, MODULUS[1], carry);
let (r2, carry) = mac(t2, k, MODULUS[2], carry);
let (r3, carry) = mac(t3, k, MODULUS[3], carry);
let (r4, carry) = mac(t4, k, MODULUS[4], carry);
let (r5, carry) = mac(t5, k, MODULUS[5], carry);
let (r6, _) = adc(t6, 0, carry);
(r1, r2, r3, r4, r5, r6)
});
// Because we represent F_p elements in non-redundant form, we need a final
// conditional subtraction to ensure the output is in range.
(&Fp([u0, u1, u2, u3, u4, u5])).subtract_p()
}
https://github.com/zkcrypto/bls12_381/tree/efficient-extension-field-arithmetic中针对BL12_381的multiplication over
F
p
2
\mathbb{F}_{p^2}
Fp2为：
pub fn mul(&self, rhs: &Fp2) -> Fp2 {
// F_{p^2} x F_{p^2} multiplication implemented with operand scanning (schoolbook)
// computes the result as:
//
// a·b = (a_0 b_0 + a_1 b_1 β) + (a_0 b_1 + a_1 b_0)i
//
// In BLS12-381's F_{p^2}, our β is -1, so the resulting F_{p^2} element is:
//
// c_0 = a_0 b_0 - a_1 b_1
// c_1 = a_0 b_1 + a_1 b_0
//
// Each of these is a "sum of products", which we can compute efficiently.
Fp2 {
c0: Fp::sum_of_products([self.c0, -self.c1], [rhs.c0, rhs.c1]),
c1: Fp::sum_of_products([self.c0, self.c1], [rhs.c1, rhs.c0]),
}
}
https://github.com/zkcrypto/bls12_381/tree/efficient-extension-field-arithmetic中针对BL12_381的multiplication over
F
p
6
\mathbb{F}_{p^6}
Fp6为：
impl Mul for &'a Fp6 {
type Output = Fp6;
#[inline]
fn mul(self, other: &'b Fp6) -> Self::Output {
self.mul_interleaved(other)
}
}
/// Returns `c = self * b`.
///
/// Implements the full-tower interleaving strategy from
/// [ePrint 2022-376](https://eprint.iacr.org/2022/367).
#[inline]
fn mul_interleaved(&self, b: &Self) -> Self {

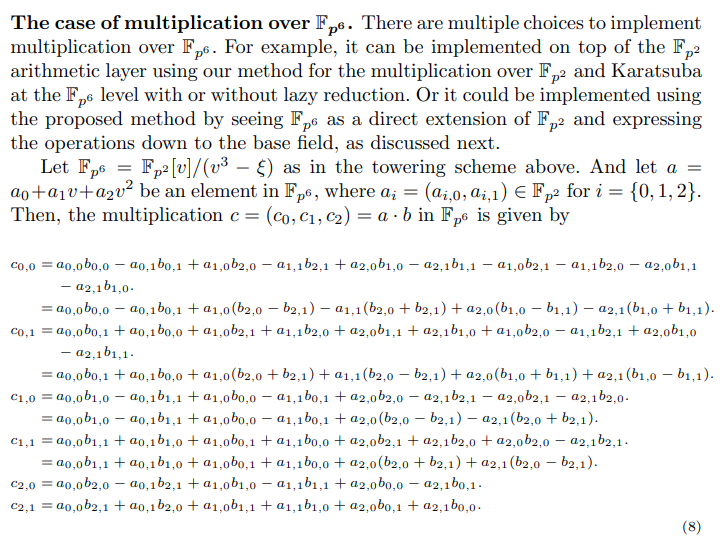

// The intuition for this algorithm is that we can look at F_p^6 as a direct
// extension of F_p^2, and express the overall operations down to the base field
// F_p instead of only over F_p^2. This enables us to interleave multiplications
// and reductions, ensuring that we don't require double-width intermediate
// representations (with around twice as many limbs as F_p elements).
// We want to express the multiplication c = a x b, where a = (a_0, a_1, a_2) is
// an element of F_p^6, and a_i = (a_i,0, a_i,1) is an element of F_p^2. The fully
// expanded multiplication is given by (2022-376 §5):
//
// c_0,0 = a_0,0 b_0,0 - a_0,1 b_0,1 + a_1,0 b_2,0 - a_1,1 b_2,1 + a_2,0 b_1,0 - a_2,1 b_1,1
// - a_1,0 b_2,1 - a_1,1 b_2,0 - a_2,0 b_1,1 - a_2,1 b_1,0.
// = a_0,0 b_0,0 - a_0,1 b_0,1 + a_1,0 (b_2,0 - b_2,1) - a_1,1 (b_2,0 + b_2,1)
// + a_2,0 (b_1,0 - b_1,1) - a_2,1 (b_1,0 + b_1,1).
//
// c_0,1 = a_0,0 b_0,1 + a_0,1 b_0,0 + a_1,0 b_2,1 + a_1,1 b_2,0 + a_2,0 b_1,1 + a_2,1 b_1,0
// + a_1,0 b_2,0 - a_1,1 b_2,1 + a_2,0 b_1,0 - a_2,1 b_1,1.
// = a_0,0 b_0,1 + a_0,1 b_0,0 + a_1,0(b_2,0 + b_2,1) + a_1,1(b_2,0 - b_2,1)
// + a_2,0(b_1,0 + b_1,1) + a_2,1(b_1,0 - b_1,1).
//
// c_1,0 = a_0,0 b_1,0 - a_0,1 b_1,1 + a_1,0 b_0,0 - a_1,1 b_0,1 + a_2,0 b_2,0 - a_2,1 b_2,1
// - a_2,0 b_2,1 - a_2,1 b_2,0.
// = a_0,0 b_1,0 - a_0,1 b_1,1 + a_1,0 b_0,0 - a_1,1 b_0,1 + a_2,0(b_2,0 - b_2,1)
// - a_2,1(b_2,0 + b_2,1).
//
// c_1,1 = a_0,0 b_1,1 + a_0,1 b_1,0 + a_1,0 b_0,1 + a_1,1 b_0,0 + a_2,0 b_2,1 + a_2,1 b_2,0
// + a_2,0 b_2,0 - a_2,1 b_2,1
// = a_0,0 b_1,1 + a_0,1 b_1,0 + a_1,0 b_0,1 + a_1,1 b_0,0 + a_2,0(b_2,0 + b_2,1)
// + a_2,1(b_2,0 - b_2,1).
//
// c_2,0 = a_0,0 b_2,0 - a_0,1 b_2,1 + a_1,0 b_1,0 - a_1,1 b_1,1 + a_2,0 b_0,0 - a_2,1 b_0,1.
// c_2,1 = a_0,0 b_2,1 + a_0,1 b_2,0 + a_1,0 b_1,1 + a_1,1 b_1,0 + a_2,0 b_0,1 + a_2,1 b_0,0.
//
// Each of these is a "sum of products", which we can compute efficiently.
let a = self;
let b10_p_b11 = b.c1.c0 + b.c1.c1;
let b10_m_b11 = b.c1.c0 - b.c1.c1;
let b20_p_b21 = b.c2.c0 + b.c2.c1;
let b20_m_b21 = b.c2.c0 - b.c2.c1;
Fp6 {
c0: Fp2 {
c0: Fp::sum_of_products(
[a.c0.c0, -a.c0.c1, a.c1.c0, -a.c1.c1, a.c2.c0, -a.c2.c1],
[b.c0.c0, b.c0.c1, b20_m_b21, b20_p_b21, b10_m_b11, b10_p_b11],
),
c1: Fp::sum_of_products(
[a.c0.c0, a.c0.c1, a.c1.c0, a.c1.c1, a.c2.c0, a.c2.c1],
[b.c0.c1, b.c0.c0, b20_p_b21, b20_m_b21, b10_p_b11, b10_m_b11],
),
},
c1: Fp2 {
c0: Fp::sum_of_products(
[a.c0.c0, -a.c0.c1, a.c1.c0, -a.c1.c1, a.c2.c0, -a.c2.c1],
[b.c1.c0, b.c1.c1, b.c0.c0, b.c0.c1, b20_m_b21, b20_p_b21],
),
c1: Fp::sum_of_products(
[a.c0.c0, a.c0.c1, a.c1.c0, a.c1.c1, a.c2.c0, a.c2.c1],
[b.c1.c1, b.c1.c0, b.c0.c1, b.c0.c0, b20_p_b21, b20_m_b21],
),
},
c2: Fp2 {
c0: Fp::sum_of_products(
[a.c0.c0, -a.c0.c1, a.c1.c0, -a.c1.c1, a.c2.c0, -a.c2.c1],
[b.c2.c0, b.c2.c1, b.c1.c0, b.c1.c1, b.c0.c0, b.c0.c1],
),
c1: Fp::sum_of_products(
[a.c0.c0, a.c0.c1, a.c1.c0, a.c1.c1, a.c2.c0, a.c2.c1],
[b.c2.c1, b.c2.c0, b.c1.c1, b.c1.c0, b.c0.c1, b.c0.c0],
),
},
}
}
[1] 微软团队Patrick Longa 2022年论文 Efficient Algorithms for Large Prime Characteristic Fields and Their Application to Bilinear Pairings and Supersingular Isogeny-Based Protocols [2] str4d对Patrick Longa算法进行了实现并验证
