Mina中的genesis_proof

1. 引言

前序博客见：

Mina如何实现22KB？

genesis_proof结构比genesis_proof.Inputs结构多一个proof_data字段，少一个blockchain_proof_system_id字段。但是，proof_data字段中更包含了blockchain_proof_system_id字段。且Precomputed_values类型等价为genesis_proof结构。

(* genesis_proof.ml中有： *)
module T = struct
  type t =
    { runtime_config : Runtime_config.t
    ; constraint_constants : Genesis_constants.Constraint_constants.t
    ; genesis_constants : Genesis_constants.t
    ; proof_level : Genesis_constants.Proof_level.t
    ; genesis_ledger : Genesis_ledger.Packed.t
    ; genesis_epoch_data : Consensus.Genesis_epoch_data.t
    ; consensus_constants : Consensus.Constants.t
    ; protocol_state_with_hashes :
        Protocol_state.value State_hash.With_state_hashes.t
    ; constraint_system_digests : (string * Md5_lib.t) list Lazy.t
    ; proof_data : Proof_data.t option
    }

module Proof_data = struct
  type t =
    { blockchain_proof_system_id : Pickles.Verification_key.Id.t
    ; genesis_proof : Proof.t
    }
end
module Inputs = struct
  type t =
    { runtime_config : Runtime_config.t
    ; constraint_constants : Genesis_constants.Constraint_constants.t
    ; proof_level : Genesis_constants.Proof_level.t
    ; genesis_constants : Genesis_constants.t
    ; genesis_ledger : Genesis_ledger.Packed.t
    ; genesis_epoch_data : Consensus.Genesis_epoch_data.t
    ; consensus_constants : Consensus.Constants.t
    ; protocol_state_with_hashes :
        Protocol_state.value State_hash.With_state_hashes.t
    ; constraint_system_digests : (string * Md5_lib.t) list option
    ; blockchain_proof_system_id :
        (* This is only used for calculating the hash to lookup the genesis
           proof with. It is re-calculated when building the blockchain prover,
           so it is always okay -- if less efficient at startup -- to pass
           [None] here.
        *)
        Pickles.Verification_key.Id.t option
    }

Proof类型为：

type t = (Nat.N2.n, Nat.N2.n) Pickles.Proof.t

(* Pickles.Proof结构为： *)
module Make (W : Nat.Intf) (MLMB : Nat.Intf) : sig
    type nonrec t = (W.n, MLMB.n) t [@@deriving sexp, compare, yojson, hash]
  end

type t =
          (Verification_key.Max_width.n, Verification_key.Max_width.n) Proof.t

type ('max_width, 'mlmb) t

State_hash.With_state_hashes类型为：

type 'a t = ('a, State_hashes.t) With_hash.t

(* State_hash结构为： *)
type t = Field.t

(* State_hashes结构为： *)
module State_hashes = struct
  [%%versioned
  module Stable = struct
    module V1 = struct
      type t =
        { mutable state_body_hash : State_body_hash.Stable.V1.t option
        ; state_hash : T.Stable.V1.t
        }

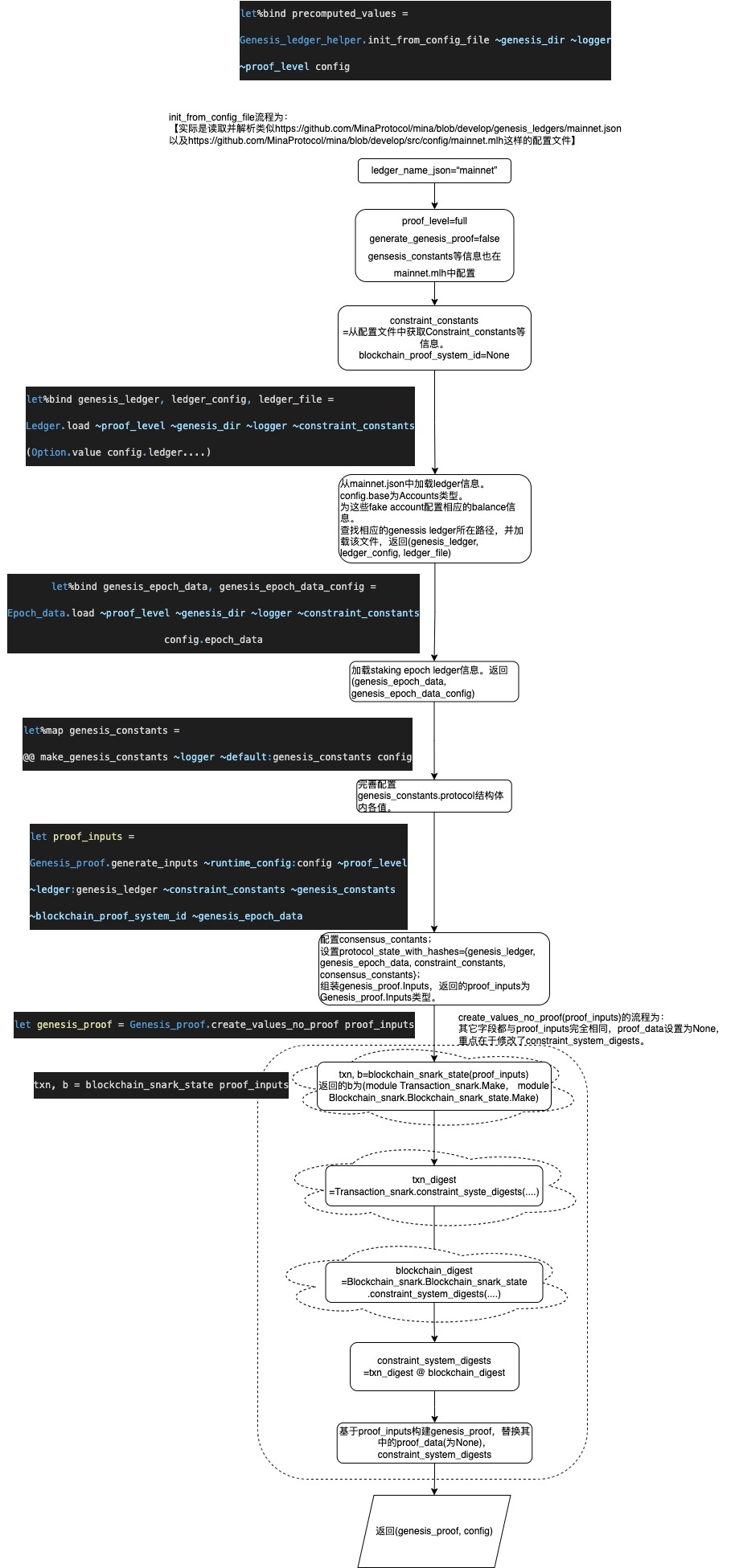

Mina节点启动时，会从配置文件中加载precomputed_values信息：在这里插入图片描述创世区块的产块者会该precomputed_values信息会作为Genesis_proof.Input，调用Prover.create_genesis_block(…) 来获得创世区块genesis_breadcrumb。genesis_breadcrumb为Blockchain_snark.Blockchain.t结构：【其中的state为Protocol_state结构，proof即为protocol_state_proof。】【将创世区块protocol_state_proof替换precomputed_values的proof_data字段，构建出的即为genesis_proof。】

{ state : Protocol_state.Value.Stable.V2.t; proof : Proof.Stable.V2.t }

1.1 Genesis_ledger.Packed结构

type t = (module Intf.S)
  let t ((module L) : t) = L.t

val t : Mina_ledger.Ledger.t Lazy.t

include
  Merkle_mask.Maskable_merkle_tree_intf.S
    with module Location := Location
    with module Addr = Location.Addr
    with type root_hash := Ledger_hash.t
     and type hash := Ledger_hash.t
     and type account := Account.t
     and type key := Public_key.Compressed.t
     and type token_id := Token_id.t
     and type token_id_set := Token_id.Set.t
     and type account_id := Account_id.t
     and type account_id_set := Account_id.Set.t
     and type t = Mask.Attached.t
     and type attached_mask = Mask.Attached.t
     and type unattached_mask = Mask.t

1.2 Constraint_constants结构

所谓Constraint_constants，是指会影响proof约束系统以及密钥生成的常量。当proof_level为Full时，注意这些值应与proving keys和verification keys匹配，否则生成的证明将无效。 Constraint_constants示例为：在这里插入图片描述

Genesis_constants.Constraint_constants结构为：

type t =
    { sub_windows_per_window : int
    ; ledger_depth : int
    ; work_delay : int
    ; block_window_duration_ms : int
    ; transaction_capacity_log_2 : int
    ; pending_coinbase_depth : int
    ; coinbase_amount : Currency.Amount.Stable.Latest.t
    ; supercharged_coinbase_factor : int
    ; account_creation_fee : Currency.Fee.Stable.Latest.t
    ; fork : Fork_constants.t option
    }

(* 赋值为： *)
	let compiled =
        { sub_windows_per_window
        ; ledger_depth
        ; work_delay
        ; block_window_duration_ms
        ; transaction_capacity_log_2
        ; pending_coinbase_depth
        ; coinbase_amount =
            Currency.Amount.of_formatted_string coinbase_amount_string
        ; supercharged_coinbase_factor
        ; account_creation_fee =
            Currency.Fee.of_formatted_string account_creation_fee_string
        ; fork
        }

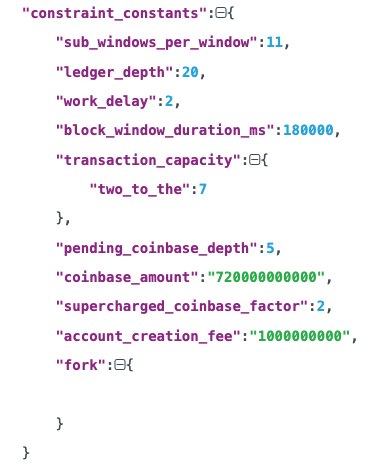

而Snark_keys_header.Constraint_constants结构为：【为用于constraint system的常量，Mina主网中未定义fork_previous_length，因此fork=None】

(** The constants used in the constraint system.  *)
  type t =
    { sub_windows_per_window : int
    ; ledger_depth : int
    ; work_delay : int
    ; block_window_duration_ms : int
    ; transaction_capacity : Transaction_capacity.t
    ; pending_coinbase_depth : int
    ; coinbase_amount : UInt64.t
    ; supercharged_coinbase_factor : int
    ; account_creation_fee : UInt64.t
    ; fork :
        (Fork_config.t option
        [@to_yojson Fork_config.opt_to_yojson]
        [@of_yojson Fork_config.opt_of_yojson])
    }

1.3 Transition frontier 之 full_frontier结构

(* Invariant: The path from the root to the tip inclusively, will be max_length *)
type t =
  { root_ledger : Ledger.Any_ledger.witness
  ; mutable root : State_hash.t
  ; mutable best_tip : State_hash.t
  ; logger : Logger.t
  ; table : Node.t State_hash.Table.t
  ; mutable protocol_states_for_root_scan_state :
      Protocol_states_for_root_scan_state.t
  ; consensus_local_state : Consensus.Data.Local_state.t
  ; max_length : int
  ; precomputed_values : Precomputed_values.t
  ; time_controller : Block_time.Controller.t
  ; persistent_root_instance : Persistent_root.Instance.t
  }

module Node = struct
  type t =
    { breadcrumb : Breadcrumb.t
    ; successor_hashes : State_hash.t list
    ; length : int
    }

1.4 Mina中的account结构

Mina分为public账号和private账号，结构均为：

module Public_accounts = struct
  type account_data =
    { pk : Public_key.Compressed.t
    ; balance : int
    ; delegate : Public_key.Compressed.t option
    ; timing : Timing.t
    }

module Private_accounts = struct
  type account_data =
    { pk : Public_key.Compressed.t
    ; sk : Private_key.t
    ; balance : int
    ; timing : Timing.t
    }

其中account的timing结构为：

type t = (int, int, int) Account_timing.Poly.t
type ('slot, 'balance, 'amount) t = (*'slot, 'balance,'amount均为int类型。*)
        | Untimed
        | Timed of
            { initial_minimum_balance : 'balance
            ; cliff_time : 'slot
            ; cliff_amount : 'amount
            ; vesting_period : 'slot
            ; vesting_increment : 'amount
            }

2. Snark transition

snark transition结构为：

(* snark_transition结构为： *)
type t =
        ( Blockchain_state.Value.Stable.V2.t (* 字段名为blockchain_state *)
        , Consensus.Data.Consensus_transition.Value.Stable.V1.t (* 字段名为consensus_transition *)
        , Pending_coinbase.Update.Stable.V1.t ) (* 字段名为pending_coinbase_update *)
        Poly.Stable.V1.t

type ('blockchain_state, 'consensus_transition, 'pending_coinbase_update) t =
    { blockchain_state : 'blockchain_state
    ; consensus_transition : 'consensus_transition
    ; pending_coinbase_update : 'pending_coinbase_update
    }

2.1 Blockchain_state结构

Blockchain_state结构为：

(* Blockchain_state.value结构为： *)
type t =
        ( Staged_ledger_hash.Stable.V1.t (* 字段名为staged_ledger_hash *)
        , Frozen_ledger_hash.Stable.V1.t (* 字段名为snarked_ledger_hash *)
        , Local_state.Stable.V1.t (* 字段名为local_state *)
        , Block_time.Stable.V1.t ) (* 字段名为timestamp *)
        Poly.Stable.V2.t

type ('staged_ledger_hash, 'snarked_ledger_hash, 'local_state, 'time) t =
        { staged_ledger_hash : 'staged_ledger_hash
        ; genesis_ledger_hash : 'snarked_ledger_hash (* 字段名为genesis_ledger_hash，又名snarked_ledger_hash *)
        ; registers : (* 字段名registers中封装了genesis_ledger_hash、unit、local_state 以及Registers*)
            ('snarked_ledger_hash, unit, 'local_state) Registers.Stable.V1.t
        ; timestamp : 'time
        }
(* Registers.Stable.V1.1结构为： *)
type ('ledger, 'pending_coinbase_stack, 'local_state) t =
      { ledger : 'ledger
      ; pending_coinbase_stack : 'pending_coinbase_stack
      ; local_state : 'local_state
      }

Local_state结构为：

(* mina_transaction_logic.ml中： *)
module Local_state = struct
      type t =
        ( Parties.t
        , Call_stack.t
        , Token_id.t
        , Amount.t
        , Ledger.t
        , Bool.t
        , Transaction_commitment.t
        , Bool.failure_status_tbl )
        Parties_logic.Local_state.t

(* Parties_logic.Local_data结构为： *)
type ( 'parties
           , 'call_stack
           , 'token_id
           , 'excess
           , 'ledger
           , 'bool
           , 'comm
           , 'failure_status_tbl )
           t =
        { parties : 'parties (* parties字段为Parties类型 *)
        ; call_stack : 'call_stack (* call_stack字段为Call_stack类型 *)
        ; transaction_commitment : 'comm (* transaction_commitment字段为Transaction_commitment类型 *)
        ; full_transaction_commitment : 'comm (* full_transaction_commitment字段为Transaction_commitment类型 *)
        ; token_id : 'token_id (* token_id字段为Token_id类型 *)
        ; excess : 'excess (* excess字段为Amount类型 *)
        ; ledger : 'ledger (* ledger字段为Ledger类型 *)
        ; success : 'bool (* success字段为Bool类型 *)
        ; failure_status_tbl : 'failure_status_tbl (* failure_status_tbl字段为Bool.failure_status_tbl类型 *)
        }

创世块的该结构类似为：在这里插入图片描述

Registers结构为：

(* Registers结构为： *)
 type t =
    ( Frozen_ledger_hash.t
    , Pending_coinbase.Stack.t
    , Local_state.t )
    Stable.Latest.t

 type ('ledger, 'pending_coinbase_stack, 'local_state) t =
      { ledger : 'ledger (* ledger字段为Frozen_ledger_hash类型 *)
      ; pending_coinbase_stack : 'pending_coinbase_stack (* pending_coinbase_stack字段为Pending_coinbase.Stack类型 *)
      ; local_state : 'local_state (* local_state字段为Local_state类型 *)
      }

Pending_coinbase.Stack结构为：

(* Pending_coinbase.Stack结构为： *)
type t =
        (Coinbase_stack.Stable.V1.t,  (* 为Field.t *)
        State_stack.Stable.V1.t)
        Poly.Stable.V1.t

module V1 = struct
        type ('data_stack, 'state_stack) t =
          { data : 'data_stack; state : 'state_stack }

(* State_stack类型为： *)
type t = Stack_hash.Stable.V1.t  (* 为Field.t *)
             Poly.Stable.V1.t

 module V1 = struct
        type 'stack_hash t = { init : 'stack_hash; (* init字段为Stack_hash字段 *)
        curr : 'stack_hash } (* curr字段为Stack_hash字段 *)

2.2 Consensus.Data.Consensus_transition结构

Consensus.Data.Consensus_transition结构为：【就是global slot数字】

(* Consensus.Data.Consensus_transition结构为： *)
module Consensus_transition = struct
    include Mina_numbers.Global_slot
    module Value = Mina_numbers.Global_slot

    type var = Checked.t

    let genesis = zero
  end

2.3 Pending_coinbase.Update结构

Pending_coinbase.Update结构为：

(* Pending_coinbase.Update结构为：*)
type t = (Action.Stable.V1.t,
            Amount.Stable.V1.t) (* 为unsigned类型 *)
            Poly.Stable.V1.t

type ('action, 'coinbase_amount) t =
            { action : 'action;  (* action字段为Action类型 *)
            coinbase_amount : 'coinbase_amount } (* coinbase_amount字段为Amount类型 *)

(* Actiion为枚举类型： *)
		type t =
            | Update_none
            | Update_one
            | Update_two_coinbase_in_first
            | Update_two_coinbase_in_second

3. Internal transition

internal transition结构为：

(* internal transition结构为： *)
type t = Stable.Latest.t =
  { snark_transition : Snark_transition.Value.t (* 见上一节Snark transition内容 *)
  ; ledger_proof : Ledger_proof.t option
  ; prover_state : Consensus.Data.Prover_state.t
  ; staged_ledger_diff : Staged_ledger_diff.t
  }

3.1 Snark_transition结构

Snark_transition结构：见上一节Snark transition内容。

3.2 Ledger_proof结构

Ledger_proof结构：【等价为Transaction_snark结构】

(* Ledger_proof结构为： *)
module Prod : Ledger_proof_intf.S with type t = Transaction_snark.t = struct
  [%%versioned
  module Stable = struct
    module V2 = struct
      type t = Transaction_snark.Stable.V2.t

2.1）Transaction_snark结构为：

(* transaction_snark/transaction_snark.ml中有Transaction_snark结构为：： *)
module Stable = struct
  module V2 = struct
    type t =
      { statement : Statement.With_sok.Stable.V2.t; proof : Proof.Stable.V2.t }

Statement.With_sok结构为：

(* Statement.With_sok结构为： *)
  module With_sok = struct
   [%%versioned
   module Stable = struct
     module V2 = struct
       type t =
         ( Frozen_ledger_hash.Stable.V1.t
         , Currency.Amount.Stable.V1.t
         , Pending_coinbase.Stack_versioned.Stable.V1.t (* 见上面的 Pending_coinbase.Stack结构 *)
         , Fee_excess.Stable.V1.t
         , Sok_message.Digest.Stable.V1.t (* 为string类型 *)
         , Local_state.Stable.V1.t ) (* 见上面Local_state结构 *)

(* Fee_excess结构为： *)
type t =
     ( Token_id.Stable.V1.t
     , (Fee.Stable.V1.t, (* 为uint64 *)
     	Sgn.Stable.V1.t) (* Sgn为枚举：Pos或Neg，即代表极性。 *)
     		Signed_poly.Stable.V1.t )
     Poly.Stable.V1.t

(* Signed_poly中字段有： *)
type ('magnitude, 'sgn) t = { magnitude : 'magnitude; (* magnitude字段为Fee类型 *)
   											sgn : 'sgn } (* sgn字段为Sgn枚举类型，Pos或Neg *)

(* Poly中字段有： *)
type ('token, 'fee) t =
       { fee_token_l : 'token (* fee_token_l字段为Token_id类型 *)
       ; fee_excess_l : 'fee (* fee_excess_l字段为Sgined_poly类型，包含magnitude和sgn这2个字段。 *)
       ; fee_token_r : 'token (* fee_token_r字段为Token_id类型 *)
       ; fee_excess_r : 'fee (* fee_excess_r字段为Sgined_poly类型，包含magnitude和sgn这2个字段。 *)
       }

2.2）Proof结构为：

module Proof = struct
 [%%versioned
 module Stable = struct
   module V2 = struct
     type t = Pickles.Proof.Branching_2.Stable.V2.t

Pickles.Proof.Branching_2结构为：

(* Pickles.Proof.Branching_2结构为： *)
type t =
      ( ( Tock.Inner_curve.Affine.t
        , Reduced_me_only.Wrap.Challenges_vector.t MLMB_vec.t )
        Types.Wrap.Proof_state.Me_only.t
      , ( unit
        , Tock.Curve.Affine.t Max_branching_at_most.t
        , Challenge.Constant.t Scalar_challenge.t Bulletproof_challenge.t
          Step_bp_vec.t
          Max_branching_at_most.t )
        Base.Me_only.Step.t )
      Base.Wrap.t

3.3 Consensus.Data.Prover_state结构

Consensus.Data.Prover_state结构为：【等同为Stake_proof结构】

(* Consensus.Data.Prover_state结构为： *)
type t =
      { delegator : Account.Index.Stable.V1.t (* 为int类型，即delegator在Account tree中的位置？ *)
      ; delegator_pk : Public_key.Compressed.Stable.V1.t (* 为压缩公钥 *)
      ; coinbase_receiver_pk : Public_key.Compressed.Stable.V1.t (* 为压缩公钥 *)
      ; ledger : Mina_ledger.Sparse_ledger.Stable.V2.t
      ; producer_private_key : Private_key.Stable.V1.t (* 为产块者私钥 *)
      ; producer_public_key : Public_key.Stable.V1.t (* 为产块者公钥 *)
      }

Mina_ledger.Sparse_ledger结构为：

(* Mina_ledger.Sparse_ledger结构为： *)
type t =
      ( Ledger_hash.Stable.V1.t (* 为Field.t类型 *)
      , Account_id.Stable.V2.t (* 类型为Public_key.Compressed.Stable.V1.t * Digest.Stable.V1.t *)
      , Account.Stable.V2.t )
      Sparse_ledger_lib.Sparse_ledger.T.Stable.V2.t

type ('hash, 'key, 'account) t =
        { indexes : ('key * int) list
        ; depth : int
        ; tree : ('hash, 'account) Tree.Stable.V1.t
        }

Account结构为：【具有的字段为：public_key、token_id、token_permissions、token_symbol、balance、balance、nonce、receipt_chain_hash、delegate、voting_for、timing、permissions、zkapp、zkapp_url。】

type t =
        ( Public_key.Compressed.Stable.V1.t
        , Token_id.Stable.V1.t
        , Token_permissions.Stable.V1.t
        , Token_symbol.Stable.V1.t
        , Balance.Stable.V1.t
        , Nonce.Stable.V1.t
        , Receipt.Chain_hash.Stable.V1.t
        , Public_key.Compressed.Stable.V1.t option
        , State_hash.Stable.V1.t
        , Timing.Stable.V1.t
        , Permissions.Stable.V2.t
        , Zkapp_account.Stable.V2.t option
        , string )
        (* TODO: Cache the digest of this? *)
        Poly.Stable.V2.t

type ( 'pk
           , 'id
           , 'token_permissions
           , 'token_symbol
           , 'amount
           , 'nonce
           , 'receipt_chain_hash
           , 'delegate
           , 'state_hash
           , 'timing
           , 'permissions
           , 'zkapp_opt
           , 'zkapp_uri )
           t =
        { public_key : 'pk
        ; token_id : 'id
        ; token_permissions : 'token_permissions
        ; token_symbol : 'token_symbol
        ; balance : 'amount
        ; nonce : 'nonce
        ; receipt_chain_hash : 'receipt_chain_hash
        ; delegate : 'delegate
        ; voting_for : 'state_hash
        ; timing : 'timing
        ; permissions : 'permissions
        ; zkapp : 'zkapp_opt
        ; zkapp_uri : 'zkapp_uri
        }

3.4 Staged_ledger_diff结构

Staged_ledger_diff结构为：

type t =
    Pre_diff_with_at_most_two_coinbase.t
    * Pre_diff_with_at_most_one_coinbase.t option

(* Pre_diff_with_at_most_two_coinbase结构为： *)
module Pre_diff_with_at_most_two_coinbase : sig
  type t =
    (Transaction_snark_work.t,
    	User_command.t With_status.t)
    	Pre_diff_two.t
(* With_status中字段有： *)
type 'a t = { data : 'a;  (* data字段为User_command类型 *)
				status : Transaction_status.Stable.V2.t }
(* Pre_diff_two中字段有： *)
type ('a, 'b) t =
        { completed_works : 'a list (* completed_works为数组，元素均为Transaction_snark_work类型 *)
        ; commands : 'b list (* commands为数组，元素均为With_status类型 *)
        ; coinbase : Ft.Stable.V1.t At_most_two.Stable.V1.t
        ; internal_command_balances :
            Transaction_status.Internal_command_balance_data.Stable.V1.t list (* 数组 *)
        }

(* Transaction_status为枚举类型： *)
type t = Applied | Failed of Failure.Collection.Stable.V1.t
(* User_command *)
type t =
        ( Signed_command.With_valid_signature.Stable.V2.t
        , Parties.Valid.Stable.V1.t )
        Poly.Stable.V2.t (* 为枚举类型：type ('u, 's) t = Signed_command of 'u | Parties of 's *)
(* Signed_command： *)
type t =
      ( Payload.Stable.V2.t
      , Public_key.Stable.V1.t
      , Signature.Stable.V1.t )
      Poly.Stable.V1.t
type ('payload, 'pk, 'signature) t =
        { payload : 'payload; signer : 'pk; signature : 'signature }

(* Pre_diff_with_at_most_one_coinbase结构为： *)
type t =
        ( Transaction_snark_work.Stable.V2.t
        , User_command.Stable.V2.t With_status.Stable.V2.t )
        Pre_diff_one.Stable.V1.t
(* Pre_diff_one中字段有： *)
type ('a, 'b) t =
        { completed_works : 'a list
        ; commands : 'b list
        ; coinbase : Ft.Stable.V1.t At_most_one.Stable.V1.t
        ; internal_command_balances :
            Transaction_status.Internal_command_balance_data.Stable.V1.t list
        }

4. External transition

external transition结构为：【等价为Block结构】

(* external transition结构为： *)
type t = Block.t

type t = { header : Header.Stable.V1.t; body : Body.Stable.V1.t }

4.1 Header结构

Header结构为：

type t =
      { protocol_state : Protocol_state.Value.Stable.V2.t
      ; protocol_state_proof : Proof.Stable.V2.t [@sexp.opaque]
      ; delta_block_chain_proof :
          (* TODO: abstract *)
          State_hash.Stable.V1.t * State_body_hash.Stable.V1.t list
      ; current_protocol_version : Protocol_version.Stable.V1.t
      ; proposed_protocol_version_opt : Protocol_version.Stable.V1.t option
      ; body_reference : Body_reference.Stable.V1.t
      }

其中：

（1）protocol_state、protocol_state_proof内容见：Mina概览第5节“Mina区块结构”。
（2）delta_block_chain_proof内容见： Mina中的delta_transition_chain_proof/delta_block_chain_proof
（3）current_protocol_version结构为：

type t = { major : int; minor : int; patch : int }

（4）Body_reference结构为：

(* type t = State_body_hash.Stable.V1.t *)
    type t = unit [@@deriving compare, sexp, yojson]

4.2 Body结构

Body结构为：

type t = { staged_ledger_diff : Staged_ledger_diff.Stable.V2.t }

Staged_ledger_diff结构见上面。

5. Breadcrumb

Transition Frontier：为本地data store中包含的网络中的最新 k k k个区块。为rose tree-type数据结构，该tree中的每个节点可能有多个children，即分叉。该tree中的每个节点都可称为breadcrumb。其实就是已验证通过的区块。

Breadcrumb结构为：

type t =
    { validated_transition : Mina_block.Validated.t
    ; staged_ledger : Staged_ledger.t [@sexp.opaque]
    ; just_emitted_a_proof : bool
    ; transition_receipt_time : Time.t option
    }

5.1 Mina_block.Validated结构

Mina_block.Validated结构，即为validated_block结构：【其实就是一个结构体，其data字段为External_transition结构，其hash字段为State_hashes结构（包含state_body_hash和state_hash字段）。以及，一个State_hash*State_hash数组。】

type t = Block.t State_hash.With_state_hashes.t * State_hash.t Non_empty_list.t

1）State_hash.With_state_hashes结构为：【在上面的代码语境中，'a表示的是Block.t结构】

type 'a t = ('a, State_hashes.t) With_hash.t

(* State_hashes.t结构为： *)
type t =
        { mutable state_body_hash : State_body_hash.Stable.V1.t option (* 均为Field.t *)
        ; state_hash : T.Stable.V1.t (* 均为Field.t *)
        }

(* With_hash结构为：【此语境下，'a表示的是Block.t结构，'h表示的是State_hashes结构】*)
type ('a, 'h) t = ('a, 'h) Stable.Latest.t = { data : 'a; hash : 'h }

2）State_hash.t为Field.t，而Non_empty_list结构为：【其实表示的就是State_hash*State_hash数组。此代码语境下，'a表示的State_hash结构。为a tuple of the head and the rest (as a list)】

type 'a t = 'a * 'a list

5.2 Staged_ledger结构

Staged_ledger结构为：

type t =
    { scan_state : Scan_state.t
    ; ledger :
        ((* Invariant: this is the ledger after having applied all the
            transactions in the above state. *)
         Ledger.attached_mask
        [@sexp.opaque])
    ; constraint_constants : Genesis_constants.Constraint_constants.t
    ; pending_coinbase_collection : Pending_coinbase.t
    }

5.2.1 Scan_state结构

Scan_state结构为：【等价为Transaction_snark_scan_state】

type t =
      ( Ledger_proof_with_sok_message.Stable.V2.t
      , Transaction_with_witness.Stable.V2.t )
      Parallel_scan.State.Stable.V1.t

type ('merge, 'base) t = ('merge, 'base) Binable_arg.Stable.V1.t =
        { trees :
            ('merge Merge.Stable.V1.t, 'base Base.Stable.V1.t) Tree.Stable.V1.t
            Non_empty_list.Stable.V1.t
              (*use non empty list*)
        ; acc : ('merge * 'base list) option
              (*last emitted proof and the corresponding transactions*)
        ; curr_job_seq_no : int
              (*Sequence number for the jobs added every block*)
        ; max_base_jobs : int (*transaction_capacity_log_2*)
        ; delay : int
        }

1）Ledger_proof_with_sok_message结构为：【其中Ledger_proof结构见上面3.2节。】

type t = Ledger_proof.Stable.V2.t * Sok_message.Stable.V1.t

(* Sok_message结构为： *)
type t =
      { fee : Currency.Fee.Stable.V1.t
      ; prover : Public_key.Compressed.Stable.V1.t
      }

2）Transaction_with_witness结构为：

(* TODO: The statement is redundant here - it can be computed from the
     witness and the transaction
  *)
  type t =
    { transaction_with_info :
        Mina_transaction_logic.Transaction_applied.Stable.V2.t
    ; state_hash : State_hash.Stable.V1.t * State_body_hash.Stable.V1.t
    ; statement : Transaction_snark.Statement.Stable.V2.t
    ; init_stack :
        Transaction_snark.Pending_coinbase_stack_state.Init_stack.Stable.V1
        .t
    ; ledger_witness : Mina_ledger.Sparse_ledger.Stable.V2.t [@sexp.opaque]
    }

2.1）Mina_transaction_logic.Transaction_applied结构为：

type t =
    { previous_hash : Ledger_hash.Stable.V1.t (* 为Field.t结构 *)
    ; varying : Varying.Stable.V2.t
    }
(* Varying为枚举结构： *)
type t =
      | Command of Command_applied.Stable.V2.t
      | Fee_transfer of Fee_transfer_applied.Stable.V2.t
      | Coinbase of Coinbase_applied.Stable.V2.t
(* Command_applied结构为： *)
type t =
      | Signed_command of Signed_command_applied.Stable.V2.t
      | Parties of Parties_applied.Stable.V1.t
(* Signed_command_applied结构为： *)
type t = { common : Common.Stable.V2.t; body : Body.Stable.V2.t }
(* Parties_applied结构为： *)
type t =
      { accounts :
          (Account_id.Stable.V2.t * Account.Stable.V2.t option) list
      ; command : Parties.Stable.V1.t With_status.Stable.V2.t
      ; previous_empty_accounts : Account_id.Stable.V2.t list
      }

(* Fee_transfer_applied结构为： *)
type t =
      { fee_transfer : Fee_transfer.Stable.V2.t
      ; previous_empty_accounts : Account_id.Stable.V2.t list
      ; receiver_timing : Account.Timing.Stable.V1.t
      }
 (* Coinbase_applied结构为： *)
 type t =
      { coinbase : Coinbase.Stable.V1.t
      ; previous_empty_accounts : Account_id.Stable.V2.t list
      ; receiver_timing : Account.Timing.Stable.V1.t
      }

2.2）Transaction_snark.Statement结构为：

type t =
    ( Frozen_ledger_hash.Stable.V1.t
    , Currency.Amount.Stable.V1.t
    , Pending_coinbase.Stack_versioned.Stable.V1.t
    , Fee_excess.Stable.V1.t
    , unit
    , Local_state.Stable.V1.t )
    Poly.Stable.V2.t

    type ( 'ledger_hash
         , 'amount
         , 'pending_coinbase
         , 'fee_excess
         , 'sok_digest
         , 'local_state )
         t =
      { source :
          ( 'ledger_hash
          , 'pending_coinbase
          , 'local_state )
          Registers.Stable.V1.t
      ; target :
          ( 'ledger_hash
          , 'pending_coinbase
          , 'local_state )
          Registers.Stable.V1.t
      ; supply_increase : 'amount
      ; fee_excess : 'fee_excess
      ; sok_digest : 'sok_digest
      }

Pending_coinbase.Stack_versioned结构为：

type t =
    (Coinbase_stack.Stable.V1.t, (* 为Field.t *)
    State_stack.Stable.V1.t)
    Poly.Stable.V1.t

type ('data_stack, 'state_stack) t =
      { data : 'data_stack;
      state : 'state_stack }

(* State_stack结构为： *)
type t = Stack_hash.Stable.V1.t (* 为Field.t *)
              Poly.Stable.V1.t
type 'stack_hash t = { init : 'stack_hash; curr : 'stack_hash }

2.3） Transaction_snark.Pending_coinbase_stack_state.Init_stack结构为：【为Pending_coinbase.Stack_versioned】

type t = Base of Pending_coinbase.Stack_versioned.Stable.V1.t | Merge

5.2.2 Ledger.attached_mask结构

Ledger.attached_mask结构为：【等效为Mask.Attached.t，见masking_merkle_tree.ml】

type t =
    { uuid : Uuid.Stable.V1.t
    ; account_tbl : Account.t Location_binable.Table.t
    ; token_owners : Account_id.Stable.Latest.t Token_id.Table.t
    ; mutable parent : Parent.t
    ; detached_parent_signal : Detached_parent_signal.t
    ; hash_tbl : Hash.t Addr.Table.t
    ; location_tbl : Location.t Account_id.Table.t
    ; mutable current_location : Location.t option
    ; depth : int
    }

5.2.3 Genesis_constants.Constraint_constants结构

Genesis_constants.Constraint_constants结构为：

(** Constants that affect the constraint systems for proofs (and thus also key
    generation).

    Care must be taken to ensure that these match against the proving/
    verification keys when [proof_level=Full], otherwise generated proofs will
    be invalid.
*)
module Constraint_constants = struct
  type t =
    { sub_windows_per_window : int
    ; ledger_depth : int
    ; work_delay : int
    ; block_window_duration_ms : int
    ; transaction_capacity_log_2 : int
    ; pending_coinbase_depth : int
    ; coinbase_amount : Currency.Amount.Stable.Latest.t
    ; supercharged_coinbase_factor : int
    ; account_creation_fee : Currency.Fee.Stable.Latest.t
    ; fork : Fork_constants.t option
    }

5.2.4 Pending_coinbase结构

Pending_coinbase结构为：

(* A pending coinbase is basically a Merkle tree of "stacks", each of which contains two hashes. The first hash
   is computed from the components in the coinbase via a "push" operation. The second hash, a protocol
   state hash, is computed from the state *body* hash in the coinbase.
   The "add_coinbase" operation takes a coinbase, retrieves the latest stack, or creates a new one, and does
   a push.

   A pending coinbase also contains a stack id, used to determine the chronology of stacks, so we can know
   which is the oldest, and which is the newest stack.

   The name "stack" here is a misnomer: see issue #3226
 *)
type t =
      ( Merkle_tree_versioned.Stable.V2.t
      , Stack_id.Stable.V1.t )  (* 为int *)
      Poly_versioned.Stable.V1.t

type ('tree, 'stack_id) t = ('tree, 'stack_id) T.Poly.t =
        { tree : 'tree; pos_list : 'stack_id list; new_pos : 'stack_id }

Merkle_tree_versioned结构为：

type t =
        ( Hash_versioned.Stable.V1.t (* 为Field.t *)
        , Stack_id.Stable.V1.t (* 为int *)
        , Stack_versioned.Stable.V1.t ) (* 见上面Stack_versioned *)
        Sparse_ledger_lib.Sparse_ledger.T.Stable.V2.t

type ('hash, 'key, 'account) t =
        { indexes : ('key * int) list
        ; depth : int
        ; tree : ('hash, 'account) Tree.Stable.V1.t
        }

附录1. Mina系列博客

Mina系列博客有：

Mina概览
Mina的支付流程
Mina的zkApp
Mina中的Pasta（Pallas和Vesta）曲线
Mina中的Schnorr signature
Mina中的Pickles SNARK
Mina中的Kimchi SNARK
Mina Kimchi SNARK 代码解析
Mina Berkeley QANet测试网zkApp初体验
Mina中的Poseidon hash
Mina中的多项式承诺方案
Recursive SNARKs总览
Mina技术白皮书
Mina代码解析
Mina中的Snark Worker
Mina中的Scan State
Mina中的VRF
Mina中的delta_transition_chain_proof/delta_block_chain_proof
Mina中的stake delegation
Mina如何实现22KB？
Mina中的stake_proof

Mina中的genesis_proof

[ 申请 ]友情链接：
