Polygon zkEVM节点代码解析

1. 引言

前序博客：

• Polygon zkEVM网络节点

相关代码：

• https://github.com/0xPolygonHermez/zkevm-node（Go语言）

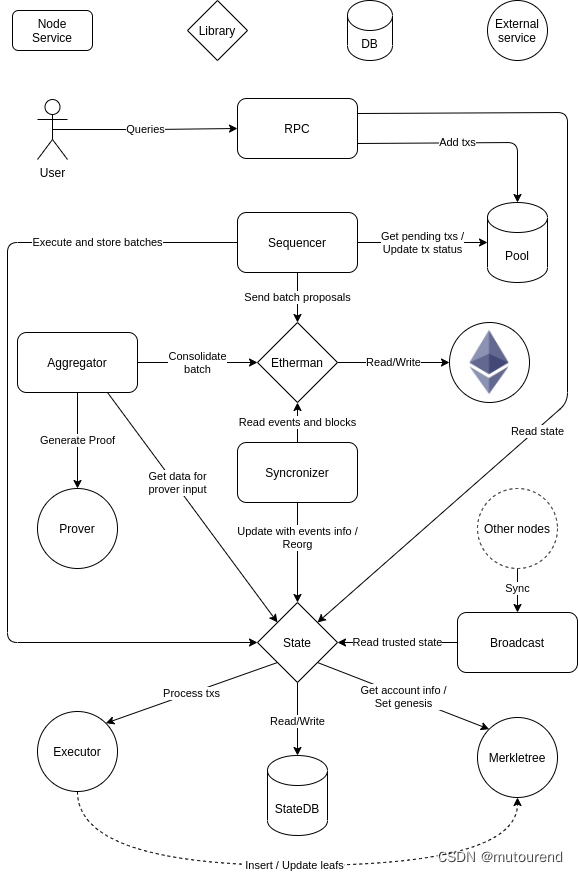

Polygon zkEVM节点提供的主要服务模块有：

• 1）JSON-RPC服务
• 2）Sequencer服务
• 3）Aggregator服务
• 4）Synchronizer服务
• 5）Broadcast服务

2. JSON-RPC服务

以太坊JSON-RPC接口 与 Polygon zkEVM中的JSON-RPC接口 对比情况为：

序号 RPC接口名 以太坊 Hermez 2.0 备注 1 GetBlockByHash ✔️ ✔️ 2 GetBlockByNumber ✔️ ✔️ 3 GetBlockTransactionCountByHash ✔️ ✔️ 4 GetBlockTransactionCountByNumber ✔️ ✔️ 5 getUncleCountByBlockHash ✔️ ✔️ 6 getUncleCountByBlockNumber ✔️ ✔️ 7 ChainId ✔️ ✔️ 8 Syncing ✔️ ✔️ 9 Coinbase ✔️ ❌ 10 Accounts ✔️ ❌ 11 BlockNumber ✔️ ✔️ 12 Call ✔️ ✔️ 13 EstimateGas ✔️ ✔️ 14 CreateAccessList ✔️ ❌ EIP-2930：新交易类型，需以更贵的方式访问清单（地址或storage keys）外的内容。 15 GasPrice ✔️ ✔️ 16 MaxPriorityFeePerGas ✔️ ❌ 17 FeeHistory ✔️ ❌ 18 NewFilter ✔️ ✔️ 19 NewBlockFilter ✔️ ✔️ 20 NewPendingTransactionFilter ✔️ ✔️ 21 UninstallFilter ✔️ ✔️ 22 GetFilterChanges ✔️ ✔️ 23 GetFilterLogs ✔️ ✔️ 24 GetLogs ✔️ ✔️ 25 Mining ✔️ ❌ 26 Hashrate ✔️ ❌ 27 GetWork ✔️ ❌ 28 SubmitWork ✔️ ❌ 29 SubmitHashrate ✔️ ❌ 30 Sign ✔️ ❌ 31 SignTransaction ✔️ ❌ 32 GetBalance ✔️ ✔️ 33 GetStorageAt ✔️ ✔️ 34 GetTransactionCount ✔️ ✔️ 35 GetCode ✔️ ✔️ 36 GetProof ✔️ ❌ 37 SendTransaction ✔️ ❌ 38 SendRawTransaction ✔️ ✔️ 39 GetTransactionByHash ✔️ ✔️ 40 GetTransactionByBlockHashAndIndex ✔️ ✔️ 41 GetTransactionByBlockNumberAndIndex ✔️ ✔️ 42 GetTransactionReceipt ✔️ ✔️ 43 GetCompilers ✔️ ✔️ 44 GetUncleByBlockHashAndIndex ✔️ ✔️ 45 GetUncleByBlockNumberAndIndex ✔️ ✔️ 46 ProtocolVersion ✔️ ✔️

Hermez 2.0（zkEVM）除实现了以上与以太坊兼容的RPC接口之外，还额外实现了一些与state交互、与pool交互的接口：

// jsonRPCTxPool contains the methods required to interact with the tx pool. type jsonRPCTxPool interface { AddTx(ctx context.Context, tx types.Transaction) error GetPendingTxs(ctx context.Context, isClaims bool, limit uint64) ([]pool.Transaction, error) GetGasPrice(ctx context.Context) (uint64, error) GetPendingTxHashesSince(ctx context.Context, since time.Time) ([]common.Hash, error) } // gasPriceEstimator contains the methods required to interact with gas price estimator type gasPriceEstimator interface { GetAvgGasPrice(ctx context.Context) (*big.Int, error) } // stateInterface gathers the methods required to interact with the state. type stateInterface interface { BeginStateTransaction(ctx context.Context) (pgx.Tx, error) GetLastConsolidatedL2BlockNumber(ctx context.Context, dbTx pgx.Tx) (uint64, error) GetTransactionByHash(ctx context.Context, transactionHash common.Hash, dbTx pgx.Tx) (*types.Transaction, error) GetTransactionReceipt(ctx context.Context, transactionHash common.Hash, dbTx pgx.Tx) (*types.Receipt, error) GetLastL2BlockNumber(ctx context.Context, dbTx pgx.Tx) (uint64, error) GetLastL2Block(ctx context.Context, dbTx pgx.Tx) (*types.Block, error) GetLastL2BlockHeader(ctx context.Context, dbTx pgx.Tx) (*types.Header, error) EstimateGas(transaction *types.Transaction, senderAddress common.Address) (uint64, error) GetBalance(ctx context.Context, address common.Address, blockNumber uint64, dbTx pgx.Tx) (*big.Int, error) GetL2BlockByHash(ctx context.Context, hash common.Hash, dbTx pgx.Tx) (*types.Block, error) GetL2BlockByNumber(ctx context.Context, blockNumber uint64, dbTx pgx.Tx) (*types.Block, error) GetCode(ctx context.Context, address common.Address, blockNumber uint64, dbTx pgx.Tx) ([]byte, error) GetStorageAt(ctx context.Context, address common.Address, position *big.Int, blockNumber uint64, dbTx pgx.Tx) (*big.Int, error) GetSyncingInfo(ctx context.Context, dbTx pgx.Tx) (state.SyncingInfo, error) GetTransactionByL2BlockHashAndIndex(ctx context.Context, blockHash common.Hash, index uint64, dbTx pgx.Tx) (*types.Transaction, error) GetTransactionByL2BlockNumberAndIndex(ctx context.Context, blockNumber uint64, index uint64, dbTx pgx.Tx) (*types.Transaction, error) GetNonce(ctx context.Context, address common.Address, blockNumber uint64, dbTx pgx.Tx) (uint64, error) GetL2BlockHeaderByNumber(ctx context.Context, blockNumber uint64, dbTx pgx.Tx) (*types.Header, error) GetL2BlockTransactionCountByHash(ctx context.Context, hash common.Hash, dbTx pgx.Tx) (uint64, error) GetL2BlockTransactionCountByNumber(ctx context.Context, blockNumber uint64, dbTx pgx.Tx) (uint64, error) GetLogs(ctx context.Context, fromBlock uint64, toBlock uint64, addresses []common.Address, topics [][]common.Hash, blockHash *common.Hash, since *time.Time, dbTx pgx.Tx) ([]*types.Log, error) GetL2BlockHashesSince(ctx context.Context, since time.Time, dbTx pgx.Tx) ([]common.Hash, error) DebugTransaction(ctx context.Context, transactionHash common.Hash, tracer string) (*runtime.ExecutionResult, error) ProcessUnsignedTransaction(ctx context.Context, tx *types.Transaction, senderAddress common.Address, blockNumber uint64, dbTx pgx.Tx) *runtime.ExecutionResult IsL2BlockConsolidated(ctx context.Context, blockNumber int, dbTx pgx.Tx) (bool, error) IsL2BlockVirtualized(ctx context.Context, blockNumber int, dbTx pgx.Tx) (bool, error) } type storageInterface interface { NewLogFilter(filter LogFilter) (uint64, error) NewBlockFilter() (uint64, error) NewPendingTransactionFilter() (uint64, error) GetFilter(filterID uint64) (*Filter, error) UpdateFilterLastPoll(filterID uint64) error UninstallFilter(filterID uint64) (bool, error) }

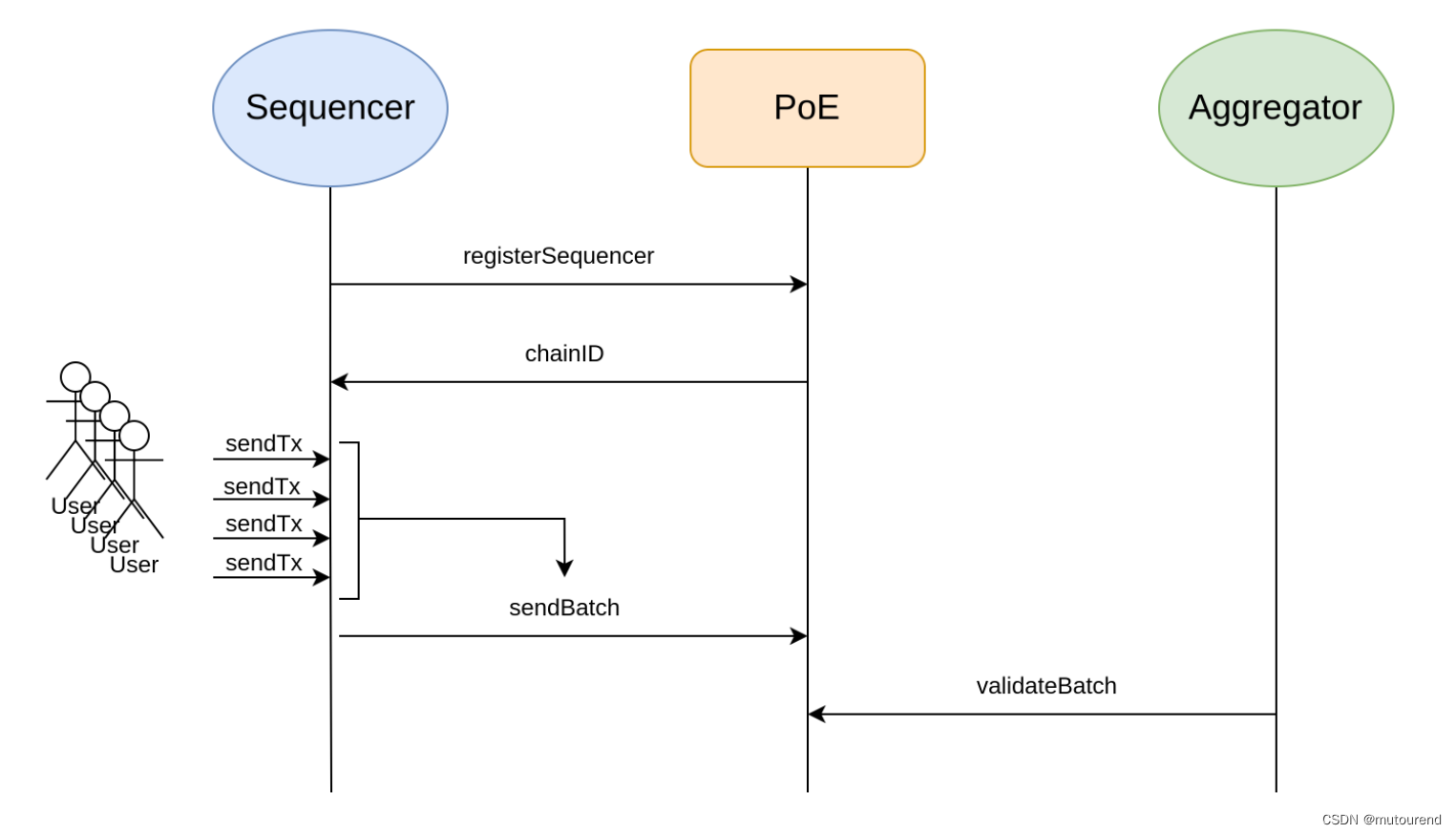

3. Sequencer服务

当前代码库中，暂未实现permissionless sequencer功能，ProofOfEfficiency.sol合约中也暂未实现registerSequencer等接口。

参考资料

[1] Ethereum JSON-RPC Specification [2] PoE [3] zkProver debugging [4] Hermez 1.5 - Merkle Tree spec [5] PoE - 1.5
