LVGL 8.2.0之Canvas

Drawing on the Canvas and rotate

#define CANVAS_WIDTH 240
#define CANVAS_HEIGHT 240
static void lv_example_canvas_1(void)
{
    lv_draw_rect_dsc_t rect_dsc;
    lv_draw_rect_dsc_init(&rect_dsc); //初时化矩形描述符变量
    rect_dsc.radius = 10;  // 圆角为10
    rect_dsc.bg_opa = LV_OPA_COVER;  //透明度为覆盖着色
    rect_dsc.bg_grad.dir = LV_GRAD_DIR_HOR; //水平方向grad
    rect_dsc.bg_grad.stops[0].color = lv_palette_main(LV_PALETTE_RED); //0 grad为红色
    rect_dsc.bg_grad.stops[1].color = lv_palette_main(LV_PALETTE_BLUE);//1 grad为蓝色
    rect_dsc.border_width = 2;   //边框宽度为2
    rect_dsc.border_opa = LV_OPA_90; //边框透明度为90%
    rect_dsc.border_color = lv_color_white(); //边框颜色为白色
    rect_dsc.shadow_width = 5;   //阴影宽度为5
    rect_dsc.shadow_ofs_x = 5;  //阴影向右偏移5
    rect_dsc.shadow_ofs_y = 5;  //阴影向下偏移5
    lv_draw_label_dsc_t label_dsc;
    lv_draw_label_dsc_init(&label_dsc); //初时化label描述符变量
    label_dsc.color = lv_palette_main(LV_PALETTE_ORANGE);
    static lv_color_t cbuf[LV_CANVAS_BUF_SIZE_TRUE_COLOR(CANVAS_WIDTH, CANVAS_HEIGHT)];  //颜色数组
    lv_obj_t* canvas = lv_canvas_create(lv_scr_act()); //创建画布对象
    lv_canvas_set_buffer(canvas, cbuf, CANVAS_WIDTH, CANVAS_HEIGHT, LV_IMG_CF_TRUE_COLOR); //设置画布大小,颜色
    lv_obj_center(canvas); //画布居中
    lv_canvas_fill_bg(canvas, lv_palette_lighten(LV_PALETTE_GREY, 3), LV_OPA_COVER); //画布填充淡灰色
    lv_canvas_draw_rect(canvas, 70, 60, 100, 70, &rect_dsc); //在画布上绘制矩形
    lv_canvas_draw_text(canvas, 40, 20, 100, &label_dsc, "Some text on text canvas"); //在画布上绘制文字
    /*Test the rotation. It requires another buffer where the original image is␣
    ,→stored.
    *So copy the current image to buffer and rotate it to the canvas*/
    static lv_color_t cbuf_tmp[CANVAS_WIDTH * CANVAS_HEIGHT]; //画布暂存数组
    memcpy(cbuf_tmp, cbuf, sizeof(cbuf_tmp)); //画布内容复制到暂存数组
    lv_img_dsc_t img; //图片描述符变量
    img.data = (void*)cbuf_tmp;
    img.header.cf = LV_IMG_CF_TRUE_COLOR;
    img.header.w = CANVAS_WIDTH;
    img.header.h = CANVAS_HEIGHT;
    lv_canvas_fill_bg(canvas, lv_palette_lighten(LV_PALETTE_GREY, 3), LV_OPA_COVER);
    lv_canvas_transform(canvas, &img, 120, LV_IMG_ZOOM_NONE, 0, 0, CANVAS_WIDTH / 2, CANVAS_HEIGHT / 2, true); //旋转120,缩小到一半显示画布内容
}

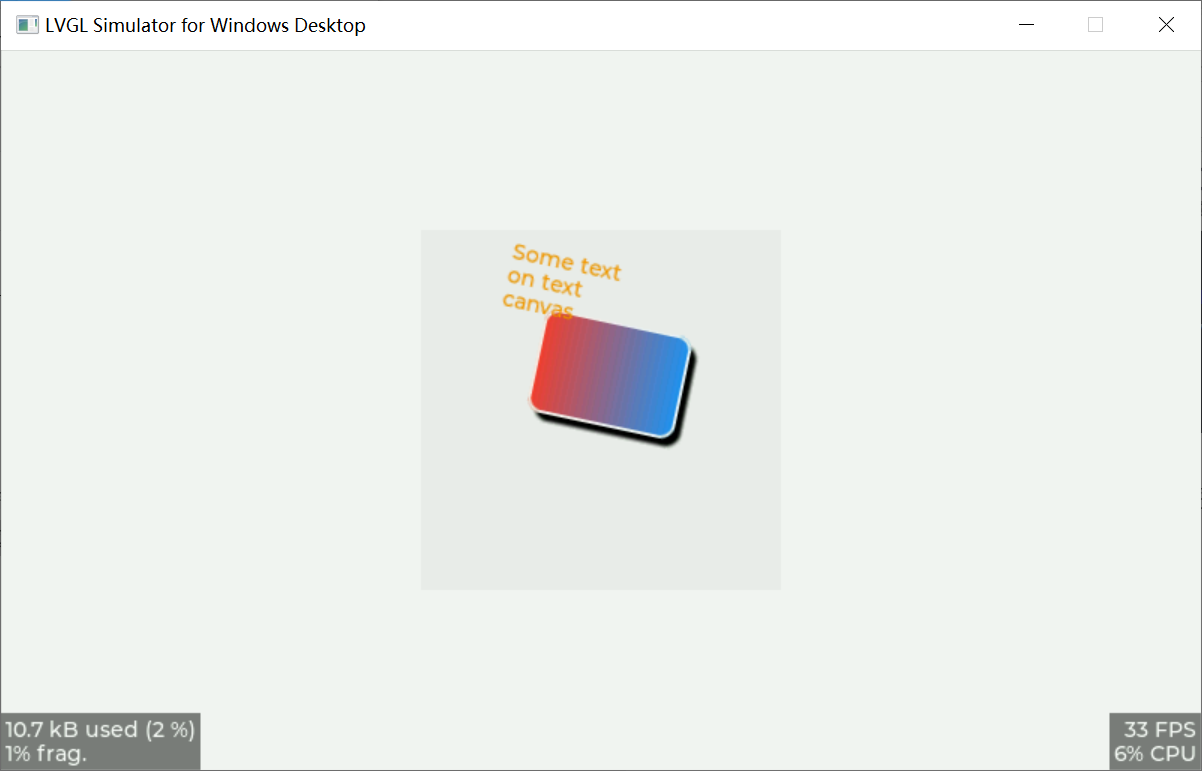

• 调用函数lv_example_canvas_1，运行效果图

Transparent Canvas with chroma keying

#define CANVAS_WIDTH 50
#define CANVAS_HEIGHT 50
/**
 * Create a transparent canvas with Chroma keying and indexed color format (palette).
*/
static void lv_example_canvas_2(void)
{
    /*Create a button to better see the transparency*/
    lv_btn_create(lv_scr_act());
    /*Create a buffer for the canvas*/
    static lv_color_t cbuf[LV_CANVAS_BUF_SIZE_INDEXED_1BIT(CANVAS_WIDTH, CANVAS_HEIGHT)]; // 存放颜色数组
    /*Create a canvas and initialize its palette*/
    lv_obj_t* canvas = lv_canvas_create(lv_scr_act()); //创建画布对象

    lv_canvas_set_buffer(canvas, cbuf, CANVAS_WIDTH, CANVAS_HEIGHT, LV_IMG_CF_INDEXED_1BIT); //将画布对象与颜色数组关联上
    lv_canvas_set_palette(canvas, 0, LV_COLOR_CHROMA_KEY);//设置id 0调色盘
    lv_canvas_set_palette(canvas, 1, lv_palette_main(LV_PALETTE_RED));//设置id 1调色盘
    /*Create colors with the indices of the palette*/
    lv_color_t c0;
    lv_color_t c1;
    c0.full = 0;
    c1.full = 1;
    /*Red background (There is no dedicated alpha channel in indexed images so LV_OPA_
    ,→COVER is ignored)*/
    lv_canvas_fill_bg(canvas, c1, LV_OPA_COVER); //填充c1调色盘颜色
    /*Create hole on the canvas*/
    uint32_t x;
    uint32_t y;
    for (y = 10; y
