RabbitMQ作为一个工业级的消息中间件,肯定是缺少不了监控的，RabbitMQ提供了WEB版的页面监控（访问地址：http://server-name:15672/，默认端口号是15672。原文：The web UI is located at: http://server-name:15672/），类似于如下：
要构建独立的监控系统，可以利用RabbitMQ提供的restful http api接口（原文：The HTTP API and its documentation are both located at: http://server-name:15672/api/ (or view our latest HTTP API documentation here).）。当然这个接口的作用远不至于调取一些监控数据，也可以通过api来操作RabbitMQ进行添加删除的操作（GET,PUT,DELETE,POST）。

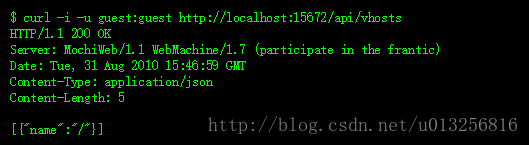

引用RabbitMQ官网的例子，比如列出所有的vhosts:

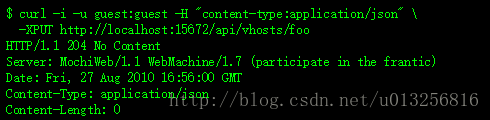

再比如创建一个新的vhost:
采用RabbitMQ提供的restful http api来做监控其实很简单，只需调用（比如HttpClient工具）：http://server-ip:15672/api/nodes即可。下面展示下博主这里的某些监控指标：broker节点的内存占用，磁盘剩余空间，Socket句柄，Broker子进程数，文件句柄数。监控示例图分别如下：
通过http://server-ip:15672/api/nodes获取到的数据如下：
[
{
"cluster_links": [
{
"peer_addr": "10.198.197.73",
"peer_port": 25672,
"sock_addr": "10.198.198.10",
"sock_port": 29226,
"stats": {
"send_bytes": 49847976,
"send_bytes_details": {
"rate": 0
},
"recv_bytes": 2714074,
"recv_bytes_details": {
"rate": 0
}
},
"name": "rabbit@zhuzhonghua2-fqawb"
}
],
"disk_free": 36541222912,
"disk_free_details": {
"rate": 0
},
"fd_used": 28,
"fd_used_details": {
"rate": 0
},
"io_read_avg_time": 0,
"io_read_avg_time_details": {
"rate": 0
},
"io_read_bytes": 3784705,
"io_read_bytes_details": {
"rate": 0
},
"io_read_count": 3,
"io_read_count_details": {
"rate": 0
},
"io_seek_avg_time": 0.054,
"io_seek_avg_time_details": {
"rate": 0
},
"io_seek_count": 4,
"io_seek_count_details": {
"rate": 0
},
"io_sync_avg_time": 0,
"io_sync_avg_time_details": {
"rate": 0
},
"io_sync_count": 2,
"io_sync_count_details": {
"rate": 0
},
"io_write_avg_time": 0,
"io_write_avg_time_details": {
"rate": 0
},
"io_write_bytes": 524,
"io_write_bytes_details": {
"rate": 0
},
"io_write_count": 2,
"io_write_count_details": {
"rate": 0
},
"mem_used": 53393008,
"mem_used_details": {
"rate": 0
},
"mnesia_disk_tx_count": 2,
"mnesia_disk_tx_count_details": {
"rate": 0
},
"mnesia_ram_tx_count": 34,
"mnesia_ram_tx_count_details": {
"rate": 0
},
"proc_used": 181,
"proc_used_details": {
"rate": 0
},
"queue_index_journal_write_count": 1,
"queue_index_journal_write_count_details": {
"rate": 0
},
"queue_index_read_count": 1,
"queue_index_read_count_details": {
"rate": 0
},
"queue_index_write_count": 1,
"queue_index_write_count_details": {
"rate": 0
},
"sockets_used": 1,
"sockets_used_details": {
"rate": 0
},
"partitions": [],
"os_pid": "795",
"fd_total": 1024,
"sockets_total": 829,
"mem_limit": 3301929779,
"mem_alarm": false,
"disk_free_limit": 50000000,
"disk_free_alarm": false,
"proc_total": 1048576,
"rates_mode": "basic",
"uptime": 100629724,
"run_queue": 0,
"processors": 4,
"exchange_types": [
{
"name": "headers",
"description": "AMQP headers exchange, as per the AMQP specification",
"enabled": true
},
{
"name": "topic",
"description": "AMQP topic exchange, as per the AMQP specification",
"enabled": true
},
{
"name": "direct",
"description": "AMQP direct exchange, as per the AMQP specification",
"enabled": true
},
{
"name": "fanout",
"description": "AMQP fanout exchange, as per the AMQP specification",
"enabled": true
}
],
"auth_mechanisms": [
{
"name": "PLAIN",
"description": "SASL PLAIN authentication mechanism",
"enabled": true
},
{
"name": "AMQPLAIN",
"description": "QPid AMQPLAIN mechanism",
"enabled": true
},
{
"name": "RABBIT-CR-DEMO",
"description": "RabbitMQ Demo challenge-response authentication mechanism",
"enabled": false
}
],
"applications": [
{
"name": "amqp_client",
"description": "RabbitMQ AMQP Client",
"version": "3.5.7"
},
{
"name": "inets",
"description": "INETS CXC 138 49",
"version": "6.3.3"
},
{
"name": "kernel",
"description": "ERTS CXC 138 10",
"version": "5.1"
},
{
"name": "mnesia",
"description": "MNESIA CXC 138 12",
"version": "4.14.1"
},
{
"name": "mochiweb",
"description": "MochiMedia Web Server",
"version": "2.7.0-rmq3.5.7-git680dba8"
},
{
"name": "os_mon",
"description": "CPO CXC 138 46",
"version": "2.4.1"
},
{
"name": "rabbit",
"description": "RabbitMQ",
"version": "3.5.7"
},
{
"name": "rabbitmq_management",
"description": "RabbitMQ Management Console",
"version": "3.5.7"
},
{
"name": "rabbitmq_management_agent",
"description": "RabbitMQ Management Agent",
"version": "3.5.7"
},
{
"name": "rabbitmq_web_dispatch",
"description": "RabbitMQ Web Dispatcher",
"version": "3.5.7"
},
{
"name": "sasl",
"description": "SASL CXC 138 11",
"version": "3.0.1"
},
{
"name": "stdlib",
"description": "ERTS CXC 138 10",
"version": "3.1"
},
{
"name": "webmachine",
"description": "webmachine",
"version": "1.10.3-rmq3.5.7-gite9359c7"
},
{
"name": "xmerl",
"description": "XML parser",
"version": "1.3.12"
}
],
"contexts": [
{
"description": "RabbitMQ Management",
"path": "/",
"port": "15672"
}
],
"log_file": "/opt/rabbitmq/sbin/../var/log/rabbitmq/rabbit@hiddenzhu-8drdc.log",
"sasl_log_file": "/opt/rabbitmq/sbin/../var/log/rabbitmq/rabbit@hiddenzhu-8drdc-sasl.log",
"db_dir": "/opt/rabbitmq/sbin/../var/lib/rabbitmq/mnesia/rabbit@hiddenzhu-8drdc",
"config_files": [
"/opt/rabbitmq/sbin/../etc/rabbitmq/rabbitmq.config (not found)"
],
"net_ticktime": 60,
"enabled_plugins": [
"rabbitmq_management"
],
"name": "rabbit@hiddenzhu-8drdc",
"type": "disc",
"running": true
},
{
"cluster_links": [
{
"peer_addr": "10.198.198.10",
"peer_port": 29226,
"sock_addr": "10.198.197.73",
"sock_port": 25672,
"stats": {
"send_bytes": 2714033,
"send_bytes_details": {
"rate": 8.2
},
"recv_bytes": 49847976,
"recv_bytes_details": {
"rate": 491.6
}
},
"name": "rabbit@hiddenzhu-8drdc"
}
],
"disk_free": 34482147328,
"disk_free_details": {
"rate": -2457.6
},
"fd_used": 36,
"fd_used_details": {
"rate": 0.4
},
"io_read_avg_time": 0,
"io_read_avg_time_details": {
"rate": 0
},
"io_read_bytes": 479585,
"io_read_bytes_details": {
"rate": 0
},
"io_read_count": 6,
"io_read_count_details": {
"rate": 0
},
"io_seek_count": 1,
"io_seek_count_details": {
"rate": 0
},
"io_sync_avg_time": 0,
"io_sync_avg_time_details": {
"rate": 0
},
"io_write_avg_time": 0,
"io_write_avg_time_details": {
"rate": 0
},
"mem_used": 44401848,
"mem_used_details": {
"rate": 7947.2
},
"mnesia_disk_tx_count": 6,
"mnesia_disk_tx_count_details": {
"rate": 0
},
"mnesia_ram_tx_count": 44,
"mnesia_ram_tx_count_details": {
"rate": 0
},
"proc_used": 194,
"proc_used_details": {
"rate": 0
},
"queue_index_read_count": 1,
"queue_index_read_count_details": {
"rate": 0
},
"sockets_used": 1,
"sockets_used_details": {
"rate": 0
},
"partitions": [],
"os_pid": "3806",
"fd_total": 1024,
"sockets_total": 829,
"mem_limit": 3301929779,
"mem_alarm": false,
"disk_free_limit": 50000000,
"disk_free_alarm": false,
"proc_total": 1048576,
"rates_mode": "basic",
"uptime": 100632422,
"run_queue": 0,
"processors": 4,
"exchange_types": [
{
"name": "headers",
"description": "AMQP headers exchange, as per the AMQP specification",
"enabled": true
},
{
"name": "topic",
"description": "AMQP topic exchange, as per the AMQP specification",
"enabled": true
},
{
"name": "direct",
"description": "AMQP direct exchange, as per the AMQP specification",
"enabled": true
},
{
"name": "fanout",
"description": "AMQP fanout exchange, as per the AMQP specification",
"enabled": true
}
],
"auth_mechanisms": [
{
"name": "PLAIN",
"description": "SASL PLAIN authentication mechanism",
"enabled": true
},
{
"name": "AMQPLAIN",
"description": "QPid AMQPLAIN mechanism",
"enabled": true
},
{
"name": "RABBIT-CR-DEMO",
"description": "RabbitMQ Demo challenge-response authentication mechanism",
"enabled": false
}
],
"applications": [
{
"name": "amqp_client",
"description": "RabbitMQ AMQP Client",
"version": "3.5.7"
},
{
"name": "inets",
"description": "INETS CXC 138 49",
"version": "6.3.3"
},
{
"name": "kernel",
"description": "ERTS CXC 138 10",
"version": "5.1"
},
{
"name": "mnesia",
"description": "MNESIA CXC 138 12",
"version": "4.14.1"
},
{
"name": "mochiweb",
"description": "MochiMedia Web Server",
"version": "2.7.0-rmq3.5.7-git680dba8"
},
{
"name": "os_mon",
"description": "CPO CXC 138 46",
"version": "2.4.1"
},
{
"name": "rabbit",
"description": "RabbitMQ",
"version": "3.5.7"
},
{
"name": "rabbitmq_management",
"description": "RabbitMQ Management Console",
"version": "3.5.7"
},
{
"name": "rabbitmq_management_agent",
"description": "RabbitMQ Management Agent",
"version": "3.5.7"
},
{
"name": "rabbitmq_web_dispatch",
"description": "RabbitMQ Web Dispatcher",
"version": "3.5.7"
},
{
"name": "sasl",
"description": "SASL CXC 138 11",
"version": "3.0.1"
},
{
"name": "stdlib",
"description": "ERTS CXC 138 10",
"version": "3.1"
},
{
"name": "webmachine",
"description": "webmachine",
"version": "1.10.3-rmq3.5.7-gite9359c7"
},
{
"name": "xmerl",
"description": "XML parser",
"version": "1.3.12"
}
],
"contexts": [
{
"description": "RabbitMQ Management",
"path": "/",
"port": "15672"
}
],
"log_file": "/opt/rabbitmq/sbin/../var/log/rabbitmq/rabbit@zhuzhonghua2-fqawb.log",
"sasl_log_file": "/opt/rabbitmq/sbin/../var/log/rabbitmq/rabbit@zhuzhonghua2-fqawb-sasl.log",
"db_dir": "/opt/rabbitmq/sbin/../var/lib/rabbitmq/mnesia/rabbit@zhuzhonghua2-fqawb",
"config_files": [
"/opt/rabbitmq/sbin/../etc/rabbitmq/rabbitmq.config (not found)"
],
"net_ticktime": 60,
"enabled_plugins": [
"rabbitmq_management"
],
"name": "rabbit@zhuzhonghua2-fqawb",
"type": "disc",
"running": true
}

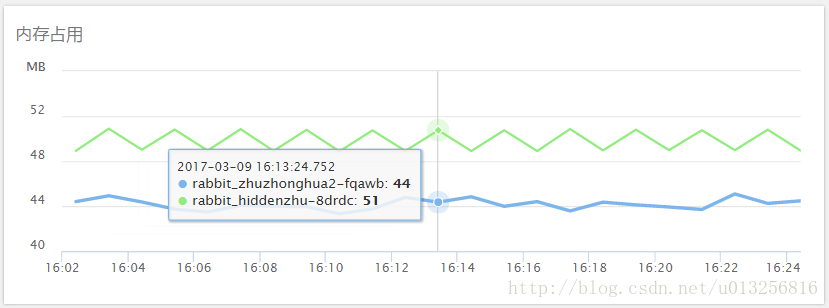

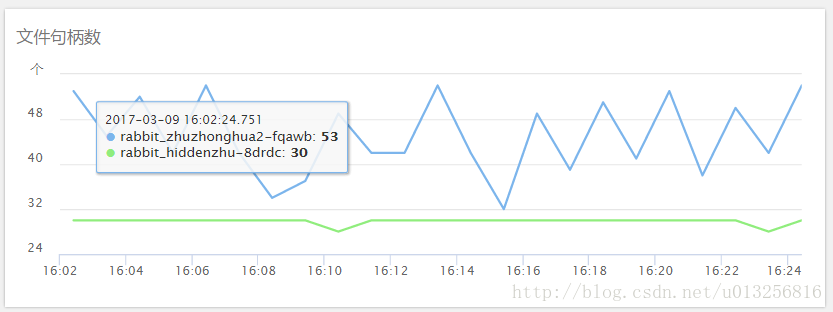

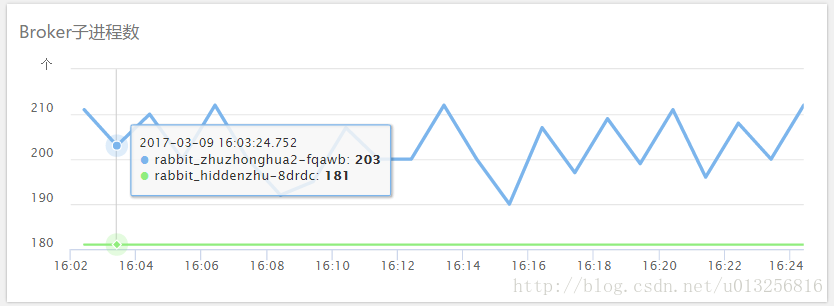

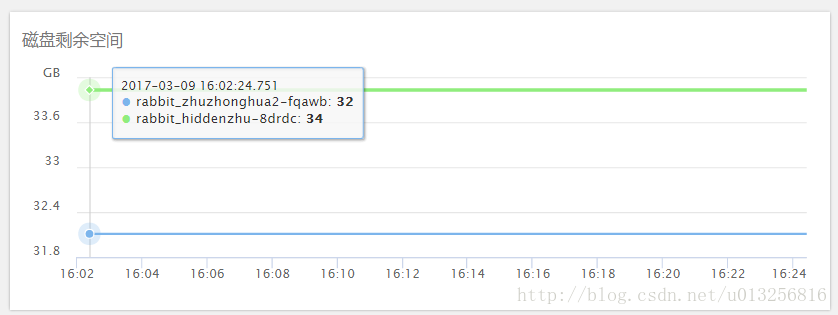

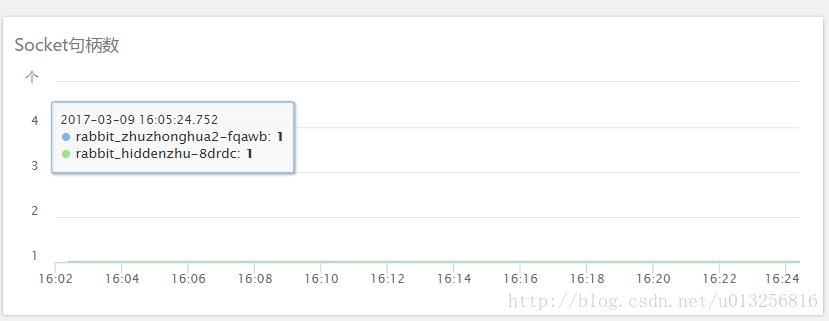

]这段json中的mem_used, disk_free, socket_used, proc_used, fd_used分别对应上面监控图中的内存占用，磁盘剩余空间，Socket句柄数，Broker子进程数以及文件句柄数。
下面是一个demo代码，主要使用HttpClient以及jackson来调用相关参数。
相关代码（有点长）：
# -*- coding: utf-8 -*-
"""
File Name rabbitmq_monitor
Created on 2018/7/4
@author: jj
RabbitMQ 监控信息
"""
from six.moves import urllib
from util.resource_base import Resource
class AdminAPI(Resource):
"""
The entrypoint for interacting with the RabbitMQ Management HTTP API
"""
def overview(self):
"""
Various random bits of information that describe the whole system
"""
return self._api_get('/api/overview')
def get_cluster_name(self):
"""
Name identifying this RabbitMQ cluster.
"""
return self._get(
url=self.url + '/api/cluster-name',
headers=self.headers,
auth=self.auth
)
def list_nodes(self):
"""
A list of nodes in the RabbitMQ cluster.
"""
return self._api_get('/api/nodes')
def get_node(self, name, memory=False, binary=False):
"""
An individual node in the RabbitMQ cluster. Set "memory=true" to get
memory statistics, and "binary=true" to get a breakdown of binary
memory use (may be expensive if there are many small binaries in the
system).
"""
return self._api_get(
url='/api/nodes/{0}'.format(name),
params=dict(
binary=binary,
memory=memory,
),
)
def list_extensions(self):
"""
A list of extensions to the management plugin.
"""
return self._api_get('/api/extensions')
def get_definitions(self):
"""
The server definitions - exchanges, queues, bindings, users, virtual
hosts, permissions and parameters. Everything apart from messages.
This method can be used for backing up the configuration of a server
or cluster.
"""
return self._api_get('/api/definitions')
def post_definitions(self, data):
"""
The server definitions - exchanges, queues, bindings, users, virtual
hosts, permissions and parameters. Everything apart from messages.
POST to upload an existing set of definitions. Note that:
- The definitions are merged. Anything already existing on the
server but not in the uploaded definitions is untouched.
- Conflicting definitions on immutable objects (exchanges, queues
and bindings) will cause an error.
- Conflicting definitions on mutable objects will cause the object
in the server to be overwritten with the object from the
definitions.
- In the event of an error you will be left with a part-applied set
of definitions.
This method can be used for restoring the configuration of a server
or cluster.
:param data: The definitions for a RabbitMQ server
:type data: dict
"""
self._api_post('/api/definitions', data=data)
def list_connections(self):
"""
A list of all open connections.
"""
return self._api_get('/api/connections')
def get_connection(self, name):
"""
An individual connection.
:param name: The connection name
:type name: str
"""
return self._api_get('/api/connections/{0}'.format(
urllib.parse.quote_plus(name)
))
def delete_connection(self, name, reason=None):
"""
Closes an individual connection. Give an optional reason
:param name: The connection name
:type name: str
:param reason: An option reason why the connection was deleted
:type reason: str
"""
headers = {'X-Reason': reason} if reason else {}
self._api_delete(
'/api/connections/{0}'.format(
urllib.parse.quote_plus(name)
),
headers=headers,
)
def list_connection_channels(self, name):
"""
List of all channels for a given connection.
:param name: The connection name
:type name: str
"""
return self._api_get('/api/connections/{0}/channels'.format(
urllib.parse.quote_plus(name)
))
def list_channels(self):
"""
A list of all open channels.
"""
return self._api_get('/api/channels')
def get_channel(self, name):
"""
Details about an individual channel.
:param name: The channel name
:type name: str
"""
return self._api_get('/api/channels/{0}'.format(
urllib.parse.quote_plus(name)
))
def list_consumers(self):
"""
A list of all consumers.
"""
return self._api_get('/api/consumers')
def list_consumers_for_vhost(self, vhost):
"""
A list of all consumers in a given virtual host.
:param vhost: The vhost name
:type vhost: str
"""
return self._api_get('/api/consumers/{0}'.format(
urllib.parse.quote_plus(vhost)
))
def list_exchanges(self):
"""
A list of all exchanges.
"""
return self._api_get('/api/exchanges')
def list_exchanges_for_vhost(self, vhost):
"""
A list of all exchanges in a given virtual host.
:param vhost: The vhost name
:type vhost: str
"""
return self._api_get('/api/exchanges/{0}'.format(
urllib.parse.quote_plus(vhost)
))
def get_exchange_for_vhost(self, exchange, vhost):
"""
An individual exchange
:param exchange: The exchange name
:type exchange: str
:param vhost: The vhost name
:type vhost: str
"""
return self._api_get('/api/exchanges/{0}/{1}'.format(
urllib.parse.quote_plus(vhost),
urllib.parse.quote_plus(exchange)
))
def create_exchange_for_vhost(self, exchange, vhost, body):
"""
Create an individual exchange.
The body should look like:
::
{
"type": "direct",
"auto_delete": false,
"durable": true,
"internal": false,
"arguments": {}
}
The type key is mandatory; other keys are optional.
:param exchange: The exchange name
:type exchange: str
:param vhost: The vhost name
:type vhost: str
:param body: A body for the exchange.
:type body: dict
"""
self._api_put(
'/api/exchanges/{0}/{1}'.format(
urllib.parse.quote_plus(vhost),
urllib.parse.quote_plus(exchange)),
data=body
)
def delete_exchange_for_vhost(self, exchange, vhost, if_unused=False):
"""
Delete an individual exchange. You can add the parameter
``if_unused=True``. This prevents the delete from succeeding if the
exchange is bound to a queue or as a source to another exchange.
:param exchange: The exchange name
:type exchange: str
:param vhost: The vhost name
:type vhost: str
:param if_unused: Set to ``True`` to only delete if it is unused
:type if_unused: bool
"""
self._api_delete(
'/api/exchanges/{0}/{1}'.format(
urllib.parse.quote_plus(vhost),
urllib.parse.quote_plus(exchange)),
params={
'if-unused': if_unused
},
)
def list_bindings(self):
"""
A list of all bindings.
"""
return self._api_get('/api/bindings')
def list_bindings_for_vhost(self, vhost):
"""
A list of all bindings in a given virtual host.
:param vhost: The vhost name
:type vhost: str
"""
return self._api_get('/api/bindings/{}'.format(
urllib.parse.quote_plus(vhost)
))
def list_vhosts(self):
"""
A list of all vhosts.
"""
return self._api_get('/api/vhosts')
def get_vhost(self, name):
"""
Details about an individual vhost.
:param name: The vhost name
:type name: str
"""
return self._api_get('/api/vhosts/{0}'.format(
urllib.parse.quote_plus(name)
))
def delete_vhost(self, name):
"""
Delete a vhost.
:param name: The vhost name
:type name: str
"""
self._api_delete('/api/vhosts/{0}'.format(
urllib.parse.quote_plus(name)
))
def create_vhost(self, name, tracing=False):
"""
Create an individual vhost.
:param name: The vhost name
:type name: str
:param tracing: Set to ``True`` to enable tracing
:type tracing: bool
"""
data = {'tracing': True} if tracing else {}
self._api_put(
'/api/vhosts/{0}'.format(urllib.parse.quote_plus(name)),
data=data,
)
def list_users(self):
"""
A list of all users.
"""
return self._api_get('/api/users')
def get_user(self, name):
"""
Details about an individual user.
:param name: The user's name
:type name: str
"""
return self._api_get('/api/users/{0}'.format(
urllib.parse.quote_plus(name)
))
def delete_user(self, name):
"""
Delete a user.
:param name: The user's name
:type name: str
"""
self._api_delete('/api/users/{0}'.format(
urllib.parse.quote_plus(name)
))
def create_user(self, name, password, password_hash=None, tags=None):
"""
Create a user
:param name: The user's name
:type name: str
:param password: The user's password. Set to "" if no password is
desired. Takes precedence if ``password_hash`` is also set.
:type password: str
:param password_hash: An optional password hash for the user.
:type password_hash: str
:param tags: A list of tags for the user. Currently recognised tags are
"administrator", "monitoring" and "management". If no tags are
supplied, the user will have no permissions.
:type tags: list of str
"""
data = {
'tags': ', '.join(tags or [])
}
if password:
data['password'] = password
elif password_hash:
data['password_hash'] = password_hash
else:
data['password_hash'] = ""
self._api_put(
'/api/users/{0}'.format(urllib.parse.quote_plus(name)),
data=data,
)
def list_user_permissions(self, name):
"""
A list of all permissions for a given user.
:param name: The user's name
:type name: str
"""
return self._api_get('/api/users/{0}/permissions'.format(
urllib.parse.quote_plus(name)
))
def whoami(self):
"""
Details of the currently authenticated user.
"""
return self._api_get('/api/whoami')
def list_permissions(self):
"""
A list of all permissions for all users.
"""
return self._api_get('/api/permissions')
def get_user_permission(self, vhost, name):
"""
An individual permission of a user and virtual host.
:param vhost: The vhost name
:type vhost: str
:param name: The user's name
:type name: str
"""
return self._api_get('/api/permissions/{0}/{1}'.format(
urllib.parse.quote_plus(vhost),
urllib.parse.quote_plus(name)
))
def delete_user_permission(self, name, vhost):
"""
Delete an individual permission of a user and virtual host.
:param name: The user's name
:type name: str
:param vhost: The vhost name
:type vhost: str
"""
self._api_delete('/api/permissions/{0}/{1}'.format(
urllib.parse.quote_plus(vhost),
urllib.parse.quote_plus(name)
))
def create_user_permission(self,
name,
vhost,
configure=None,
write=None,
read=None):
"""
Create a user permission
:param name: The user's name
:type name: str
:param vhost: The vhost to assign the permission to
:type vhost: str
:param configure: A regex for the user permission. Default is ``.*``
:type configure: str
:param write: A regex for the user permission. Default is ``.*``
:type write: str
:param read: A regex for the user permission. Default is ``.*``
:type read: str
"""
data = {
'configure': configure or '.*',
'write': write or '.*',
'read': read or '.*',
}
self._api_put(
'/api/permissions/{0}/{1}'.format(
urllib.parse.quote_plus(vhost),
urllib.parse.quote_plus(name)
),
data=data
)
def list_policies(self):
"""
A list of all policies
"""
return self._api_get('/api/policies')
def list_policies_for_vhost(self, vhost):
"""
A list of all policies for a vhost.
"""
return self._api_get('/api/policies/{0}'.format(
urllib.parse.quote_plus(vhost)
))
def get_policy_for_vhost(self, vhost, name):
"""
Get a specific policy for a vhost.
:param vhost: The virtual host the policy is for
:type vhost: str
:param name: The name of the policy
:type name: str
"""
return self._api_get('/api/policies/{0}/{1}'.format(
urllib.parse.quote_plus(vhost),
urllib.parse.quote_plus(name),
))
def create_policy_for_vhost(
self, vhost, name,
definition,
pattern=None,
priority=0,
apply_to='all'):
"""
Create a policy for a vhost.
:param vhost: The virtual host the policy is for
:type vhost: str
:param name: The name of the policy
:type name: str
:param definition: The definition of the policy. Required
:type definition: dict
:param priority: The priority of the policy. Defaults to 0
:param pattern: The pattern of resource names to apply the policy to
:type pattern: str
:type priority: int
:param apply_to: What resource type to apply the policy to.
Usually "exchanges", "queues", or "all". Defaults to "all"
:type apply_to: str
Example ::
# Makes all queues and exchanges on vhost "/" highly available
>>> api.create_policy_for_vhost(
... vhost="/",
... name="ha-all",
... definition={"ha-mode": "all"},
... pattern="",
... apply_to="all")
"""
data = {
"pattern": pattern,
"definition": definition,
"priority": priority,
"apply-to": apply_to
}
self._api_put(
'/api/policies/{0}/{1}'.format(
urllib.parse.quote_plus(vhost),
urllib.parse.quote_plus(name),
),
data=data,
)
def delete_policy_for_vhost(self, vhost, name):
"""
Delete a specific policy for a vhost.
:param vhost: The virtual host of the policy
:type vhost: str
:param name: The name of the policy
:type name: str
"""
self._api_delete('/api/policies/{0}/{1}/'.format(
urllib.parse.quote_plus(vhost),
urllib.parse.quote_plus(name),
))
def is_vhost_alive(self, vhost):
"""
Declares a test queue, then publishes and consumes a message.
Intended for use by monitoring tools.
:param vhost: The vhost name to check
:type vhost: str
"""
return self._api_get('/api/aliveness-test/{0}'.format(
urllib.parse.quote_plus(vhost)
))
