姿态估计1-06：FSA-Net(头部姿态估算)-源码无死角讲解（1）-训练代码总览

以下链接是个人关于FSA-Net(头部姿态估算) 所有见解，如有错误欢迎大家指出，我会第一时间纠正。有兴趣的朋友可以加微信：17575010159 相互讨论技术。若是帮助到了你什么，一定要记得点赞！因为这是对我最大的鼓励。 文末附带 \color{blue}{文末附带} 文末附带 公众号 − \color{blue}{公众号 -} 公众号− 海量资源。 \color{blue}{ 海量资源}。 海量资源。

姿态估计1-00：FSA-Net(头部姿态估算)-目录-史上最新无死角讲解

分析前言

我相信，大家跟到这里来，说明你以及看完论文了，既然如此，我们在来看看training_and_testing/run_fsanet_train.sh文件，这是我们训练的脚本内容如下：

.......

是的，我这里是空的，因为我觉得复制出来太臃肿，显得我的博客不够帅气，所以就不复制出来了，你看自己源码的即可。该文件可以看到如下字样的注释：

# Train on protocal 1
# SSRNET_MT
# FSANET_Capsule
# FSANET_Netvlad
# FSANET_Metric

# Train on protocal 2
# SSRNET_MT
# FSANET_Capsule
# FSANET_Netvlad
# FSANET_Metric

# Fine-tuned on BIWI with synhead pre-trained model

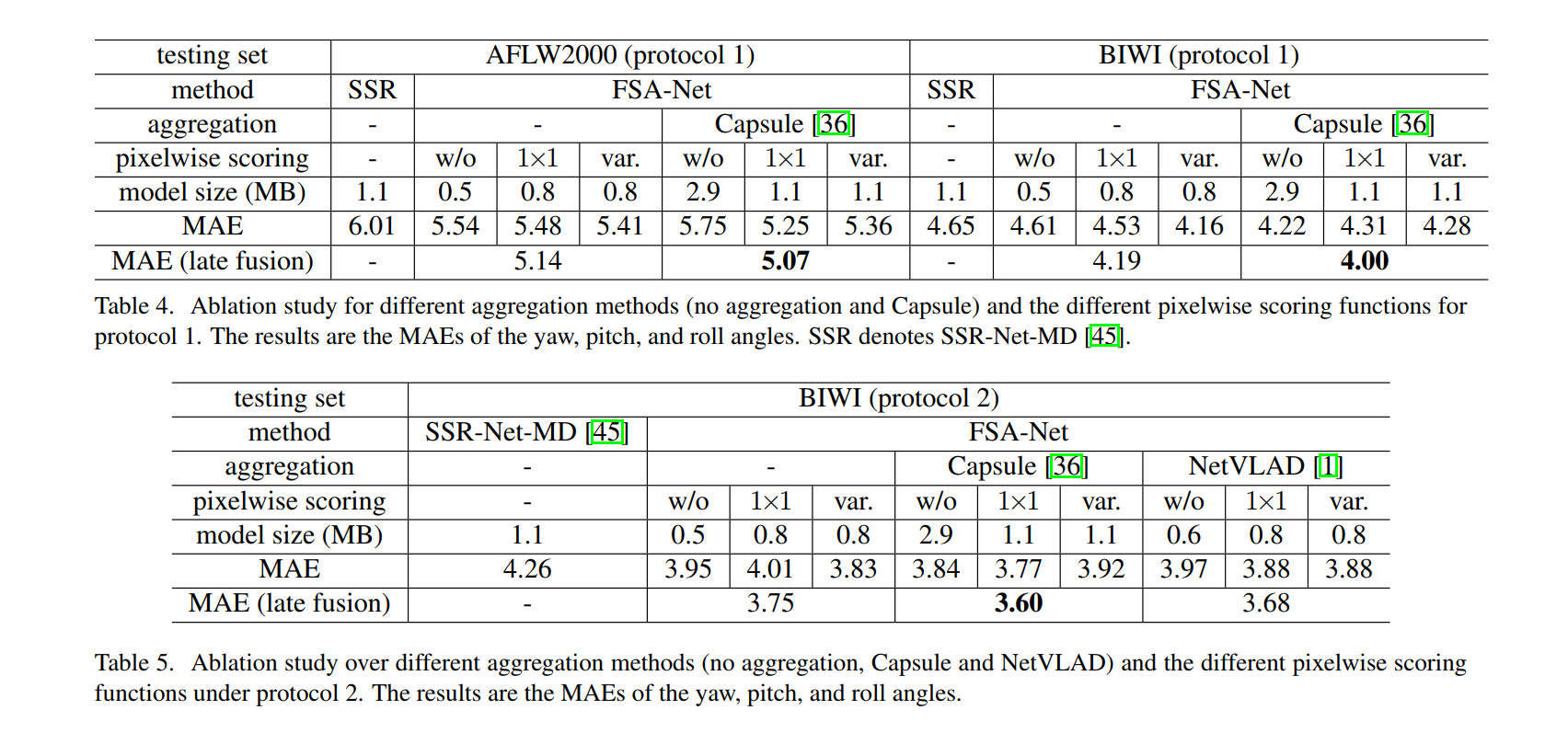

看完了论文的朋友应该就比较熟悉了，因为在论文中存在如下图示： 也就是说，作者需要执行多次训练脚本，全是为了为了完成实验的对比。那么我们在分析的时候，当然是选择效果最好的哪个进行分析。说得简单，但是现在我也没办法一眼就知道哪个效果最好，不过通过观察可以知道，他们主要的差别就是在于–model_type的参数不一样，其可以选择1到10之间。那么在分析源码的时候，着重分析其处理过程即可。

源码解析

源码注释：

import os
import sys
sys.path.append('..')
import logging
import argparse
import pandas as pd
import numpy as np

from lib.FSANET_model import *
from lib.SSRNET_model import *

import TYY_callbacks
from TYY_generators import *

from keras.utils import np_utils
from keras.utils import plot_model
from keras.optimizers import SGD, Adam
from keras.preprocessing.image import ImageDataGenerator
from keras.callbacks import LearningRateScheduler, ModelCheckpoint

logging.basicConfig(level=logging.DEBUG)

def load_data_npz(npz_path):
    d = np.load(npz_path)
    return d["image"], d["pose"]

def mk_dir(dir):
    try:
        os.mkdir( dir )
    except OSError:
        pass


def get_args():
    parser = argparse.ArgumentParser(description="This script trains the CNN model for head pose estimation.",
                                     formatter_class=argparse.ArgumentDefaultsHelpFormatter)
    parser.add_argument("--batch_size", type=int, default=16,
                        help="batch size")
    parser.add_argument("--nb_epochs", type=int, default=90,
                        help="number of epochs")
    parser.add_argument("--validation_split", type=float, default=0.2,
                        help="validation split ratio")
    parser.add_argument("--model_type", type=int, default=3,
                        help="type of model")
    parser.add_argument("--db_name", type=str, default='300W_LP',
                        help="type of model")

    args = parser.parse_args()
    return args



def main():
    # 解析并且赋值相关参数
    args = get_args()
    db_name = args.db_name
    batch_size = args.batch_size
    nb_epochs = args.nb_epochs
    validation_split = args.validation_split
    model_type = args.model_type
    image_size = 64

    logging.debug("Loading data...")

    # 如果训练的数据集为300W_LP
    if db_name == '300W_LP':
        # 获得对应的npz文件
        db_list = ['AFW.npz','AFW_Flip.npz','HELEN.npz','HELEN_Flip.npz','IBUG.npz','IBUG_Flip.npz','LFPW.npz','LFPW_Flip.npz']
        # 用于保存像素
        image = []
        # 用于保存姿态
        pose = []
        # 循环加入所有的图片像素，以及对应的姿态
        for i in range(0,len(db_list)):
            image_temp, pose_temp = load_data_npz('../data/type1/'+db_list[i])
            image.append(image_temp)
            pose.append(pose_temp)
        # 把链表转化为np数组格式.
        # 加载完数据之后为[122450, 64, 64, 3]
        image = np.concatenate(image,0)
        # 加载完数据之后为[122450, 3]
        pose = np.concatenate(pose,0)

        # 对于其角度不在[-99,99]之间的数据，全部剔除掉
        # we only care the angle between [-99,99] and filter other angles
        x_data = []
        y_data = []
        print(image.shape)
        print(pose.shape)
        for i in range(0,pose.shape[0]):
            temp_pose = pose[i,:]
            if np.max(temp_pose)=-99.0:
                x_data.append(image[i,:,:,:])
                y_data.append(pose[i,:])
        x_data = np.array(x_data)
        y_data = np.array(y_data)

        print(x_data.shape)
        print(y_data.shape)
    elif db_name == 'synhead_noBIWI':
        image, pose = load_data_npz('../data/synhead/media/jinweig/Data2/synhead2_release/synhead_noBIWI.npz')
        x_data = image
        y_data = pose
    # 如果训练的数据集为BIWI
    elif db_name == 'BIWI':
        image, pose = load_data_npz('../data/BIWI_train.npz')
        x_train = image
        y_train = pose
        image_test, pose_test = load_data_npz('../data/BIWI_test.npz')
        x_test = image_test
        y_test = pose_test
    else:
        print('db_name is wrong!!!')
        return

    # 训练到30ep和60ep会进行学习率衰减
    start_decay_epoch = [30,60]

    #优化器
    optMethod = Adam()

    # 论文中Stage的数目
    stage_num = [3,3,3]
    lambda_d = 1
    # 输出姿态为yaw, pitch, roll
    num_classes = 3

    # 是否使用最好的方法
    isFine = False

    #根据model_type参数 进行模型构建
    if model_type == 0:
        model = SSR_net_ori_MT(image_size, num_classes, stage_num, lambda_d)()
        save_name = 'ssrnet_ori_mt'

    elif model_type == 1:
        model = SSR_net_MT(image_size, num_classes, stage_num, lambda_d)()
        save_name = 'ssrnet_mt'

    elif model_type == 2:
        num_capsule = 3
        dim_capsule = 16
        routings = 2

        num_primcaps = 7*3
        m_dim = 5
        S_set = [num_capsule, dim_capsule, routings, num_primcaps, m_dim]
        str_S_set = ''.join('_'+str(x) for x in S_set)

        model = FSA_net_Capsule(image_size, num_classes, stage_num, lambda_d, S_set)()
        save_name = 'fsanet_capsule'+str_S_set

    elif model_type == 3:
        #
        num_capsule = 3
        dim_capsule = 16
        routings = 2

        num_primcaps = 7*3
        m_dim = 5
        S_set = [num_capsule, dim_capsule, routings, num_primcaps, m_dim]
        str_S_set = ''.join('_'+str(x) for x in S_set)

        model = FSA_net_Var_Capsule(image_size, num_classes, stage_num, lambda_d, S_set)()
        save_name = 'fsanet_var_capsule'+str_S_set

    elif model_type == 4:
        num_capsule = 3
        dim_capsule = 16
        routings = 2

        num_primcaps = 8*8*3
        m_dim = 5
        S_set = [num_capsule, dim_capsule, routings, num_primcaps, m_dim]
        str_S_set = ''.join('_'+str(x) for x in S_set)

        model = FSA_net_noS_Capsule(image_size, num_classes, stage_num, lambda_d, S_set)()
        save_name = 'fsanet_noS_capsule'+str_S_set

    elif model_type == 5:
        num_capsule = 3
        dim_capsule = 16
        routings = 2

        num_primcaps = 7*3
        m_dim = 5
        S_set = [num_capsule, dim_capsule, routings, num_primcaps, m_dim]
        str_S_set = ''.join('_'+str(x) for x in S_set)

        model = FSA_net_NetVLAD(image_size, num_classes, stage_num, lambda_d, S_set)()
        save_name = 'fsanet_netvlad'+str_S_set

    elif model_type == 6:
        num_capsule = 3
        dim_capsule = 16
        routings = 2

        num_primcaps = 7*3
        m_dim = 5
        S_set = [num_capsule, dim_capsule, routings, num_primcaps, m_dim]
        str_S_set = ''.join('_'+str(x) for x in S_set)

        model = FSA_net_Var_NetVLAD(image_size, num_classes, stage_num, lambda_d, S_set)()
        save_name = 'fsanet_var_netvlad'+str_S_set

    elif model_type == 7:
        num_capsule = 3
        dim_capsule = 16
        routings = 2

        num_primcaps = 8*8*3
        m_dim = 5
        S_set = [num_capsule, dim_capsule, routings, num_primcaps, m_dim]
        str_S_set = ''.join('_'+str(x) for x in S_set)

        model = FSA_net_noS_NetVLAD(image_size, num_classes, stage_num, lambda_d, S_set)()
        save_name = 'fsanet_noS_netvlad'+str_S_set

    elif model_type == 8:
        # 论文中
        num_capsule = 3

        # 论文中的c’=16
        dim_capsule = 16

        # 论文中的stream数目
        routings = 2

        # 论文中的n'=7，
        num_primcaps = 7*3

        # 论文中的m=5
        m_dim = 5

        S_set = [num_capsule, dim_capsule, routings, num_primcaps, m_dim]
        str_S_set = ''.join('_'+str(x) for x in S_set)

        model = FSA_net_Metric(image_size, num_classes, stage_num, lambda_d, S_set)()
        save_name = 'fsanet_metric'+str_S_set

    elif model_type == 9:
        num_capsule = 3
        dim_capsule = 16
        routings = 2

        num_primcaps = 7*3
        m_dim = 5
        S_set = [num_capsule, dim_capsule, routings, num_primcaps, m_dim]
        str_S_set = ''.join('_'+str(x) for x in S_set)

        model = FSA_net_Var_Metric(image_size, num_classes, stage_num, lambda_d, S_set)()
        save_name = 'fsanet_var_metric'+str_S_set
    elif model_type == 10:
        num_capsule = 3
        dim_capsule = 16
        routings = 2

        num_primcaps = 8*8*3
        m_dim = 5
        S_set = [num_capsule, dim_capsule, routings, num_primcaps, m_dim]
        str_S_set = ''.join('_'+str(x) for x in S_set)

        model = FSA_net_noS_Metric(image_size, num_classes, stage_num, lambda_d, S_set)()
        save_name = 'fsanet_noS_metric'+str_S_set



    # 指定模型的优化方法，以及loss（均值绝对误差）计算方式，
    model.compile(optimizer=optMethod, loss=["mae"],loss_weights=[1])


    logging.debug("Model summary...")
    # 计算模型参数，打印模型结构
    model.count_params()
    model.summary()

    logging.debug("Saving model...")
    # 创建必要的目录，如保存模型的路径等等
    mk_dir(db_name+"_models")
    mk_dir(db_name+"_models/"+save_name)
    mk_dir(db_name+"_checkpoints")

    # 把模型绘画成图，便于分析（总体结构）
    plot_model(model, to_file=db_name+"_models/"+save_name+"/"+save_name+".png")

    # 绘画网络模型的细致结构
    for i_L,layer in enumerate(model.layers):
        if i_L >0 and i_L
