浏览了unity2018.4.0f的lwrp，发现没有关于点光源的实现方式。
点光源就是从光源点出发延指定圆的半径开始不断进行光照衰减，超出光源的半径就没有光照的效果。（就像灯球一样）
那么我们要做自己的点光源，就需要自己识别光照类型以及半径，然后自写光照衰减来达到效果。

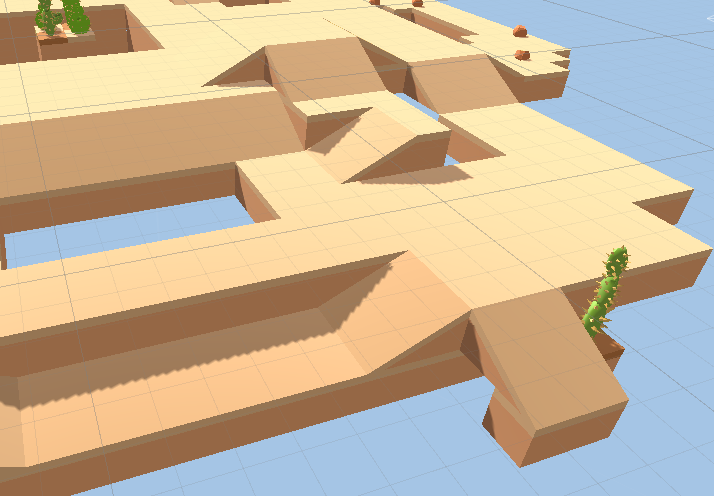

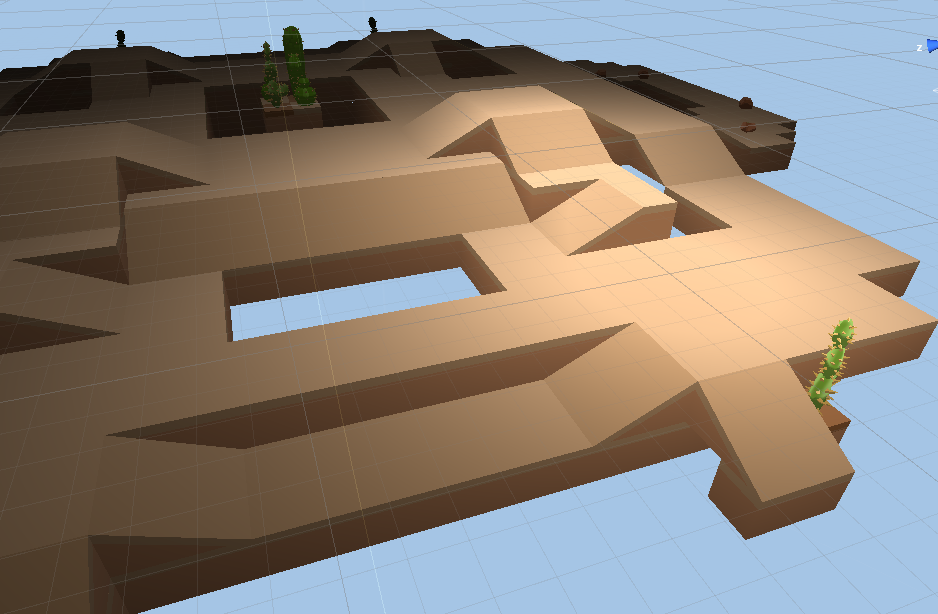

先上图看看点光源和平行光源的区别
平行光是太阳光，不会有光照衰减（虽然真实世界是有的，但我们会忽略这种情况）。点光源就是一个灯球照射效果。
优势：这个渲染方式是一个pass实现的，如果需要平行光和点光源一起实现光照，实际上也能一个pass完成，就是pass多运算一次平行光计算。
实现：
直接来看具体的算法
half3 LightingAttenuation(half3 finalColor, half3 posWorld, half3 lightPos)
{
half distance = length(posWorld - lightPos);
return finalColor / (max(1.0h, (distance * (1.0h / _MainLightRange))));
}distance计算的是自身当前的点的位置和灯光的距离
_MainLightRange是光照半径
finalColor是之前计算出来的颜色值
颜色跟距离是成反比的，距离越远则光照越弱。算法比较简单。
但lwrp中没有传入相关的参数，比如_MainLightRange和光照类型_MainLightType，那我们就得改下lwrp源码：
首先是SetupLightweightConstanstPass：
using System;
using System.Collections.Generic;
using UnityEngine.Experimental.GlobalIllumination;
using UnityEngine.Rendering;
namespace UnityEngine.Experimental.Rendering.LightweightPipeline
{
///
/// Configure the shader constants needed by the render pipeline
///
/// This pass configures constants that LWRP uses when rendering.
/// For example, you can execute this pass before you render opaque
/// objects, to make sure that lights are configured correctly.
///
public class SetupLightweightConstanstPass : ScriptableRenderPass
{
static class LightConstantBuffer
{
public static int _MainLightPosition;
public static int _MainLightColor;
public static int _MainLightRange;
public static int _MainLightType;
public static int _AdditionalLightsCount;
public static int _AdditionalLightsPosition;
public static int _AdditionalLightsColor;
public static int _AdditionalLightsAttenuation;
public static int _AdditionalLightsSpotDir;
public static int _AdditionalLightsBuffer;
}
const string k_SetupLightConstants = "Setup Light Constants";
MixedLightingSetup m_MixedLightingSetup;
Vector4 k_DefaultLightPosition = new Vector4(0.0f, 0.0f, 1.0f, 1.0f);
Vector4 k_DefaultLightColor = Color.black;
Vector4 k_DefaultLightAttenuation = new Vector4(1.0f, 0.0f, 0.0f, 1.0f);
Vector4 k_DefaultLightSpotDirection = new Vector4(0.0f, 0.0f, 1.0f, 0.0f);
float k_DefaultLightRange = 10.0f;
Vector4[] m_AdditionalLightPositions;
Vector4[] m_AdditionalLightColors;
Vector4[] m_AdditionalLightAttenuations;
Vector4[] m_AdditionalLightSpotDirections;
private int maxVisibleAdditionalLights { get; set; }
private ComputeBuffer perObjectLightIndices { get; set; }
///
/// Create the pass
///
public SetupLightweightConstanstPass()
{
LightConstantBuffer._MainLightPosition = Shader.PropertyToID("_MainLightPosition");
LightConstantBuffer._MainLightColor = Shader.PropertyToID("_MainLightColor");
LightConstantBuffer._MainLightRange = Shader.PropertyToID("_MainLightRange");
LightConstantBuffer._MainLightType = Shader.PropertyToID("_MainLightType");
LightConstantBuffer._AdditionalLightsCount = Shader.PropertyToID("_AdditionalLightsCount");
LightConstantBuffer._AdditionalLightsPosition = Shader.PropertyToID("_AdditionalLightsPosition");
LightConstantBuffer._AdditionalLightsColor = Shader.PropertyToID("_AdditionalLightsColor");
LightConstantBuffer._AdditionalLightsAttenuation = Shader.PropertyToID("_AdditionalLightsAttenuation");
LightConstantBuffer._AdditionalLightsSpotDir = Shader.PropertyToID("_AdditionalLightsSpotDir");
LightConstantBuffer._AdditionalLightsBuffer = Shader.PropertyToID("_AdditionalLightsBuffer");
m_AdditionalLightPositions = new Vector4[0];
m_AdditionalLightColors = new Vector4[0];
m_AdditionalLightAttenuations = new Vector4[0];
m_AdditionalLightSpotDirections = new Vector4[0];
}
///
/// Configure the pass
///
/// Maximum number of visible additional lights
/// Buffer holding per object light indicies
public void Setup(int maxVisibleAdditionalLights, ComputeBuffer perObjectLightIndices)
{
this.maxVisibleAdditionalLights = maxVisibleAdditionalLights;
this.perObjectLightIndices = perObjectLightIndices;
if (m_AdditionalLightColors.Length != maxVisibleAdditionalLights)
{
m_AdditionalLightPositions = new Vector4[maxVisibleAdditionalLights];
m_AdditionalLightColors = new Vector4[maxVisibleAdditionalLights];
m_AdditionalLightAttenuations = new Vector4[maxVisibleAdditionalLights];
m_AdditionalLightSpotDirections = new Vector4[maxVisibleAdditionalLights];
}
}
void InitializeLightConstants(List lights, int lightIndex, out Vector4 lightPos, out Vector4 lightColor, out Vector4 lightAttenuation, out Vector4 lightSpotDir, out float lightRange, out int lightType)
{
lightPos = k_DefaultLightPosition;
lightColor = k_DefaultLightColor;
lightAttenuation = k_DefaultLightAttenuation;
lightSpotDir = k_DefaultLightSpotDirection;
lightRange = k_DefaultLightRange;
lightType = 1;
// When no lights are visible, main light will be set to -1.
// In this case we initialize it to default values and return
if (lightIndex < 0)
return;
VisibleLight lightData = lights[lightIndex];
if (lightData.lightType == LightType.Directional)
{
Vector4 dir = -lightData.localToWorld.GetColumn(2);
lightPos = new Vector4(dir.x, dir.y, dir.z, k_DefaultLightAttenuation.w);
}
else
{
Vector4 pos = lightData.localToWorld.GetColumn(3);
lightPos = new Vector4(pos.x, pos.y, pos.z, k_DefaultLightAttenuation.w);
lightRange = lightData.range;
}
lightType = (int)lightData.lightType;
// VisibleLight.finalColor already returns color in active color space
lightColor = lightData.finalColor;
// Directional Light attenuation is initialize so distance attenuation always be 1.0
if (lightData.lightType != LightType.Directional)
{
// Light attenuation in lightweight matches the unity vanilla one.
// attenuation = 1.0 / distanceToLightSqr
// We offer two different smoothing factors.
// The smoothing factors make sure that the light intensity is zero at the light range limit.
// The first smoothing factor is a linear fade starting at 80 % of the light range.
// smoothFactor = (lightRangeSqr - distanceToLightSqr) / (lightRangeSqr - fadeStartDistanceSqr)
// We rewrite smoothFactor to be able to pre compute the constant terms below and apply the smooth factor
// with one MAD instruction
// smoothFactor = distanceSqr * (1.0 / (fadeDistanceSqr - lightRangeSqr)) + (-lightRangeSqr / (fadeDistanceSqr - lightRangeSqr)
// distanceSqr * oneOverFadeRangeSqr + lightRangeSqrOverFadeRangeSqr
// The other smoothing factor matches the one used in the Unity lightmapper but is slower than the linear one.
// smoothFactor = (1.0 - saturate((distanceSqr * 1.0 / lightrangeSqr)^2))^2
float lightRangeSqr = lightData.range * lightData.range;
float fadeStartDistanceSqr = 0.8f * 0.8f * lightRangeSqr;
float fadeRangeSqr = (fadeStartDistanceSqr - lightRangeSqr);
float oneOverFadeRangeSqr = 1.0f / fadeRangeSqr;
float lightRangeSqrOverFadeRangeSqr = -lightRangeSqr / fadeRangeSqr;
float oneOverLightRangeSqr = 1.0f / Mathf.Max(0.0001f, lightData.range * lightData.range);
// On mobile: Use the faster linear smoothing factor.
// On other devices: Use the smoothing factor that matches the GI.
lightAttenuation.x = Application.isMobilePlatform ? oneOverFadeRangeSqr : oneOverLightRangeSqr;
lightAttenuation.y = lightRangeSqrOverFadeRangeSqr;
}
if (lightData.lightType == LightType.Spot)
{
Vector4 dir = lightData.localToWorld.GetColumn(2);
lightSpotDir = new Vector4(-dir.x, -dir.y, -dir.z, 0.0f);
// Spot Attenuation with a linear falloff can be defined as
// (SdotL - cosOuterAngle) / (cosInnerAngle - cosOuterAngle)
// This can be rewritten as
// invAngleRange = 1.0 / (cosInnerAngle - cosOuterAngle)
// SdotL * invAngleRange + (-cosOuterAngle * invAngleRange)
// If we precompute the terms in a MAD instruction
float cosOuterAngle = Mathf.Cos(Mathf.Deg2Rad * lightData.spotAngle * 0.5f);
// We neeed to do a null check for particle lights
// This should be changed in the future
// Particle lights will use an inline function
float cosInnerAngle;
if (lightData.light != null)
cosInnerAngle = Mathf.Cos(LightmapperUtils.ExtractInnerCone(lightData.light) * 0.5f);
else
cosInnerAngle = Mathf.Cos((2.0f * Mathf.Atan(Mathf.Tan(lightData.spotAngle * 0.5f * Mathf.Deg2Rad) * (64.0f - 18.0f) / 64.0f)) * 0.5f);
float smoothAngleRange = Mathf.Max(0.001f, cosInnerAngle - cosOuterAngle);
float invAngleRange = 1.0f / smoothAngleRange;
float add = -cosOuterAngle * invAngleRange;
lightAttenuation.z = invAngleRange;
lightAttenuation.w = add;
}
Light light = lightData.light;
// TODO: Add support to shadow mask
if (light != null && light.bakingOutput.mixedLightingMode == MixedLightingMode.Subtractive && light.bakingOutput.lightmapBakeType == LightmapBakeType.Mixed)
{
if (m_MixedLightingSetup == MixedLightingSetup.None && lightData.light.shadows != LightShadows.None)
{
m_MixedLightingSetup = MixedLightingSetup.Subtractive;
// In subtractive light mode, main light direct contribution is baked on lightmap
// In this case we setup light position w component as 0.0f so we can remove it's contribution
// from realtime light computation
if (lightData.lightType == LightType.Directional)
lightPos.w = 0.0f;
}
}
}
void SetupShaderLightConstants(CommandBuffer cmd, ref LightData lightData)
{
float lightRange = 0;
int lightType = 1;
// Clear to default all light constant data
for (int i = 0; i < maxVisibleAdditionalLights; ++i)
InitializeLightConstants(lightData.visibleLights, -1, out m_AdditionalLightPositions[i],
out m_AdditionalLightColors[i],
out m_AdditionalLightAttenuations[i],
out m_AdditionalLightSpotDirections[i],
out lightRange,
out lightType);
m_MixedLightingSetup = MixedLightingSetup.None;
// Main light has an optimized shader path for main light. This will benefit games that only care about a single light.
// Lightweight pipeline also supports only a single shadow light, if available it will be the main light.
SetupMainLightConstants(cmd, ref lightData);
SetupAdditionalLightConstants(cmd, ref lightData);
}
void SetupMainLightConstants(CommandBuffer cmd, ref LightData lightData)
{
Vector4 lightPos, lightColor, lightAttenuation, lightSpotDir;
float lightRange = 0.0f;
int lightType = 1;
InitializeLightConstants(lightData.visibleLights, lightData.mainLightIndex, out lightPos, out lightColor, out lightAttenuation, out lightSpotDir,
out lightRange, out lightType);
cmd.SetGlobalVector(LightConstantBuffer._MainLightPosition, lightPos);
cmd.SetGlobalVector(LightConstantBuffer._MainLightColor, lightColor);
cmd.SetGlobalFloat(LightConstantBuffer._MainLightRange, lightRange);
cmd.SetGlobalInt(LightConstantBuffer._MainLightType, lightType);
}
void SetupAdditionalLightConstants(CommandBuffer cmd, ref LightData lightData)
{
List lights = lightData.visibleLights;
if (lightData.additionalLightsCount > 0)
{
int additionalLightsCount = 0;
for (int i = 0; i < lights.Count && additionalLightsCount < maxVisibleAdditionalLights; ++i)
{
VisibleLight light = lights[i];
if (light.lightType != LightType.Directional)
{
float lightRange = 0.0f;
int lightType = 1;
InitializeLightConstants(lights, i, out m_AdditionalLightPositions[additionalLightsCount],
out m_AdditionalLightColors[additionalLightsCount],
out m_AdditionalLightAttenuations[additionalLightsCount],
out m_AdditionalLightSpotDirections[additionalLightsCount],
out lightRange,
out lightType);
additionalLightsCount++;
}
}
cmd.SetGlobalVector(LightConstantBuffer._AdditionalLightsCount, new Vector4(lightData.maxPerObjectAdditionalLightsCount,
0.0f, 0.0f, 0.0f));
// if not using a compute buffer, engine will set indices in 2 vec4 constants
// unity_4LightIndices0 and unity_4LightIndices1
if (perObjectLightIndices != null)
cmd.SetGlobalBuffer(LightConstantBuffer._AdditionalLightsBuffer, perObjectLightIndices);
}
else
{
cmd.SetGlobalVector(LightConstantBuffer._AdditionalLightsCount, Vector4.zero);
}
cmd.SetGlobalVectorArray(LightConstantBuffer._AdditionalLightsPosition, m_AdditionalLightPositions);
cmd.SetGlobalVectorArray(LightConstantBuffer._AdditionalLightsColor, m_AdditionalLightColors);
cmd.SetGlobalVectorArray(LightConstantBuffer._AdditionalLightsAttenuation, m_AdditionalLightAttenuations);
cmd.SetGlobalVectorArray(LightConstantBuffer._AdditionalLightsSpotDir, m_AdditionalLightSpotDirections);
}
///
public override void Execute(ScriptableRenderer renderer, ScriptableRenderContext context, ref RenderingData renderingData)
{
if (renderer == null)
throw new ArgumentNullException("renderer");
int additionalLightsCount = renderingData.lightData.additionalLightsCount;
bool additionalLightsPerVertex = renderingData.lightData.shadeAdditionalLightsPerVertex;
CommandBuffer cmd = CommandBufferPool.Get(k_SetupLightConstants);
SetupShaderLightConstants(cmd, ref renderingData.lightData);
CoreUtils.SetKeyword(cmd, ShaderKeywordStrings.AdditionalLightsVertex, additionalLightsCount > 0 && additionalLightsPerVertex);
CoreUtils.SetKeyword(cmd, ShaderKeywordStrings.AdditionalLightsPixel, additionalLightsCount > 0 && !additionalLightsPerVertex);
CoreUtils.SetKeyword(cmd, ShaderKeywordStrings.MixedLightingSubtractive, renderingData.lightData.supportsMixedLighting && m_MixedLightingSetup == MixedLightingSetup.Subtractive);
context.ExecuteCommandBuffer(cmd);
CommandBufferPool.Release(cmd);
}
}
}
然后是LightweightRenderPipeline，因为在GetMainLight这里有个判断
如果有这个代码我们就没办法获取到索引，自然设置不了其他光源，需要去掉判断。
然后就能得到相关得点光源效果了
