SpringMVC源码剖析-SpringMVC执行流程

墨家巨子@俏如来 发布时间：2021-12-28 09:10:56 ，浏览量：0

前言

上一篇文章写得是SpringMVC组件初始化，这篇文章我们来探讨一下SpringMVC的执行流程

SpringMVC执行流程

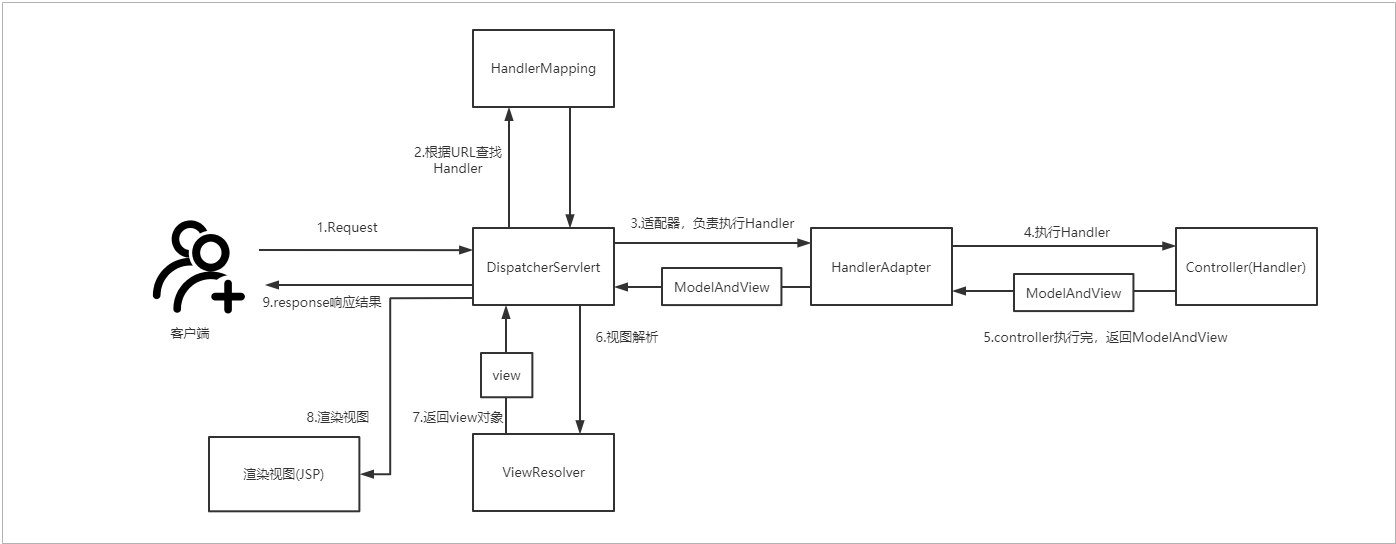

SpringMVC执行流程几乎是在面试时面试官对SpringMVC部分的必问之题，下面是SpirngMVC的执行原理图 在这里插入图片描述 这个是请求在SpringMVC的执行流程

  1. DispatcherServlet：请求打过来由DispatcherServlet处理，它是 SpringMVC 中的前端控制器(中央控制器), 负责接收 Request 并将 Request 转发给对应的处理组件
  2. HandlerMapping：HandlerMapping 维护了 url 和 Controller(Handler)的 映 射关系 。 DispatcherServlet 接 收 请求, 然 后 从 HandlerMapping 查找处理请求的Controller(Handler)，标注了@RequestMapping 的每个 method 都可以看成是一个 Handler，HandlerMapping 在请求到达之后， 它的作用便是找到请求相应的处理器 Handler 和 Interceptors。
  3. HandlerAdapter：SpringMVC通过HandlerAdapter对Handler进行执行，这是适配器模式的应用，通过扩展适配器可以对更多类型的处理器进行执行。它的作用就是按照特定的规则去执行 Controller (Handler)
  4. Handler : Controller (Handler)负责处理请求，Controller 执行后并返回 ModelAndView 对象，其中包括了数据模型和逻辑视图,ModelAndView 是封装结果 视图的组件。Handler把结果返回给HandlerAdapter，HandlerAdapter把结果返回给DispatcherServlet前端控制器。
  5. ViewResolver：DispatcherServlet收到ModelAndView,调用视图解析器(ViewResolver)来解析HandlerAdapter传递的ModelAndView。Handler执行完成后返回的是逻辑视图，也就是视图名字，一个String ，还有一个Model就是数据模型，封装成ModelAndView。ViewResolver视图解析的作用就是根据视图名，把本地模板文件(比如：xx.jsp;xx.ftl)解析为View视图对象。View用来渲染视图，也就是负责把Handler返回的数据模型model,填充到模板(jsp;ftl)形成html格式的静态内容。
  6. 最后就是把生成的html通过response写给浏览器，浏览器进行html渲染展示。
核心类认识

开始之前先来认识几个对象，否则下面会晕菜

HandlerMethod ：是的controller中方法的封装，其中包括在Controller的Bean对象以及Method方法对象

public class HandlerMethod {

	/** Logger that is available to subclasses */
	protected final Log logger = LogFactory.getLog(HandlerMethod.class);

	private final Object bean;	//controller对应的bean

	private final Method method;	//方法对象

	private final BeanFactory beanFactory;

	private final MethodParameter[] parameters;

	private final Method bridgedMethod;

MappedInterceptor ：对拦截器的封装

public final class MappedInterceptor {

	private final String[] includePatterns;

	private final String[] excludePatterns; //排除

	private final HandlerInterceptor interceptor; //拦截器

RequestMappingInfo : 对@Controller和@RequestMapping注解的类的方法进行解析，然后把解析的结果封装成RequestMappingInfo ， 对象中包含了针对@RequestMapping注解的6个属性的匹配条件，DispaterServlet需要根据找到请求匹配的Handler就需要满足6个匹配条件。

  • PatternsRequestCondition ：模式请求路径过滤器 ，根据request请求路径进行匹配
  • RequestMethodsRequestCondition ： 请求方法过滤器，根据request请求方式进行匹配
  • ParamsRequestCondition ：请求参数过滤器，根据请求的参数进行匹配
  • HeadersRequestCondition ： 请求过滤器 ，根据请求头进行匹配
  • ConsumesRequestCondition ：根据 筛选出同请求Accpet匹配的媒体类型表达式列表
  • ProducesRequestCondition ：应答媒体类型过滤器，根据请求Content-Type媒体类型进行匹配
  • RequestCondition (optional, custom request condition)
public final class RequestMappingInfo implements RequestCondition {
	//根据url进行匹配
	private final PatternsRequestCondition patternsCondition;
	//方法匹配条件
	private final RequestMethodsRequestCondition methodsCondition;
	//请求参数过滤器，参数匹配条件
	private final ParamsRequestCondition paramsCondition;
	//头字段过滤器，请求头匹配条件
	private final HeadersRequestCondition headersCondition;
   //Consumes匹配条件
	private final ConsumesRequestCondition consumesCondition;
   // Produces匹配条件
	private final ProducesRequestCondition producesCondition;
DispatchServlet执行流程

DispatchServlet是一个Servlet，请求进来会执行 DispatcherServlet#doService 方法

protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
		...省略...

		// Make framework objects available to handlers and view objects.
		//把容器对象设置到request
		request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, getWebApplicationContext());
		//把localeResolver设置给request
		request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
		//把themeResolver设置给request
		request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
		request.setAttribute(THEME_SOURCE_ATTRIBUTE, getThemeSource());

		FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
		if (inputFlashMap != null) {
			request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
		}
		//设置flashMapManager
		request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
		request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);

		try {
			//执行请求分发
			doDispatch(request, response);
		}
		finally {
			if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
				return;
			}
			// Restore the original attribute snapshot, in case of an include.
			if (attributesSnapshot != null) {
				restoreAttributesAfterInclude(request, attributesSnapshot);
			}
		}
	}

DispatcherServlet#doService调用了DispatcherServlet#doDispatch 做请求处理

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;
		//管理异步请求
		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
			    //1.检查是否是Multipart文件上传
				processedRequest = checkMultipart(request);
				multipartRequestParsed = processedRequest != request;

				// Determine handler for the current request.
				//2.遍历所有 handlerMappings 找到当前请求对应的handler，
				//比如：RequestMappingHandlerMapping 中维护了一个LinkedHashMap类型的handlerMethods，
				//是对HandlerMethod的存储。底层根据URL从handlerMethods匹配一个HandlerMethod，
				//然后把HandlerMethod封装到一个HandlerExecutionChain中
				//HandlerMethod是对controller方法method的封装，
				//这里拿到的是HandlerExecutionChain handler执行链，其中封装了Handler和inteceptor
				mappedHandler = getHandler(processedRequest, false);
				if (mappedHandler == null || mappedHandler.getHandler() == null) {
					//如果没找到会走404
					noHandlerFound(processedRequest, response);
					return;
				}

				// Determine handler adapter for the current request.
				//3.从handlerAdapters中循环，找到支持handler的，处理请求适配器HandlerAdapter(如：RequestMappingHandlerAdapter)
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				// Process last-modified header, if supported by the handler.
				//处理lastModified
				String method = request.getMethod();
				boolean isGet = "GET".equals(method);
				if (isGet || "HEAD".equals(method)) {
					long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
					if (logger.isDebugEnabled()) {
						String requestUri = urlPathHelper.getRequestUri(request);
						logger.debug("Last-Modified value for [" + requestUri + "] is: " + lastModified);
					}
					if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
						return;
					}
				}
				//4.调用拦截器的preHandle
				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				try {
					// Actually invoke the handler.
					//5.调用 HandlerAdapter 实际执行handler,返回ModelAndView
					mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
				}
				finally {
					if (asyncManager.isConcurrentHandlingStarted()) {
						return;
					}
				}
				//6.处理默认的视图名，如果mv != null && !mv.hasView()
				//就会使用RequestToViewNameTranslator#getViewName解析一个默认的view
				applyDefaultViewName(request, mv);
				//7.调用拦截器的postHandle
				mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			//8.处理结果，内部会使用viewResolver.resolveViewName渲染视图得到View对象
			//然后执行：View#render方法渲染
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
		catch (Exception ex) {
			triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
		}
		catch (Error err) {
			triggerAfterCompletionWithError(processedRequest, response, mappedHandler, err);
		}
		finally {
			if (asyncManager.isConcurrentHandlingStarted()) {
				// Instead of postHandle and afterCompletion
				mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
				return;
			}
			// Clean up any resources used by a multipart request.
			if (multipartRequestParsed) {
				cleanupMultipart(processedRequest);
			}
		}
	}

这里对核心方法做一个解释

查找HandlerMethod

getHandler 方法：该方法是遍历所有 handlerMappings ，找到合适的HandlerMapping，然后通过HandlerMapping#getHandler查找当前请求对应的HandlerMethod。(HandlerMethod是对controller中方法的封装),这里拿到的是HandlerExecutionChain 执行链而不是HandlerMethod，HandlerExecutionChain中封装了HandlerMethod和inteceptor拦截器；见：org.springframework.web.servlet.DispatcherServlet#getHandler(javax.servlet.http.HttpServletRequest)


protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
		for (HandlerMapping hm : this.handlerMappings) {
			if (logger.isTraceEnabled()) {
				logger.trace(
						"Testing handler map [" + hm + "] in DispatcherServlet with name '" + getServletName() + "'");
			}
			//使用HandlerMapping 获取处理请求的Handler,封装到HandlerExecutionChain执行链对象中
			//HandlerExecutionChain包括了HandlerMethod和interceptor拦截器
			HandlerExecutionChain handler = hm.getHandler(request);
			if (handler != null) {
				return handler;
			}
		}
		return null;
	}

  public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
  		//找到Handler
		Object handler = getHandlerInternal(request);
		if (handler == null) {
			handler = getDefaultHandler();
		}
		if (handler == null) {
			return null;
		}
		// Bean name or resolved handler?
		if (handler instanceof String) {
			String handlerName = (String) handler;
			handler = getApplicationContext().getBean(handlerName);
		}
		//把handler封装成HandlerExecutionChain ，其中还包括了拦截器的封装
		return getHandlerExecutionChain(handler, request);
	}

	protected HandlerExecutionChain getHandlerExecutionChain(Object handler, HttpServletRequest request) {
		//创建一个Handler执行链对象
		HandlerExecutionChain chain =
			(handler instanceof HandlerExecutionChain) ?
				(HandlerExecutionChain) handler : new HandlerExecutionChain(handler);
		//添加拦截器到HandlerExecutionChain
		chain.addInterceptors(getAdaptedInterceptors());

		String lookupPath = urlPathHelper.getLookupPathForRequest(request);
		for (MappedInterceptor mappedInterceptor : mappedInterceptors) {
			if (mappedInterceptor.matches(lookupPath, pathMatcher)) {
				chain.addInterceptor(mappedInterceptor.getInterceptor());
			}
		}

		return chain;
	}

getHandler方法最终会走到org.springframework.web.servlet.handler.AbstractHandlerMethodMapping#getHandlerInternal ，该方法就是根据request查找一个HandlerMethod

protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
		//拿到请求的路径
		String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
		if (logger.isDebugEnabled()) {
			logger.debug("Looking up handler method for path " + lookupPath);
		}
		//根据请求路径，找到匹配的HandlerMethod
		HandlerMethod handlerMethod = lookupHandlerMethod(lookupPath, request);

		if (logger.isDebugEnabled()) {
			if (handlerMethod != null) {
				logger.debug("Returning handler method [" + handlerMethod + "]");
			}
			else {
				logger.debug("Did not find handler method for [" + lookupPath + "]");
			}
		}

		return (handlerMethod != null) ? handlerMethod.createWithResolvedBean() : null;
	}

这里在拿到请求的路径，根据请求路径，找到匹配的HandlerMethod，再往里面走

protected HandlerMethod lookupHandlerMethod(String lookupPath, HttpServletRequest request) throws Exception {
		//matches是requestMppingInfo和HandlerMethod的匹配器集合
		List matches = new ArrayList();
		//根据请求的路径，从 this.urlMap中拿到RequestMappingInfo,
		//urlMap 是一个LinkedHashMap，存储了Url路径和RequestMappingInfo的映射关系
		List directPathMatches = this.urlMap.get(lookupPath);
		if (directPathMatches != null) {
			addMatchingMappings(directPathMatches, matches, request);
		}

		if (matches.isEmpty()) {
			// No choice but to go through all mappings
			//如果从urlMap中没有找到RequestMappingInfo，那么matches就是空的
			//根据Request对象封装一个requestMppingInfo，然后handlerMethods的keySet中拿到对应的HandlerMethod，(会根据Request中的URL,请求方式，参数params，请求头headers，consumes，produces去匹配handlerMethods.keySet中的requestMppingInfo)
			//然后从handlerMethods根据requestMppingInfo拿到HandlerMethod
			//把requestMppingInfo和HandlerMethod封装成Match添加到matches中
			addMatchingMappings(this.handlerMethods.keySet(), matches, request);
		}

		if (!matches.isEmpty()) {
			Comparator comparator = new MatchComparator(getMappingComparator(request));
			Collections.sort(matches, comparator);

			if (logger.isTraceEnabled()) {
				logger.trace("Found " + matches.size() + " matching mapping(s) for [" + lookupPath + "] : " + matches);
			}

			Match bestMatch = matches.get(0);
			if (matches.size() > 1) {
				Match secondBestMatch = matches.get(1);
				if (comparator.compare(bestMatch, secondBestMatch) == 0) {
					Method m1 = bestMatch.handlerMethod.getMethod();
					Method m2 = secondBestMatch.handlerMethod.getMethod();
					throw new IllegalStateException(
							"Ambiguous handler methods mapped for HTTP path '" + request.getRequestURL() + "': {" +
							m1 + ", " + m2 + "}");
				}
			}

			handleMatch(bestMatch.mapping, lookupPath, request);
			//从bestMatch拿到Handler
			return bestMatch.handlerMethod;
		}
		else {
			return handleNoMatch(handlerMethods.keySet(), lookupPath, request);
		}
	}

这里出现了两个集合，urlMap 和 handlerMethods ，urlMap 存储的是url和RequestMappingInfo的映射关系，handlerMethods 存储的是RequestMappingInfo和HandlerMethod的关系。

这里的代码比较复杂，先是从 urlMap中根据url拿到RequestMappingInfo集合然后，如果没获取到即：matches.isEmpty()就会调用addMatchingMappings去处理，有兴趣自己去断点一下，该方法的大致流程如下

  1. 根据request中的url，method，参数params，请求头headers，consumes，produces去创建一个requestMppingInfo
  2. 然后根据requestMppingInfo为key从handlerMethods拿到HandlerMethod封装成Match 对象添加到matches集合中
  3. 从Match 中拿到当前请求对应的HandlerMethod

那么这里的handlerMethods和urlMap 是哪儿来的？

以：RequestMappingHandlerMapping为例在其父类AbstractHandlerMethodMapping中维护了一个 Map handlerMethods = new LinkedHashMap()该集合中装的就是RequestMappingInfo和HandlerMethod的映射关系，RequestMappingInfo是的RequstMapping的封装，HandlerMethod是对Conroller中方法的封装。初始化流程如下

  1. AbstractHandlerMethodMapping它实现了InitializingBean接口，在RequestMappingHandlerMapping初始化的使用会触发AbstractHandlerMethodMapping#afterPropertiesSet方法
  2. 该方法中会调用AbstractHandlerMethodMapping#initHandlerMethods 初始化HandlerMethod， 其实就是从容器中拿到所有标识了@Controller或者@RequestMapping注解的Bean，也就是controller,然后拿到其中的所有method封装成HandlerMethod对象,然后再拿到method上RequestMapping信息封装成RquestMappingInfo对象，再把RquestMappingInfo和HandlerMethod以前者为key,后置为value注册到handlerMethods集合中。
  3. 把Url路径和RequestMappingInfo的映射关系存储到AbstractHandlerMethodMapping类中的 MultiValueMap urlMap = new LinkedMultiValueMap()集合中

这个是在MappingHandlerMapping初始化的时候就把HandlerMethod封装好存储在了handlerMethods 集合中，当请求过来就根据Request去匹配一个RequestMappingInfo，然后再找到对应的HandlerMethod返回。

查找HandlerAdapter

查找HandlerAdapter在org.springframework.web.servlet.DispatcherServlet#getHandlerAdapter中,

protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
		for (HandlerAdapter ha : this.handlerAdapters) {
			if (logger.isTraceEnabled()) {
				logger.trace("Testing handler adapter [" + ha + "]");
			}
			if (ha.supports(handler)) {
				return ha;
			}
		}
		throw new ServletException("No adapter for handler [" + handler +
				"]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
	}

// org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter#supports
	public final boolean supports(Object handler) {
		return handler instanceof HandlerMethod && supportsInternal((HandlerMethod) handler);
	}

从handlerAdapters循环所有的HandlerAdapter，调用supports方法判断是否支持该Handler,如果支持就返回HandlerAdapter

调用拦截器的preHandle

代码在org.springframework.web.servlet.HandlerExecutionChain#applyPreHandle方法中,在HandlerExecutionChain维护了一个HandlerInterceptor[] interceptors，存储了所有的拦截器。源码如下

public class HandlerExecutionChain {

	private static final Log logger = LogFactory.getLog(HandlerExecutionChain.class);

	private final Object handler;
	//拦截器数组
	private HandlerInterceptor[] interceptors;
	...省略...

	boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
		if (getInterceptors() != null) {
			for (int i = 0; i
关注
打赏
1651329177
查看更多评论

最近更新

热门博客

[ 申请 ]友情链接：

ClashX教程 绘画宝宝 配音宝宝
0.0508s
