微服务架构编码构建
一、微服务
2.2 父工程POM
微服务架构是一种架构模式，它提倡将单一应用程序划分成一组小的服务，服务之间互相协调、互相配合，为用户提供最终价值。每个服务运行在其独立的进程中，服务与服务间采用轻量级的通信机制互相协作（通常是基于HTTP协议的RESTful API）。每个服务都围绕着具体业务进行构建，并且能够被独立的部署到生产环境、类生产环境等。另外，应当尽量避免统一的、集中式的服务管理机制，对具体的一个服务而言，应根据业务上下文，选择合适的语言、工具对其进行构建。
二、IDEA新建project工作空间 2.1 微服务cloud整体聚合工程父工程步骤

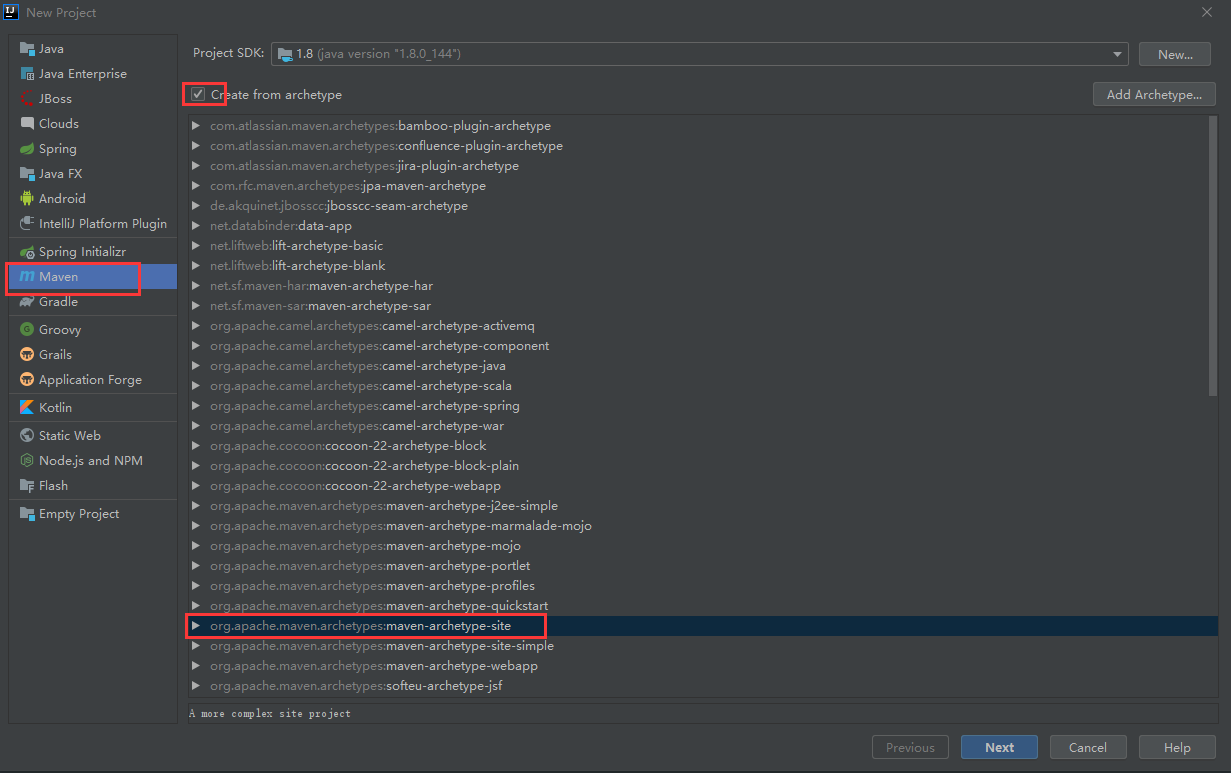

1.NewProject

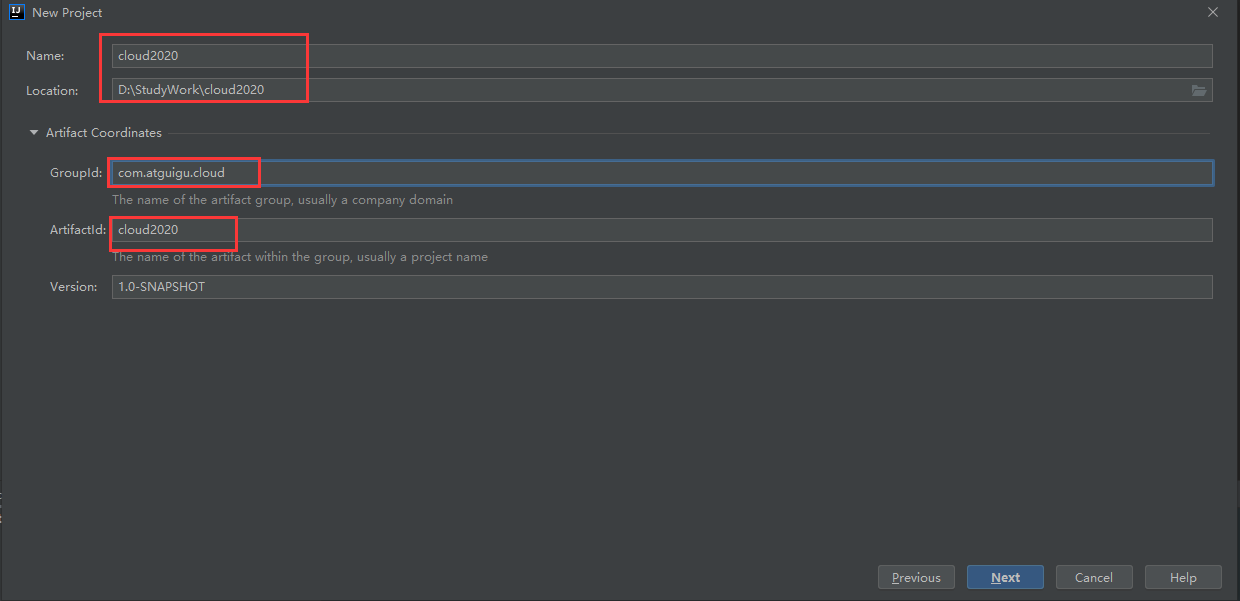

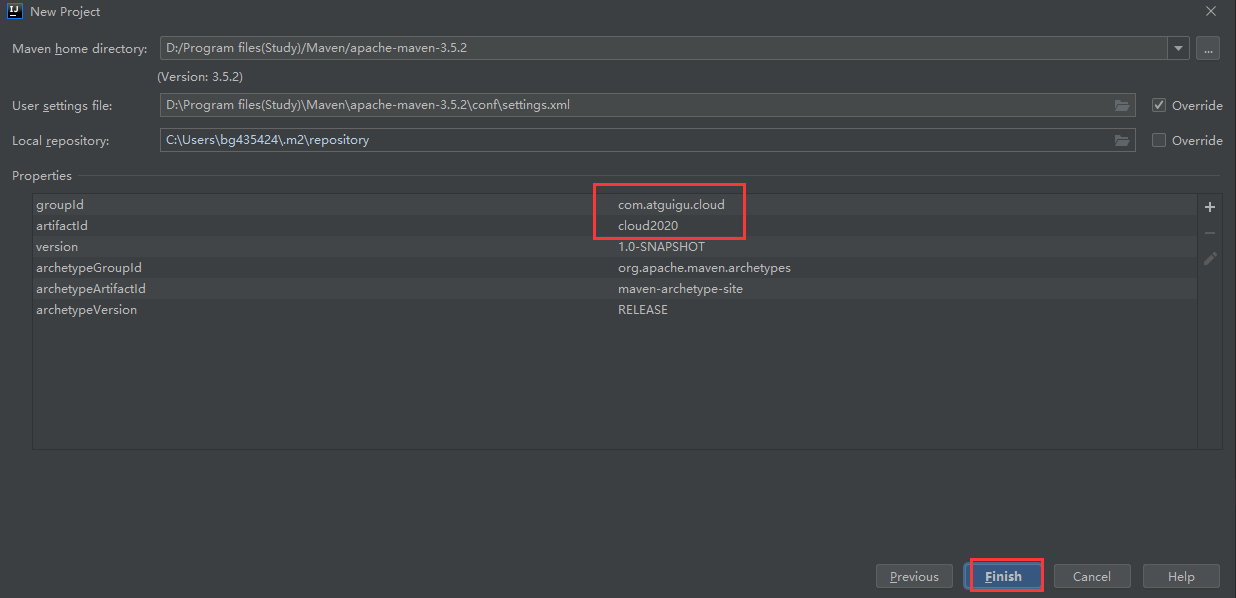

2.聚合总父工程名字

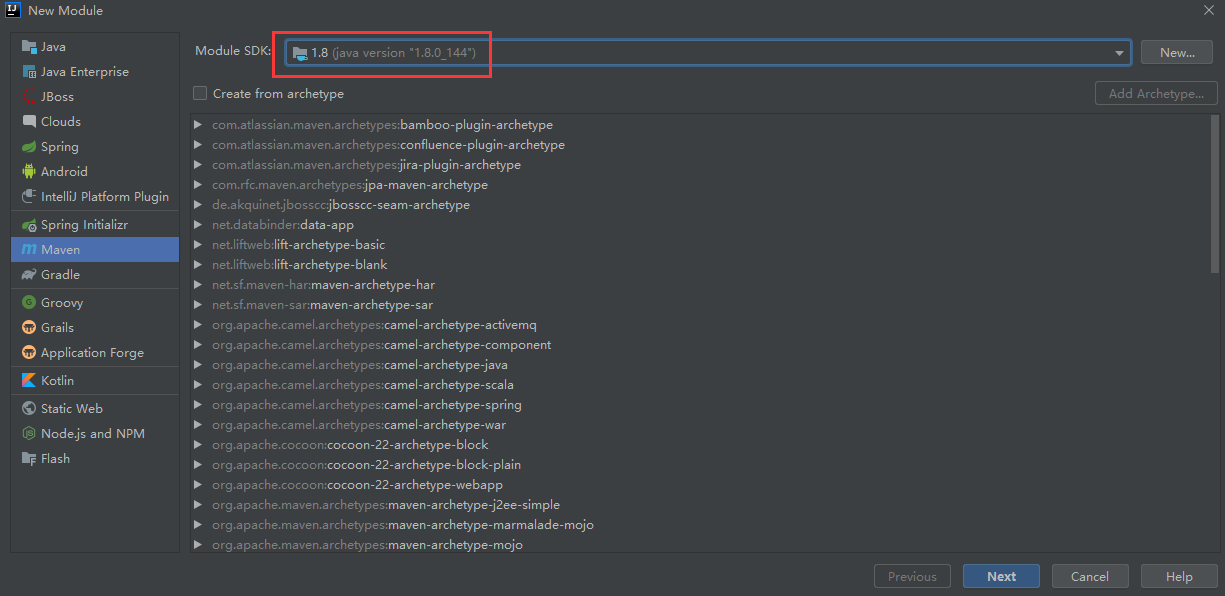

3.Maven选版本

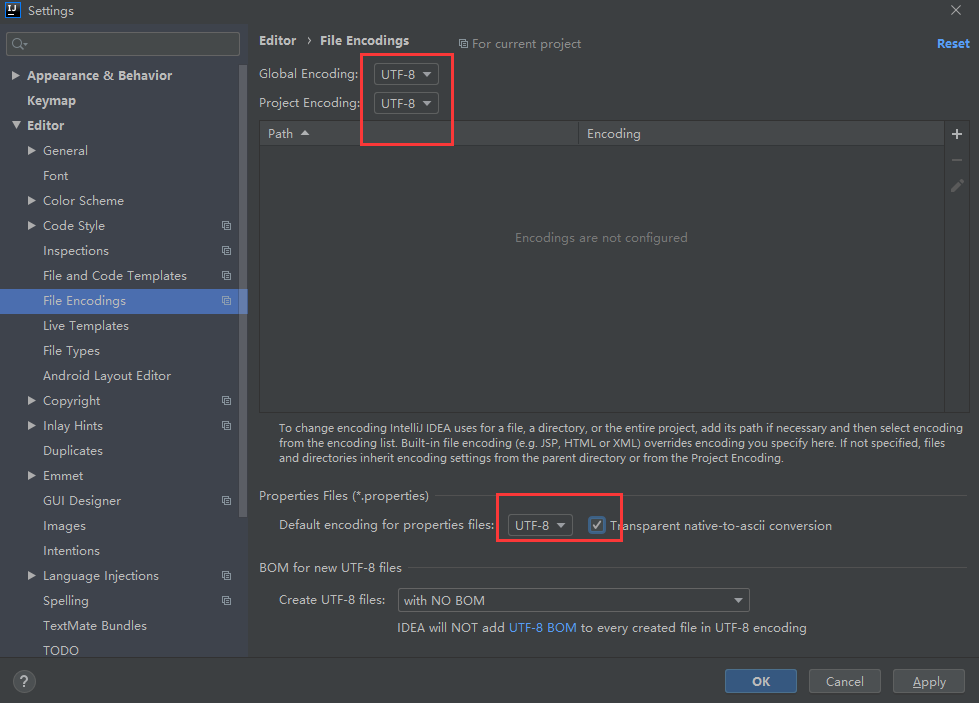

4.字符编码
5.注解生效激活

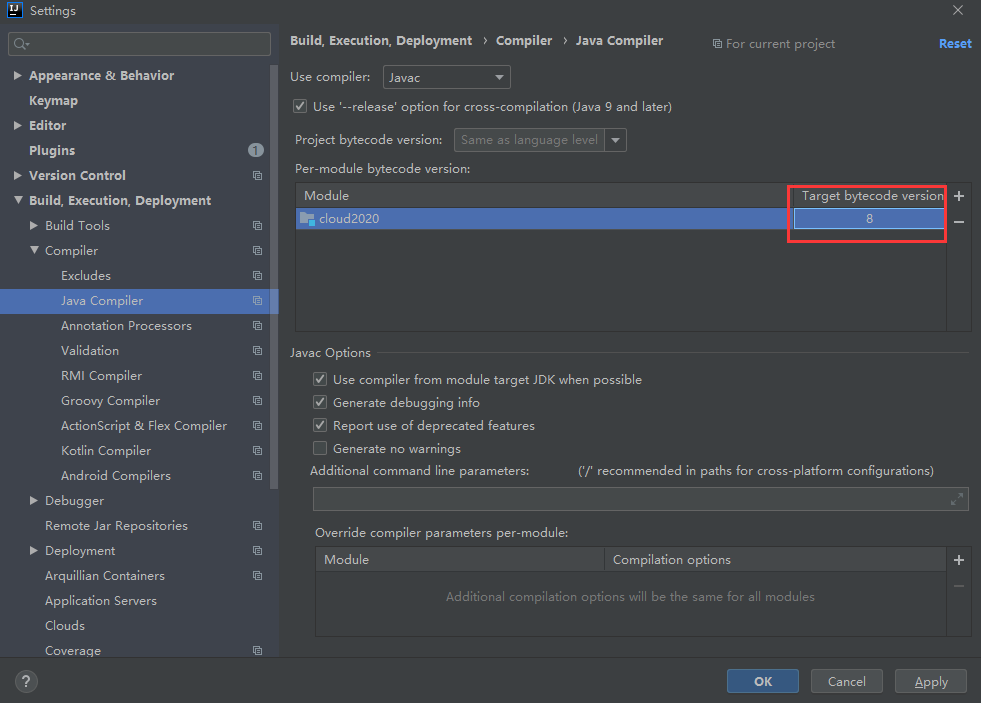

6.java编译版本选8

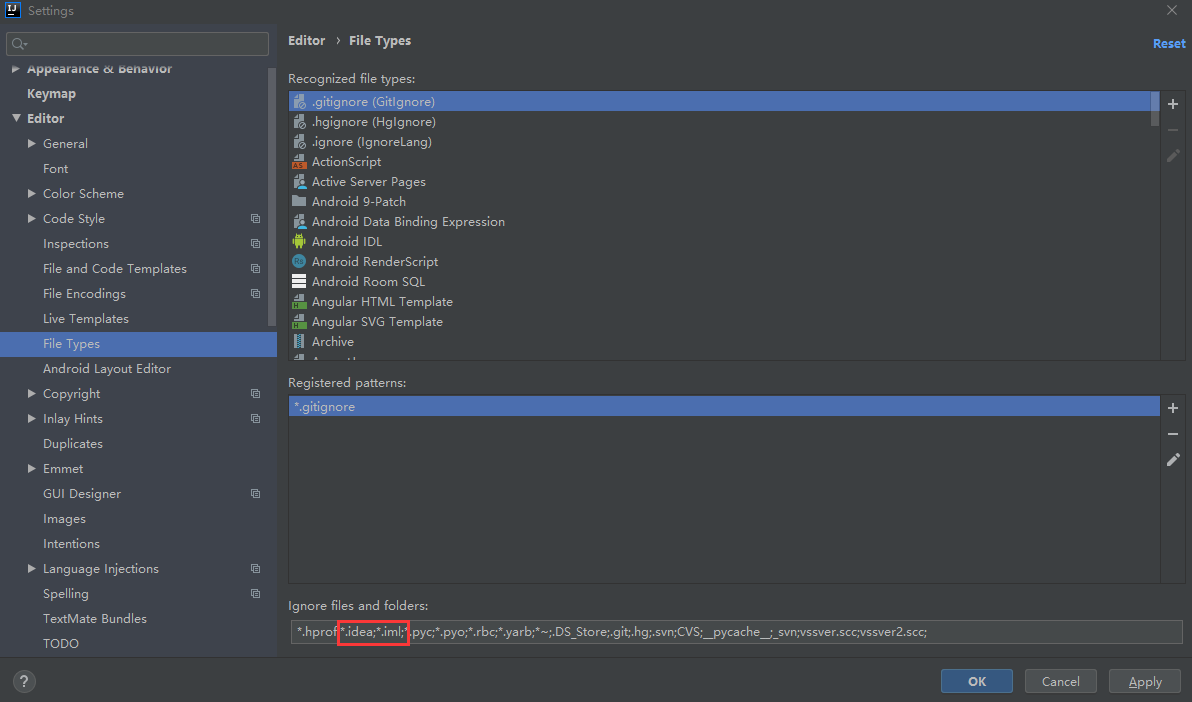

7.File Type过滤

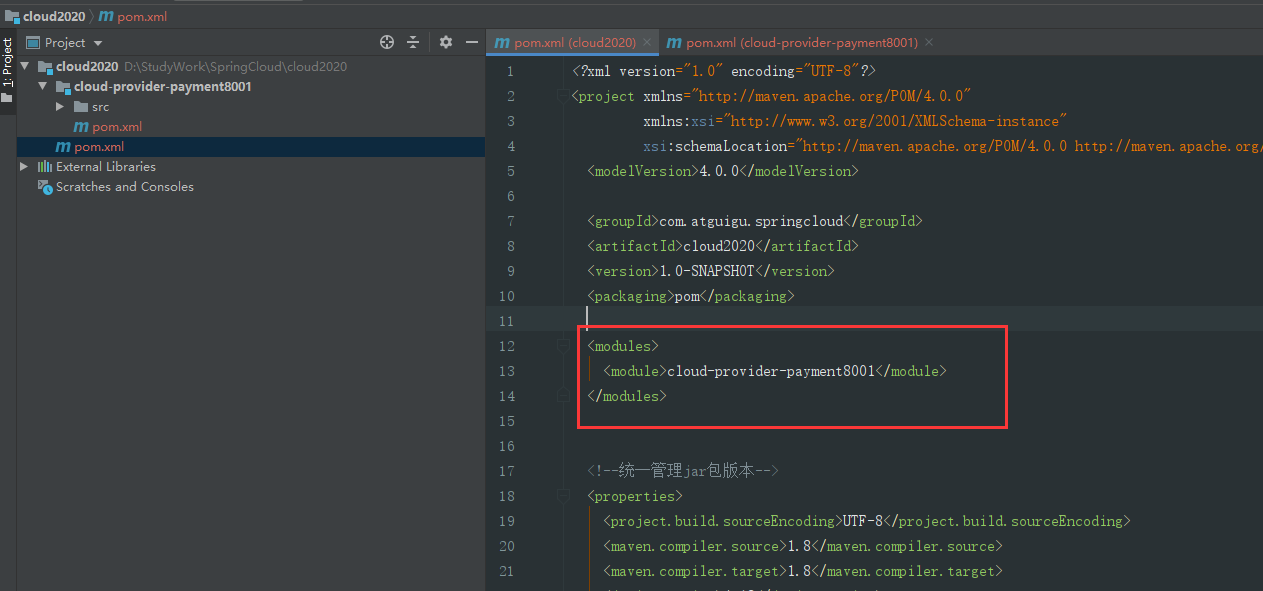

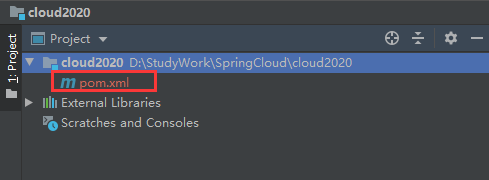

2.2 父工程POM
4.0.0
com.atguigu.springcloud
cloud2020
1.0-SNAPSHOT
pom
cloud-provider-payment8001
UTF-8
1.8
1.8
4.12
1.2.17
1.16.18
5.1.47
1.1.16
1.3.0
org.springframework.boot
spring-boot-dependencies
2.2.2.RELEASE
pom
import
org.springframework.cloud
spring-cloud-dependencies
Hoxton.SR1
pom
import
com.alibaba.cloud
spring-cloud-alibaba-dependencies
2.1.0.RELEASE
pom
import
mysql
mysql-connector-java
${mysql.version}
com.alibaba
druid
${druid.version}
org.mybatis.spring.boot
mybatis-spring-boot-starter
${mybatis.spring.boot.version}
junit
junit
${junit.version}
log4j
log4j
${log4j.version}
org.projectlombok
lombok
${lombok.version}
true
org.springframework.boot
spring-boot-maven-plugin
true
true

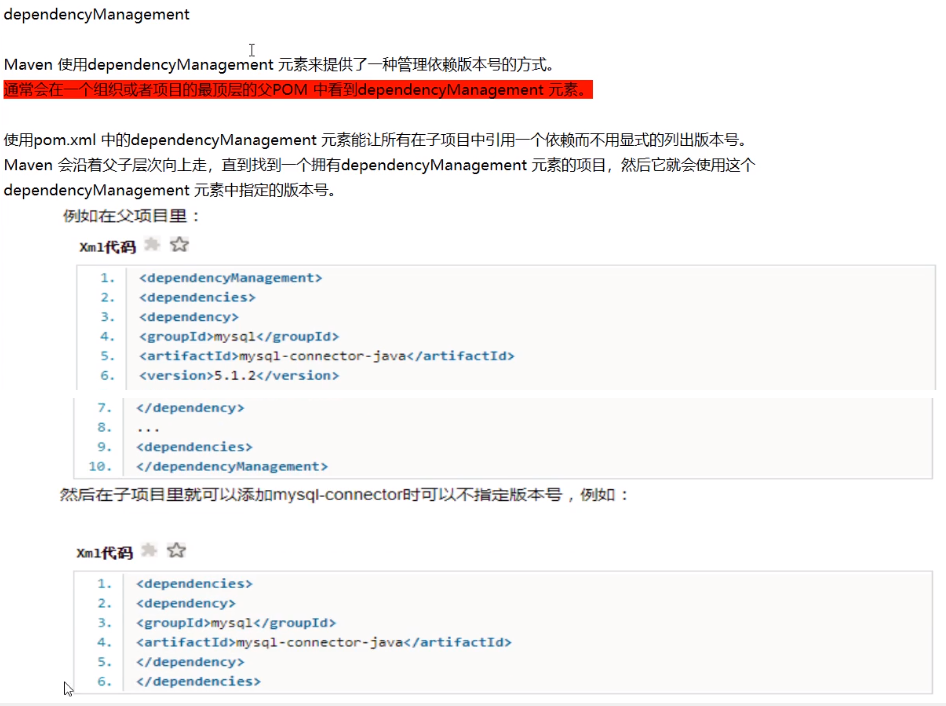

2.3.1 Maven中的DependencyManagement和Dependencies
这样做的好处就是: 如果有多个子项目都引用同一样的依赖,则可以避免在每个使用的子项目里都声明一个版本号,这样想升级或切换到另一个版本时,只需在顶层父容器里更新,而不需要一个一个子项目的修改l;另外如果某个子项目需要另外的一个版本,只需声明version版本.
dependencyManagement里只是声明依赖，并不是实现引入，因此子项目需要显示的声明需要用的依赖。

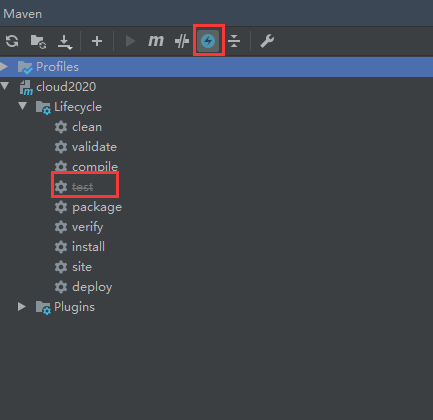

2.3.2 Maven中跳过单元测试
2.3.3 父工程创建完成执行mvn:insall将父工程发布到仓库方便子工程继承
mvn:clean
mvn:install3.1.1 Cloud-provide-payment8001微服务提供者Module模块

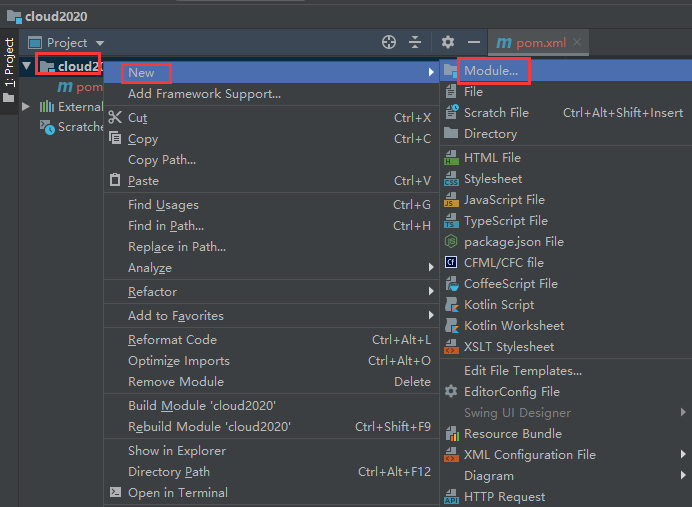

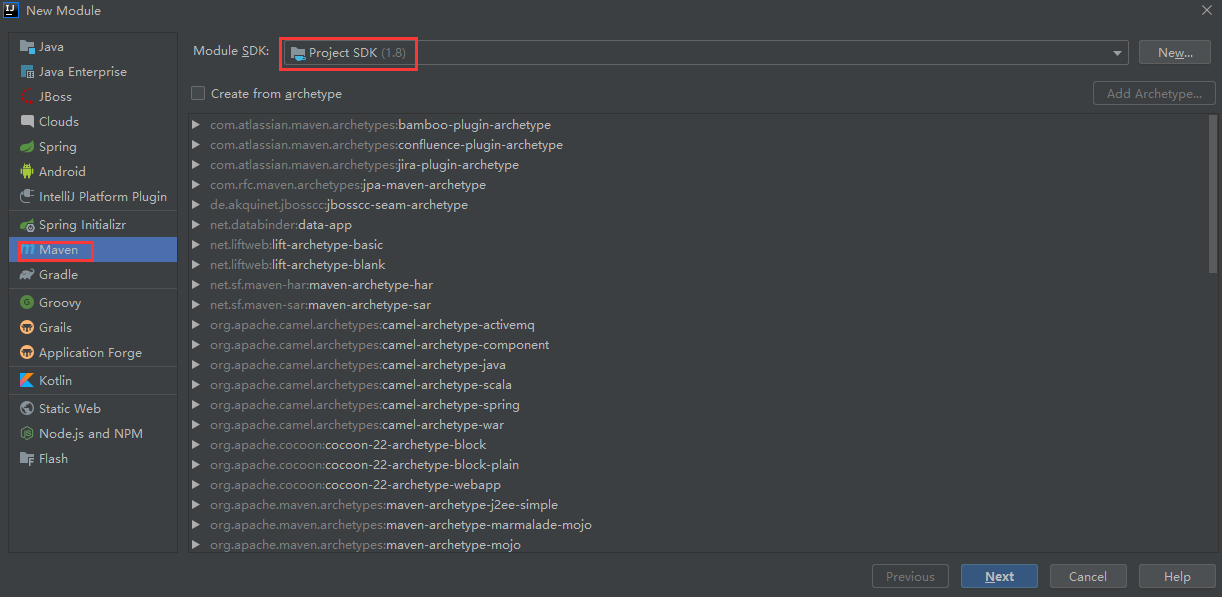

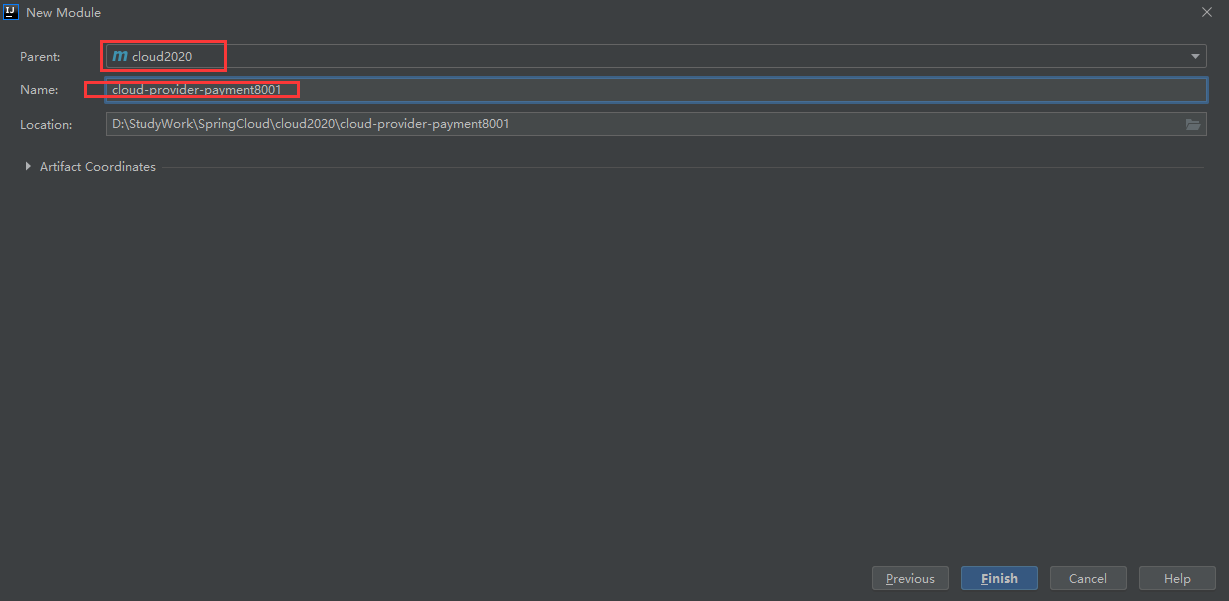

1.建module
2.改POM
cloud2020
com.atguigu.springcloud
1.0-SNAPSHOT
4.0.0
cloud-provider-payment8001
org.springframework.boot
spring-boot-starter-web
org.springframework.boot
spring-boot-starter-actuator
org.mybatis.spring.boot
mybatis-spring-boot-starter
com.alibaba
druid-spring-boot-starter
1.1.10
mysql
mysql-connector-java
org.springframework.boot
spring-boot-starter-jdbc
org.springframework.boot
spring-boot-devtools
runtime
true
org.projectlombok
lombok
true
org.springframework.boot
spring-boot-starter-test
test

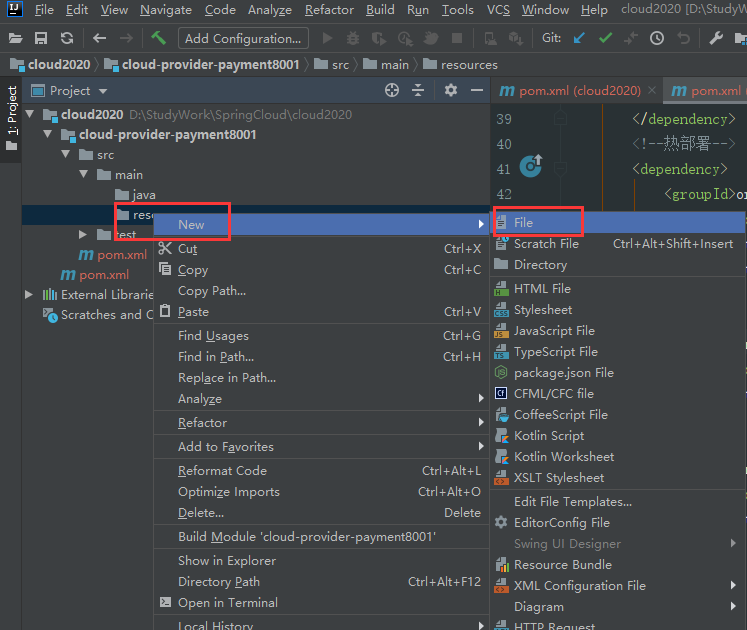

3. 写YML
server:
port: 8001
spring:
application:
name: cloud-payment-service
datasource:
type: com.alibaba.druid.pool.DruidDataSource
driver-class-name: org.gjt.mm.mysql.Driver
url: jdbc:mysql://localhost:3306/cloud2020?useUnicode=true&characterEncoding=utf-8&useSSL=false
username: root
password: root
mybatis:
mapperLocations: classpath:mapper/*.xml
type-aliases-package: com.atguigu.springcloud.entities

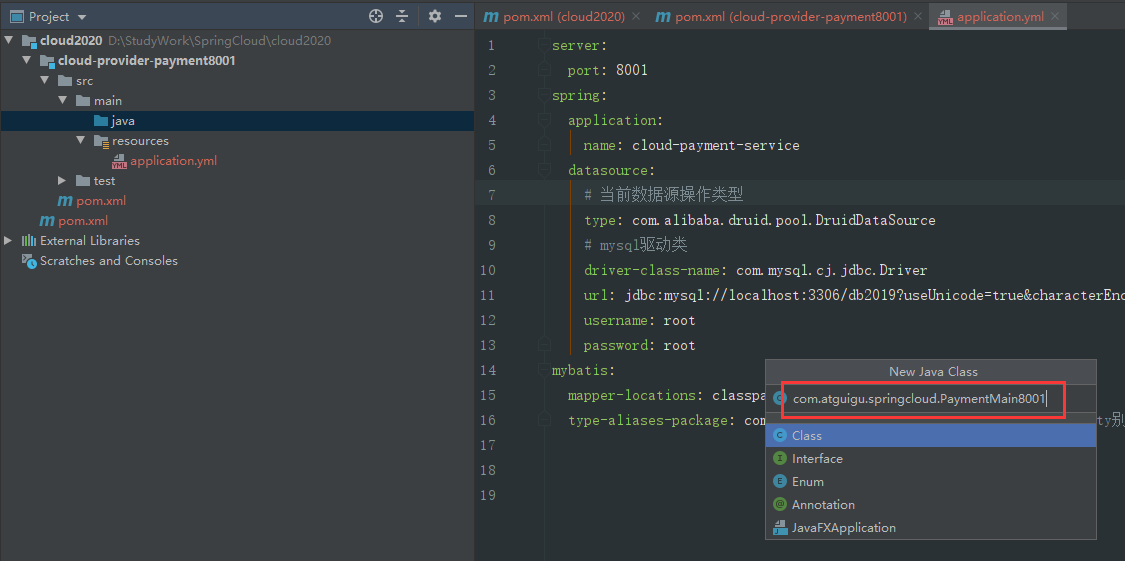

4.主启动
package com.atguigu.springcloud;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class PaymentMain8001 {
public static void main(String[] args) {
SpringApplication.run(PaymentMain8001.class,args);
}
}
5.业务类
5.1建sql
create table payment(
id bigint(20) not null auto_increment comment '主键',
serial varchar(200) character set utf8 collate utf8_general_ci default null comment '支付流水号',
primary key (id) using btree
)engine =InnoDB character set = utf8 collate = utf8_general_ci comment ='支付表' row_format=Dynamic;5.2 entities

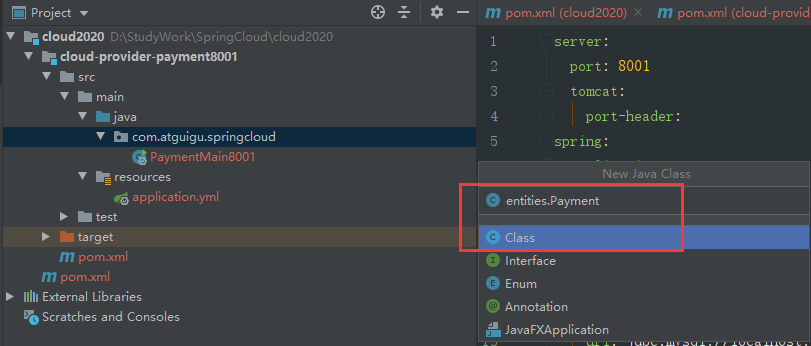

- 主实体Payment
package com.atguigu.springcloud.entities;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment {
private Long id;
private String serial;
}
- Json封装体CommonResult
package com.atguigu.springcloud.entities;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult {
private Integer code;
private String message;
private T data;
public CommonResult(Integer code, String message) {
this(code, message, null);
}
}
5.3 Dao

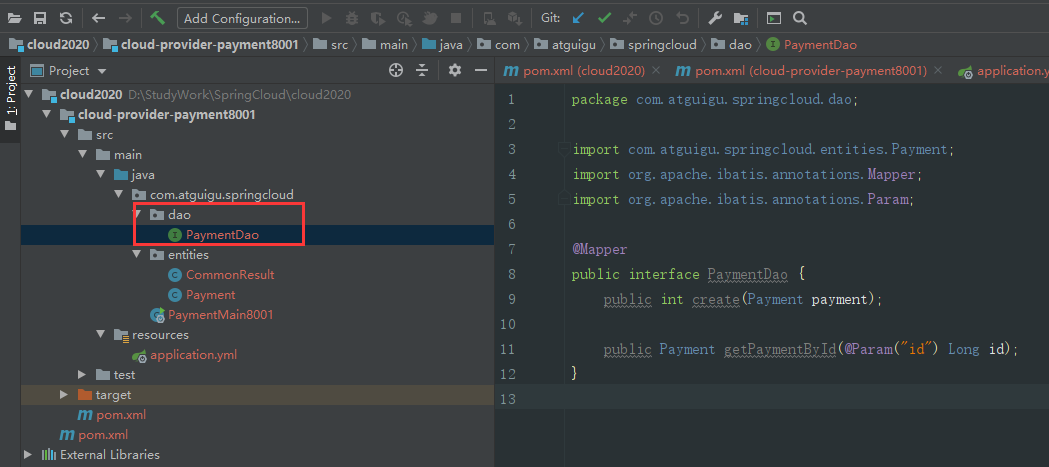

- 接口PaymentDao
package com.atguigu.springcloud.dao;
import com.atguigu.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;
@Mapper
public interface PaymentDao {
public int create(Payment payment);
public Payment getPaymentById(@Param("id") Long id);
}

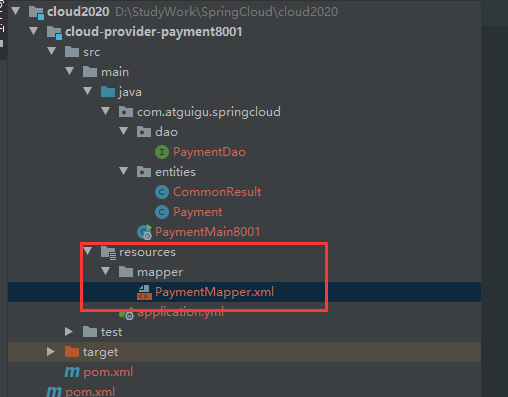

- mybatis的映射文件PaymentMapper.xml
路径-src\main\resources\mapper\PaymentMapper.xml
insert into payment (serial) values (#{serial});
select * from payment where id = #{id};

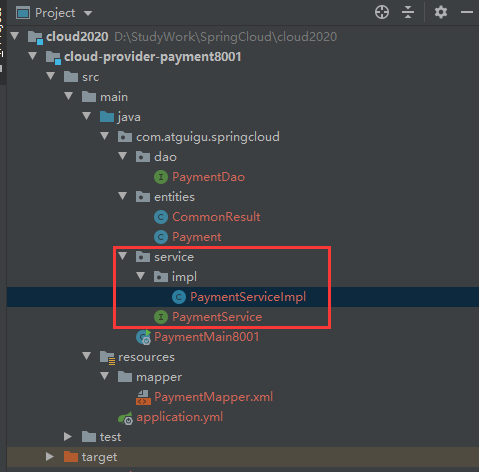

5.4service
- 接口PaymentService
package com.atguigu.springcloud.service;
import com.atguigu.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Param;
public interface PaymentService {
public int create(Payment payment);
public Payment getPaymentById(@Param("id") Long id);
}
- 实现类
package com.atguigu.springcloud.service.impl;
import com.atguigu.springcloud.dao.PaymentDao;
import com.atguigu.springcloud.entities.Payment;
import com.atguigu.springcloud.service.PaymentService;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
@Service
public class PaymentServiceImpl implements PaymentService {
@Resource
private PaymentDao paymentDao;
public int create(Payment payment) {
return paymentDao.create(payment);
}
public Payment getPaymentById(Long id) {
return paymentDao.getPaymentById(id);
}
}

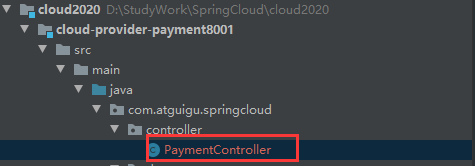

5.5 controller
package com.atguigu.springcloud.controller;
import com.atguigu.springcloud.entities.CommonResult;
import com.atguigu.springcloud.entities.Payment;
import com.atguigu.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;
@RestController
@Slf4j
public class PaymentController {
@Resource
private PaymentService paymentService;
@PostMapping(value = "/payment/create")
public CommonResult create(Payment payment){
int result = paymentService.create(payment);
log.info("*****插入结果："+result);
if (result>0){ //成功
return new CommonResult(200,"插入数据库成功",result);
}else {
return new CommonResult(444,"插入数据库失败",null);
}
}
@GetMapping(value = "/payment/get/{id}")
public CommonResult getPaymentById(@PathVariable("id") Long id){
Payment payment = paymentService.getPaymentById(id);
log.info("*****查询结果："+payment);
if (payment!=null){ //说明有数据，能查询成功
return new CommonResult(200,"查询成功",payment);
}else {
return new CommonResult(444,"没有对应记录，查询ID："+id,null);
}
}
}
6.1 请求测试

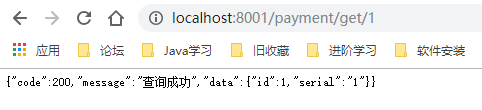

http://localhost:8001/payment/get/1

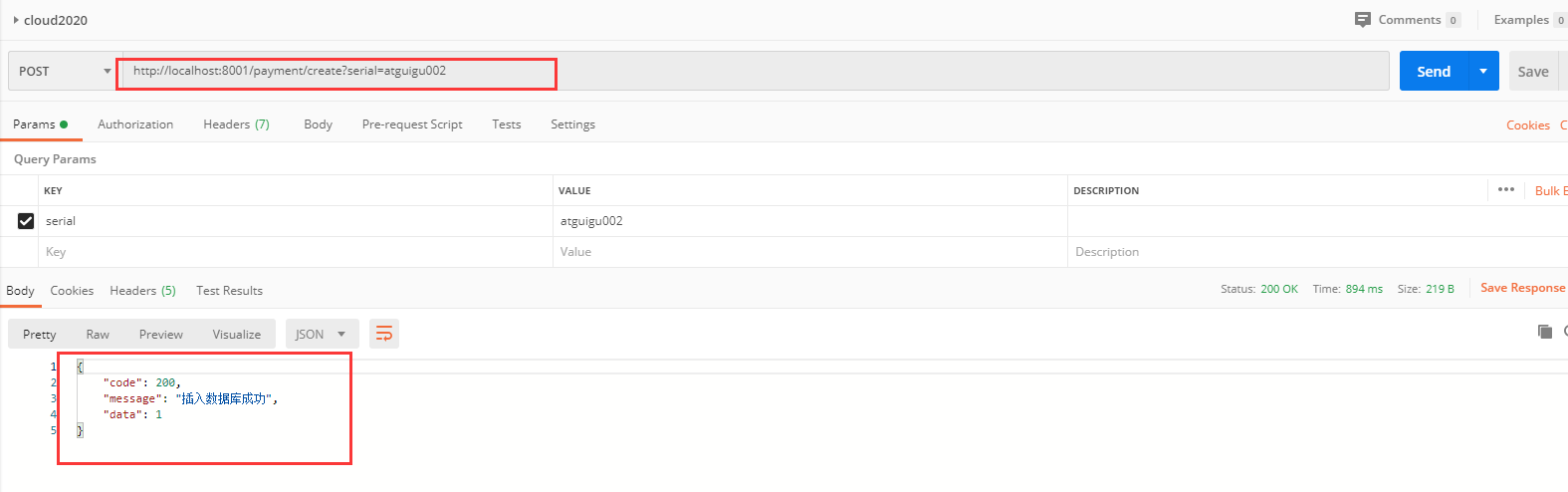

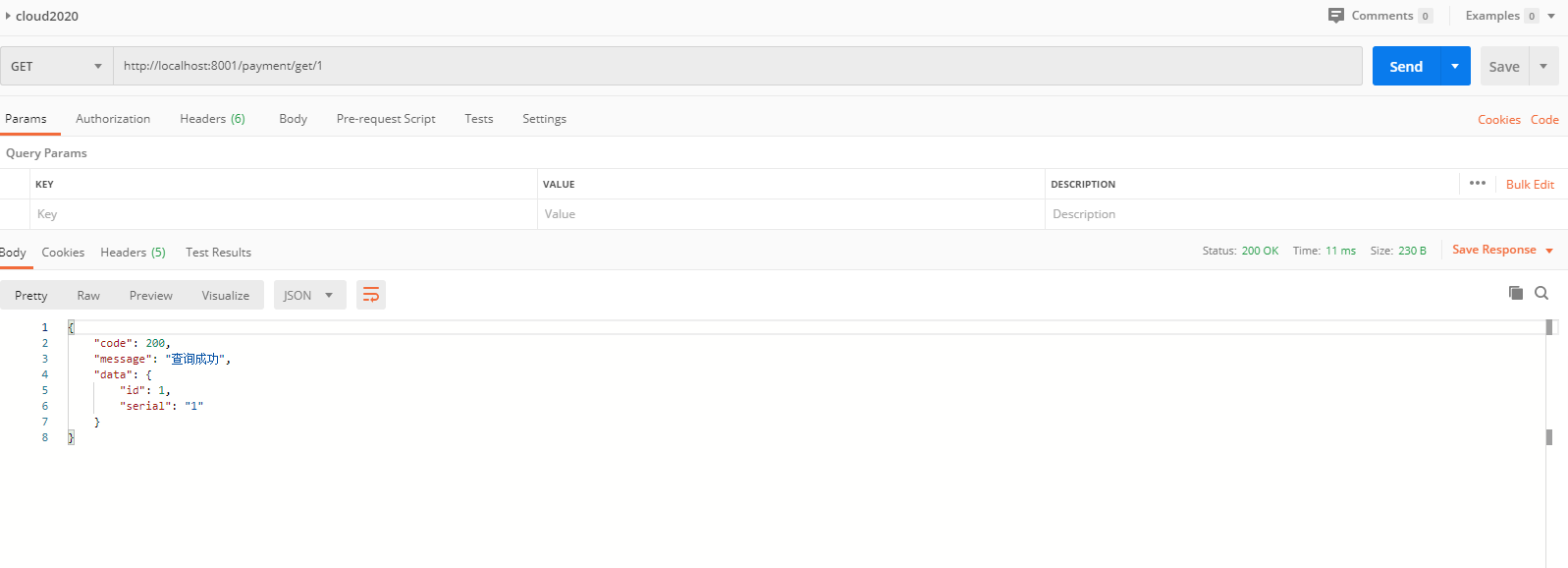

6.2 postman模拟post

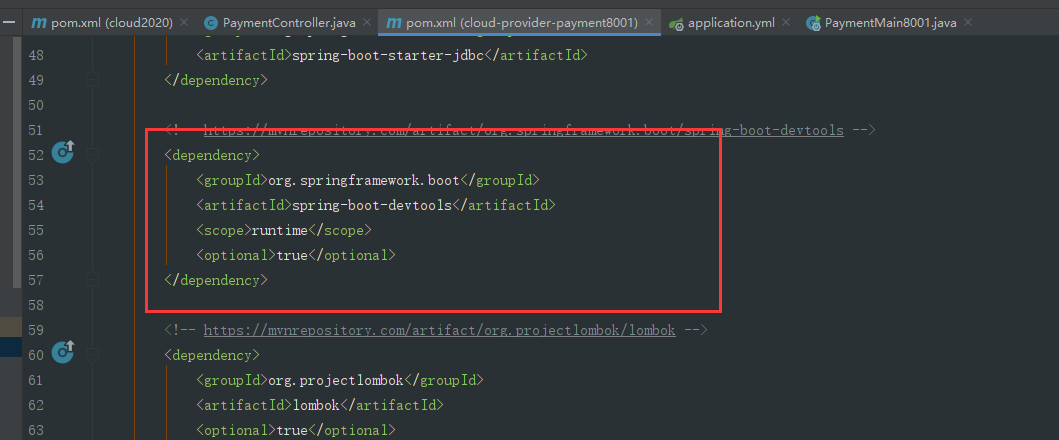

1.Addingdevtools to your project
org.springframework.boot
spring-boot-devtools
runtime
true

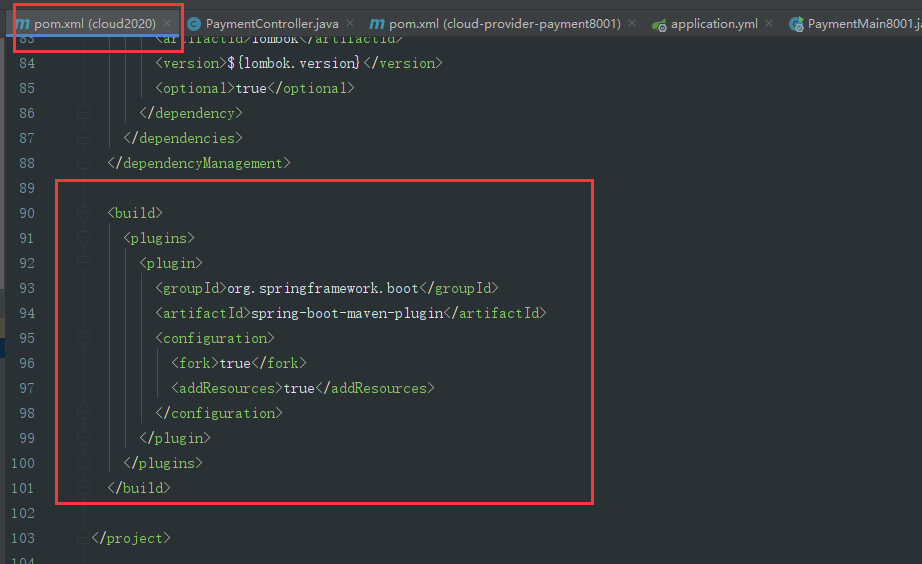

2.Adding plugin to your pom.xml
下一段配置黏贴到父工程当中的pom里
org.springframework.boot
spring-boot-maven-plugin
true
true

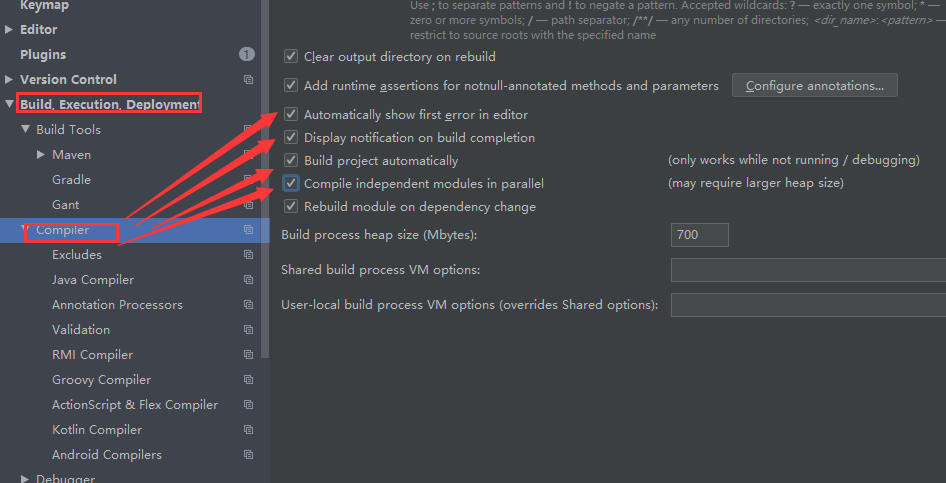

3.Enabling automatic build

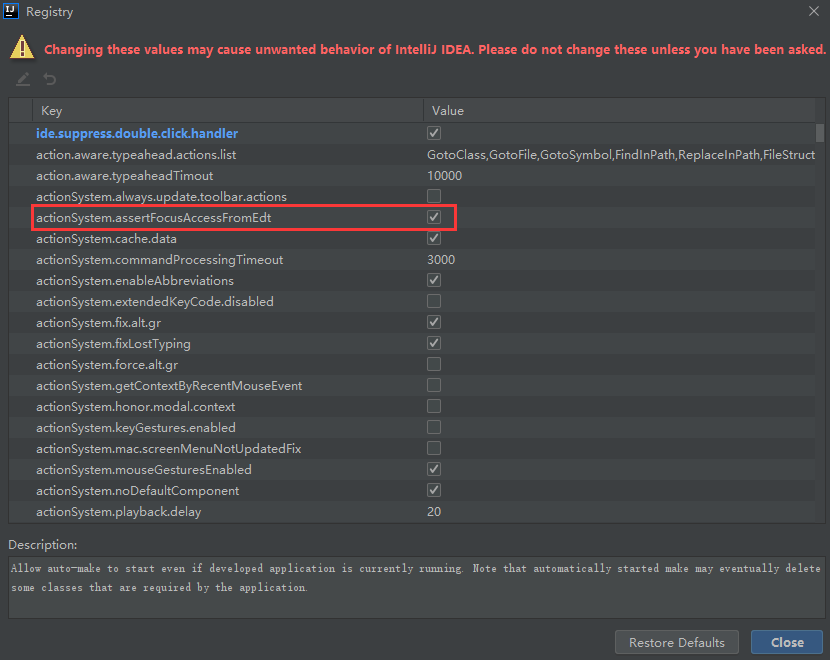

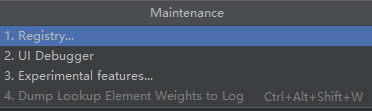

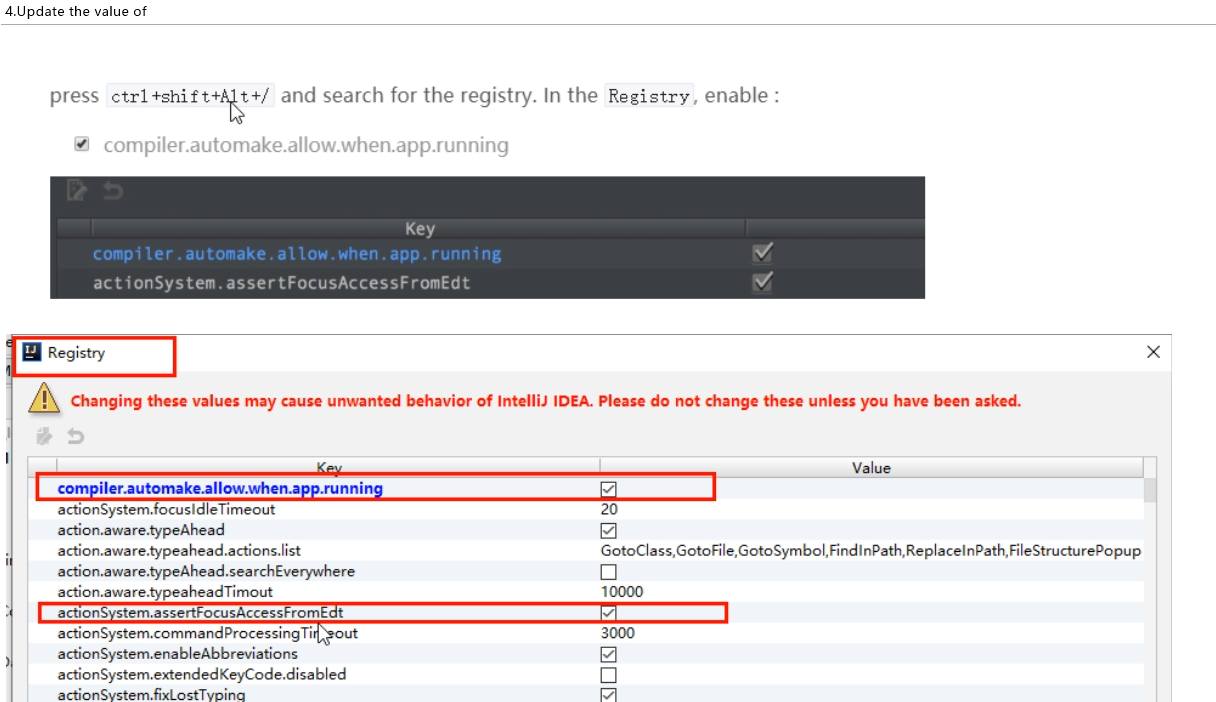

4.Update the value of
ctrl+shift+alt+/
5.重启IDEA

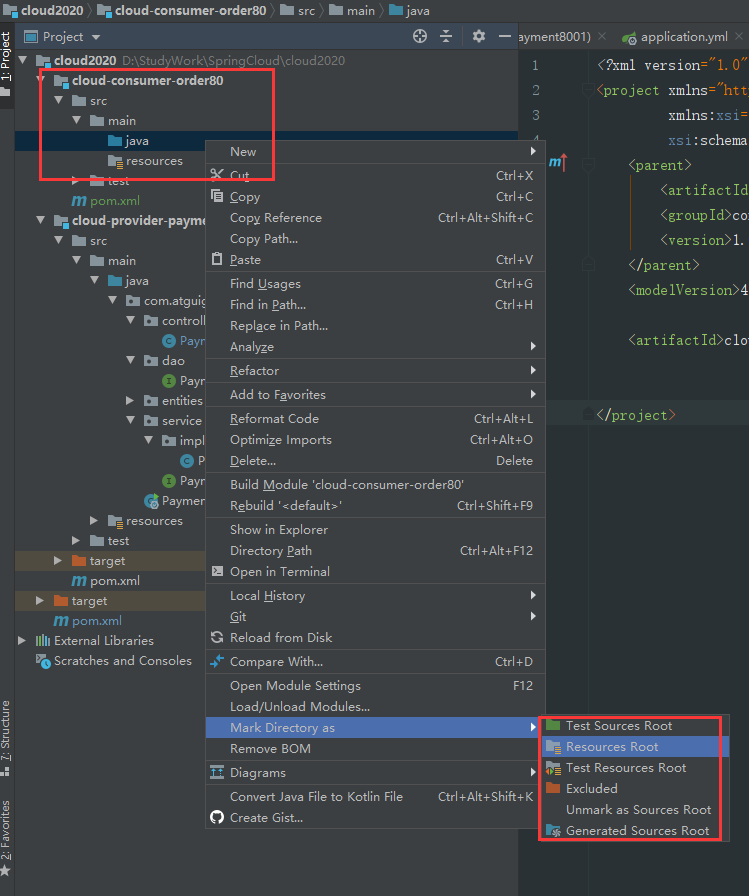

3.1.3 cloud-consumer-order80微服务消费者订单Module模块1.建cloud-consumer-order80
2.改POM
cloud2020
com.atguigu.springcloud
1.0-SNAPSHOT
4.0.0
cloud-consumer-order80
org.springframework.boot
spring-boot-starter-web
org.springframework.boot
spring-boot-starter-actuator
org.springframework.boot
spring-boot-devtools
runtime
true
org.projectlombok
lombok
true
org.springframework.boot
spring-boot-starter-test
test
3.写YML
server:
port: 804.主启动

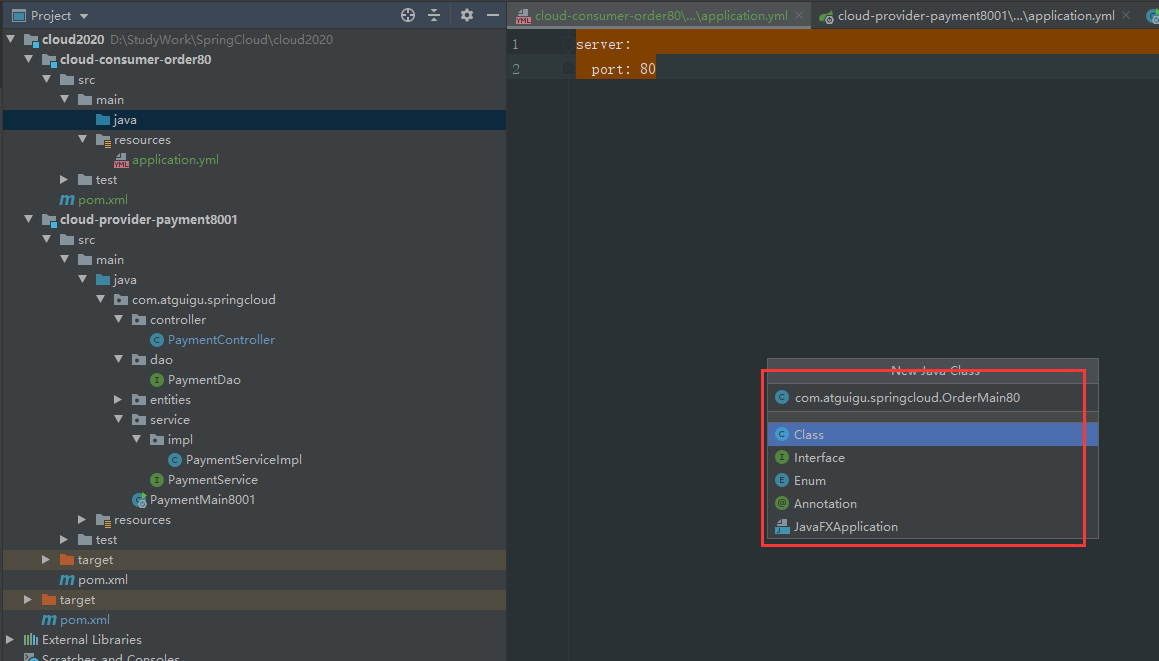

package com.atguigu.springcloud;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class OrderMain80 {
public static void main(String[] args) {
SpringApplication.run(OrderMain80.class, args);
}
}
记得执行compile编译一下
5.业务类

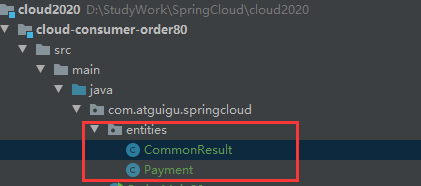

拷贝实体类
package com.atguigu.springcloud.entities;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult {
private Integer code;
private String message;
private T data;
public CommonResult(Integer code, String message) {
this(code, message, null);
}
}
package com.atguigu.springcloud.entities;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment {
private Long id;
private String serial;
}
RestTemplate
RestTemplate提供了多种便捷访问远程Http服务的方法，是一种简单便捷的访问restful服务模板类，是Spring提供的用于访问Rest服务的客户端模板工具集。
使用
使用restTemplate访问restful接口非常的简单粗暴无脑。（url,requestMap,ResponseBean.class）这三个参数分别代表Rest请求地址、请求参数、Http响应转换被转换成的对象类型。

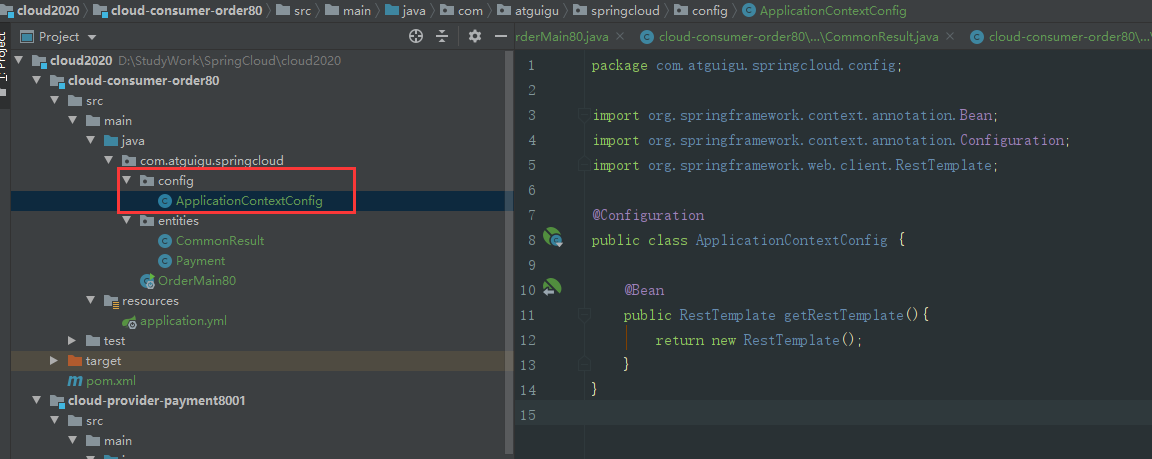

config配置类
package com.atguigu.springcloud.config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;
@Configuration
public class ApplicationContextConfig {
@Bean
public RestTemplate getRestTemplate(){
return new RestTemplate();
}
}

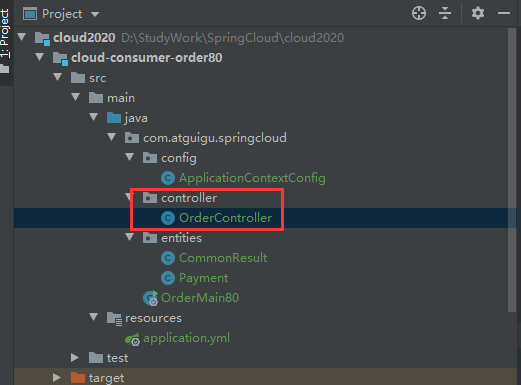

创建controller
package com.atguigu.springcloud.controller;
import com.atguigu.springcloud.entities.CommonResult;
import com.atguigu.springcloud.entities.Payment;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;
import javax.annotation.Resource;
@RestController
@Slf4j
public class OrderController {
public static final String PAYMENT_URL = "http://localhost:8001";
@Resource
private RestTemplate restTemplate;
@GetMapping("/consumer/payment/create")
public CommonResult create(Payment payment) {
return restTemplate.postForObject(PAYMENT_URL + "/payment/create", payment, CommonResult.class);
}
@GetMapping("/consumer/payment/get/{id}")
public CommonResult getPayment(@PathVariable("id") Long id) {
return restTemplate.getForObject(PAYMENT_URL + "/payment/get/" + id, CommonResult.class);
}
}

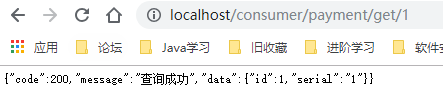

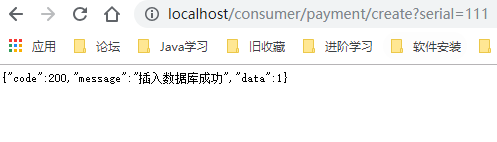

6.测试
先启动cloud-provider-payment8001
再启动cloud-consumer-order80

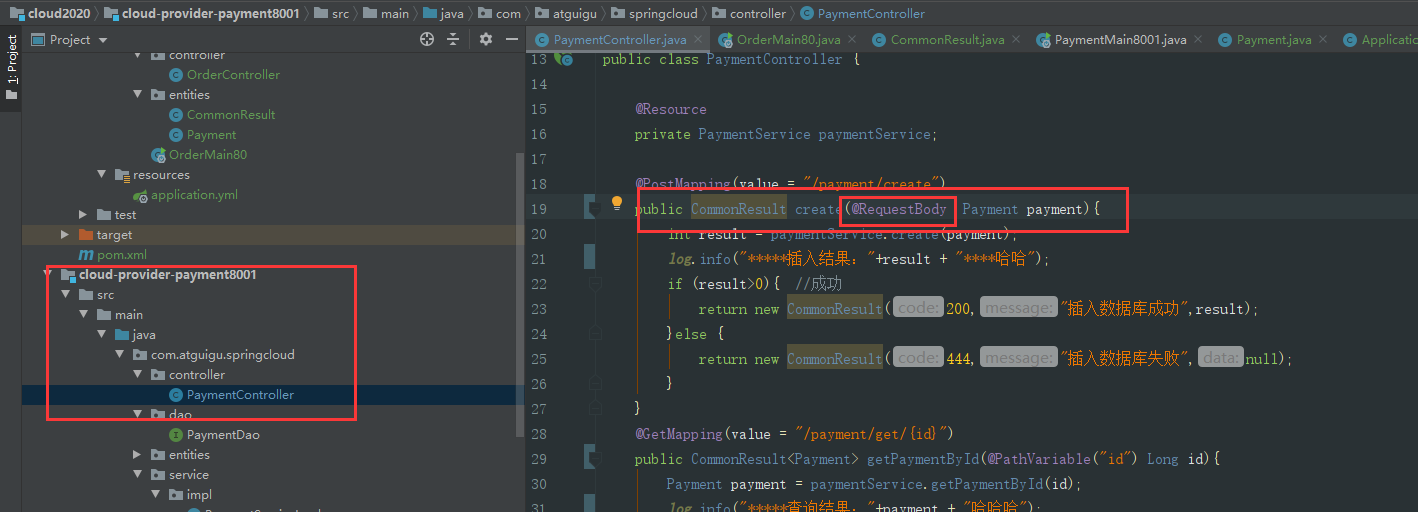

注意：不要忘记@RequestBody注解

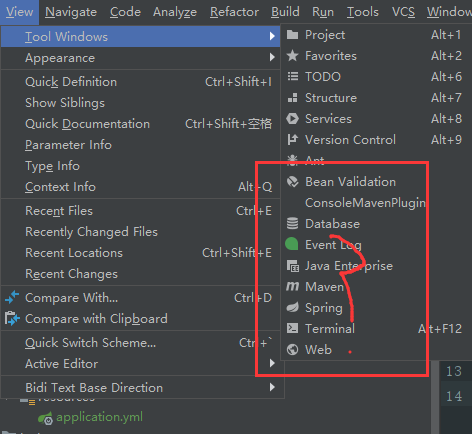

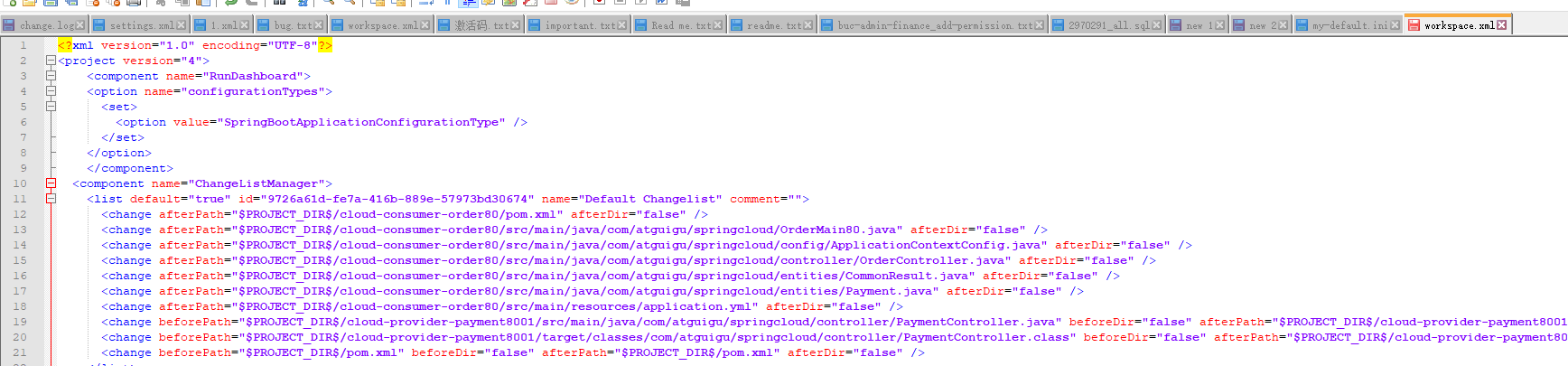

Rundashboard?

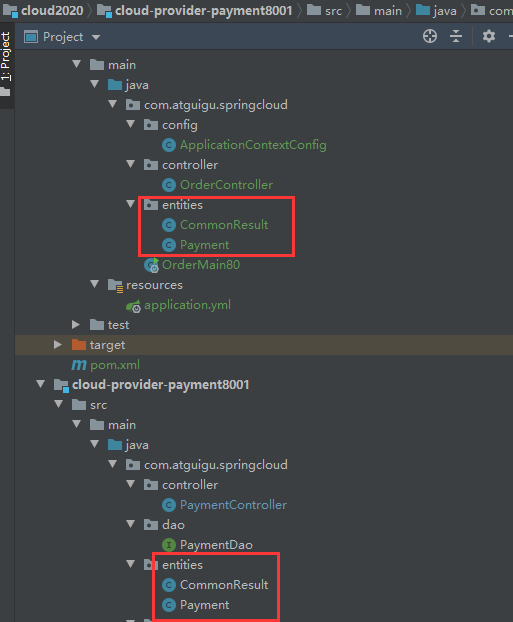

1.观察问题
系统中有重复部分，重构啊

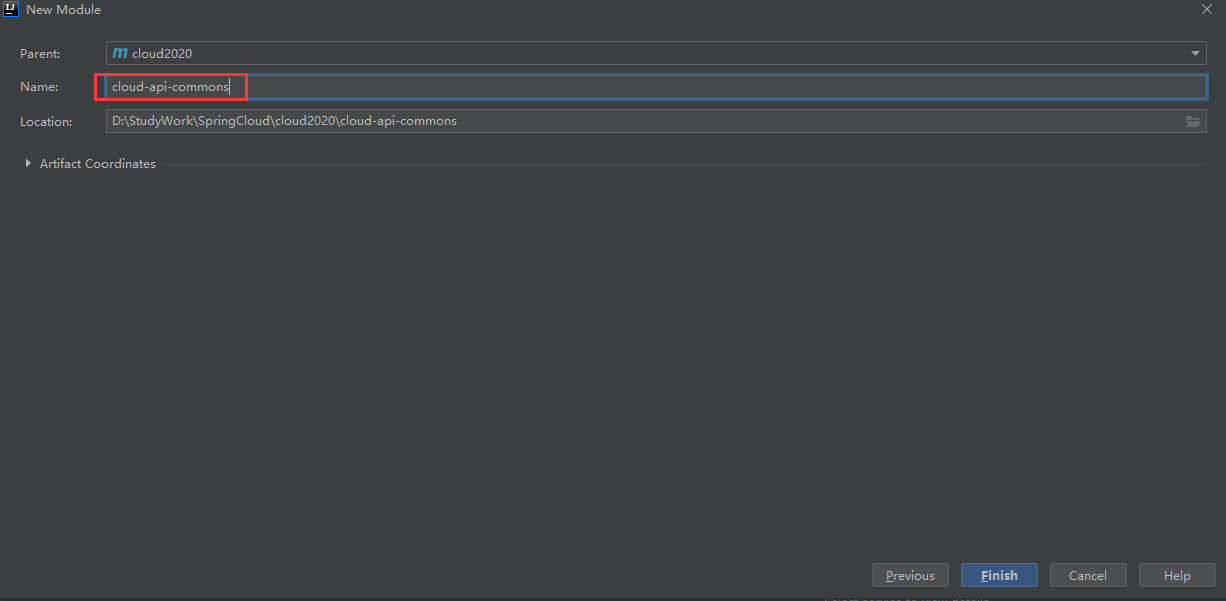

2.新建cloud-api-commons
3.Pom
cloud2020
com.atguigu.springcloud
1.0-SNAPSHOT
4.0.0
cloud-api-commons
org.springframework.boot
spring-boot-devtools
runtime
true
org.projectlombok
lombok
true
cn.hutool
hutool-all
5.1.0

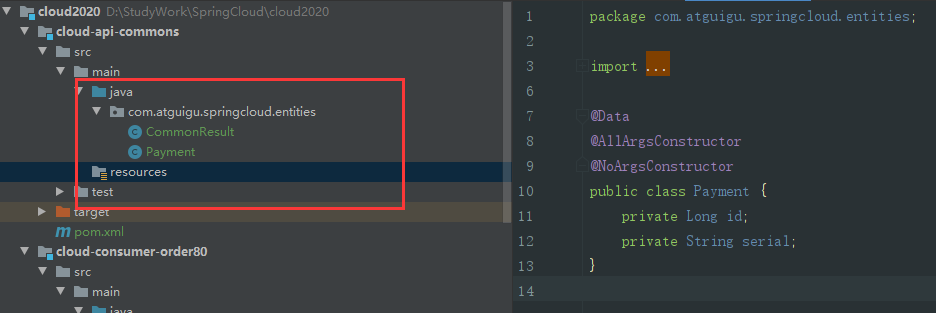

4.entites

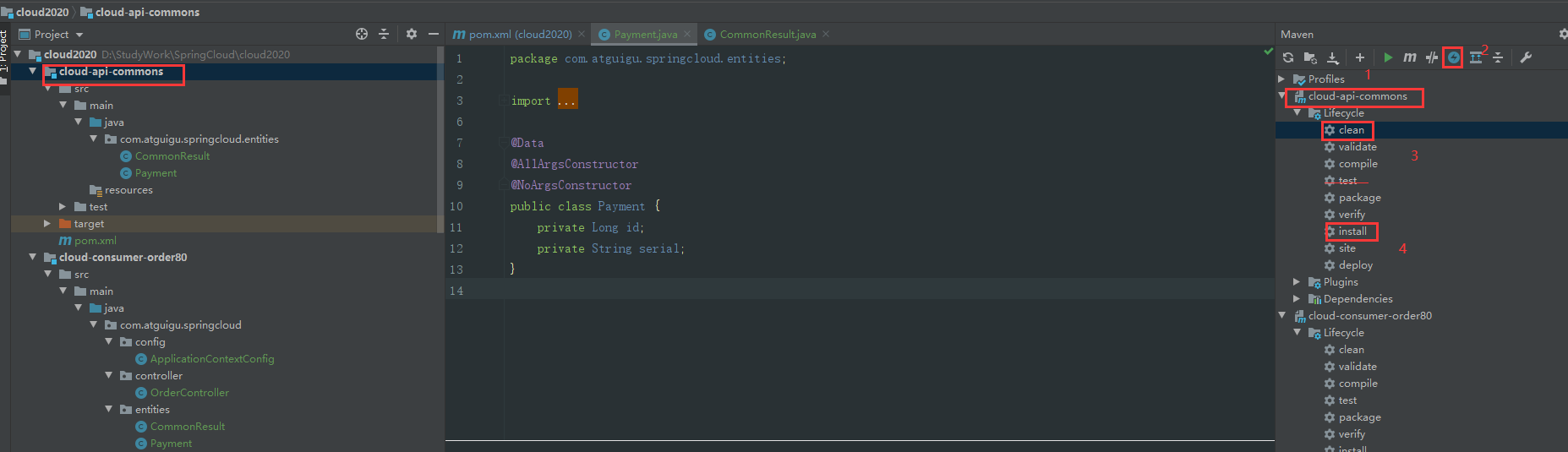

5.maven命令clean isntall
为了将commons上传到公用的本地库，供其他的服务调用，执行maven命令clean install
成功以后，本机就具备了这样的环境

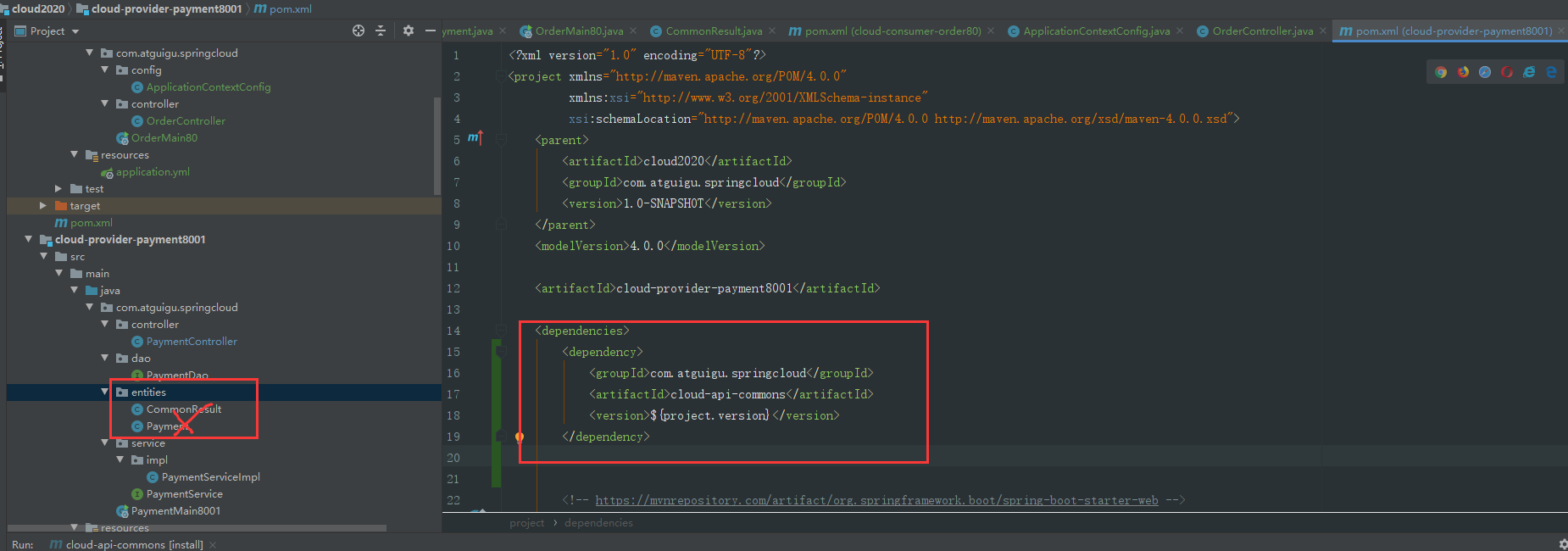

6.订单80和支付8001分别改造
删除entitis

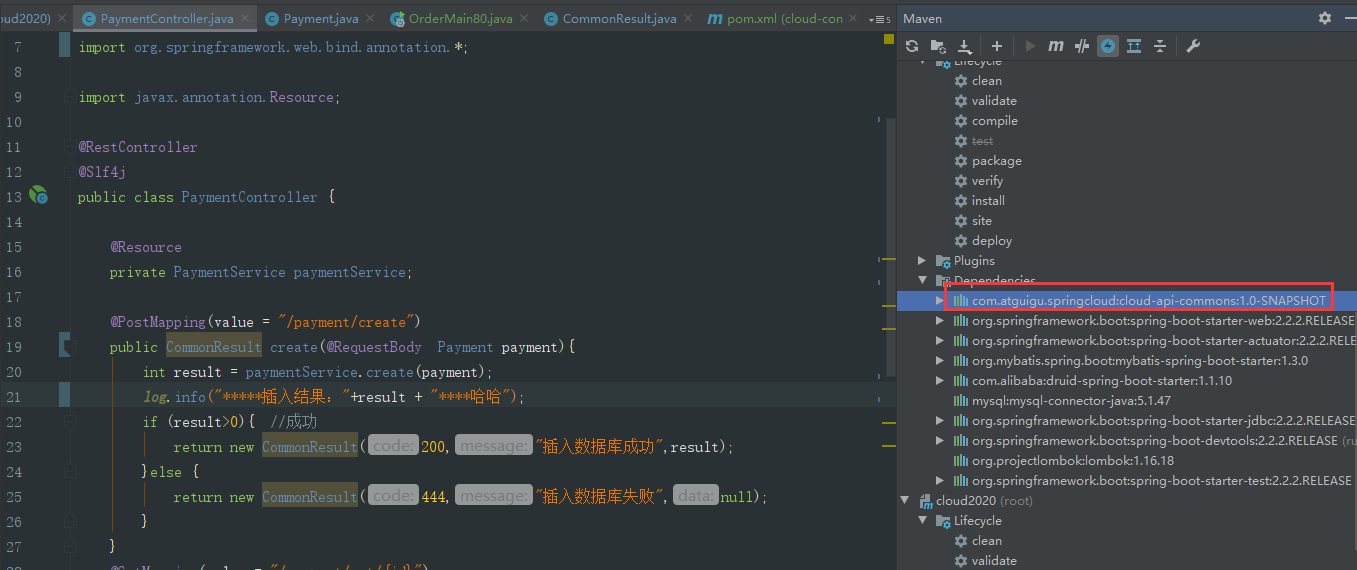

引入坐标
com.atguigu.springcloud
cloud-api-commons
${project.version}
成功
