SpringBoot整合RabbitMQ

星夜孤帆发布时间：2020-11-20 15:50:45 ，浏览量：3

一、生产者 1.1 pom



    4.0.0
    com.baizhi
    rabbitmq_springboot
    pom
    0.0.1-SNAPSHOT

        rabbitmq-producer
        rabbitmq-consumer

    rabbitmq_springboot
    Demo project for Spring Boot


        1.8
        UTF-8
        UTF-8
        2.1.14.RELEASE




            org.springframework.boot
            spring-boot-starter-amqp


            org.springframework.boot
            spring-boot-starter-web



            org.springframework.boot
            spring-boot-starter-test
            test


            org.springframework.boot
            spring-boot-starter-logging


            org.springframework.amqp
            spring-rabbit-test
            test







                org.springframework.boot
                spring-boot-dependencies
                ${spring-boot.version}
                pom
                import







                org.apache.maven.plugins
                maven-compiler-plugin

                    1.8
                    1.8
                    UTF-8



                org.springframework.boot
                spring-boot-maven-plugin

1.2 yaml

server:
  port: 44000

spring:
  application:
    name: rabbitmq-producer

  rabbitmq:
    host: 127.0.0.1
    port: 5672
    username: guest
    password: guest
    virtual-host: /

1.3 主启动

package com.best;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @author Jiang Akang
 * employeeId: BG435424
 * @date 2020/11/20
 **/
@SpringBootApplication
public class RabbitMqProducerApplication {
    public static void main(String[] args) {
        SpringApplication.run(RabbitMqProducerApplication.class, args);
    }
}

1.4 配置类

package com.best.config;

import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * @author Jiang Akang
 * employeeId: BG435424
 * @date 2020/11/20
 **/
@Configuration
public class RabbitmqConfig {
    public static final String QUEUE_INFORMA_EMAIL = "queue_inform_email";

    public static final String QUEUE_INFORM_SMS = "queue_inform_sms";

    public static final String EXCHANGE_TOPICS_INFORM = "exchange_topics_inform";

    public static final String ROUTINGKEY_EMAIL = "inform.#.email.#";

    public static final String ROUTINGKEY_SMS = "inform.#.sms.#";

    //声明交换机
    @Bean(EXCHANGE_TOPICS_INFORM)
    public Exchange EXCHANGE_TOPICS_INFORM() {
        //durable(true)持久化，mq重启之后交换机还在
        return ExchangeBuilder.topicExchange(EXCHANGE_TOPICS_INFORM).durable(true).build();
    }

    //声明QUEUE_INFORMA_EMAIL队列
    @Bean(QUEUE_INFORMA_EMAIL)
    public Queue QUEUE_INFORMA_EMAIL() {
        return new Queue(QUEUE_INFORMA_EMAIL);
    }

    //声明QUEUE_INFORM_SMS队列
    @Bean(QUEUE_INFORM_SMS)
    public Queue QUEUE_INFORM_SMS() {
        return new Queue(QUEUE_INFORM_SMS);
    }

    //@Qualifier根据名称注入bean
    //ROUTINGKEY_EMAIL队列绑定交换机，指定routingKey
    //.noargs绑定的时候不需要指定参数
    @Bean
    public Binding BINGDING_QUEUE_INFORM_EMAIL(@Qualifier(QUEUE_INFORMA_EMAIL) Queue queue,
                                               @Qualifier(EXCHANGE_TOPICS_INFORM) Exchange exchange) {
        return BindingBuilder.bind(queue).to(exchange).with(ROUTINGKEY_EMAIL).noargs();
    }

    //ROUTINGKEY_SMS队列绑定交换机，指定routingKey
    @Bean
    public Binding BIDING_ROUTINGKEY_SMS(@Qualifier(QUEUE_INFORM_SMS) Queue queue,
                                         @Qualifier(EXCHANGE_TOPICS_INFORM) Exchange exchange) {
        return BindingBuilder.bind(queue).to(exchange).with(ROUTINGKEY_SMS).noargs();
    }
}

1.5 测试类

package com.best;

import com.best.config.RabbitmqConfig;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

/**
 * @author Jiang Akang
 * employeeId: BG435424
 * @date 2020/11/20
 **/
@SpringBootTest
@RunWith(SpringRunner.class)
public class Producer {

    @Autowired
    RabbitTemplate rabbitTemplate;

    //使用rabbitTemplate发送消息
    @Test
    public void testSendEmail() {
        //匹配ROUTINGKEY_EMAIL路由键，发送消息到ROUTINGKEY_EMAIL队列
        String message = "send email message to ROUTINGKEY_EMAIL";
         rabbitTemplate.convertAndSend(RabbitmqConfig.EXCHANGE_TOPICS_INFORM, "inform.email", message);
    }

    //使用rabbitTemplate发送消息
    @Test
    public void testSendEmail1() {
        //匹配ROUTINGKEY_SMS路由键，发送消息到ROUTINGKEY_SMS队列
        String message = "send email message to ROUTINGKEY_SMS";
         rabbitTemplate.convertAndSend(RabbitmqConfig.EXCHANGE_TOPICS_INFORM, "inform.sms", message);
    }


}

二、消费者 1.1 yaml

server:
  port: 44001

spring:
  application:
    name: rabbitmq-consumer

  rabbitmq:
    host: 127.0.0.1
    port: 5672
    username: guest
    password: guest
    virtual-host: /

1.2 主启动

package com.best;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @author Jiang Akang
 * employeeId: BG435424
 * @date 2020/11/20
 **/
@SpringBootApplication
public class RabbitMqConsumerApplication {
    public static void main(String[] args) {
        SpringApplication.run(RabbitMqConsumerApplication.class, args);
    }
}

1.3 配置类

package com.best.config;

import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * @author Jiang Akang
 * employeeId: BG435424
 * @date 2020/11/20
 **/
@Configuration
public class RabbitmqConfig {

    public static final String QUEUE_INFORMA_EMAIL = "queue_inform_email";

    public static final String QUEUE_INFORM_SMS = "queue_inform_sms";

    public static final String EXCHANGE_TOPICS_INFORM = "exchange_topics_inform";

    public static final String ROUTINGKEY_EMAIL = "inform.#.email.#";

    public static final String ROUTINGKEY_SMS = "inform.#.sms.#";

    //声明交换机
    @Bean(EXCHANGE_TOPICS_INFORM)
    public Exchange EXCHANGE_TOPICS_INFORM() {
        //durable(true)持久化，mq重启之后交换机还在
        return ExchangeBuilder.topicExchange(EXCHANGE_TOPICS_INFORM).durable(true).build();
    }

    //声明QUEUE_INFORMA_EMAIL队列
    @Bean(QUEUE_INFORMA_EMAIL)
    public Queue QUEUE_INFORMA_EMAIL() {
        return new Queue(QUEUE_INFORMA_EMAIL);
    }

    //声明QUEUE_INFORM_SMS队列
    @Bean(QUEUE_INFORM_SMS)
    public Queue QUEUE_INFORM_SMS() {
        return new Queue(QUEUE_INFORM_SMS);
    }

    //@Qualifier根据名称注入bean
    //ROUTINGKEY_EMAIL队列绑定交换机，指定routingKey
    //.noargs绑定的时候不需要指定参数
    @Bean
    public Binding BINGDING_QUEUE_INFORM_EMAIL(@Qualifier(QUEUE_INFORMA_EMAIL) Queue queue,
                                               @Qualifier(EXCHANGE_TOPICS_INFORM) Exchange exchange) {
        return BindingBuilder.bind(queue).to(exchange).with(ROUTINGKEY_EMAIL).noargs();
    }

    //ROUTINGKEY_SMS队列绑定交换机，指定routingKey
    @Bean
    public Binding BIDING_ROUTINGKEY_SMS(@Qualifier(QUEUE_INFORM_SMS) Queue queue,
                                         @Qualifier(EXCHANGE_TOPICS_INFORM) Exchange exchange) {
        return BindingBuilder.bind(queue).to(exchange).with(ROUTINGKEY_SMS).noargs();
    }
}

1.4 业务类

package com.best.rabbitmq;

import com.best.config.RabbitmqConfig;
import com.rabbitmq.client.Channel;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

/**
 * @author Jiang Akang
 * employeeId: BG435424
 * @date 2020/11/20
 **/
@Component
public class ReceiveHandler {

    @RabbitListener(queues = {RabbitmqConfig.QUEUE_INFORMA_EMAIL})
    public void send_email(String msg, Message message, Channel channel) {
        System.out.println("receive message is: " + msg);
    }

}

三、测试

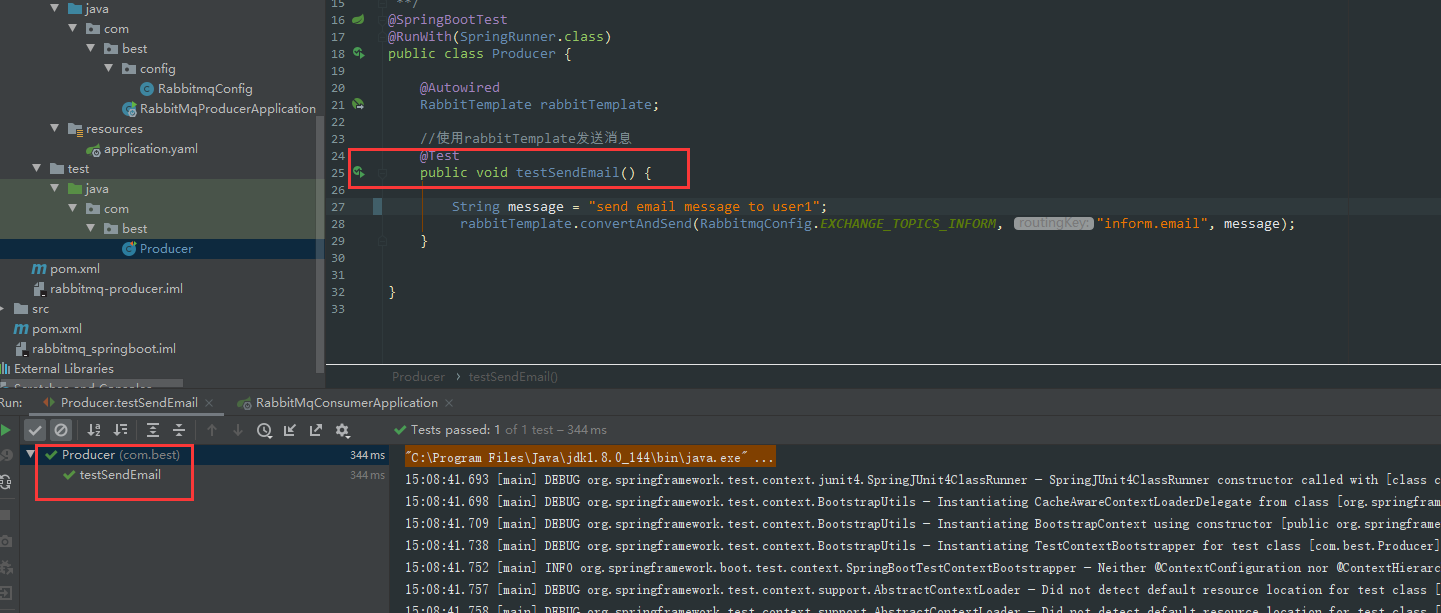

运行生产者，往里面发送几条消息

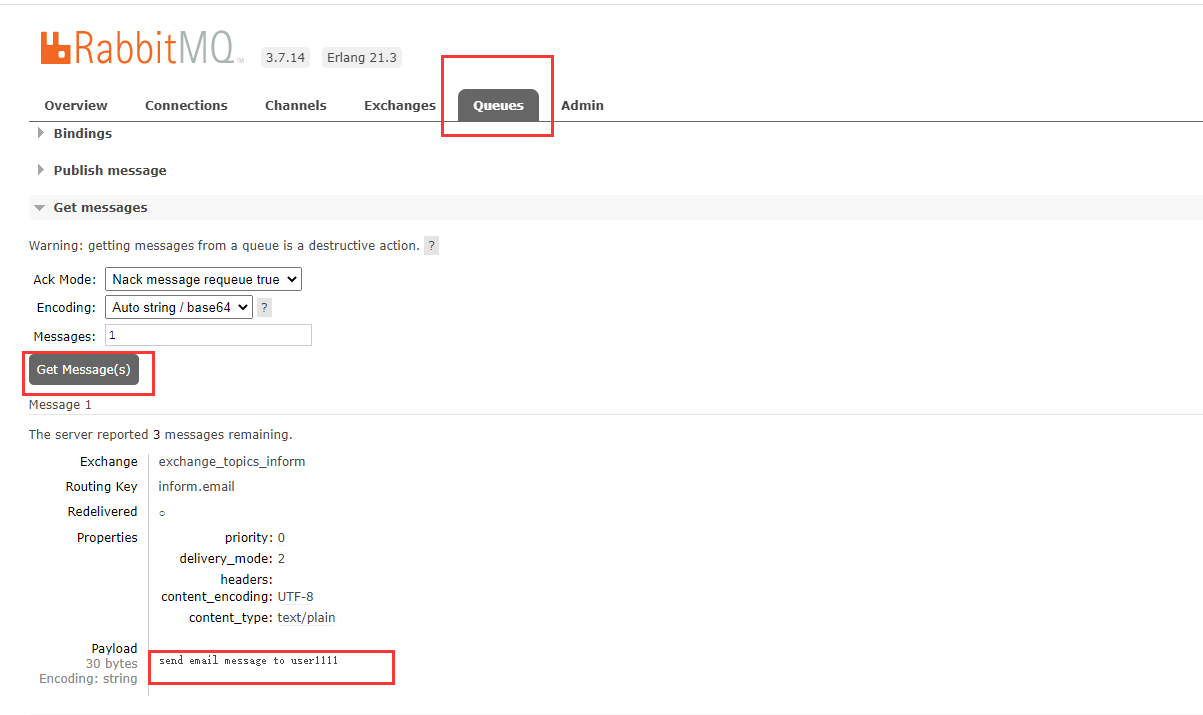

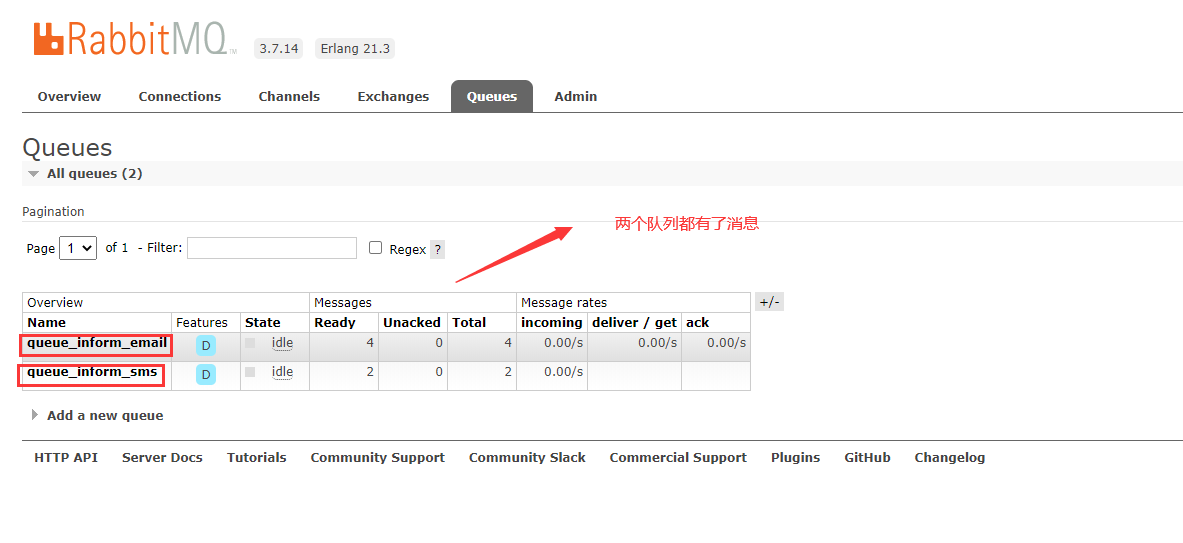

打开rabbitMq: http://localhost:15672/#/queues

可以看到消息的内容

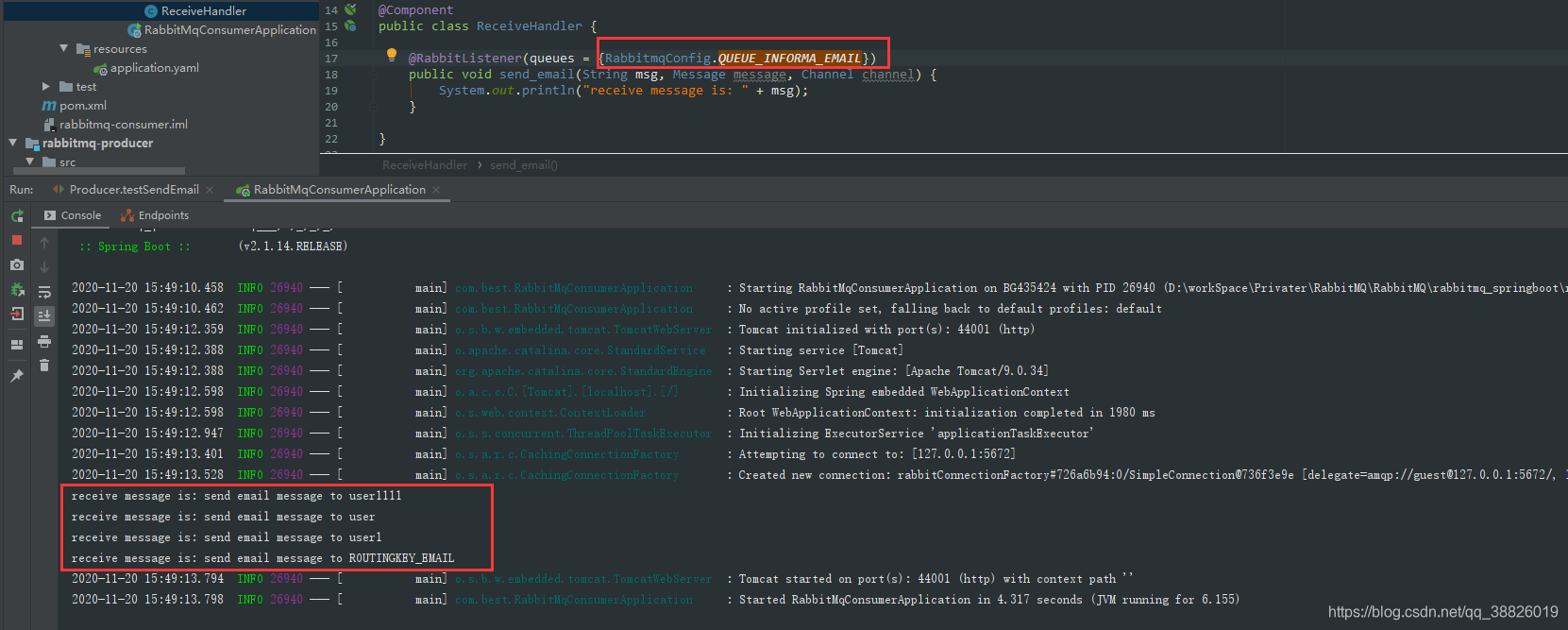

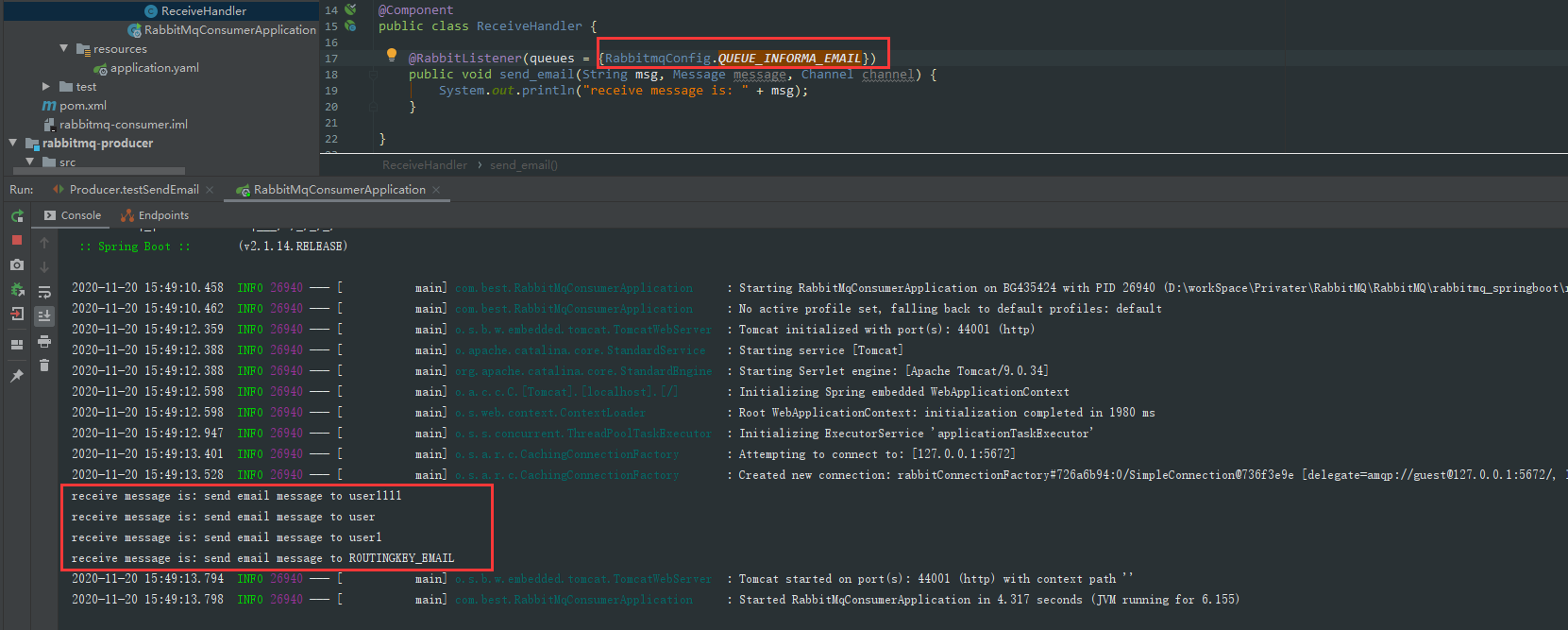

启动消费者，消费者监听着QUEUE_INFORMA_EMAIL队列消息，如果有消息，就会接受到

源码
