报错信息如下:
05/21 10:18:21: Launching app
$ adb push D:\android install files\jishi\app\build\outputs\apk\debug\app-debug.apk /data/local/tmp/cn.itcast.jishi
$ adb shell pm install -t -r "/data/local/tmp/cn.itcast.jishi"
pkg: /data/local/tmp/cn.itcast.jishi
Success
APK installed in 7 s 133 ms
$ adb shell am start -n "cn.itcast.jishi/cn.itcast.jishi.EightActivity01" -a android.intent.action.MAIN -c android.intent.category.LAUNCHER
Client not ready yet..Connected to process 9052 on device oppo-oppo_r9sk-20f56a30
Capturing and displaying logcat messages from application. This behavior can be disabled in the "Logcat output" section of the "Debugger" settings page.
W/art: Before Android 4.1, method android.graphics.PorterDuffColorFilter androidx.vectordrawable.graphics.drawable.VectorDrawableCompat.updateTintFilter(android.graphics.PorterDuffColorFilter, android.content.res.ColorStateList, android.graphics.PorterDuff$Mode) would have incorrectly overridden the package-private method in android.graphics.drawable.Drawable
I/art: Rejecting re-init on previously-failed class java.lang.Class
I/art: Rejecting re-init on previously-failed class java.lang.Class
W/ResourceType: Failure getting entry for 0x7f060057 (t=5 e=87) (error -75)
D/AndroidRuntime: Shutting down VM
E/AndroidRuntime: FATAL EXCEPTION: main
Process: cn.itcast.jishi, PID: 9052
java.lang.RuntimeException: Unable to start activity ComponentInfo{cn.itcast.jishi/cn.itcast.jishi.EightActivity01}: android.view.InflateException: Binary XML file line #2: Binary XML file line #2: Error inflating class
at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2566)
at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2626)
at android.app.ActivityThread.access$1100(ActivityThread.java:170)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1494)
at android.os.Handler.dispatchMessage(Handler.java:102)
at android.os.Looper.loop(Looper.java:179)
at android.app.ActivityThread.main(ActivityThread.java:5769)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:784)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:674)
Caused by: android.view.InflateException: Binary XML file line #2: Binary XML file line #2: Error inflating class
at android.view.LayoutInflater.inflate(LayoutInflater.java:539)
at android.view.LayoutInflater.inflate(LayoutInflater.java:423)
at android.view.LayoutInflater.inflate(LayoutInflater.java:374)
at androidx.appcompat.app.AppCompatDelegateImpl.setContentView(AppCompatDelegateImpl.java:555)
at androidx.appcompat.app.AppCompatActivity.setContentView(AppCompatActivity.java:161)
at cn.itcast.jishi.EightActivity01.onCreate(EightActivity01.java:17)
at android.app.Activity.performCreate(Activity.java:6497)
at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1108)
at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2519)
at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2626)
at android.app.ActivityThread.access$1100(ActivityThread.java:170)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1494)
at android.os.Handler.dispatchMessage(Handler.java:102)
at android.os.Looper.loop(Looper.java:179)
at android.app.ActivityThread.main(ActivityThread.java:5769)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:784)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:674)
Caused by: android.view.InflateException: Binary XML file line #2: Error inflating class
at android.view.LayoutInflater.createView(LayoutInflater.java:645)
at com.android.internal.policy.PhoneLayoutInflater.onCreateView(PhoneLayoutInflater.java:58)
at android.view.LayoutInflater.onCreateView(LayoutInflater.java:694)
at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:762)
at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:704)
at android.view.LayoutInflater.inflate(LayoutInflater.java:492)
at android.view.LayoutInflater.inflate(LayoutInflater.java:423)
at android.view.LayoutInflater.inflate(LayoutInflater.java:374)
at androidx.appcompat.app.AppCompatDelegateImpl.setContentView(AppCompatDelegateImpl.java:555)
at androidx.appcompat.app.AppCompatActivity.setContentView(AppCompatActivity.java:161)
at cn.itcast.jishi.EightActivity01.onCreate(EightActivity01.java:17)
at android.app.Activity.performCreate(Activity.java:6497)
at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1108)
at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2519)
at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2626)
at android.app.ActivityThread.access$1100(ActivityThread.java:170)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1494)
at android.os.Handler.dispatchMessage(Handler.java:102)
at android.os.Looper.loop(Looper.java:179)
at android.app.ActivityThread.main(ActivityThread.java:5769)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:784)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:674)
Caused by: java.lang.reflect.InvocationTargetException
at java.lang.reflect.Constructor.newInstance(Native Method)
at android.view.LayoutInflater.createView(LayoutInflater.java:619)
at com.android.internal.policy.PhoneLayoutInflater.onCreateView(PhoneLayoutInflater.java:58)
at android.view.LayoutInflater.onCreateView(LayoutInflater.java:694)
at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:762)
at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:704)
at android.view.LayoutInflater.inflate(LayoutInflater.java:492)
at android.view.LayoutInflater.inflate(LayoutInflater.java:423)
at android.view.LayoutInflater.inflate(LayoutInflater.java:374)
at androidx.appcompat.app.AppCompatDelegateImpl.setContentView(AppCompatDelegateImpl.java:555)
at androidx.appcompat.app.AppCompatActivity.setContentView(AppCompatActivity.java:161)
at cn.itcast.jishi.EightActivity01.onCreate(EightActivity01.java:17)
at android.app.Activity.performCreate(Activity.java:6497)
at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1108)
at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2519)
at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2626)
at android.app.ActivityThread.access$1100(ActivityThread.java:170)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1494)
at android.os.Handler.dispatchMessage(Handler.java:102)
at android.os.Looper.loop(Looper.java:179)
at android.app.ActivityThread.main(ActivityThread.java:5769)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:784)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:674)
Caused by: android.content.res.Resources$NotFoundException: Resource "cn.itcast.jishi:drawable/back" (7f060057) is not a Drawable (color or path): TypedValue{t=0x1/d=0x7f060057 a=-1 r=0x7f060057}
at android.content.res.Resources.loadDrawableForCookie(Resources.java:2798)
at android.content.res.Resources.loadDrawable(Resources.java:2732)
at android.content.res.TypedArray.getDrawable(TypedArray.java:870)
at android.view.View.(View.java:3973)
at android.view.ViewGroup.(ViewGroup.java:583)
at android.widget.LinearLayout.(LinearLayout.java:203)
at android.widget.LinearLayout.(LinearLayout.java:199)
at android.widget.LinearLayout.(LinearLayout.java:195)
at java.lang.reflect.Constructor.newInstance(Native Method)
at android.view.LayoutInflater.createView(LayoutInflater.java:619)
at com.android.internal.policy.PhoneLayoutInflater.onCreateView(PhoneLayoutInflater.java:58)
at android.view.LayoutInflater.onCreateView(LayoutInflater.java:694)
at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:762)
at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:704)
at android.view.LayoutInflater.inflate(LayoutInflater.java:492)
at android.view.LayoutInflater.inflate(LayoutInflater.java:423)
at android.view.LayoutInflater.inflate(LayoutInflater.java:374)
at androidx.appcompat.app.AppCompatDelegateImpl.setContentView(AppCompatDelegateImpl.java:555)
at androidx.appcompat.app.AppCompatActivity.setContentView(AppCompatActivity.java:161)
at cn.itcast.jishi.EightActivity01.onCreate(EightActivity01.java:17)
at android.app.Activity.performCreate(Activity.java:6497)
at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1108)
at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2519)
at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2626)
at android.app.ActivityThread.access$1100(ActivityThread.java:170)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1494)
at android.os.Handler.dispatchMessage(Handler.java:102)
at android.os.Looper.loop(Looper.java:179)
at android.app.ActivityThread.main(ActivityThread.java:5769)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:784)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:674)
Application terminated.
原因如下：

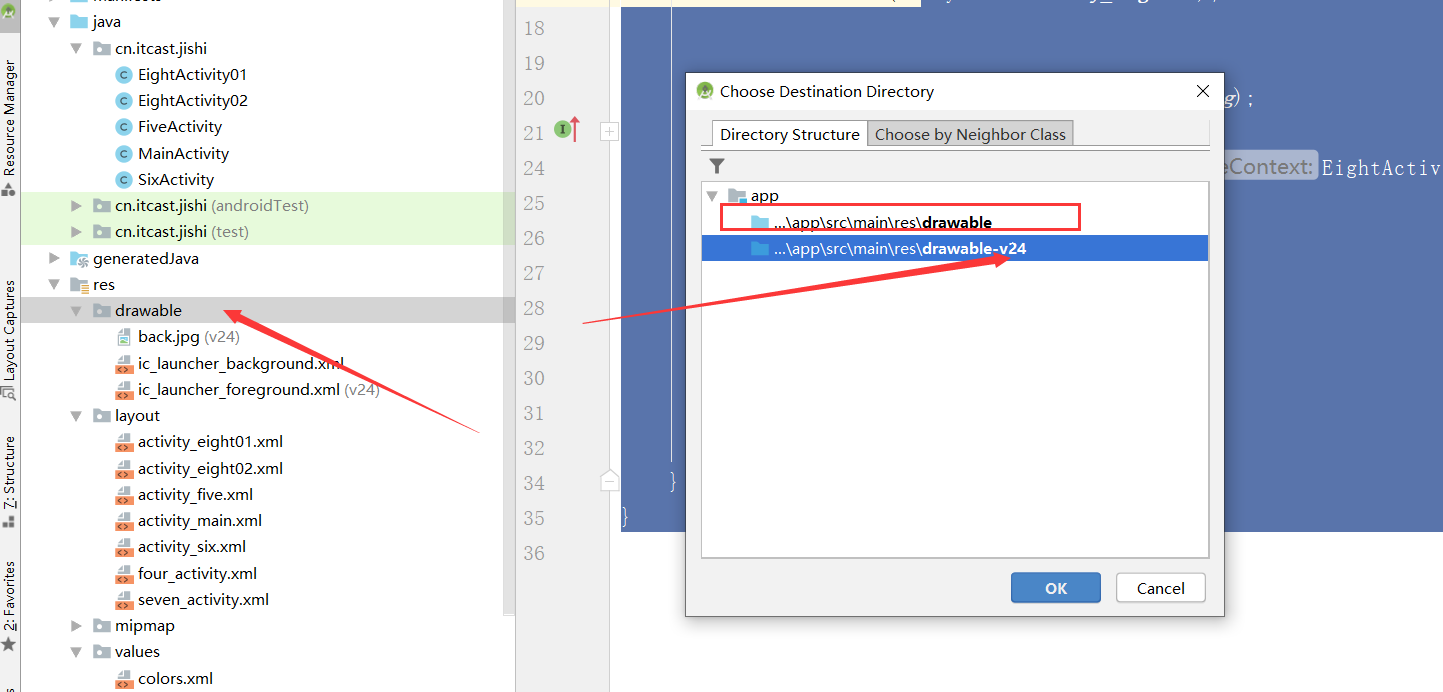

我们引入资源图片的时候选择成了drawable-v24 而应该选择drawable
