【阿里天池-医学影像报告异常检测】1 数据分析和探索

1 赛题

全球人工智能技术创新大赛【赛道一】-官方赛道地址 2021年赛道一：医学影像报告异常检测

2 数据分析 2.1 读取数据

import numpy as np
import pandas as pd
import tensorflow as tf
import matplotlib.pyplot as plt
plt.rcParams['font.sans-serif'] = ['SimHei'] # 步骤一（替换sans-serif字体）
plt.rcParams['axes.unicode_minus'] = False   # 步骤二（解决坐标轴负数的负号显示问题）
train_data_file = './raw_data/track1_round1_train_20210222.csv'
test_data_file = './raw_data/track1_round1_testA_20210222.csv'
picture_file = './documentation/picture/'

2.2 统计词数

with open(train_data_file, 'r') as f:
    lines = f.readlines()
train_texts, train_labels = [], []
for id, line in enumerate(lines):
    line = line.strip().replace('|', '').split(',')
    text = line[1].strip().split(' ')
    text = [int(word) for word in text]
    train_texts.append(text)
    train_labels.append(line[2])

with open(test_data_file, 'r') as f:
    lines = f.readlines()
test_texts = []
for id, line in enumerate(lines):
    line = line.strip().replace('|', '').split(',')
    text = line[1].strip().split(' ')
    text = [int(word) for word in text]
    test_texts.append(text)

（1）训练集的词数

vocab_size = max(max(text) for text in train_texts) - min(min(text) for text in train_texts) + 1
print("训练集的vpcab_size: {}".format(vocab_size))

训练集的vpcab_size: 858

（2）测试集的词数

vocab_size = max(max(text) for text in train_texts) - min(min(text) for text in test_texts) + 1
print("测试集的vocab_size: {}".format(vocab_size))

测试集的vpcab_size: 858

测试集中所用字和训练集相同

2.3 统计词频

word_count = np.zeros(vocab_size, dtype='int32')
for text in train_texts:
    for word in text:
        word_count[word] += 1
sorted_index = word_count.argsort()

（1）统计词频最低的top20

# 最小的词频
for i in range(20):
    word = sorted_index[i]
    print(str(word) + "|" + str(word_count[word]))

236|18 466|18 246|19 82|19 29|19 263|20 451|21 849|22 804|22 384|22 684|23 360|23 714|23 210|23 275|24 157|24 678|24 186|24 696|24 467|24

（2）统计词频最高的top20

# 最大的词频
for i in range(-1,-21,-1):
    word = sorted_index[i]
    print(str(word) + "|" + str(word_count[word]))

693|5477 328|4009 698|3592 380|3198 177|2844 415|2785 381|2699 809|2111 266|1501 623|1467 14|1434 852|1387 256|1344 842|1267 832|1245 172|1243 399|1155 204|1142 382|1135 582|1130

2.4 统计句子长度

df_train = pd.DataFrame()
df_train['train_text'] = train_texts
df_train['train_label'] = train_label
df_train['text_length'] = df.train_text.apply(len)
df_train['disease_num'] = df.train_label.apply(lambda x:len(x.strip().split()))
df_test = pd.DataFrame()
df_test['test_text'] = test_texts
df_test['text_length'] = df_test.test_text.apply(len)

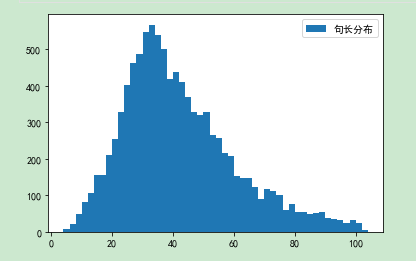

text_length = [len(text) for text in train_texts]
_ = plt.hist(text_length, bins=50, label='句长分布')
_ = plt.legend()

（1）训练集句子长度统计

df_train.text_length.describe()

count 10000.000000 mean 41.564800 std 18.349127 min 4.000000 25% 29.000000 50% 38.000000 75% 52.000000 max 104.000000 Name: text_length, dtype: float64

（2）测试集句子长度统计

df_test.text_length.describe()
count    3000.000000
mean       40.409667
std        17.695561
min         4.000000
25%        28.000000
50%        37.000000
75%        50.000000
max       102.000000
Name: text_length, dtype: float64

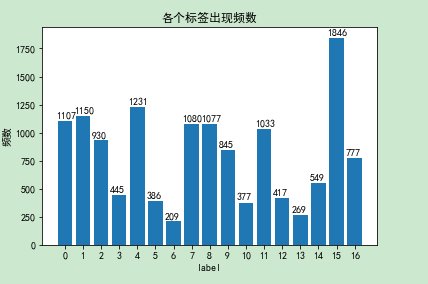

2.5 label类别分布

label_counts = np.zeros(17, dtype='int32')
for labels in train_labels:
    labels = labels.strip().split(' ')
    for label in labels:
        if label != '':
            label_counts[int(label)]+=1
_ = plt.bar(range(17), label_counts, label='各标签数量统计')
for x, count in enumerate(label_counts):
    plt.text(x-0.5, count+20, "{}".format(count))
_ = plt.xlabel("label")
_ = plt.xticks(range(0,17))
_ = plt.ylabel("频数")
_ = plt.title("各个标签出现频数")
plt.savefig(picture_file+'label_freq.jpg')

2.6 正负样本分布

total_num = df_train.shape[0]
for id, count in enumerate(label_counts):
    print("{}|{}|{}|{:.2f}%".format(id, count, total_num-count, 100*count/total_num))

0|1107|8893|11.07% 1|1150|8850|11.50% 2|930|9070|9.30% 3|445|9555|4.45% 4|1231|8769|12.31% 5|386|9614|3.86% 6|209|9791|2.09% 7|1080|8920|10.80% 8|1077|8923|10.77% 9|845|9155|8.45% 10|377|9623|3.77% 11|1033|8967|10.33% 12|417|9583|4.17% 13|269|9731|2.69% 14|549|9451|5.49% 15|1846|8154|18.46% 16|777|9223|7.77%

2.7 缺失值

（１）text 无 （2）label 有，暂未统计

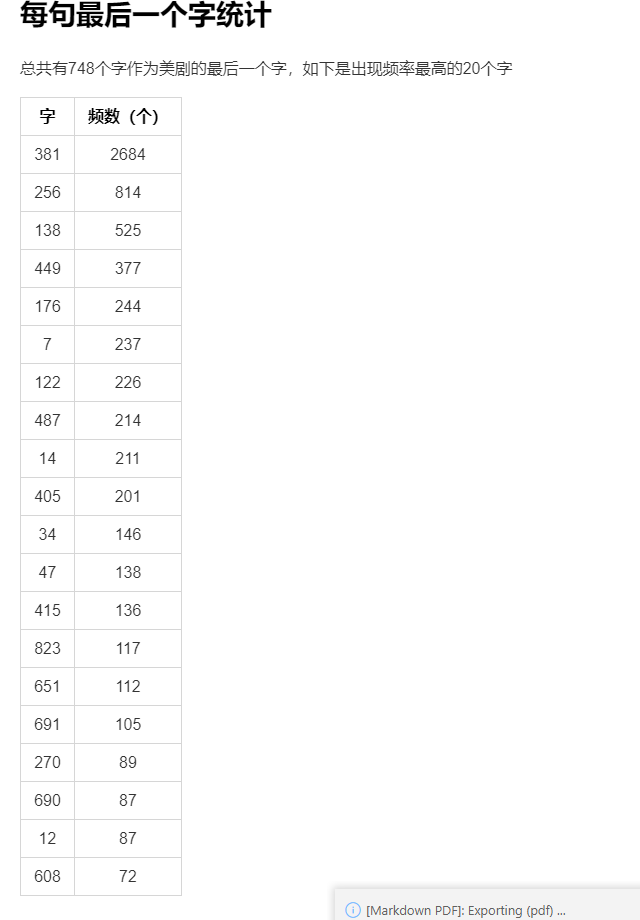

2.8 统计句子最后一个字符词频
