QML中QCharts饼图自定义(Doughnut和Nightingale)

龚建波 发布时间:2019-05-12 18:15:04 ,浏览量:3

0.前言

虽然js的ECharts很好看,但是得嵌一个webengineview,如果是Loader加载的话会很慢,所以我试着用QCharts来自定义一些简单的图表。

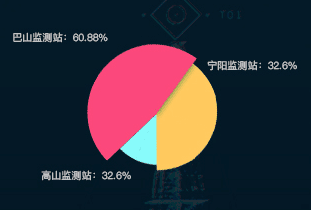

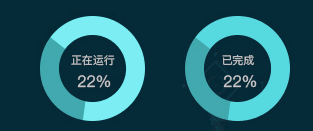

UI原型图如下:

最终实现效果如下:

相对来说,没有ECharts的好看,花样也少,而且要定制效果更好的话得参考源码从C++入手改。比较坑的是hover只有true和false两个状态,没有鼠标坐标,没法做标签跟随,而且MouseArea也没法传递hover只能传点击。

(刚看了下代码,发现要获取鼠标移动事件鼠标的坐标也很容易,C++继承QChartView然后重写鼠标移动事件把坐标emit出来就行了,也不知道为什么官方没有提供这个信号。我在C++里试了下是可行的,在调用父类该事件函数后也不会影响之前已有的信号,下一步我该定制为QML类型了。看来QCharts还是挺有意思的)

1.QML代码

注:编写时用的Qt版本为5.9和5.12

[1/3]

//DoughnutPie.qml

import QtQuick 2.0
import QtCharts 2.2
import QtQuick.Controls 2.2

//外面套一层,方便放标签
Item{
    height: 140
    width: 140

    ChartView {
        id:chart
        anchors.fill: parent
        //anchors.centerIn: parent
        animationDuration: 500
        animationOptions: ChartView.AllAnimations

        //view背景色
        backgroundColor: "transparent"
        //pie区域背景色
        //plotAreaColor: "cyan"
        //theme: ChartView.ChartThemeQt

        //padding-plotarea区域外边圆角
        backgroundRoundness:0
        margins{
            left:0
            right:0
            top:0
            bottom:0
        }

        legend{
            visible: false
        }
        //抗锯齿
        antialiasing: true


        PieSeries {
            id:pie
            size: 0.9
            holeSize: 0.6
            startAngle: 10
            endAngle: 360+10

            property string defaultNameText: ""
            property string defaultValueText: ""

            //hover选中
            //问题:不能配合mousearea使用,而且mousearea只能穿透/传递点击没有hover
            onHovered: {
                if(state){
                    //slice,state
                    name_text.text=slice.label;
                    //占比保留一位小数
                    value_text.text=Number(slice.value*100/pie.sum).toFixed(1)+"%";
                }else{
                    name_text.text=defaultNameText;
                    //占比保留一位小数
                    value_text.text=defaultValueText;
                }
            }
        }


        Column{
            anchors.verticalCenter: parent.verticalCenter
            anchors.horizontalCenter: parent.horizontalCenter

            Text {
                id: name_text
                anchors.horizontalCenter: parent.horizontalCenter
                //text: pie.defaultNameText
                font.pixelSize: 12
                font.family: "Microsoft YaHei UI"
                //font.weight: Font.DemiBold
                color: "white"
            }

            Text {
                id: value_text
                anchors.horizontalCenter: parent.horizontalCenter
                //text: pie.defaultValueText
                font.pixelSize: 16
                font.family: "Microsoft YaHei UI"
                //font.weight: Font.DemiBold
                color: "white"
            }
        }
    }

    //根据{json}数据刷新
    //"data"数据为slice数组
    //"default"数据为默认展示对应的"name"
    function updateChart(args){
        pie.clear(); //清除之前数据
        if(args["data"]){
            var arg_data=args["data"];
            for(var index in arg_data){
                appendSlice(arg_data[index]);
            }
        }
        if(args["default"]){
            defaultSlice(args["default"]);
        }
    }

    //添加slice,参数{json}
    function appendSlice(args){
        //添加新slice(label,value)
        var newslice=pie.append(args["name"]||"noname",args["value"]||0);

        newslice.color=args["color"]||"white";
        newslice.borderWidth= 0;
        newslice.borderColor= args["borderColor"]||args["color"]||"black";
        //exploded距离
        newslice.explodeDistanceFactor= args["explodeDistanceFactor"]||0.1;

        newslice.hovered.connect(function(state){
            newslice.exploded=state;
        });
    }

    //设置默认展示的slice(slice.label)
    function defaultSlice(name){
        var theslice=pie.find(name);
        if(theslice){
            pie.defaultNameText=name_text.text=theslice.label;
            pie.defaultValueText=value_text.text=Number(theslice.value*100/pie.sum).toFixed(1)+"%";

        }
    }

    //测试用数据
    Component.onCompleted: {

        updateChart({
                       "data":[{
                               "name":"已完成",
                               "value":23,
                               "color":"#40a9af"
                           },{
                               "name":"其他",
                               "value":77,
                               "color":"#57d8de"
                           }],
                       "default":"已完成"
                   });
    }
}

[2/3]

//NightingaleRose.qml

import QtQuick 2.0
import QtCharts 2.2

Item {
    height: 140
    width: 140

    ChartView{
        id: chart
        anchors.fill: parent
        backgroundColor: "transparent"

        //theme: ChartView.ChartThemeBrownSand
        animationDuration: 500
        animationOptions:ChartView.SeriesAnimations

        antialiasing: true

        legend{
            visible: false
        }
        backgroundRoundness:0
        margins{
            left:0
            right:0
            top:0
            bottom:0
        }

        Rectangle {
            //不用透明图片方便复制粘贴代码
            id:value_area
            visible: value_text.visible
            anchors.centerIn: parent
            width: 60
            height: 30
            color: "black"
            opacity: 0.4
            radius: 3
        }

        Text {
            id: value_text
            visible: false
            anchors.centerIn: parent
            font.pixelSize: 14
            font.family: "Microsoft YaHei UI"
            //font.underline: true
            //font.weight: Font.DemiBold
            color: "white"
        }

    }

    //偷个懒,不用自己计算
    //保留一个隐藏的pie来计算角度
    ChartView{
        //anchors.fill: parent
        visible: false
        PieSeries {
            id: pie
            /*onHovered: {
                size=state?0.8:0.5
            }

            PieSlice {
                labelColor: "red"
                labelVisible: true
                //labelPosition: PieSlice.LabelInsideNormal
                label: "eaten"
                value: 94.9
            }
            */
        }
    }

    //根据{json}数据刷新
    //"data"数据为slice数组
    function updateChart(args){
        chart.removeAllSeries(); //清除之前数据

        if(args["data"]){
            var arg_data=args["data"];
            //console.log(arg_data);
            arg_data.sort(compare("value"));
            updatePie(arg_data);
            arg_data.reverse();
            for(var index in arg_data){
                //console.log(arg_data[index]["name"],arg_data[index]["value"])
                appendSlice(arg_data[index],index);
            }
        }
    }

    //先把参数给隐藏的pie计算角度
    function updatePie(args){
        pie.clear();
        for(var index in args){
            var newslice=pie.append(args[index]["name"]||"noname",args[index]["value"]||0);
        }
    }

    //添加slice,参数{json}
    function appendSlice(args,cut){
        //默认的pie不能每个slice一个半径,so每个slice单独一个pie
        var newpie = chart.createSeries(ChartView.SeriesTypePie, args["name"]||"noname");
        newpie.size=0.4+cut/20  //0.6
        newpie.holeSize=0

        var spanpie=pie.find(args["name"]||"noname")
        //startAngle没效果,且生成得slice得startAngle打印位undefine
        //so添加一个slice来挤过去
        //但是这个slice设置透明会使黑色,所以得先添加角度最大得slice
        //newpie.sartAngle=spanpie.startAngle
        newpie.endAngle=spanpie.startAngle+spanpie.angleSpan
        newpie.hovered.connect(function(aslice,state){
            //console.log(state)
            if(state){
                newpie.size+=0.03;
            }else{
                newpie.size-=0.03;
            }
        });

        var normallice=newpie.append(args["name"]||"noname",spanpie.startAngle);
        normallice.color="black";
        normallice.borderColor= "black";

        var newslice=newpie.append(args["name"]||"noname",spanpie.angleSpan);
        newslice.color=args["color"]||"white";
        newslice.borderWidth= 0;
        newslice.borderColor= args["borderColor"]||args["color"]||"black";
        //newslice.label=(args["name"]||"noname")+":"+Number(spanpie.percentage*100).toFixed(1)+"%";
        //newslice.labelPosition=PieSlice.LabelInsideHorizontal;
        newslice.labelArmLengthFactor=0;
        newslice.labelFont.pixelSize=12;
        newslice.labelVisible=true;
        newslice.labelColor= "white";
        newslice.hovered.connect(function(state){
            value_text.visible=state
            if(state){
                value_text.text=Number(spanpie.percentage*100).toFixed(1)+"%";
                newslice.borderColor=Qt.lighter(args["color"]||"white");
                newslice.labelColor= args["color"]||"white";
            }else{
                newslice.borderColor=args["color"]||"white";
                newslice.labelColor= "white";
            }
        });

    }

    //数组排序比较
    function compare(propertyname){
        return function(a,b){
            var value1 = a[propertyname]||0;
            var value2 = b[propertyname]||0;
            return value2 - value1;
        }
    }


    测试用数据
    Component.onCompleted: {

        updateChart({
                        "data":[{
                                "name":"巴山监测站",
                                "value":45,
                                "color":"#db497d"
                            },{
                                "name":"宁阳监测站",
                                "value":35,
                                "color":"#ffc95f"
                            },{
                                "name":"高山监测站",
                                "value":20,
                                "color":"#83f5f5"
                            }]
                    });
    }
}

 [3/3]

//main.qml

import QtQuick 2.2
import QtQuick.Window 2.2

Window {
    visible: true
    width: 640
    height: 480
    title: qsTr("Hello World")

    DoughnutPie{
        anchors.fill: parent
    }
    /*NightingaleRose{
        anchors.fill: parent
    }*/

}
