前言：
Catalina是Tomcat提供的Servlet容器实现，它负责处理来自客户端的请求并处理响应。
但是仅有Servlet容器服务器是无法对外提供服务的，还需要由连接器接收来自客户端的请求，并按照既定协议进行解析，然后交由Servlet容器处理
1.Coyote
Coyote是Tomcat连接器框架的名称。客户端通过Coyote与服务器建立连接、发送请求并接收响应
Coyote封装了底层的网络通信，为Catalina容器提供了统一的接口，使Catalina与具体的请求协议及IO方式解耦。
1）Coyote支持的传输协议
* HTTP/1.1 主要用于Tomcat单独运行的情况
* AJP 用于和web服务器（Apache HTTP Server）集成，以实现针对静态资源的优化以及集群部署
* HTTP/2.0 下一代HTTP协议，自Tomcat8.5以及9.0版本开始支持
2）Coyote按照IO方式不同提供不同的方法
* NIO
* NIO2
* APR（Apache Portable Runtime）
2.Coyote框架主要实现类

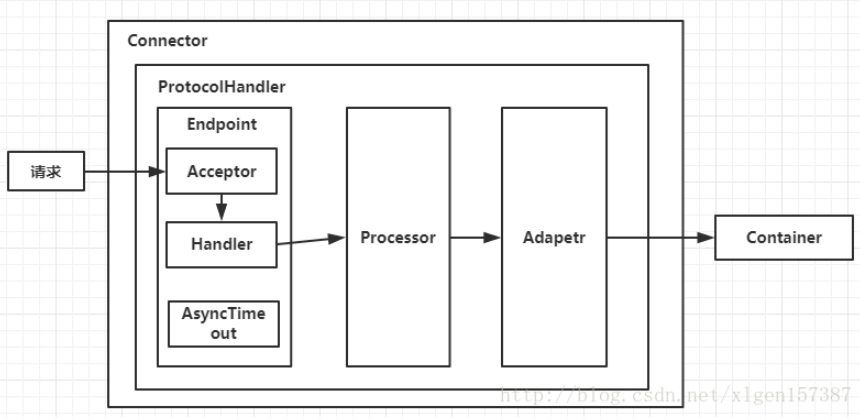

先复用一张别人的图来说明请求的处理过程，所涉及的节点（来自https://blog.csdn.net/xlgen157387/article/details/79006434 ）
这里先直接写实现步骤，下面会用源码分析的方式来确定其过程
1）Endpoint 具体的Socket接收处理类，是对传输层的抽象。
2）Processor 负责构造Request和Response对象，是对应用层的抽象
3）Adapter 将请求适配到Servlet容器进行具体的处理
从以上的图可以直观的看一下一个请求真正到具体的Container要经过的步骤，下面就从源码角度来分析一下这张图
3.Connector的结构分析
1）Connection的结构
Connection主要源码如下：
public class Connector extends LifecycleMBeanBase {
protected Service service = null;
// 默认的ProtocolHandler实现
protected String protocolHandlerClassName = "org.apache.coyote.http11.Http11NioProtocol";
protected final ProtocolHandler protocolHandler;
protected Adapter adapter = null;
@Override
protected void startInternal() throws LifecycleException {
// Validate settings before starting
if (getPort() < 0) {
throw new LifecycleException(sm.getString(
"coyoteConnector.invalidPort", Integer.valueOf(getPort())));
}
setState(LifecycleState.STARTING);
try {
// 启动protocolHandler
protocolHandler.start();
} catch (Exception e) {
String errPrefix = "";
if(this.service != null) {
errPrefix += "service.getName(): \"" + this.service.getName() + "\"; ";
}
throw new LifecycleException
(errPrefix + " " + sm.getString
("coyoteConnector.protocolHandlerStartFailed"), e);
}
}
}由上可知，ProtocolHandler的默认实现为Http11NioProtocol
2）Connector被创建的时机
在Catalina解析server.xml时，也就是在Catalina.createStartDigester()方法中，有以下代码
digester.addRule("Server/Service/Connector",
new ConnectorCreateRule());
digester.addRule("Server/Service/Connector",
new SetAllPropertiesRule(new String[]{"executor", "sslImplementationName"}));
digester.addSetNext("Server/Service/Connector",
"addConnector",
"org.apache.catalina.connector.Connector");
可以看到，Connector就是再Catalina解析的server.xml的时候创建的
3）Connection.start()启动Connection包含的一系列组件
Connection在Catalina解析server.xml时候被创建，那么Connection以及Connection包含的组件是什么时候被启动的呢？
我们知道Connection属于Service，Service属于Server，Server在解析后创建启动，同时也通过调用其start()方法启动了Service、Connection
由1）可知，Connection.start()调用了ProtocolHandler.start()方法，下面我们来看下这个start方法
4.Http11NioProtocol源码分析
类结构如上图所示
1）主要成员变量分析
存在AbstractProtocol类中，如下所示：
public abstract class AbstractProtocol implements ProtocolHandler,
MBeanRegistration {
/**
* Endpoint that provides low-level network I/O - must be matched to the
* ProtocolHandler implementation (ProtocolHandler using NIO, requires NIO
* Endpoint etc.).
*/
private final AbstractEndpoint endpoint;
/**
* The adapter provides the link between the ProtocolHandler and the
* connector.
*/
protected Adapter adapter;
private final Set waitingProcessors =
Collections.newSetFromMap(new ConcurrentHashMap());
/**
* Create and configure a new Processor instance for the current protocol
* implementation.
*
* @return A fully configured Processor instance that is ready to use
*/
protected abstract Processor createProcessor();通过源码，我们更验证了上图的正确性
ProtocolHandler包含了Endpoint、Processor、Adapter，三个类各司其职，共同完成请求的解析、封装、传递
2）ProtocolHandler.start()启动方法
下面我们来看下Handler启动时完成哪些动作
// 具体实现在AbstractProtocol.start()方法中
@Override
public void start() throws Exception {
if (getLog().isInfoEnabled())
getLog().info(sm.getString("abstractProtocolHandler.start",
getName()));
try {
// 主要就是启动endpoint
endpoint.start();
} catch (Exception ex) {
getLog().error(sm.getString("abstractProtocolHandler.startError",
getName()), ex);
throw ex;
}
...
}由上可知：ProtocolHandler启动时主要完成的就是endpoint的启动
5.Endpoint.start()
Tomcat中没有Endpoint，默认使用的是AbstractEndpoint
// AbstractEndpoint.start()
public final void start() throws Exception {
if (bindState == BindState.UNBOUND) {
// bind方法主要就是创建ServerSocket，关联到用户指定的地址
bind();
bindState = BindState.BOUND_ON_START;
}
// startInternal是一个抽象方法，默认实现在其子类中
startInternal();
}我们当前使用的AbstractEndpoint实现类是NioEndpoint，其startInternal方法如下：
/**
* Start the NIO endpoint, creating acceptor, poller threads.
*/
@Override
public void startInternal() throws Exception {
if (!running) {
running = true;
paused = false;
processorCache = new SynchronizedStack(SynchronizedStack.DEFAULT_SIZE,
socketProperties.getProcessorCache());
eventCache = new SynchronizedStack(SynchronizedStack.DEFAULT_SIZE,
socketProperties.getEventCache());
nioChannels = new SynchronizedStack(SynchronizedStack.DEFAULT_SIZE,
socketProperties.getBufferPool());
// 1.创建Executor
if ( getExecutor() == null ) {
createExecutor();
}
// 2.创建最大连接数限制类
initializeConnectionLatch();
// 3.创建Poller，并启动线程执行Poller任务
pollers = new Poller[getPollerThreadCount()];
for (int i=0; i 0) {
//if we are here, means we have other stuff to do
//do a non blocking select
keyCount = selector.selectNow();
} else {
keyCount = selector.select(selectorTimeout);
}
wakeupCounter.set(0);
}
...
} catch (Throwable x) {
}
//either we timed out or we woke up, process events first
if ( keyCount == 0 ) hasEvents = (hasEvents | events());
Iterator iterator =
keyCount > 0 ? selector.selectedKeys().iterator() : null;
// 2.监听到客户端事件，
while (iterator != null && iterator.hasNext()) {
SelectionKey sk = iterator.next();
NioSocketWrapper attachment = (NioSocketWrapper)sk.attachment();
// Attachment may be null if another thread has called
// cancelledKey()
if (attachment == null) {
iterator.remove();
} else {
iterator.remove();
// 3.最终交由processKey处理对应的客户端事件
processKey(sk, attachment);
}
}//while
//process timeouts
timeout(keyCount,hasEvents);
}//while
getStopLatch().countDown();
}
// NioEndpoint.Poller.processKey(sk, attachment)
// 处理客户端事件
protected void processKey(SelectionKey sk, NioSocketWrapper attachment) {
try {
if ( close ) {
cancelledKey(sk);
} else if ( sk.isValid() && attachment != null ) {
if (sk.isReadable() || sk.isWritable() ) {
if ( attachment.getSendfileData() != null ) {
processSendfile(sk,attachment, false);
} else {
unreg(sk, attachment, sk.readyOps());
boolean closeSocket = false;
// 1.处理读事件
if (sk.isReadable()) {
if (!processSocket(attachment, SocketEvent.OPEN_READ, true)) {
closeSocket = true;
}
}
// 2.处理写事件
if (!closeSocket && sk.isWritable()) {
if (!processSocket(attachment, SocketEvent.OPEN_WRITE, true)) {
closeSocket = true;
}
}
if (closeSocket) {
cancelledKey(sk);
}
}
}
...
}
// AbstractEndpoint.processSocket()
public boolean processSocket(SocketWrapperBase socketWrapper,SocketEvent event, boolean dispatch) {
try {
if (socketWrapper == null) {
return false;
}
SocketProcessorBase sc = processorCache.pop();
// 1.将socketWrapper绑定到SocketProcessor上
if (sc == null) {
sc = createSocketProcessor(socketWrapper, event);
} else {
sc.reset(socketWrapper, event);
}
// 2.获取线程池，并执行SocketProcessor任务，如果没有线程池，则直接执行
Executor executor = getExecutor();
if (dispatch && executor != null) {
executor.execute(sc);
} else {
sc.run();
}
...
return true;
}总结：到这里为止，我们已经完成了第一阶段，主要的处理类是Endpoint，主要工作：
1）NioEndpoint启动，监听对应的host：port
2）NioEndpoint.Acceptor接收客户端连接请求，并将对应的Socket封装为一个PollerEvent，放入Poller中
3）PollerEvent重新监听客户端的READ事件
4）Poller主要是将客户端Socket传递给Processor进行处理
9.SocketProcessor（第二阶段，SocketProcessor将Socket请求转交给Processor）
1）SocketProcessor.run()
protected class SocketProcessor extends SocketProcessorBase {
public SocketProcessor(SocketWrapperBase socketWrapper, SocketEvent event) {
super(socketWrapper, event);
}
@Override
protected void doRun() {
NioChannel socket = socketWrapper.getSocket();
SelectionKey key = socket.getIOChannel().keyFor(socket.getPoller().getSelector());
try {
int handshake = -1;
try {
if (key != null) {
// 1.NioChannel.isHandshakeComplete()默认为true
if (socket.isHandshakeComplete()) {
// No TLS handshaking required. Let the handler
// process this socket / event combination.
handshake = 0;
}
...
}
}
...
if (handshake == 0) {
SocketState state = SocketState.OPEN;
// event为空时，则默认为读事件
if (event == null) {
state = getHandler().process(socketWrapper, SocketEvent.OPEN_READ);
} else {
// 交由AbstractProtocol.ConnectionHandler处理（关键步骤）
state = getHandler().process(socketWrapper, event);
}
if (state == SocketState.CLOSED) {
close(socket, key);
}
} else if (handshake == -1 ) {
close(socket, key);
} else if (handshake == SelectionKey.OP_READ){
socketWrapper.registerReadInterest();
} else if (handshake == SelectionKey.OP_WRITE){
socketWrapper.registerWriteInterest();
}
} catch (CancelledKeyException cx) {
...
}
...
}
}2）AbstractProtocol.ConnectionHandler.process(socketWrapper, event)这一步会将处理交由Processor处理
@Override
public SocketState process(SocketWrapperBase wrapper, SocketEvent status) {
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.process",
wrapper.getSocket(), status));
}
if (wrapper == null) {
// Nothing to do. Socket has been closed.
return SocketState.CLOSED;
}
S socket = wrapper.getSocket();
// 1.获取对应的Processor
Processor processor = connections.get(socket);
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.connectionsGet",
processor, socket));
}
...
try {
...
// 2.如果对应的Processor为空，则各种方式获取，不行的话，最后再新建
if (processor == null) {
processor = recycledProcessors.pop();
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.processorPop",
processor));
}
}
if (processor == null) {
processor = getProtocol().createProcessor();
register(processor);
}
...
connections.put(socket, processor);
SocketState state = SocketState.CLOSED;
do {
// 3.处理客户端事件
// 主要关注下读事件，如果是读事件，则此时status=SocketEvent.OPEN_READ
state = processor.process(wrapper, status);
if (state == SocketState.UPGRADING) {
...
// 关于升级Protocol的一系列处理
}
}
} while ( state == SocketState.UPGRADING);
// 下面就是一些关于写事件、连接事件等操作，不再细看
if (state == SocketState.LONG) {
// In the middle of processing a request/response. Keep the
// socket associated with the processor. Exact requirements
// depend on type of long poll
longPoll(wrapper, processor);
if (processor.isAsync()) {
getProtocol().addWaitingProcessor(processor);
}
} else if (state == SocketState.OPEN) {
// In keep-alive but between requests. OK to recycle
// processor. Continue to poll for the next request.
connections.remove(socket);
release(processor);
wrapper.registerReadInterest();
}
...
return state;
} catch(java.net.SocketException e) {
// SocketExceptions are normal
getLog().debug(sm.getString(
"abstractConnectionHandler.socketexception.debug"), e);
}
...
// Make sure socket/processor is removed from the list of current
// connections
connections.remove(socket);
release(processor);
return SocketState.CLOSED;
}3）AbstractProcessorLight.process(wrapper, status)处理
@Override
public SocketState process(SocketWrapperBase socketWrapper, SocketEvent status)
throws IOException {
SocketState state = SocketState.CLOSED;
Iterator dispatches = null;
do {
...
} else if (status == SocketEvent.OPEN_WRITE) {
// Extra write event likely after async, ignore
state = SocketState.LONG;
} else if (status == SocketEvent.OPEN_READ){
// 重点关注读事件，就在这里
// service方法是一个抽象方法，由子类负责实现
// 本例中我们选择看Http11Processor子类的实现，继续在下面分析
state = service(socketWrapper);
} else {
// Default to closing the socket if the SocketEvent passed in
// is not consistent with the current state of the Processor
state = SocketState.CLOSED;
}
...
} while (state == SocketState.ASYNC_END ||
dispatches != null && state != SocketState.CLOSED);
return state;
}总结：
SocketProcessor将事件分类后，交由Processor处理
后面Processor会将请求交由Adapter处理
10.Http11Processor.service(socketWrapper)(第三阶段：Processor封装Endpoint接收到的Socket为Request)
@Override
public SocketState service(SocketWrapperBase socketWrapper)
throws IOException {
RequestInfo rp = request.getRequestProcessor();
rp.setStage(org.apache.coyote.Constants.STAGE_PARSE);
...
while (!getErrorState().isError() && keepAlive && !isAsync() && upgradeToken == null &&
sendfileState == SendfileState.DONE && !endpoint.isPaused()) {
// Parsing the request header
...
// Has an upgrade been requested?
Enumeration connectionValues = request.getMimeHeaders().values("Connection");
boolean foundUpgrade = false;
while (connectionValues.hasMoreElements() && !foundUpgrade) {
foundUpgrade = connectionValues.nextElement().toLowerCase(
Locale.ENGLISH).contains("upgrade");
}
...
// 1.关键的业务处理就在这里
if (!getErrorState().isError()) {
try {
rp.setStage(org.apache.coyote.Constants.STAGE_SERVICE);
// 将request交由Adapter处理
getAdapter().service(request, response);
...
} catch (InterruptedIOException e) {
setErrorState(ErrorState.CLOSE_CONNECTION_NOW, e);
}
...
}
...
}Adapter是接口，具体的实现类是CoyoteAdapter，下面看下其service方法实现
@Override
public void service(org.apache.coyote.Request req, org.apache.coyote.Response res)
throws Exception {
Request request = (Request) req.getNote(ADAPTER_NOTES);
Response response = (Response) res.getNote(ADAPTER_NOTES);
// 1.将request、response转换为符合Servlet规范的请求响应
if (request == null) {
// Create objects
request = connector.createRequest();
request.setCoyoteRequest(req);
response = connector.createResponse();
response.setCoyoteResponse(res);
// Link objects
request.setResponse(response);
response.setRequest(request);
// Set as notes
req.setNote(ADAPTER_NOTES, request);
res.setNote(ADAPTER_NOTES, response);
// Set query string encoding
req.getParameters().setQueryStringEncoding(connector.getURIEncoding());
}
if (connector.getXpoweredBy()) {
response.addHeader("X-Powered-By", POWERED_BY);
}
boolean async = false;
boolean postParseSuccess = false;
req.getRequestProcessor().setWorkerThreadName(THREAD_NAME.get());
try {
// 2.转换请求参数并完成请求映射
// 这里会将请求映射到一个具体的Wrapper
postParseSuccess = postParseRequest(req, request, res, response);
if (postParseSuccess) {
//check valves if we support async
request.setAsyncSupported(
connector.getService().getContainer().getPipeline().isAsyncSupported());
// 3.得到Container中第一个Valve，执行其invoke方法，这个valve是责任链模式，会接连执行以下的valve
// 完成客户端请求
connector.getService().getContainer().getPipeline().getFirst().invoke(
request, response);
}
...
} catch (IOException e) {
// Ignore
} finally {
...
}
}1）postParseRequest(req, request, res, response)完成请求映射
这是一个非常复杂的方法，笔者也很绕，细节特别多，在这就不细述。
只需要知道根据客户端请求路径映射到一个具体的有效的Wrapper。映射结果会保存在MappingData中
2）connector.getService().getContainer().getPipeline().getFirst().invoke(request, response)获取当前Engine的第一个Valve并执行，完成客户端请求
到这一步，客户端请求就转换为具体的Servlet并执行其service方法，返回响应即结束本次会话
有关于Pipeline和Valve的内容笔者会新开一篇博客来介绍。
总结：
有关于web请求的内容到这里就结束了，下面来总结下请求的整个过程，实际也就是下图
读者可按照该图再回忆一下我们上面的分析过程。
参考：Tomcat架构解析（刘光瑞） 参考博客： https://blog.csdn.net/xlgen157387/article/details/79006434
