java IoT物联网server 读取javascript协议配置文件

1、Iot 物联网协议

internet of things 物联网协议java 服务如何制作？ java netty 服务器gitee连接 下面的代码实际上是对协议的定义，如何变成动态的协议？我的方案就是使用js代码来定义协议，java读取js配置文件来做，可以调到2 。注意 1和2 是两个java项目工程，是两个地址

public class Message {

    private final Charset charset = Charset.forName("utf-8");

    private byte magicType;
    private long deviceid; //设备
    private byte cmd;//命令
    private byte length;
    private String body;

    public Message(){

    }

    public Message(byte magicType,long deviceid, byte cmd, byte[] data) {
        this.magicType = magicType; //0x69
        this.deviceid = deviceid;
        this.cmd =cmd;
        this.length = (byte)data.length;
        this.body = new String(data, charset);
    }

    public Message(byte magicType, long deviceid, byte cmd, String body) {
        this.magicType = magicType;
        this.cmd = cmd;
        this.deviceid = deviceid;
        this.length = (byte)body.getBytes(charset).length;
        this.body = body;
    }
    public String GetBody()
    {
        return this.body;
    }
    public byte GetCmd()
    {
        return this.cmd;
    }
}

代码里面可以发布到redis里面 可以在nodejs里面订阅等等，java来发布 以下使用nodejs订阅消息

var redis = require("redis");
var client = redis.createClient(6379, "192.168.1.222");
var client1 = redis.createClient(6379, "192.168.1.222");

client1.on('connect', function () {
    client1.subscribe("draw");
});
client1.on("message", function (channel, message) {
    console.log(typeof (message));
    var obj = JSON.parse(message);
    console.log("普通订阅接收到来自" + channel + "的信息:" + obj.session);
    if (message == "quit") {
        client1.unsubscribe("draw");
        console.log("普通订阅操作已经取消");
        //client2.quite();
    }
});
/*
var client2 = redis.createClient("6379", "192.168.1.222");
client2.on('connect', function () {
    client2.psubscribe("draw*");
});
client2.on("pmessage", function (p, channel, message) {
    console.log("批量订阅接收到来自" + channel + "的信息:" + message);
    if (message == "quit") {
        client2.punsubscribe("draw*");
        console.log("批量订阅操作已经取消");
        //client2.quite();
    }
});
*/




/*
function getRedisData() {
    //客户端连接redis成功后执行回调
    client.on("ready", function () {
        //订阅消息
        client.subscribe("chat");
        client.subscribe("chat1");
        console.log("订阅成功。。。");
    });

    client.on("error", function (error) {
        console.log("Redis Error " + error);
    });

    //监听订阅成功事件
    client.on("subscribe", function (channel, count) {
        console.log("client subscribed to " + channel + "," + count + "total subscriptions");
    });

    //收到消息后执行回调，message是redis发布的消息
    client.on("message", function (channel, message) {
        console.log("我接收到信息了" + message);
        //dealWithMsg(message);
    });

    //监听取消订阅事件
    client.on("unsubscribe", function (channel, count) {
        console.log("client unsubscribed from" + channel + ", " + count + " total subscriptions")
    });
}

function dealWithMsg(message) {
    //按照message查询内容
    client1.zscore("key", message, function (err, reply) {
        console.log(message + "的内容是：" + reply);
    });
}
getRedisData();
*/

2、使用java读取一种协议，协议记录在js文件中

以下是一个javascript的协议函数

function getprotocol() {
    var protocol_define = {
        protocol: {
            contentlen: { offset: 1, len: 2, includeht: 1 }, //includeht 为0 不包含头部尾部 1 包含头部和其他
            deviceid: { offset: 3, len: 4 },
            cmd: { offset: 7, len: 2 },
            headfields: {
                len: 8, field: [
                    { name: "time", offset: 9, ftype: "byte", len: 6 },
                    { name: "version", offset: 15, ftype: "byte", len: 1 },
                    { name: "aftercmd", offset: 16, ftype: "byte", len: 1 } //后继指令
                ]
            },
            bodyfields: [
                {
                    //type: string float double uint32 int32 uint16 int16 int8 uint8
                    //ftype bige 大端格式数据 lite小端数据格式
                    des: "上行自动采集命令",
                    cmd: 0x0202,   //
                    dir: "up",  //上行命令
                    field: [
                        { name: "temp", type: "float", ftype: "bige", len: 4 },
                        { name: "high", type: "int16", ftype: "bige", len: 2 },
                        { name: "a", ftype: "float", ftype: "bige", len: 4 }]
                },
                {
                    des: "心跳",
                    cmd: 0x0201, //heart
                    field: [
                        { name: "temp2", type: "float", ftype: "bige", len: 2 },
                        { name: "tt", type: "string", ftype: "", len: 4 }
                    ]
                },
                {
                    des: "登陆包",
                    cmd: 0x0101,
                    field: [
                        { name: "test", type: "integer", ftype: "bige", len: 4 }
                    ]
                }
            ],
            crc: { len: 2 }
        },
        url: "http://192.168.1.237:10011/postdata",//post 数据的远程地址
        push: ["192.168.1.237"],  //数据推流到另外的服务器或者服务器组
        port: "8051" //tcp端口启动为8051
    }
    return JSON.stringify(protocol_define);
};

如何使用Java读取？

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.data.jpa.repository.config.EnableJpaAuditing;

import java.io.IOException;

import javax.script.ScriptException;

import com.zhongda.IoT.common.scriptjs;

当然还是使用sprintboot等框架做一些工作，java比较简单，不像c++，当你编译一个google的v8 解析引擎，就发现需要各种的版本，确实不方便，当然也可以选择自己写，不过造轮子确实费时间

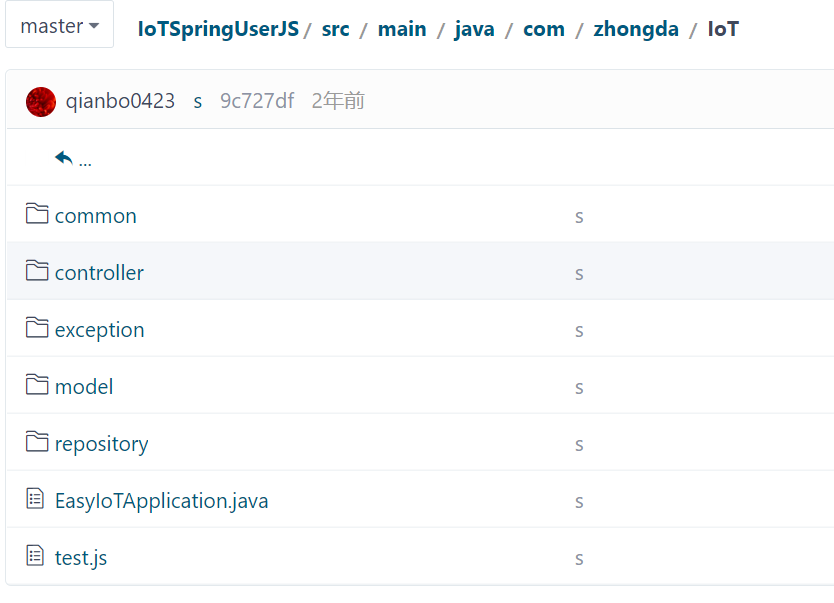

3、直接给链接吧：

gitee 链接 读取javascript配置文件
