三维监控系统模型

1、使用babylonjs

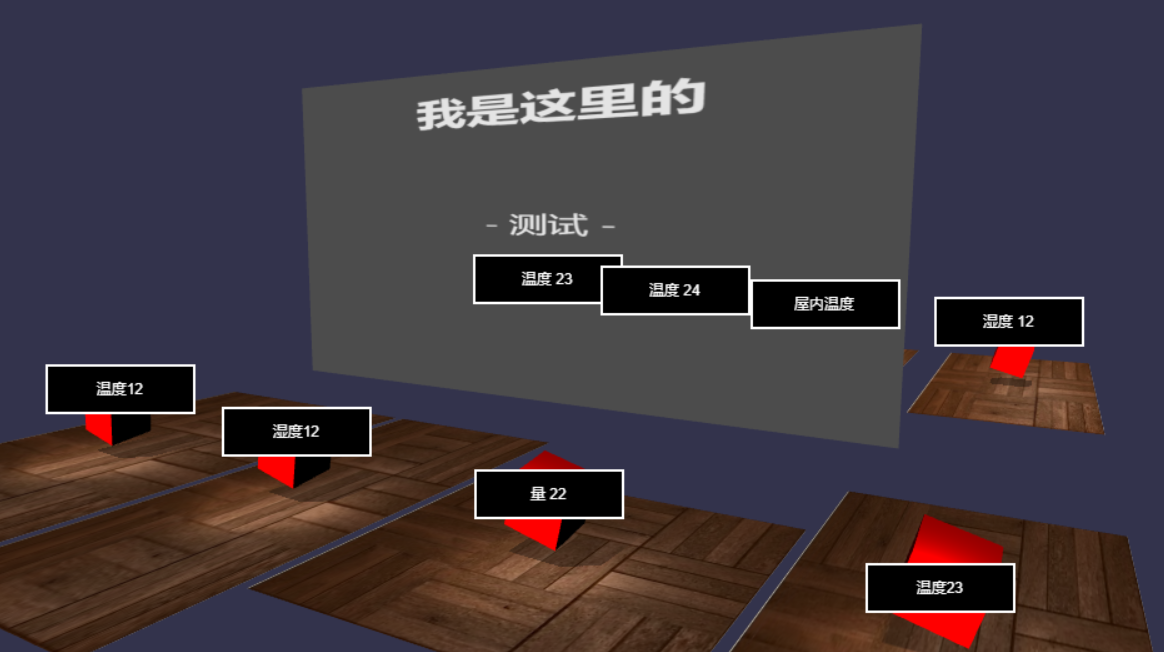

babylonjs本身是一个非常好的web三维引擎，比起threejs来说有更好的用户UI效果，看一个效果图，本身是从例子里修出来的，数据始终正向对准客户

2、创建过程

创建一个secene，同时创建一个相机,灯光等等

var createScene = function (engine) {
           var scene = new BABYLON.Scene(engine);
           var light = new BABYLON.DirectionalLight("dir01", new BABYLON.Vector3(0, -0.5, 1.0), scene);
           var camera = new BABYLON.FreeCamera("Camera", new BABYLON.Vector3(20, 30, -100), scene);

           camera.attachControl(canvas, true);

           var playgroundSize = 100;
           // Background
           var background = BABYLON.Mesh.CreatePlane("background", playgroundSize, scene, false);
           background.material = new BABYLON.StandardMaterial("background", scene);
           background.scaling.y = 0.5;
           background.position.z = playgroundSize / 2 - 0.5;
           background.position.y = playgroundSize / 4;
           background.receiveShadows = true;
           var backgroundTexture = new BABYLON.DynamicTexture("dynamic texture", 512, scene, true);
           background.material.diffuseTexture = backgroundTexture;
           background.material.specularColor = new BABYLON.Color3(0, 0, 0);
           background.material.backFaceCulling = false;
    //省略........
}

创建一个mesh

  var ground01 = BABYLON.Mesh.CreateGround("温度12", 34, 60, 1, scene, false);

创建ws websocket 取获取数据

 var ws = new WebSocket("ws://127.0.0.1:9090");
 		ws.onmessage = function (msg) {
        //接收数据使用，给标签赋值
};

创建

  $(document).ready(function () {
            //engine.displayLoadingUI();
            //赋予该场景于变量
            scene = createScene();

            //在引擎中循环运行这个场景
            engine.runRenderLoop(function () {
                scene.render();
            });

            scene.beforeRender = function () {

            };

            window.addEventListener('resize', function () {
                engine.resize();
            });
            engine.hideLoadingUI();
        });

重点

重点在于创建UI，增加label

// Adding labels
            var advancedTexture = BABYLON.GUI.AdvancedDynamicTexture.CreateFullscreenUI("UI");


            var addLabel = function (lights) {
                for (var i = 0; i
    监控






















        html, body {
            overflow: hidden;
            width: 100%;
            height: 100%;
            margin: 0;
            padding: 0;
        }

        #renderCanvas {
            width: 100%;
            height: 100%;
            touch-action: none;
        }







        var image = new Image();
        function init() {
            canvas = document.createElement('canvas');
            content = canvas.getContext('2d');

            canvas.width = 320;
            canvas.height = 180;
            content.scale(1, -1);
            content.translate(0, -180);
            document.body.appendChild(canvas);
        }
        //init();
        var ws = new WebSocket("ws://127.0.0.1:9090");



        var i = 0;
        var text = "我是这里的";
        var createScene = function (engine) {
            var scene = new BABYLON.Scene(engine);
            var light = new BABYLON.DirectionalLight("dir01", new BABYLON.Vector3(0, -0.5, 1.0), scene);
            var camera = new BABYLON.FreeCamera("Camera", new BABYLON.Vector3(20, 30, -100), scene);

            camera.attachControl(canvas, true);

            var playgroundSize = 100;
            // Background
            var background = BABYLON.Mesh.CreatePlane("background", playgroundSize, scene, false);
            background.material = new BABYLON.StandardMaterial("background", scene);
            background.scaling.y = 0.5;
            background.position.z = playgroundSize / 2 - 0.5;
            background.position.y = playgroundSize / 4;
            background.receiveShadows = true;
            var backgroundTexture = new BABYLON.DynamicTexture("dynamic texture", 512, scene, true);
            background.material.diffuseTexture = backgroundTexture;
            background.material.specularColor = new BABYLON.Color3(0, 0, 0);
            background.material.backFaceCulling = false;



            backgroundTexture.drawText(text, null, 80, "bold 50px Segoe UI", "white", "#555555");
            //else
              //  backgroundTexture.drawText("啊啊等我我", null, 80, "bold 50px Segoe UI", "white", "#555555");

            backgroundTexture.drawText("- 测试 -", null, 250, "35px Segoe UI", "white", null);





            // Ground
            var ground01 = BABYLON.Mesh.CreateGround("温度12", 34, 60, 1, scene, false);
            var ground02 = BABYLON.Mesh.CreateGround("湿度12", 24, 60, 1, scene, false);
            var ground03 = BABYLON.Mesh.CreateGround("量 22", 34, 34, 1, scene, false);
            var ground04 = BABYLON.Mesh.CreateGround("温度23", 24, 60, 1, scene, false);

            var ground11 = BABYLON.Mesh.CreateGround("温度 23", 24, 60, 1, scene, false);
            var ground12 = BABYLON.Mesh.CreateGround("温度 24", 24, 60, 1, scene, false);
            var ground13 = BABYLON.Mesh.CreateGround("屋内温度", 24, 60, 1, scene, false);
            var ground14 = BABYLON.Mesh.CreateGround("湿度 12", 24, 60, 1, scene, false);

            var groundMaterial = new BABYLON.StandardMaterial("ground", scene);
            groundMaterial.diffuseTexture = new BABYLON.Texture("b2.jpg", scene);
            groundMaterial.specularColor = new BABYLON.Color3(0, 0, 0);
            groundMaterial.emissiveColor = new BABYLON.Color3(0.2, 0.2, 0.2);

            ws.onmessage = function (msg) {
                image.onload = function () {
                    //content.clearRect(0, 0,canvas.width, canvas.height);
                    //content.drawImage(image, 0, 0, canvas.width, canvas.height);
                    groundMaterial.diffuseTexture = new BABYLON.Texture(image, scene);
                    i++;
                    window.URL.revokeObjectURL(image.src)
                }
                image.src = URL.createObjectURL(msg.data);
            };


            ground01.material = groundMaterial;
            ground01.receiveShadows = true;
            ground01.position.x = -30;
            ground02.material = groundMaterial;
            ground02.receiveShadows = true;
            ground02.position.x = 0;
            ground03.material = groundMaterial;
            ground03.receiveShadows = true;
            ground03.position.x = 30;
            ground04.material = groundMaterial;
            ground04.receiveShadows = true;
            ground04.position.x = 60;

            ground11.material = groundMaterial;
            ground11.receiveShadows = true;
            ground11.position.z = 100;
            ground11.position.x = -30;
            ground12.material = groundMaterial;
            ground12.receiveShadows = true;
            ground12.position.z = 100;
            ground13.material = groundMaterial;
            ground13.receiveShadows = true;
            ground13.position.z = 100;
            ground13.position.x = 30;
            ground14.material = groundMaterial;
            ground14.receiveShadows = true;
            ground14.position.z = 100;
            ground14.position.x = 60;


            // --------- SPOTS -------------
            var light00 = new BABYLON.SpotLight("*spot00", new BABYLON.Vector3(-30, 20, -10), new BABYLON.Vector3(0, -1, 0.3), 1.2, 24, scene);
            var light01 = new BABYLON.SpotLight("*spot01", new BABYLON.Vector3(0, 20, -10), new BABYLON.Vector3(0, -1, 0.3), 1.2, 24, scene);
            var light02 = new BABYLON.SpotLight("*spot02", new BABYLON.Vector3(30, 20, -10), new BABYLON.Vector3(0, -1, 0.3), 1.2, 24, scene);
            var light03 = new BABYLON.SpotLight("*spot03", new BABYLON.Vector3(60, 20, -10), new BABYLON.Vector3(0, -1, 0.3), 1.2, 24, scene);

            // Boxes
            var box00 = BABYLON.Mesh.CreateBox("*box00", 5, scene, false);
            box00.position = new BABYLON.Vector3(-30, 5, 0);
            var box01 = BABYLON.Mesh.CreateBox("*box01", 5, scene, false);
            box01.position = new BABYLON.Vector3(0, 5, 0);
            var box02 = BABYLON.Mesh.CreateBox("*box02", 5, scene, false);
            box02.position = new BABYLON.Vector3(30, 5, 0);
            var box03 = BABYLON.Mesh.CreateBox("*box03", 5, scene, false);
            box03.position = new BABYLON.Vector3(60, 5, 0);

            var boxMaterial = new BABYLON.StandardMaterial("mat", scene);
            boxMaterial.diffuseColor = new BABYLON.Color3(1.0, 0, 0);
            boxMaterial.specularColor = new BABYLON.Color3(0.5, 0, 0);
            box00.material = boxMaterial;
            box01.material = boxMaterial;
            box02.material = boxMaterial;
            box03.material = boxMaterial;

            // Inclusions
            light00.includedOnlyMeshes.push(box00);
            light00.includedOnlyMeshes.push(ground01);

            light01.includedOnlyMeshes.push(box01);
            light01.includedOnlyMeshes.push(ground02);

            light02.includedOnlyMeshes.push(box02);
            light02.includedOnlyMeshes.push(ground03);

            light03.includedOnlyMeshes.push(box03);
            light03.includedOnlyMeshes.push(ground04);

            // Shadows
            var shadowGenerator00 = new BABYLON.ShadowGenerator(512, light00);
            shadowGenerator00.getShadowMap().renderList.push(box00);

            var shadowGenerator01 = new BABYLON.ShadowGenerator(512, light01);
            shadowGenerator01.getShadowMap().renderList.push(box01);
            shadowGenerator01.usePoissonSampling = true;

            var shadowGenerator02 = new BABYLON.ShadowGenerator(512, light02);
            shadowGenerator02.getShadowMap().renderList.push(box02);
            shadowGenerator02.useExponentialShadowMap = true;

            var shadowGenerator03 = new BABYLON.ShadowGenerator(512, light03);
            shadowGenerator03.getShadowMap().renderList.push(box03);
            shadowGenerator03.useBlurExponentialShadowMap = true;
            shadowGenerator03.blurBoxOffset = 2.0;

            // --------- DIRECTIONALS -------------
            var light04 = new BABYLON.DirectionalLight("*dir00", new BABYLON.Vector3(0, -0.6, 0.3), scene);
            var light05 = new BABYLON.DirectionalLight("*dir01", new BABYLON.Vector3(0, -0.6, 0.3), scene);
            var light06 = new BABYLON.DirectionalLight("*dir02", new BABYLON.Vector3(0, -0.6, 0.3), scene);
            var light07 = new BABYLON.DirectionalLight("*dir03", new BABYLON.Vector3(0, -0.6, 0.3), scene);
            light04.position = new BABYLON.Vector3(-30, 50, 60);
            light05.position = new BABYLON.Vector3(0, 50, 60);
            light06.position = new BABYLON.Vector3(30, 50, 60);
            light07.position = new BABYLON.Vector3(60, 50, 60);

            // Boxes
            var box04 = BABYLON.Mesh.CreateBox("*box04", 5, scene, false);
            box04.position = new BABYLON.Vector3(-30, 5, 100);
            var box05 = BABYLON.Mesh.CreateBox("*box05", 5, scene, false);
            box05.position = new BABYLON.Vector3(0, 5, 100);
            var box06 = BABYLON.Mesh.CreateBox("*box06", 5, scene, false);
            box06.position = new BABYLON.Vector3(30, 5, 100);
            var box07 = BABYLON.Mesh.CreateBox("*box07", 5, scene, false);
            box07.position = new BABYLON.Vector3(60, 5, 100);

            box04.material = boxMaterial;
            box05.material = boxMaterial;
            box06.material = boxMaterial;
            box07.material = boxMaterial;

            // Inclusions
            light04.includedOnlyMeshes.push(box04);
            light04.includedOnlyMeshes.push(ground11);

            light05.includedOnlyMeshes.push(box05);
            light05.includedOnlyMeshes.push(ground12);

            light06.includedOnlyMeshes.push(box06);
            light06.includedOnlyMeshes.push(ground13);

            light07.includedOnlyMeshes.push(box07);
            light07.includedOnlyMeshes.push(ground14);

            // Shadows
            var shadowGenerator04 = new BABYLON.ShadowGenerator(512, light04);
            shadowGenerator04.getShadowMap().renderList.push(box04);

            var shadowGenerator05 = new BABYLON.ShadowGenerator(512, light05);
            shadowGenerator05.getShadowMap().renderList.push(box05);
            shadowGenerator05.usePoissonSampling = true;

            var shadowGenerator06 = new BABYLON.ShadowGenerator(512, light06);
            shadowGenerator06.getShadowMap().renderList.push(box06);
            shadowGenerator06.useExponentialShadowMap = true;

            var shadowGenerator07 = new BABYLON.ShadowGenerator(512, light07);
            shadowGenerator07.getShadowMap().renderList.push(box07);
            shadowGenerator07.useBlurExponentialShadowMap = true;

            // Animations
            scene.registerBeforeRender(function () {

                //i++;
                if (i == 50) {
                    backgroundTexture.drawText("啊啊等我我", null, 80, "bold 50px Segoe UI", "white", "#555555");
                }
                //backgroundTexture.diffuseTexture
                console.log("now i is " + i);
                box00.rotation.x += 0.01;
                box00.rotation.z += 0.02;

                box01.rotation.x += 0.01;
                box01.rotation.z += 0.02;

                box02.rotation.x += 0.01;
                box02.rotation.z += 0.02;

                box03.rotation.x += 0.01;
                box03.rotation.z += 0.02;

                box04.rotation.x += 0.01;
                box04.rotation.z += 0.02;

                box05.rotation.x += 0.01;
                box05.rotation.z += 0.02;

                box06.rotation.x += 0.01;
                box06.rotation.z += 0.02;

                box07.rotation.x += 0.01;
                box07.rotation.z += 0.02;
            });

            // Adding labels
            var advancedTexture = BABYLON.GUI.AdvancedDynamicTexture.CreateFullscreenUI("UI");


            var addLabel = function (lights) {
                for (var i = 0; i
