vue+nodejs 将canvas发布到dlna投屏服务

投屏服务

投屏服务是要遵循一定得协议，如dlna，airplay ，miracast等协议，其中比较好用得是最为普及得dlna协议，其协议在大部分得大屏中是内置得。而里面又会包含其他得组播协议，如ssdp协议

向网络中得组播地址发送ssdp发现就可以发现所有局域网得大屏

var text = "M-SEARCH * HTTP/1.1\r\n
HOST:239.255.255.250:1900\r\n
MAN:\"ssdp:discover\"\r\n
ST:urn:schemas-upnp-org:device:MediaRenderer:1\r\n
MX:3\r\n\r\n";

    笔者用c++结合asio实现了dlna得整个协议，但是发现使用nodejs 更为方便，更节省时间，当然也可以用java，整个流程和原理都是一样得，使用更为高级得语言更为简洁，也有助于更为高效率地解决实际问题，抛开某些细节。     一下为nodejs得代码,为了测试，同时启动了一个ffmpeg进程去发送测试canvas，这个可以忽略。

/**
 *  Copyright (c) 2021-present, 钱波 蒙斯特咨询, Inc.
 *  All rights reserved.
 *
 */
const child_process = require('child_process');
const express = require('express');
const bodyParser = require('body-parser')
const WebSocketServer = require('ws').Server;
const http = require('http');
const url = require('url');
const SSDPClient = require('node-ssdp').Client
const MediaRendererClient = require('upnp-mediarenderer-client');
const xmlreader = require("xmlreader");


var ssdpclient = new SSDPClient();
var renderMap = new Map();
const app = express();
//设置跨域访问
app.all('*', function(req, res, next) {
  res.header("Access-Control-Allow-Origin", "*");
  res.header("Access-Control-Allow-Headers","content-type");
  //res.header("Access-Control-Allow-Headers", "X-Requested-With");
  res.header("Access-Control-Allow-Methods","PUT,POST,GET,DELETE,OPTIONS");

  //res.header("Content-Type", "application/json;charset=utf-8");
  //res.header('Access-Control-Allow-Credentials', true);
  res.header("")
  res.header("X-Powered-By",'3.2.1');
  if (req.method.toLowerCase() == 'options')
    res.send(200);  //让options尝试请求快速结束
  else
    next();
});
// parse application/x-www-form-urlencoded
app.use(bodyParser.urlencoded({ extended: false }))
// parse application/json
app.use(bodyParser.json())



app.use(express.static(__dirname + '/www'));

app.get("/",function(req,res){

  res.json({ret:"ok"});
});

app.get("/screen/upnp",function(req,res){
  var obj = [];
  var num = 0;
  renderMap.forEach(function (value, key, map) {
     obj.push({ip:key,name:value.LOCATION,fname:value.friendlyName});
     num++;
  });
  if(num > 0)
  {
     res.json({code:1, devices:obj});
  }
  else
     res.json({code:0,devices:[{ip:"not find",name:"not find"}]});
});

function URLAnalyse(url){
 //let url = obj.url;

 //记录屏幕链接的url
 const myURL = new URL(obj.url);
 //if(obj.xurl == undefined)
 //  return;
 let temp = myURL.pathname; //"/live/1001"
 let ss = temp.split(".");
 let xurl = temp;
 if(ss.length == 2)
    xurl = ss[0];
 console.log("xurl is :",xurl);

}
function start_post_screen(ip,url){

  var options = {
    autoplay: true,
    contentType: 'video/x-flv',
    metadata: {
      title: 'title',
      creator: 'qianbo',
      type: 'video', // can be 'video', 'audio' or 'image'
    }
  };

  console.log("ip is:",ip);
  let value = renderMap.get(ip);
  if(!value){
    console.log("can not find the ip of:",ip);
    return;
  }
  if (value.playing == true) {
    value.MediaRender.stop();
    value.playing = false;
  }
  if (value.playing == false) {
    value.playing = true;
    value.MediaRender.load(g_httpflvurl, options, function (err, result) {
      if (err) throw err;
      console.log('playing ...');
    });
  }
}
function stop_post_screen(ip){
  console.log("ip is:",ip);
  let value = renderMap.get(ip);
  if(!value){
    console.log("can not find the ip of:",ip);
    return;
  }
  if (value.playing == true) {
    value.MediaRender.stop();
    value.playing = false;
  }
}

//得到xml描述文件中的friendlyName
function get_describe_xml_fname(url,ip) {
  const myURL = new URL(url);
  //if(obj.xurl == undefined)
  //  return;
  //console.log(myURL);

  http.get({
      'host':myURL.hostname,
      path:myURL.pathname,
      port:myURL.port},
      function(res){
        res.setEncoding('utf-8');
        res.on('data',function(data){
          //console.log('服务端响应回来的数据为：'+data);
          xmlreader.read(data, function (errors, response) {
              if (null !== errors) {
                  console.log(errors)
                  return;
              }
              let fname = response.root.device.friendlyName.text();
              let value = renderMap.get(ip);
              if(value){
                value.friendlyName = fname;
              }
              //console.log(response.text());
          });
        });
   })
}


var g_httpflvurl = "http://192.168.0.129:8080/live/1001.flv";
app.post("/post/screen/start",function(req,res){
  console.log("/post/screen/start",req.body);

  let obj = req.body;
  let ip = obj.ip;
  if(ip.length == 0){
    console.log("stop it! ip length is 0");
  }

  for (let i = 0; i  {
   //以下为ffmpeg转发代码，省略


  ]);

  // If FFmpeg stops for any reason, close the WebSocket connection.
  ffmpeg.on('close', (code, signal) => {
    console.log('FFmpeg child process closed, code ' + code + ', signal ' + signal);
    ws.terminate();
  });

  // Handle STDIN pipe errors by logging to the console.
  // These errors most commonly occur when FFmpeg closes and there is still
  // data to write.  If left unhandled, the server will crash.
  ffmpeg.stdin.on('error', (e) => {
    console.log('FFmpeg STDIN INFO', e);
  });

  // FFmpeg outputs all of its messages to STDERR.  Let's log them to the console.
  ffmpeg.stderr.on('data', (data) => {
  //  console.log('FFmpeg STDERR:', data.toString());
  });




  // When data comes in from the WebSocket, write it to FFmpeg's STDIN.
  ws.on('message', (msg) => {
    if(typeof(msg) == 'string'){
      //msg.split
      //start 命令
      //stop  命令
    }
    else  {
      //二进制数据
      ffmpeg.stdin.write(msg);
    }
  });

  // If the client disconnects, stop FFmpeg.
  ws.on('close', (e) => {
    ffmpeg.kill('SIGINT');
    //关闭其中的一个
    renderMap.forEach(function (value, key, map) {
      //console.log(key,value);
      console.log(ws.xurl + "=>close");
      if(ws.xurl == value.xurl)
        value.MediaRender.stop();
   });
  });

});

vue前端

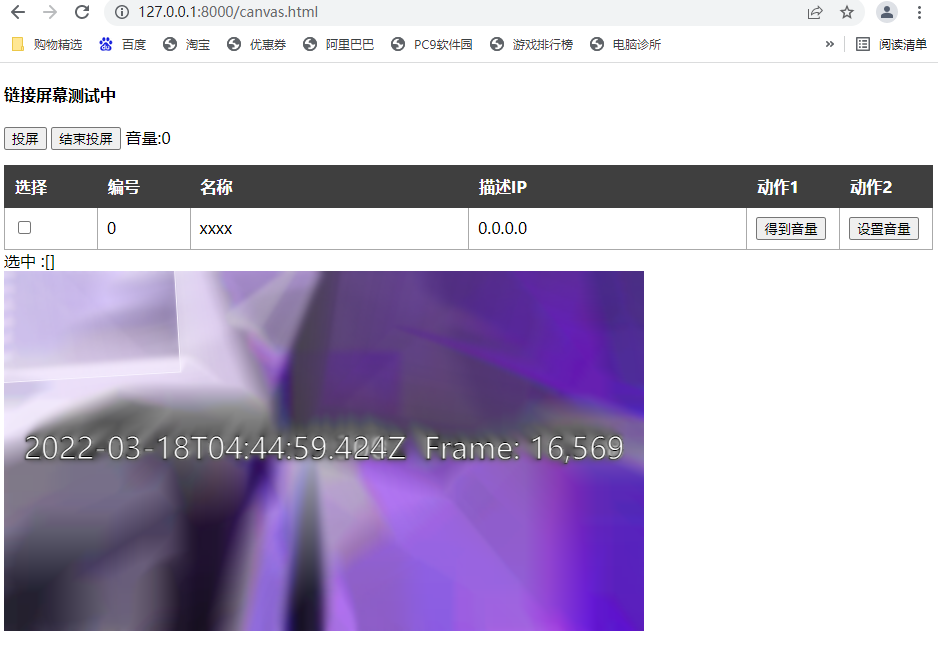

    vue前端就比较简单了，不是说vue简单，是做得简单，只是使用了vue.js 和 axios,截一个图上来，列表中会得到所有可以投屏得大屏，这样可以直接把rtsp，rtmp等服务直接投到大屏上，只要大屏支持就行，笔者测试得大屏对于这些协议都是支持得。

    整个流程是这样得，发布投屏时，使用canvas得captureStream 将h264编码通过websocket发送到服务端，服务端则将接收到得h264通过ffmpeg直接转发到流媒体服务器，为了简单示例是可以这么做得，但是注意要产品话，还是自己做一个ws得服务端去做融合转发，笔者在c++中是使用了自己得websocket服务器，使用asio制作，在笔者得文章中有全部得代码，自己可以找到，寻者获知。












    链接屏幕{{message}}
    投屏
    结束投屏
    音量:{{volumevalue}}



          选择
          编号
          名称
          描述IP
          动作1
          动作2



          {{index}}
          {{r.fname}}
          {{r.ip}}
          得到音量
          设置音量




    选中 :{{checkNames}}





  Array.prototype.indexOf = function (val) {
    for (var i = 0; i  -1) {
      this.splice(index, 1);
    }
  };
    var g_checkname = [];
    $(document).ready(function () {
      //发起请求
      //通过screen upnp协议获取所有硬件列表
      var g_url = "/live/1001";
      var g_wsobj ={} ;
      g_wsobj.connected = false;

      var g_mediaRecorder;
      var g_mediaStream;
      var vm = new Vue({
        el: '#post_screen',
        data: {
          message: '测试中',
          // ip: '192.168.0.102',
          // name: '电视',
          rows: [{ip:"0.0.0.0",name:"xxxx",fname:"xxxx"}],
          checkNames:[],
          volumevalue:0
        },

        methods:{
          selectNames(val){
            if(!event.target.checked){
              this.checkNames.remove(val);
            }else{
              if(this.checkNames.indexOf(val)==-1){
                this.checkNames.push(val);
              }
            }
            g_checkname = this.checkNames;
            console.log("g_checkname:",g_checkname);
          },
          getData(){
            //http://
            axios.get("/screen/upnp").then((_data)=>{
              this.rows = _data.data.devices;
            });
          },
          post_get_volume(ip) {
            let xdata = {ip:ip};
            axios.post("/post/screen/volume/get",xdata).then((_data)=>{
              this.volumevalue = _data.data.volume;
              //this.rows = _data.data.devices;
            });
            console.log(ip);
          },
          post_set_volume(ip,num){
            let xdata = {ip:ip,value:num};
            axios.post("/post/screen/volume/set",xdata).then((_data)=>{
              this.volumevalue = num;
              //this.rows = _data.data.devices;
            });
          },
          updateData(){
            setInterval(() => {
              axios.get("screen/upnp").then((_data)=>{
                //console.log(_data.data.devices);
                this.rows = _data.data.devices});
              },5000);
          }
        },
        created(){
            this.getData();
        },
        mounted(){
            this.updateData();
        },

      })



      $("#startpost").click(function(){
       // alert("startpost");
          let checklen = g_checkname.length;
          if(checklen == 0){
              alert("请选择投屏");
              return;
          }
          if (g_wsobj.connected == true) {
            g_wsobj.ws.close();
            g_wsobj.connected = false;
          }
          let addr = "ws://127.0.0.1:8088" + g_url;

          g_wsobj.ws = new WebSocket(addr);
          g_wsobj.ws.onopen = function () {
          console.log('WebSocket Open');
          g_wsobj.connected = true;
          //return;
          g_mediaStream = document.querySelector('canvas').captureStream(20); // 10 FPS
          g_mediaRecorder = new MediaRecorder(g_mediaStream, {
            mimeType: 'video/webm;codecs=h264',
            videoBitsPerSecond: 500000
          });

          g_mediaRecorder.addEventListener('dataavailable', (e) => {
            console.log("data here");

            if (g_wsobj.connected = true)
              g_wsobj.ws.send(e.data);
          });


          g_mediaRecorder.start(1000); // Start recording, and dump data every second


          let xdata = {ip:g_checkname,url:"live/1001.flv"};
          axios.post("/post/screen/start", xdata).then(res => {
              console.log('res=>', res);
          });

          // for (let j = 0; j < checklen; j++) {
          //     let sip = g_checkname[j];
          //     console.log("let the ip :",sip);
          //     let xdata = { ip: sip, url: "http://192.168.0.129:8080" + g_url + ".flv" };
          //     axios.post("/post/screen/start", xdata).then(res => {
          //       console.log('res=>', res);
          //     });
          // }
        }
        ///
        g_wsobj.ws.onmessage = function (evt) {

        };


        g_wsobj.ws.onclose = function () {
          console.log('WebSocket Close finished');
          g_wsobj.connected = false;

          g_mediaRecorder.stop();
        };
      ///
    }); //startpost click
//
    $("#stoppost").click(function(){
      //alert("stoppost");
      //let data = { xurl: g_url };
      let xdata = {ip:g_checkname};
      axios.post("/post/screen/stop",xdata).then(res=>{
        console.log('res=>',res);
      });
      if(g_wsobj.connected == true)
      {
         g_wsobj.ws.close();
      }
    })
///

  });

结论

     结论就是：如果读者您需要真得获取协议上面得知识，建议使用c或者c++去实现一遍，包括使用抓包工具去整个做实现，笔者使用过几个开源得upnp协议包，不是出现这个问题，就是出现那个问题，最后自己实现了，反而将程序极简化，因为事实上，协议只是协议，并不是实现，实现是要做结合，懂得架构知识体系，最终一句话，做一个产品是不简单得。
