babylon 里面加gltf 模型

babylonjs 高光

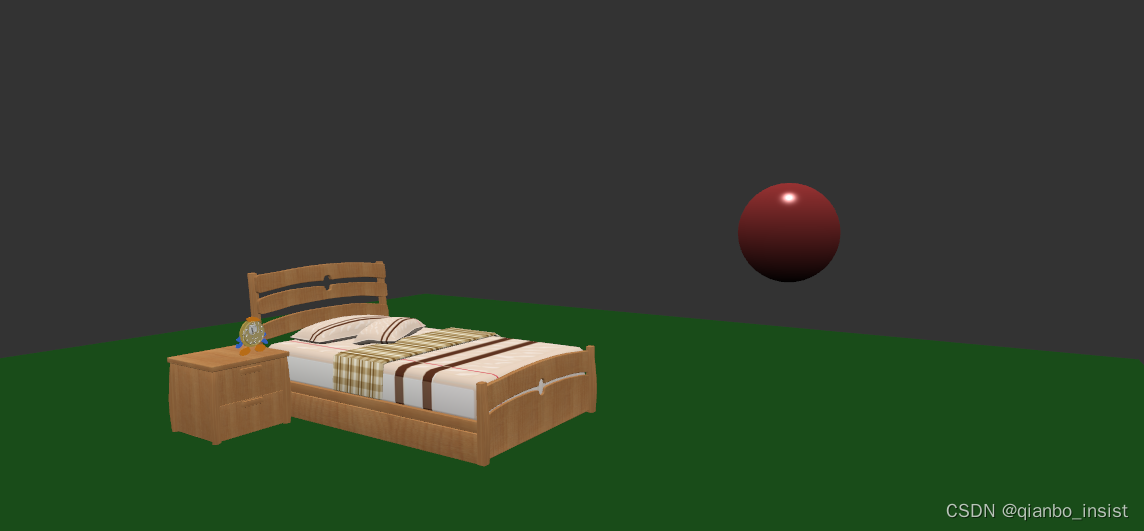

先上图看结果，好看很多

DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

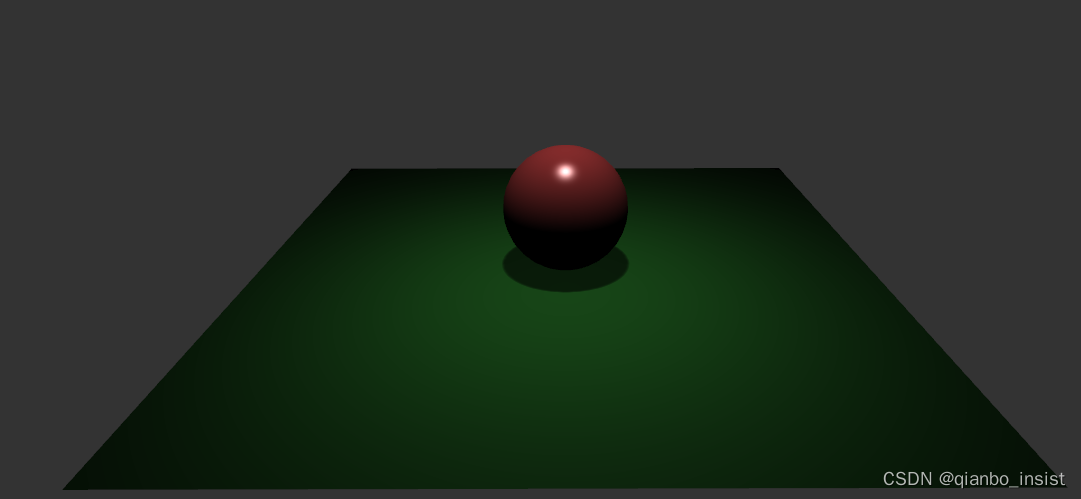

Babylon.js实例学习：创建基础材料和阴影

html,
body {
    overflow: hidden;
    width: 100%;
    height: 100%;
    margin: 0;
}
canvas {
    width: 100%;
    height: 100%;
    -ms-touch-action: none;
    touch-action: none;
}






var canvas = document.querySelector("canvas");
var engine = new BABYLON.Engine(canvas, true);

var scene = new BABYLON.Scene(engine);
scene.clearColor = new BABYLON.Color3(0.2, 0.2, 0.2);

var camera = new BABYLON.FreeCamera("mainCamera", new BABYLON.Vector3(0, 5, -10), scene);
camera.setTarget(BABYLON.Vector3.Zero());
camera.attachControl(canvas, false);

var light = new BABYLON.SpotLight("light", new BABYLON.Vector3(0, 14, -1), new BABYLON.Vector3(0, -1, 0), 1, 16, scene);
light.intensity = 0.9;

var sphereMaterial = new BABYLON.StandardMaterial("sphereMaterial", scene);
sphereMaterial.diffuseColor = new BABYLON.Color3(0.6, 0.2, 0.2);
sphereMaterial.specularPower = 128;

var sphere = BABYLON.Mesh.CreateSphere("sphere", 16, 2, scene);
sphere.position.y = 1;
sphere.material = sphereMaterial;

var groundMaterial = new BABYLON.StandardMaterial("groundMaterial", scene);
groundMaterial.diffuseColor = new BABYLON.Color3(0.1, 0.3, 0.1);

var ground = BABYLON.Mesh.CreateGround("ground", 10, 10, 2, scene);
ground.material = groundMaterial;
ground.receiveShadows = true;

var shadowGenerator = new BABYLON.ShadowGenerator(1024, light);
shadowGenerator.setDarkness(0.4);
shadowGenerator.getShadowMap().renderList.push(sphere);
shadowGenerator.useBlurVarianceShadowMap = true;
shadowGenerator.blurScale = 2;
shadowGenerator.bias = 0.01;

engine.runRenderLoop(function() {
    scene.render();
});

window.addEventListener("resize", function() {
    engine.resize();
})

天空盒

 var skybox = BABYLON.Mesh.CreateBox("skyBox", 6000.0, scene);
      var skyboxMaterial = new BABYLON.StandardMaterial("skyBox", scene);
      skyboxMaterial.backFaceCulling = false;
      skyboxMaterial.reflectionTexture = new BABYLON.CubeTexture("TropicalSunnyDay/TropicalSunnyDay", scene);
      skyboxMaterial.reflectionTexture.coordinatesMode = BABYLON.Texture.SKYBOX_MODE;
      skyboxMaterial.diffuseColor = new BABYLON.Color3(0, 0, 0);
      skyboxMaterial.specularColor = new BABYLON.Color3(0, 0, 0);
      skyboxMaterial.disableLighting = true;
      skybox.material = skyboxMaterial;

加载模型文件

babylonjs里面加模型文件等等比较简单

var delayCreateScene = function () {
    // Create a scene.
    var scene = new BABYLON.Scene(engine);

    // Create a default skybox with an environment.
    var hdrTexture = BABYLON.CubeTexture.CreateFromPrefilteredData("textures/environment.dds", scene);
    var currentSkybox = scene.createDefaultSkybox(hdrTexture, true);

    // Append glTF model to scene.
    BABYLON.SceneLoader.Append("scenes/BoomBox/", "BoomBox.gltf", scene, function (scene) {
        // Create a default arc rotate camera and light.
        scene.createDefaultCameraOrLight(true, true, true);

        // The default camera looks at the back of the asset.
        // Rotate the camera by 180 degrees to the front of the asset.
        scene.activeCamera.alpha += Math.PI;
    });

    return scene;
};

code

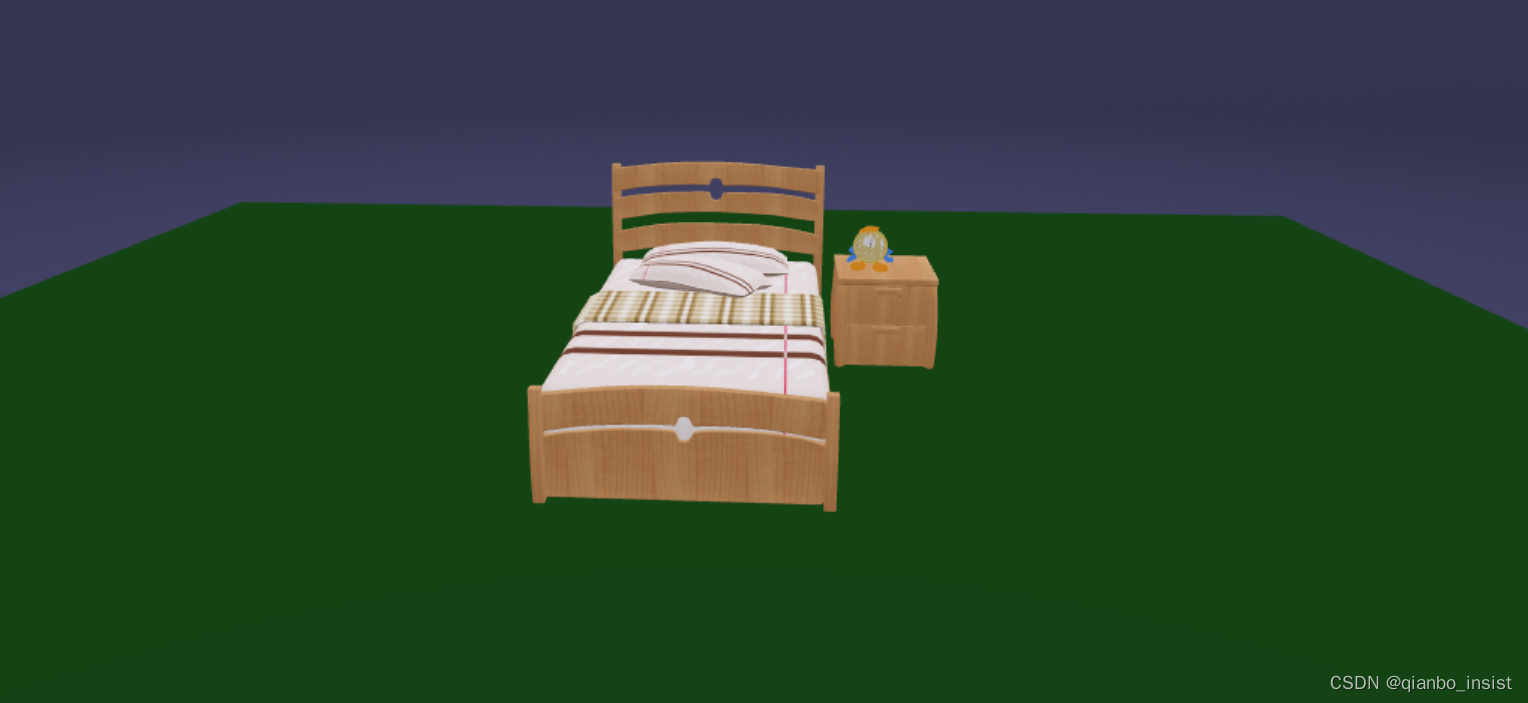

不使用天空盒，使用默认环境，如下图所示

DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">



Babylon.js

html,
body {
    overflow: hidden;
    width: 100%;
    height: 100%;
    margin: 0;
}
canvas {
    width: 100%;
    height: 100%;
    -ms-touch-action: none;
    touch-action: none;
}








var canvas = document.querySelector("canvas");
var engine = new BABYLON.Engine(canvas, true);

var scene = new BABYLON.Scene(engine);
scene.clearColor = new BABYLON.Color3(0.2, 0.2, 0.2);

var camera = new BABYLON.FreeCamera("mainCamera", new BABYLON.Vector3(0, 5, -10), scene);
camera.setTarget(BABYLON.Vector3.Zero());
camera.attachControl(canvas, false);

var light = new BABYLON.SpotLight("light", new BABYLON.Vector3(0, 14, -1), new BABYLON.Vector3(0, -1, 0), 1, 16, scene);
light.intensity = 0.9;

var sphereMaterial = new BABYLON.StandardMaterial("sphereMaterial", scene);
sphereMaterial.diffuseColor = new BABYLON.Color3(0.6, 0.2, 0.2);
sphereMaterial.specularPower = 128;

var sphere = BABYLON.Mesh.CreateSphere("sphere", 16, 2, scene);
sphere.position.y = 1;
sphere.position.x = -10;
sphere.material = sphereMaterial;

var groundMaterial = new BABYLON.StandardMaterial("groundMaterial", scene);
groundMaterial.diffuseColor = new BABYLON.Color3(0.1, 0.3, 0.1);

var ground = BABYLON.Mesh.CreateGround("ground", 1000, 1000, 2, scene);
ground.material = groundMaterial;
ground.receiveShadows = true;

var shadowGenerator = new BABYLON.ShadowGenerator(1024, light);
shadowGenerator.setDarkness(0.4);
shadowGenerator.getShadowMap().renderList.push(sphere);
shadowGenerator.useBlurVarianceShadowMap = true;
shadowGenerator.blurScale = 2;
shadowGenerator.bias = 0.01;
  // Append glTF model to scene.

  BABYLON.SceneLoader.ImportMeshAsync("", "/bed/", "bed.gltf").then((result)=>{
    result.meshes[0].position.x = 10;
    result.meshes[0].position.y = 0;
   // const myMesh1 = scene.getMeshByName("myMesh_1");
   result.meshes[0].scaling = new BABYLON.Vector3(100,100,100);
//或者单独赋值

    //result.meshes[0].rotation.y = Math.PI / 2;
    scene.createDefaultCameraOrLight(true, true, true);
    scene.createDefaultEnvironment();
    scene.activeCamera.position.y +=100;
   // scene.activeCamera.setPosition(new BABYLON.Vector3(10,420,10));
   // scene.activeCamera.setTarget(new BABYLON.Vector3(0,0,0));
  }); //Name of the

//   BABYLON.SceneLoader.Append("/bed/", "bed.gltf", scene, function (scene) {
//         // Create a default arc rotate camera and light.
//         scene.createDefaultCameraOrLight(true, true, true);

//         // The default camera looks at the back of the asset.
//         // Rotate the camera by 180 degrees to the front of the asset.
//         //scene.activeCamera.alpha += Math.PI;
//     });


    // var skybox = BABYLON.Mesh.CreateBox("skyBox", 2500.0, scene);
    //   var skyboxMaterial = new BABYLON.StandardMaterial("skyBox", scene);
    //   skyboxMaterial.backFaceCulling = false;
    //   skyboxMaterial.reflectionTexture = new BABYLON.CubeTexture("textures/TropicalSunnyDay", scene);
    //   skyboxMaterial.reflectionTexture.coordinatesMode = BABYLON.Texture.SKYBOX_MODE;
    //   skyboxMaterial.diffuseColor = new BABYLON.Color3(0, 0, 0);
    //   skyboxMaterial.specularColor = new BABYLON.Color3(0, 0, 0);
    //   skyboxMaterial.disableLighting = true;
    //   skybox.material = skyboxMaterial;



engine.runRenderLoop(function() {
    scene.render();
});

window.addEventListener("resize", function() {
    engine.resize();
})
