静态路由配置

静态路由配置 环境配置:

Packet Tracer 路由器 --2811

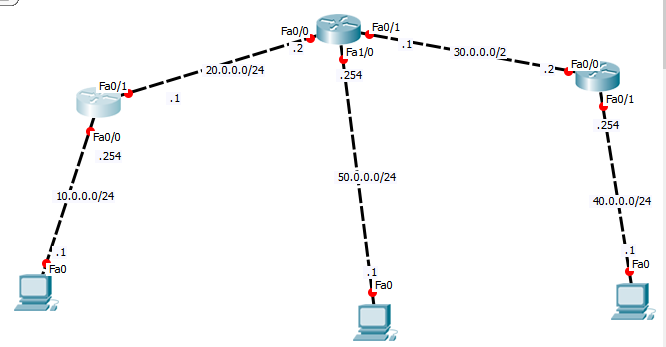

第一步:搭建拓扑

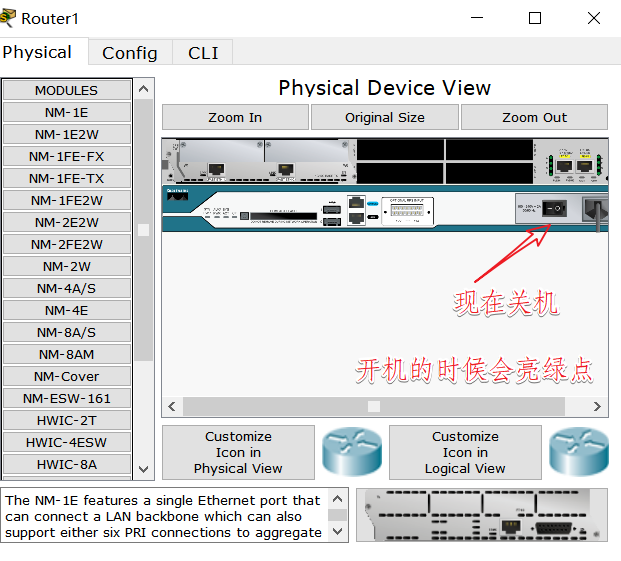

注意:中间路由器需要添加网卡 先关机–>添加NM-2FE2W

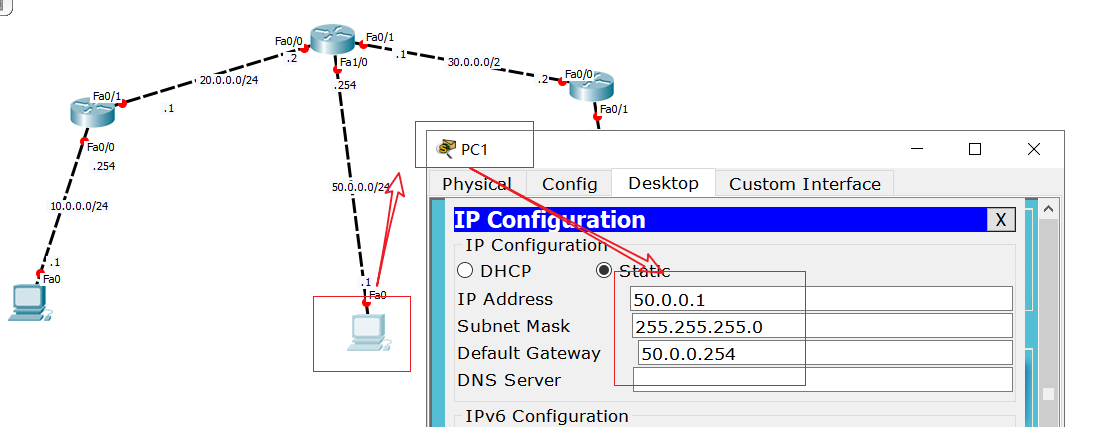

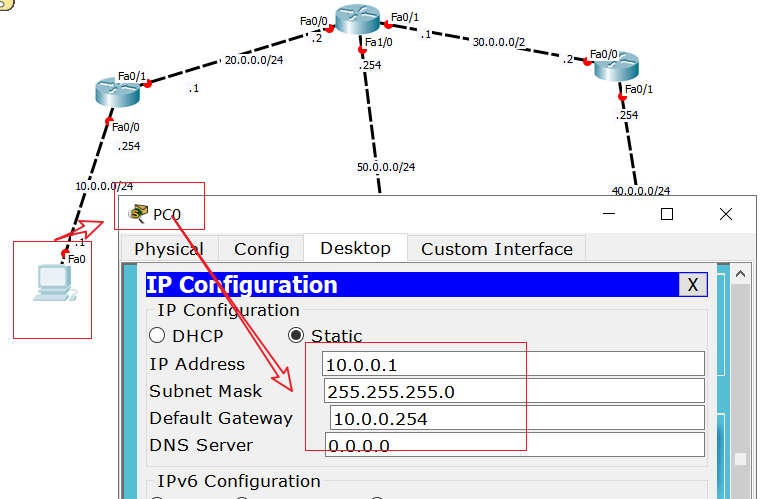

第二步:配置ip 主机IP配置

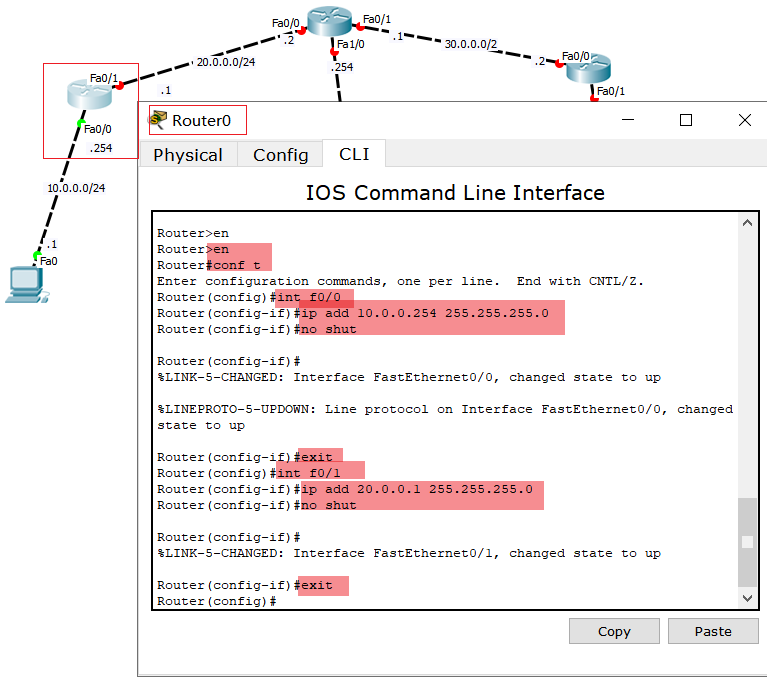

##### 左边路由器配置

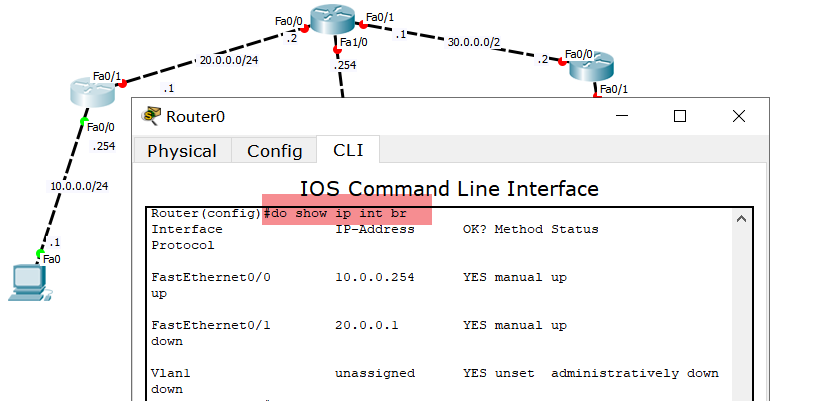

no enable configure terminal int f0/0 ip add 10.0.0.254 255.255.255.0 no shutdown exit int f0/1 ip add 20.0.0.1 255.255.255.0 no shutdown exit do show ip int brief

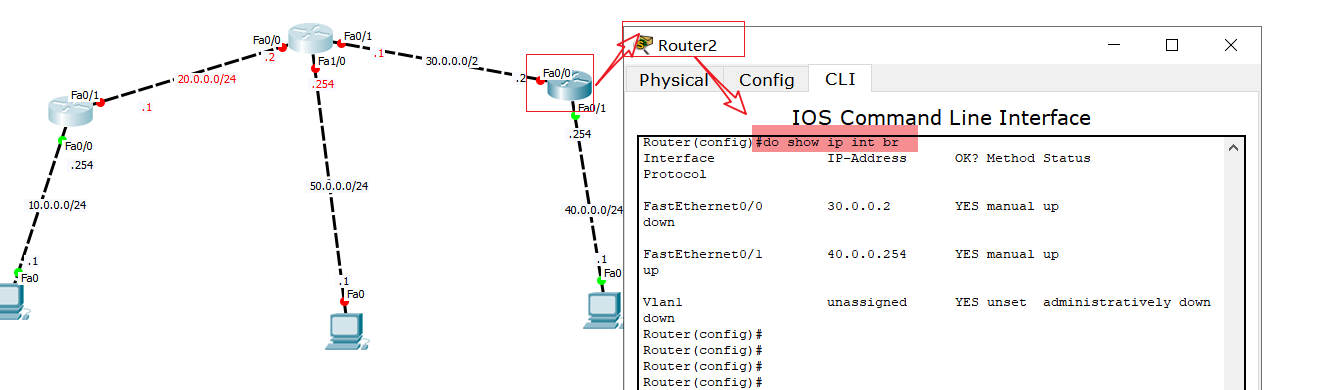

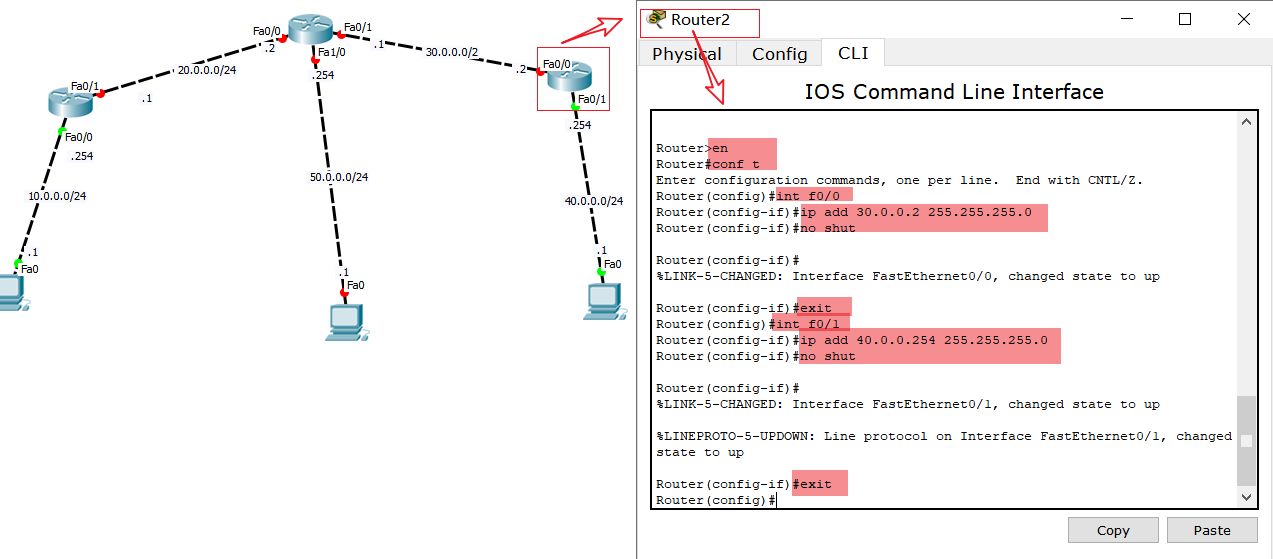

##### 右边路由器配置

no enable configure terminal int f0/0 ip add 30.0.0.2 255.255.255.0 no shutdown exit int f0/1 ip add 40.0.0.254 255.255.255.0 no shutdown exit do show ip int brief

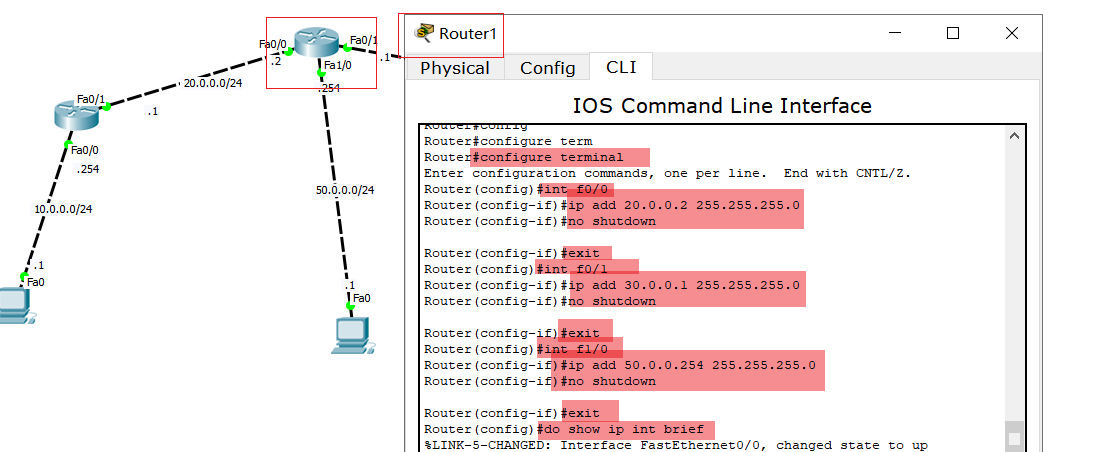

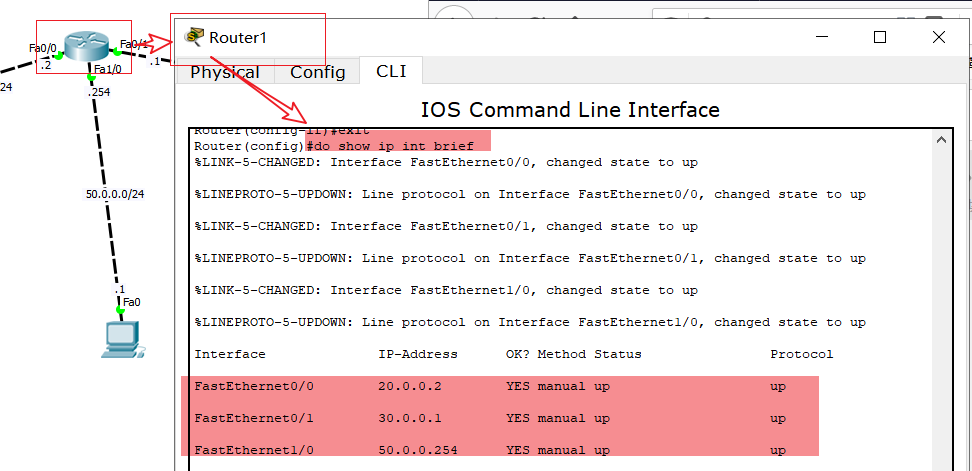

##### 中间路由器配置

no enable configure terminal int f0/0 ip add 20.0.0.2 255.255.255.0 no shutdown exit int f0/1 ip add 30.0.0.1 255.255.255.0 no shutdown exit int f1/0 ip add 50.0.0.254 255.255.255.0 no shutdown exit do show ip int brief

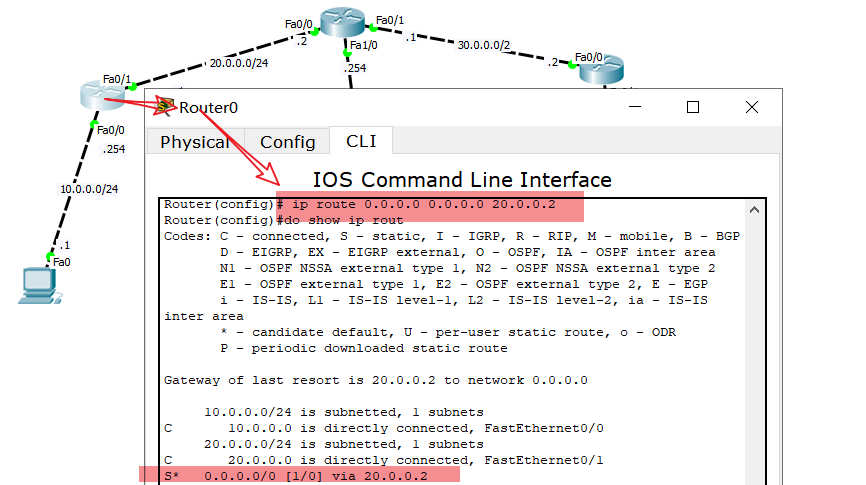

第三步:配置路由 左边路由器配置

ip route 0.0.0.0 0.0.0.0 20.0.0.2 do show ip rout

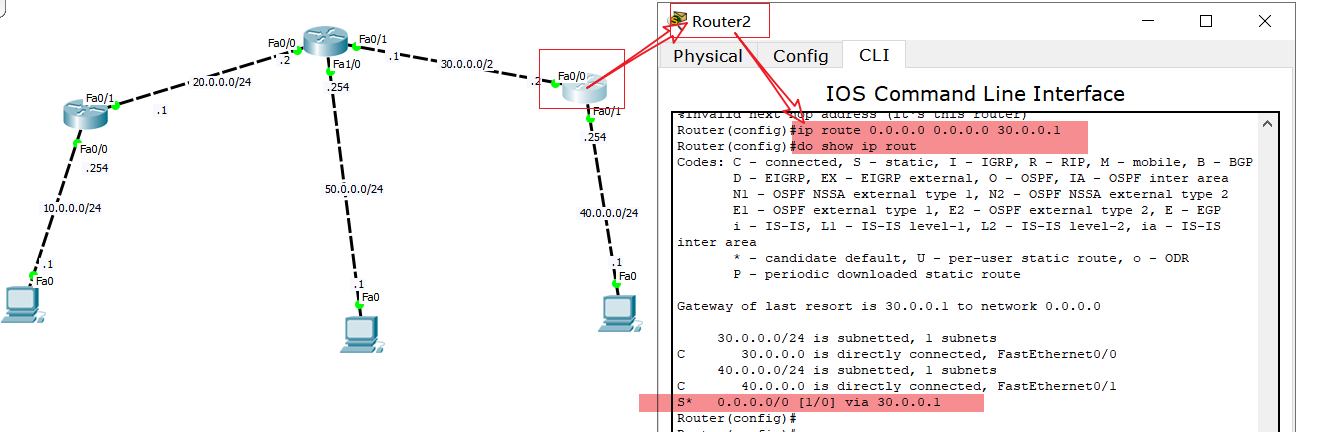

右边路由器配置

ip route 0.0.0.0 0.0.0.0 30.0.0.1 do show ip rout

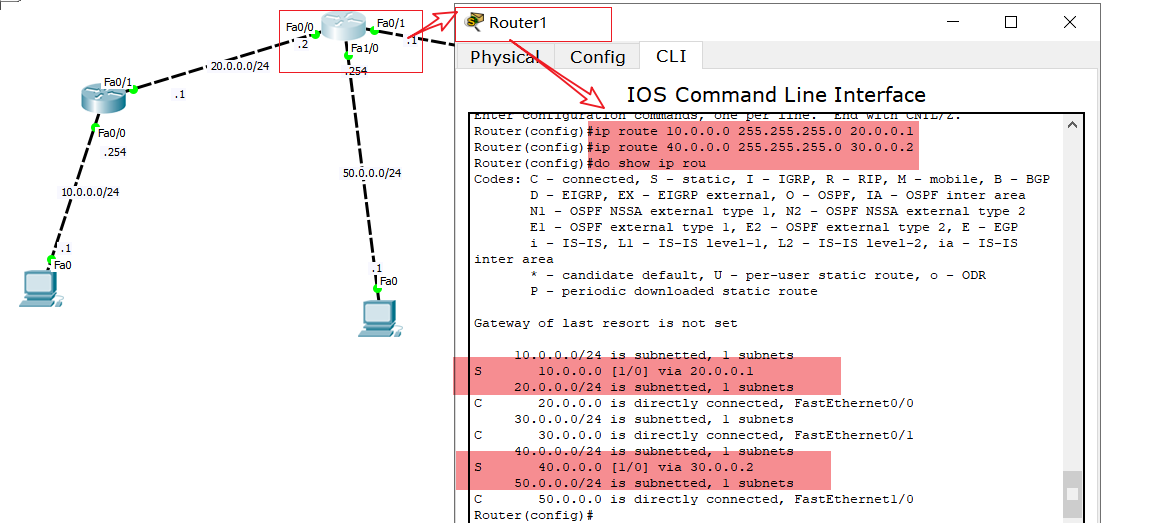

中间路由器配置

Router(config)#ip route 10.0.0.0 255.255.255.0 20.0.0.1 Router(config)#ip route 40.0.0.0 255.255.255.0 30.0.0.2 Router(config)#do show ip rou

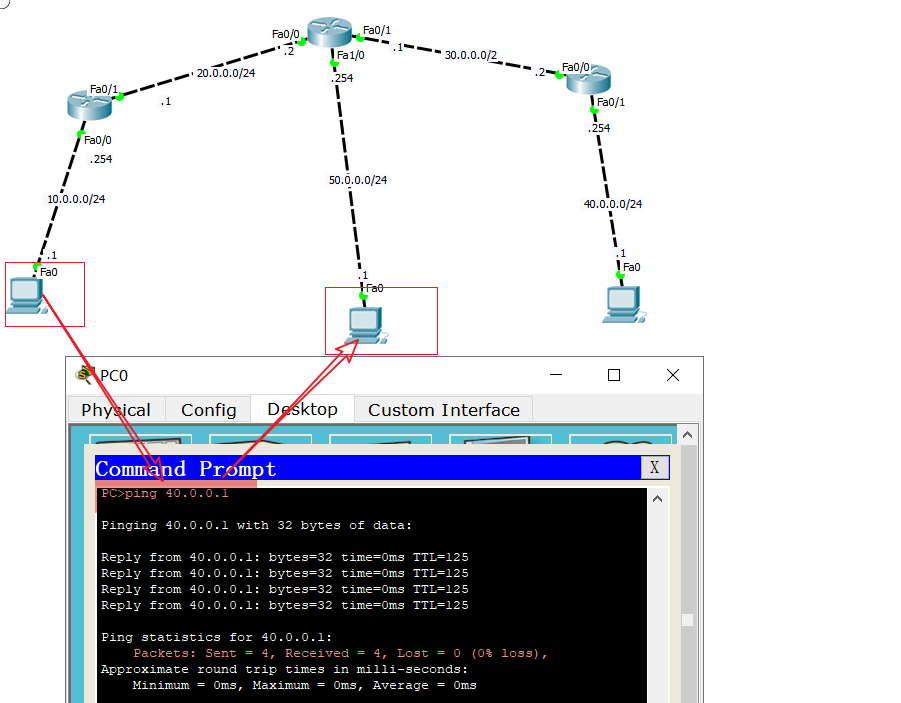

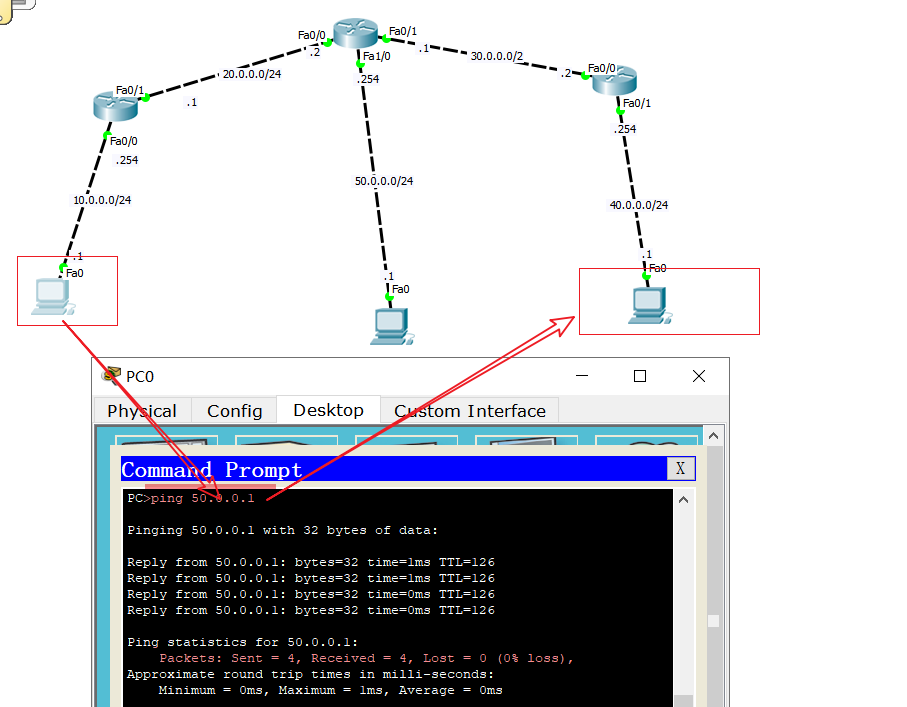

第四步:检查网络状态
