EPLAN元件符号--电机保护开关

光怪陆离的节日发布时间：2020-12-10 07:59:31 ，浏览量：1

1、新建一个多线原理图

在这里插入图片描述

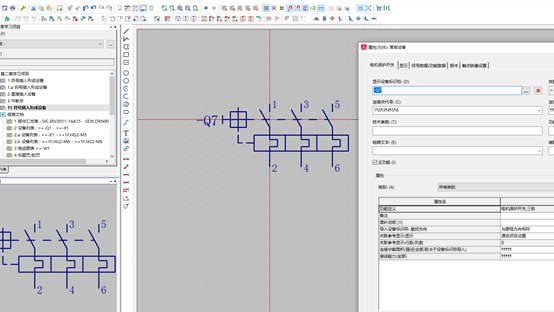

2、插入—》符号—》安全开关—》电机保护开关。添加如下按下tab键可旋转方向

在这里插入图片描述

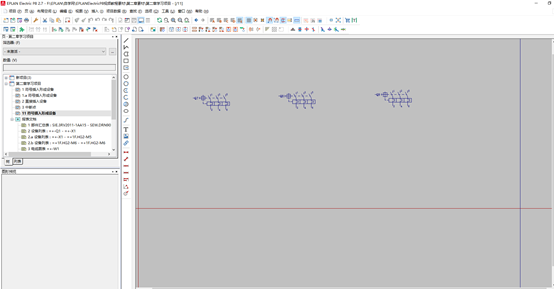

3\添加3个

在这里插入图片描述
