EPLAN结构盒使用

光怪陆离的节日发布时间：2020-12-12 07:58:42 ，浏览量：3

1、结构盒：把一类的电气元件圈起来，做结构上规范。在这里插入图片描述

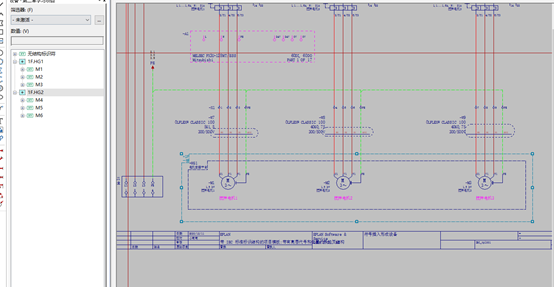

2、如下插入了两个结构盒：HG1和1F 在这里插入图片描述

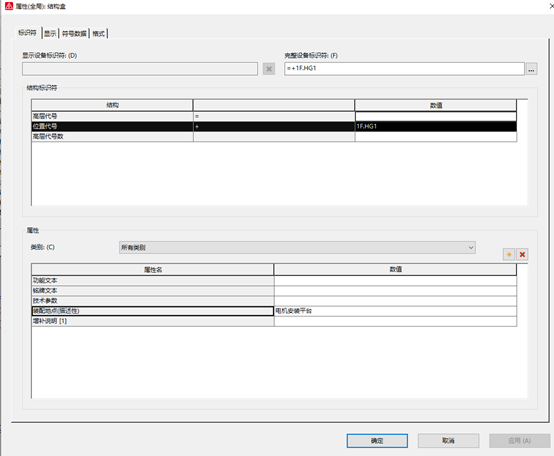

3、HG1定义在这里插入图片描述

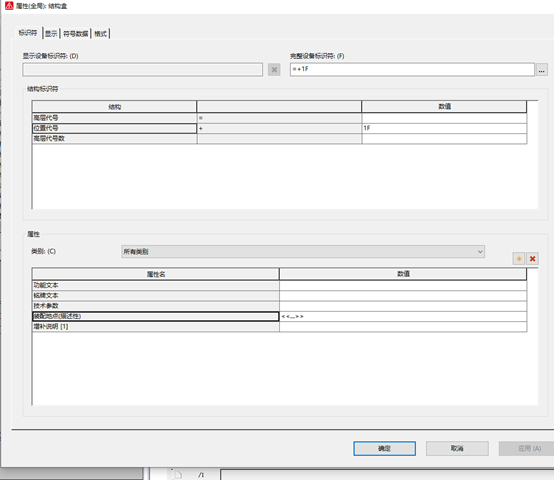

1F定义在这里插入图片描述

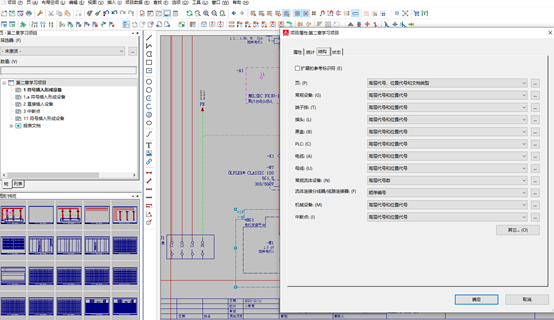

3、工程参数更改：右边目录树项目—》属性—》结构

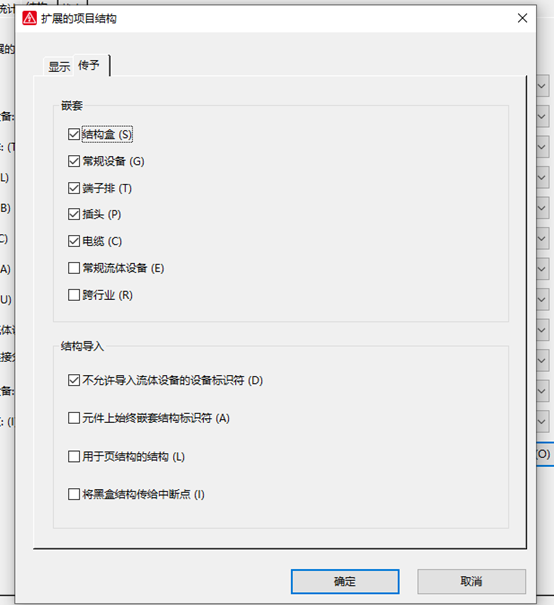

把结构盒勾选上

在这里插入图片描述

4、项目数据—》设备—》导航器

在这里插入图片描述
