EPLAN中断点使用方法1

光怪陆离的节日发布时间：2020-12-12 07:59:26 ，浏览量：1

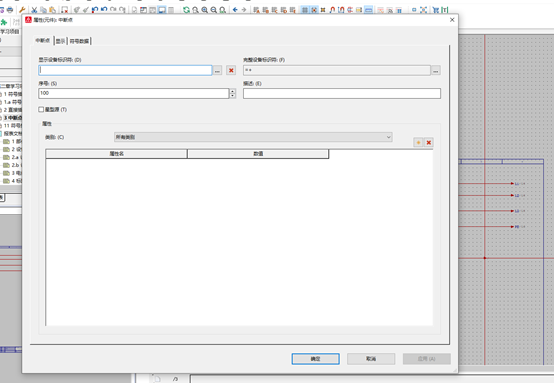

1、中断点：一张电路图，从外部引入或者引出需要用到中断点。在这里插入图片描述

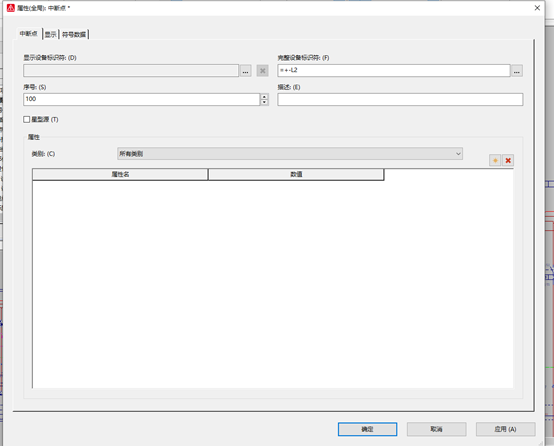

2、添加中断点在这里插入图片描述

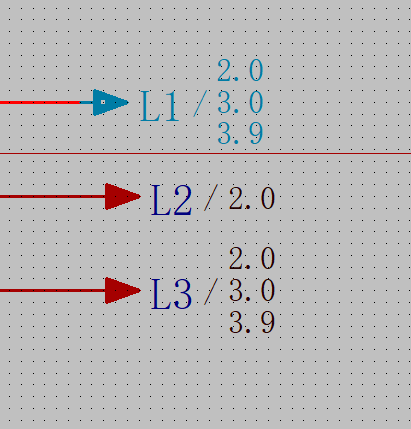

3、勾选星源型，则，源头会显示线去了哪几个位置

在这里插入图片描述
